1. Protein Identity and Related Structures Protein Identity & Related Structures

Ion transport protein

Arcobacter butzleri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 8 1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 13 PHOSPHATE ION × 4 CHLORIDE ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A8EVM5_ARCB4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–285； UniProt 1–267 Author chain B； PDBConstruct 19–285； UniProt 1–267 Author chain C； PDBConstruct 19–285； UniProt 1–267 Author chain D； PDBConstruct 19–285； UniProt 1–267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5vb2
Deposition date deposition_date	2017-03-28
Structure title title	Crystal structure of the NavAb voltage-gated sodium channel in a closed conformation
Keywords keywords	voltage-gated sodium channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5vb2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5vb2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

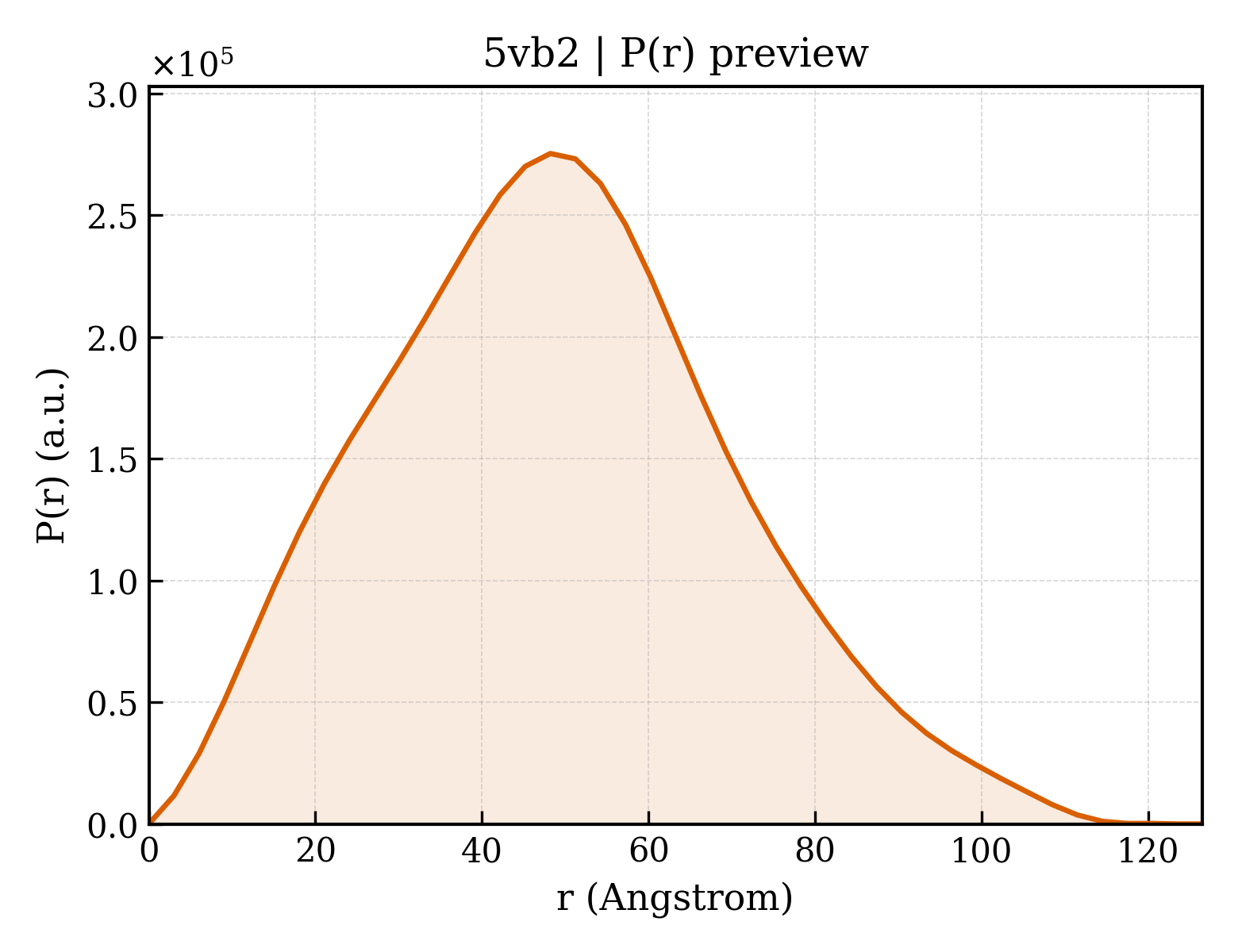

5vb2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.76 Å
Rg (electron density)	36.04 Å
Total Rg	36.16 Å
Atom count	17416
Residues	1050
Excluded volume	161300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5vb2__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ion transport protein
Molecular weight formula_weight	33225.2 kDa
Mutation mutation	T206F, V213Y
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	17438

MDYKDDDDKGSLVPRGSHMYLRITNIVESSFFTKFIIYLIVLNGITMGLETSKTFMQSFGVYTTLFNQIVITIFTIEIILRIYVHRISFFKDPWSLFDFFVVAISLVPTSSGFEILRVLRVLRLFRLVTAVPQMRKIVSALISVIPGMLSVIALMTLFFYIFAIMATQLFGERFPEWFGTLGESFYTLFQVMTLESWSMGIVRPLMEVYPYAWVFFIPFIFVVFFVMINLYVAIIVDAMAILNQKEEQHIIDEVQSHEDNINNEIIKLREEIVELKELIKTSLKN

Source Source

Source organism organism	Arcobacter butzleri
NCBI taxonomy ID ncbi_taxonomy_id	28197
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE
Molecular weight formula_weight	614.9 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	678.9 kDa
Source method src_method	syn
Copy count entity_count	13

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	22

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	5vb2A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	5vb2A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	5vb2B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	5vb2B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	5vb2C01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	5vb2C02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	5vb2D01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	5vb2D02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

▶

Unit-cell length a length_a	125.963 Å
Unit-cell length b length_b	129.853 Å
Unit-cell length c length_c	196.128 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	29.630 Å
R factor r_factor	0.2350
R_work r_work	0.2330
R_free r_free	0.2660
