5vkk

Crystal structure of Fab fragment of anti-CD22 Epratuzumab

Method: X-RAY DIFFRACTION D_max: 99.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Epratuzumab Fab Heavy Chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 132–245	Not recorded	Epratuzumab Fab Light Chain × 1 （Q8TCD0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；293 K；85 mM Tris, pH 8.5, 25.5% PEG 4000 (w/v), 170 mM sodium acetate and 15% glycerol	Resolution 2.01 Å R-free 0.237
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 132–245	Not recorded	Epratuzumab Fab Light Chain × 1 （Q8TCD0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；293 K；85 mM Tris, pH 8.5, 25.5% PEG 4000 (w/v), 170 mM sodium acetate and 15% glycerol	Resolution 2.01 Å R-free 0.237

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5VKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1U6A Crystal Structure of the Broadly Neutralizing Anti-HIV Fab F105 Deposited 2004-07-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 21–243（223 aa） Fragment：ANTIGEN-BINDING FRAGMENT, FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；PEG 4000, ISOPROPANOL, NACL, NA-CITRATE, PEPTIDE 44 (RLTPEPDD-NH2), pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.81 Å R-free 0.251
2OQJ Crystal structure analysis of Fab 2G12 in complex with peptide 2G12.1 Deposited 2007-01-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 20–243（224 aa） Chain E 20–243（224 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；1.33M Na/K phosphate, 0.2M isopropanol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.K	Resolution 2.80 Å R-free 0.275
2OQJ Crystal structure analysis of Fab 2G12 in complex with peptide 2G12.1 Deposited 2007-01-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain H 20–243（224 aa） Chain K 20–243（224 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；1.33M Na/K phosphate, 0.2M isopropanol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.K	Resolution 2.80 Å R-free 0.275
2OQJ Crystal structure analysis of Fab 2G12 in complex with peptide 2G12.1 Deposited 2007-01-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 20–243（224 aa） Chain E 20–243（224 aa） Chain H 20–243（224 aa） Chain K 20–243（224 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；1.33M Na/K phosphate, 0.2M isopropanol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.K	Resolution 2.80 Å R-free 0.275
3MNV Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment Deposited 2010-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 143–243（101 aa） Fragment：FUSION PROTEIN between mouse Fv and a human Fc	Not recorded	SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；Qiagen AmSO4 suite, reservoir: 2.2 M ammonium sulfate, 0.2 M lithium nitrate. Drop: 0.5 uL protein + 0.5 uL reservoir., VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.228
3MNV Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment Deposited 2010-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 143–243（101 aa） Fragment：FUSION PROTEIN between mouse Fv and a human Fc	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；Qiagen AmSO4 suite, reservoir: 2.2 M ammonium sulfate, 0.2 M lithium nitrate. Drop: 0.5 uL protein + 0.5 uL reservoir., VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.228
3QCT Crystal structure of the humanized apo LT3015 anti-lysophosphatidic acid antibody Fab fragment Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 139–243（105 aa）	Not recorded	SO4 SULFATE ION × 2 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES sodium pH 7.5, 2% PEG 400 (v/v), and 1.75 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.15 Å R-free 0.287
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 139–243（105 aa）	Not recorded	NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.98 Å R-free 0.252
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 139–243（105 aa）	Not recorded	NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.98 Å R-free 0.252
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 139–243（105 aa）	Not recorded	18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.51 Å R-free 0.266
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 139–243（105 aa）	Not recorded	18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.51 Å R-free 0.266
4NM4 Crystal structure of broadly neutralizing antibody CR8043 Deposited 2013-11-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 151–245（95 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 6000, 0.1 M HEPES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.232
4NM4 Crystal structure of broadly neutralizing antibody CR8043 Deposited 2013-11-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 151–245（95 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 6000, 0.1 M HEPES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.232
4NM8 Crystal structure of broadly neutralizing antibody CR8043 bound to H3 influenza hemagglutinin Deposited 2013-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 151–245（95 aa） Chain I 151–245（95 aa） Chain J 151–245（95 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；2.2 M ammonium sulfate, 0.1 M sodium acetate pH 5.5, 3% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 4.00 Å R-free 0.292
4NUJ Crystal structure of HIV-1 broadly neutralizing antibody PGT152 Deposited 2013-12-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 128–247（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.2；293.15 K；40% PEG 600, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, temperature 293.15K	Resolution 1.83 Å R-free 0.210
5EWI Crystal Structure of the Human Fab VRC38.01, an HIV-1 V1V2-Directed Neutralizing Antibody Isolated from Donor N90 Deposited 2015-11-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 135–247（113 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；14% PEG400, 13% PEG8000, 0.1M Tris pH 8.5, 0.1M MgCl, No Cryo	Resolution 1.60 Å R-free 0.202
5UG0 Human antibody H2897 in complex with influenza hemagglutinin H1 Solomon Islands/03/2006 Deposited 2017-01-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain D 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；10% w/v PEG8000, 100 mM HEPES	Resolution 3.40 Å R-free 0.278
5W1M MACV GP1 CR1-07 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 143–245（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 5.5；297 K；1.8 M AmSO4 and 100 mM NaCitrate pH 5.5.	Resolution 3.91 Å R-free 0.264
5W1M MACV GP1 CR1-07 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 143–245（103 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 5.5；297 K；1.8 M AmSO4 and 100 mM NaCitrate pH 5.5.	Resolution 3.91 Å R-free 0.264
5W1M MACV GP1 CR1-07 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 143–245（103 aa）	Not recorded	BMA beta-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 5.5；297 K；1.8 M AmSO4 and 100 mM NaCitrate pH 5.5.	Resolution 3.91 Å R-free 0.264
5W1M MACV GP1 CR1-07 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 143–245（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 5.5；297 K；1.8 M AmSO4 and 100 mM NaCitrate pH 5.5.	Resolution 3.91 Å R-free 0.264
5W42 Crystal structure of human monoclonal antibody H3v-47 in complex with influenza virus hemagglutinin from A/Minnesota/11/2010 (H3N2) Deposited 2017-06-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 138–245（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% (v/v) 2-methyl-2,4-pentanediol (MPD), 0.1M MES (pH 5.0)	Resolution 3.57 Å R-free 0.228
5WKO Crystal structure of antibody 27F3 recognizing the HA from A/California/04/2009 (H1N1) influenza virus Deposited 2017-07-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 135–244（110 aa） Chain E 135–244（110 aa） Chain I 135–244（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；1.6 M ammonium sulfate, 0.1 M citric acid pH 4.0	Resolution 3.49 Å R-free 0.268
5WKO Crystal structure of antibody 27F3 recognizing the HA from A/California/04/2009 (H1N1) influenza virus Deposited 2017-07-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric	Chain C 135–244（110 aa） Chain G 135–244（110 aa） Chain K 135–244（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；1.6 M ammonium sulfate, 0.1 M citric acid pH 4.0	Resolution 3.49 Å R-free 0.268
5XRQ Crystal structure of human monoclonal antibody H3v-47 Deposited 2017-06-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 138–245（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；20% (w/v) polyethylene glycol (PEG) 6000, 0.1 M sodium citrate (pH 5.0)	Resolution 2.60 Å R-free 0.214
5XRQ Crystal structure of human monoclonal antibody H3v-47 Deposited 2017-06-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 138–245（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；20% (w/v) polyethylene glycol (PEG) 6000, 0.1 M sodium citrate (pH 5.0)	Resolution 2.60 Å R-free 0.214
6DC3 RSV prefusion F bound to RSD5 Fab Deposited 2018-05-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 132–245（114 aa）	Not recorded	SO4 SULFATE ION × 13 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.8 M Lithium sulfate, 0.1 M Tris pH 8.0	Resolution 3.50 Å R-free 0.205
6V8Z VRC03 and 10-1074 Bound BG505 F14 HIV-1 SOSIP Envelope Trimer Structure Deposited 2019-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain D 138–245（108 aa） Chain J 138–245（108 aa） Chain P 138–245（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

17 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6N089_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 106–219； UniProt 132–245 Author chain H； PDBConstruct 106–219； UniProt 132–245

Epratuzumab Fab Light Chain

Homo sapiens

UniProt Q8TCD0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 126–239	Not recorded	Epratuzumab Fab Heavy Chain × 1 （Q6N089）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；293 K；85 mM Tris, pH 8.5, 25.5% PEG 4000 (w/v), 170 mM sodium acetate and 15% glycerol	Resolution 2.01 Å R-free 0.237
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 126–239	Not recorded	Epratuzumab Fab Heavy Chain × 1 （Q6N089）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；293 K；85 mM Tris, pH 8.5, 25.5% PEG 4000 (w/v), 170 mM sodium acetate and 15% glycerol	Resolution 2.01 Å R-free 0.237

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5VKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HZH CRYSTAL STRUCTURE OF THE INTACT HUMAN IGG B12 WITH BROAD AND POTENT ACTIVITY AGAINST PRIMARY HIV-1 ISOLATES: A TEMPLATE FOR HIV VACCINE DESIGN Deposited 2001-01-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 132–239（108 aa） Chain M 132–239（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295.5 K；NH4SO4, cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 2.70 Å R-free 0.273
1N0X Crystal Structure of a Broadly Neutralizing Anti-HIV-1 Antibody in Complex with a Peptide Mimotope Deposited 2002-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain L 132–239（108 aa） Fragment：UNP residues 132-239 Chain M 132–239（108 aa） Fragment：UNP residues 132-239	Not recorded	GOL GLYCEROL × 8 SO4 SULFATE ION × 4 CXS 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10.5；295.5 K；ammonium sulfate, lithium sulfate, CAPS buffer, pH 10.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 1.80 Å R-free 0.252
3CFJ Crystal structure of catalytic elimination antibody 34E4, orthorhombic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 131–239（109 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；30% MPEG 2000, 0.2M (NH4)2SO4, 0.1M ACETATE, PH 4.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 4.60	Resolution 2.60 Å R-free 0.253
3CFJ Crystal structure of catalytic elimination antibody 34E4, orthorhombic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 131–239（109 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；30% MPEG 2000, 0.2M (NH4)2SO4, 0.1M ACETATE, PH 4.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 4.60	Resolution 2.60 Å R-free 0.253
3CFJ Crystal structure of catalytic elimination antibody 34E4, orthorhombic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 131–239（109 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；30% MPEG 2000, 0.2M (NH4)2SO4, 0.1M ACETATE, PH 4.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 4.60	Resolution 2.60 Å R-free 0.253
3CFJ Crystal structure of catalytic elimination antibody 34E4, orthorhombic crystal form Deposited 2008-03-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；30% MPEG 2000, 0.2M (NH4)2SO4, 0.1M ACETATE, PH 4.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 4.60	Resolution 2.60 Å R-free 0.253
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 131–239（109 aa）	Not recorded	CD CADMIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 131–239（109 aa）	Not recorded	CD CADMIUM ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 131–239（109 aa）	Not recorded	CD CADMIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 131–239（109 aa）	Not recorded	CD CADMIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 131–239（109 aa）	Not recorded	CD CADMIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 131–239（109 aa）	Not recorded	CD CADMIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 131–239（109 aa）	Not recorded	CD CADMIUM ION × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3CFK Crystal structure of catalytic elimination antibody 34E4, triclinic crystal form Deposited 2008-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 131–239（109 aa）	Not recorded	CD CADMIUM ION × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；33% PEG 2000, 0.2M CDCL2, 0.1M BIS- TRIS-PROPANE, PH 6.7, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 6.70	Resolution 2.60 Å R-free 0.244
3MNV Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment Deposited 2010-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 133–239（107 aa） Fragment：FUSION PROTEIN between mouse Fv and a human Fc	Not recorded	SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；Qiagen AmSO4 suite, reservoir: 2.2 M ammonium sulfate, 0.2 M lithium nitrate. Drop: 0.5 uL protein + 0.5 uL reservoir., VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.228
3MNV Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment Deposited 2010-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 133–239（107 aa） Fragment：FUSION PROTEIN between mouse Fv and a human Fc	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；Qiagen AmSO4 suite, reservoir: 2.2 M ammonium sulfate, 0.2 M lithium nitrate. Drop: 0.5 uL protein + 0.5 uL reservoir., VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.228
3MNW Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment with a gp41 MPER-derived peptide in a helical conformation Deposited 2010-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 126–239（114 aa） Fragment：mouse Fv,human Fc	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；Reservoir: Qiagen Classics II screen H10 (0.2 M K Na tartrate, 20% PEG 3350). Drop: 0.6 uL protein + 0.4 uL reservoir., pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 2.20 Å R-free 0.253
3MNW Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment with a gp41 MPER-derived peptide in a helical conformation Deposited 2010-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 126–239（114 aa） Fragment：mouse Fv,human Fc	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；Reservoir: Qiagen Classics II screen H10 (0.2 M K Na tartrate, 20% PEG 3350). Drop: 0.6 uL protein + 0.4 uL reservoir., pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 2.20 Å R-free 0.253
3MNZ Crystal structure of the non-neutralizing HIV antibody 13H11 Fab fragment with a gp41 MPER-derived peptide bearing Ala substitutions in a helical conformation Deposited 2010-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 126–239（114 aa） Fragment：mouse Fv,human Fc	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；Reservoir: Qiagen Classics II, condition with 0.2 M K Na tartrate, 20% PEG 3350. Drop: 0.6 uL protein + 0.4 uL reservoir, pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.215
3PGF Crystal structure of maltose bound MBP with a conformationally specific synthetic antigen binder (sAB) Deposited 2010-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 132–239（108 aa）	Not recorded	IMD IMIDAZOLE × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；292 K；19% PEG 3400, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.227
4D9Q Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 130–238（109 aa）	Not recorded	GOL GLYCEROL × 3 ZN ZINC ION × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1 M MES pH 6.5, 25% PEG 550 MME, 0.01 M zinc sulfate and 3% 6-aminohexanoic acid, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.28 Å R-free 0.230
4D9Q Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 130–238（109 aa）	Not recorded	GOL GLYCEROL × 7 ZN ZINC ION × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1 M MES pH 6.5, 25% PEG 550 MME, 0.01 M zinc sulfate and 3% 6-aminohexanoic acid, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.28 Å R-free 0.230
4D9Q Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 130–238（109 aa） Chain L 130–238（109 aa）	Not recorded	GOL GLYCEROL × 10 ZN ZINC ION × 7 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1 M MES pH 6.5, 25% PEG 550 MME, 0.01 M zinc sulfate and 3% 6-aminohexanoic acid, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.28 Å R-free 0.230
4NUG Crystal structure of HIV-1 broadly neutralizing antibody PGT151 Deposited 2013-12-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 132–239（108 aa）	Not recorded	P6G HEXAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.2；293.15 K；40% PEG 3350, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, temperature 293.15K	Resolution 1.86 Å R-free 0.207
4NUJ Crystal structure of HIV-1 broadly neutralizing antibody PGT152 Deposited 2013-12-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 132–239（108 aa）	Mutation：N107K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.2；293.15 K；40% PEG 600, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, temperature 293.15K	Resolution 1.83 Å R-free 0.210
4NWT Crystal structure of the anti-human NGF Fab APE1531 Deposited 2013-12-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 131–239（109 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 ACT ACETATE ION × 4 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；12% PEG 20000, 0.1M NaCl, 0.1M MES pH6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.75 Å R-free 0.181
4NWU Crystal structure of APE1551, an anti-human NGF Fab with a nine amino acid insertion in CDR H1 Deposited 2013-12-06	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；16% PEG 6000, 0.1 M Citric acid pH6.0-7.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.60 Å R-free 0.198
5VIY BG505 SOSIP.664 in complex with broadly neutralizing antibodies BG1 and 8ANC195 Deposited 2017-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain L 132–239（108 aa） Chain N 132–239（108 aa） Chain P 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.20 Å
5VJ6 BG505 SOSIP.664 in complex with broadly neutralizing antibodies PG9 and 8ANC195 Deposited 2017-04-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain N 132–239（108 aa） Chain P 132–239（108 aa） Chain R 132–239（108 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 11.50 Å
5VL3 CD22 d1-d3 in complex with therapeutic Fab Epratuzumab Deposited 2017-04-24	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 126–239（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 mM Tris pH 8.0 and 150 mM NaCl, 5mg/mL	Resolution 3.10 Å R-free 0.295
5VL3 CD22 d1-d3 in complex with therapeutic Fab Epratuzumab Deposited 2017-04-24	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 126–239（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 mM Tris pH 8.0 and 150 mM NaCl, 5mg/mL	Resolution 3.10 Å R-free 0.295
5VL3 CD22 d1-d3 in complex with therapeutic Fab Epratuzumab Deposited 2017-04-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 126–239（114 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 mM Tris pH 8.0 and 150 mM NaCl, 5mg/mL	Resolution 3.10 Å R-free 0.295
5VL3 CD22 d1-d3 in complex with therapeutic Fab Epratuzumab Deposited 2017-04-24	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 126–239（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 mM Tris pH 8.0 and 150 mM NaCl, 5mg/mL	Resolution 3.10 Å R-free 0.295
5VOD Crystal structure of HCMV Pentamer in complex with neutralizing antibody 9I6 Deposited 2017-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain L 123–239（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；10% (wt/vol) PEG methyl ether 500 0.1 M MES pH 6.2 0.00001 M phenol	Resolution 5.90 Å R-free 0.299
5VOD Crystal structure of HCMV Pentamer in complex with neutralizing antibody 9I6 Deposited 2017-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain L 123–239（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；10% (wt/vol) PEG methyl ether 500 0.1 M MES pH 6.2 0.00001 M phenol	Resolution 5.90 Å R-free 0.299
5VQM Clostridium difficile TcdB-GTD bound to PA41 Fab Deposited 2017-05-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；0.1 M Bis-Tris pH 5.5 1 M NaCl 11% PEG3350	Resolution 2.79 Å R-free 0.292
5VQM Clostridium difficile TcdB-GTD bound to PA41 Fab Deposited 2017-05-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；0.1 M Bis-Tris pH 5.5 1 M NaCl 11% PEG3350	Resolution 2.79 Å R-free 0.292
5W42 Crystal structure of human monoclonal antibody H3v-47 in complex with influenza virus hemagglutinin from A/Minnesota/11/2010 (H3N2) Deposited 2017-06-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 131–239（109 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% (v/v) 2-methyl-2,4-pentanediol (MPD), 0.1M MES (pH 5.0)	Resolution 3.57 Å R-free 0.228
5XRQ Crystal structure of human monoclonal antibody H3v-47 Deposited 2017-06-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；20% (w/v) polyethylene glycol (PEG) 6000, 0.1 M sodium citrate (pH 5.0)	Resolution 2.60 Å R-free 0.214
5XRQ Crystal structure of human monoclonal antibody H3v-47 Deposited 2017-06-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；20% (w/v) polyethylene glycol (PEG) 6000, 0.1 M sodium citrate (pH 5.0)	Resolution 2.60 Å R-free 0.214
6APD Crystal structure of RSV F bound by AM22 and the infant antibody ADI-19425 Deposited 2017-08-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain E 132–239（108 aa） Chain G 132–239（108 aa） Chain I 132–239（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；10% PEG 4000 10% 2-propanol 0.1 M sodium citrate pH 5.5	Resolution 4.10 Å R-free 0.256
6ARP Structure of a mutant Cetuximab Fab fragment Deposited 2017-08-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 132–239（108 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM sodium citrate, 1.6 M ammonium sulfate, 5% glycerol	Resolution 1.70 Å R-free 0.197
6ARP Structure of a mutant Cetuximab Fab fragment Deposited 2017-08-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 132–239（108 aa）	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM sodium citrate, 1.6 M ammonium sulfate, 5% glycerol	Resolution 1.70 Å R-free 0.197
6ARU Structure of Cetuximab Fab mutant in complex with EGFR extracellular domain Deposited 2017-08-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；150 mM ammonium sulfate, 16.5% PEG3350, 10 mM cadmium chloride, 100 mM imidazole, 5% glycerol	Resolution 3.20 Å R-free 0.267
6BFT Structure of Bevacizumab Fab mutant in complex with VEGF Deposited 2017-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 130–239（110 aa） Chain L 130–239（110 aa）	Not recorded	SO4 SULFATE ION × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；100 mM MES, 6.0, 225 mM ammonium sulfate, 13% PEG4000, 10% isopropanol	Resolution 2.55 Å R-free 0.220
6BKC Structure of Hepatitis C Virus Envelope Glycoprotein E2 core from genotype 6a bound to broadly neutralizing antibody AR3B Deposited 2017-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 131–239（109 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；293 K；20% (w/v) PEG 3500, 0.2M Li-chloride	Resolution 2.60 Å R-free 0.276
6DC4 RSV-neutralizing human antibody AM22 Deposited 2018-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 132–239（108 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2-Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 0.1 M MES/imidazole pH 6.5, 10% PEG 8000, 20% ethylene glycol	Resolution 1.70 Å R-free 0.205
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5	Resolution 3.50 Å R-free 0.280
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5	Resolution 3.50 Å R-free 0.280
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5	Resolution 3.50 Å R-free 0.280
6DCQ Ectodomain of full length, wild type HIV-1 glycoprotein clone PC64M18C043 in complex with PGT151 Fab Deposited 2018-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain L 132–239（108 aa） Chain N 132–239（108 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Detergent removed with Biobeads prior to grid freezing cryo-EM vitrification conditions Cryogen ETHANE；Blot force 0 Blot time 5 sec	Resolution 3.10 Å
6E4X Human antibody S5V2-29 in complex with influenza hemagglutinin A/Texas/50/2012 (H3N2) Deposited 2018-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 122–239（118 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；100 mM magnesium sulfate, 100 mM PIPES, pH 6.0, 30% PEG400	Resolution 2.25 Å R-free 0.225
6NZ7 Crystal structure of broadly neutralizing Influenza A antibody 429 B01 in complex with Hemagglutinin Hong Kong 1968 Deposited 2019-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；300 K；10 % PEG8000 (w/v), 100 mM Tris/Cl, pH 8.5 and 7.5 % 1,6-hexanediol (w/v)	Resolution 2.95 Å R-free 0.267
6NZ7 Crystal structure of broadly neutralizing Influenza A antibody 429 B01 in complex with Hemagglutinin Hong Kong 1968 Deposited 2019-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；300 K；10 % PEG8000 (w/v), 100 mM Tris/Cl, pH 8.5 and 7.5 % 1,6-hexanediol (w/v)	Resolution 2.95 Å R-free 0.267
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate	Resolution 3.20 Å R-free 0.299
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate	Resolution 3.20 Å R-free 0.299
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate	Resolution 3.20 Å R-free 0.299
6UC5 Fab397 in complex with NPNA peptide Deposited 2019-09-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 122–238（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M HEPES, pH 6.62, 22% w/v PEG4000	Resolution 1.75 Å R-free 0.225
7CZQ S protein of SARS-CoV-2 in complex bound with P2B-1A10 Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 122–239（118 aa） Chain N 122–239（118 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7CZR S protein of SARS-CoV-2 in complex bound with P5A-1B8_2B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 130–239（110 aa） Chain N 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7CZS S protein of SARS-CoV-2 in complex bound with P5A-1B8_3B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain K 130–239（110 aa） Chain M 130–239（110 aa） Chain N 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7CZU S protein of SARS-CoV-2 in complex bound with P5A-1B6_2B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 122–239（118 aa） Chain N 122–239（118 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7CZV S protein of SARS-CoV-2 in complex bound with P5A-1B6_3B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain K 122–239（118 aa） Chain M 122–239（118 aa） Chain N 122–239（118 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7CZX S protein of SARS-CoV-2 in complex bound with P5A-1B9 Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain K 130–239（110 aa） Chain M 130–239（110 aa） Chain N 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7D00 S protein of SARS-CoV-2 in complex bound with FabP5A-1B8 Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 130–239（110 aa） Chain N 130–239（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

39 other PDB entries and 65 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q8TCD0_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 106–219； UniProt 126–239 Author chain L； PDBConstruct 106–219； UniProt 126–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

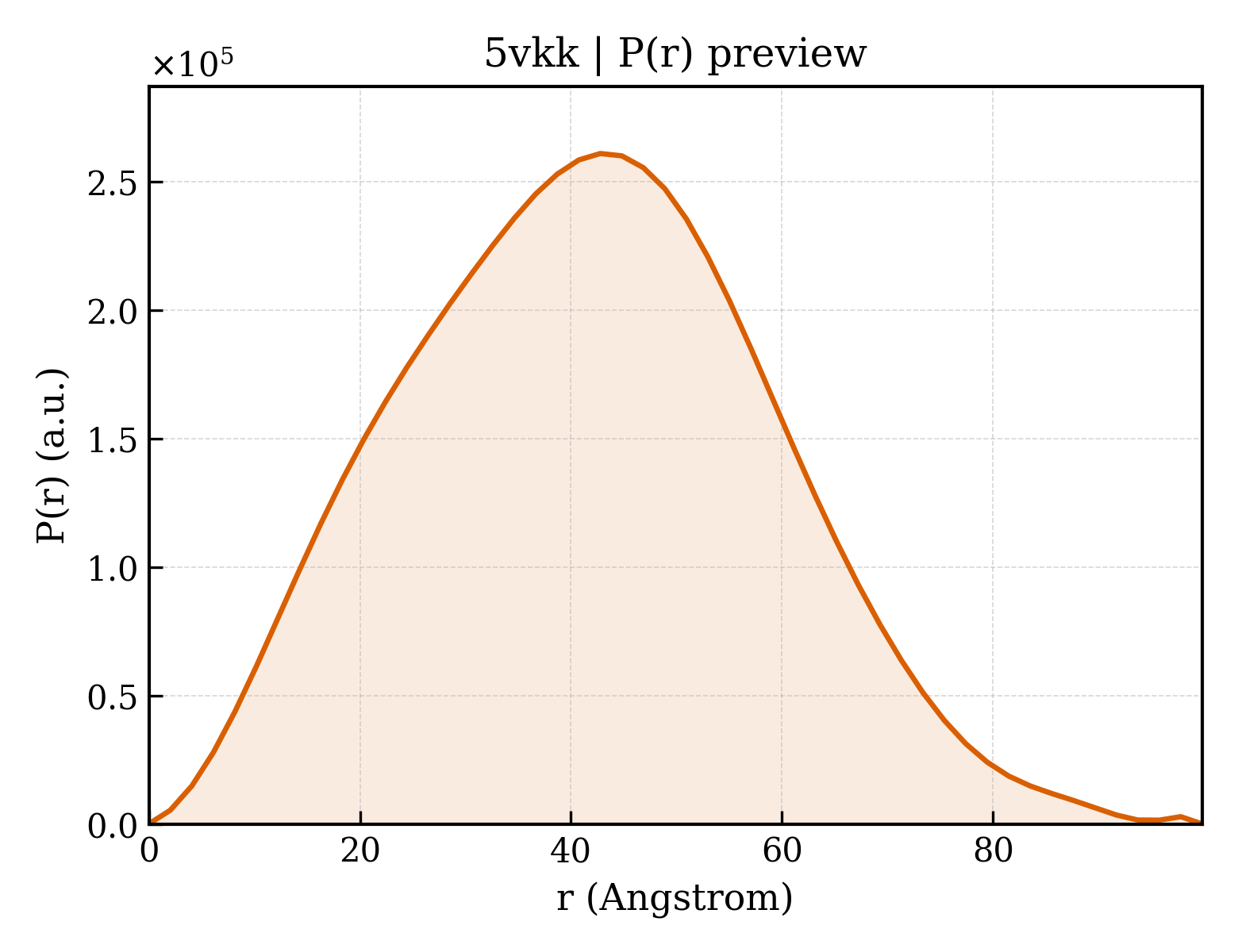

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5vkk
Deposition date deposition_date	2017-04-21
Structure title title	Crystal structure of Fab fragment of anti-CD22 Epratuzumab
Keywords keywords	therapeutic antibody, B cell, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.03 Å
Radius of gyration Rg (electron density) rg_electron	31.12 Å
Forward intensity I(0) i0	147662000.00
Molecular weight molecular_weight	94833.0 kDa
Excluded volume excluded_volume	118030 Å³
Envelope volume envelope_volume	156120 Å³
Hydration-shell volume shell_volume	41932 Å³
Envelope diameter envelope_diameter	106.2 Å
Shell Rg shell_rg	38.42 Å
Envelope Rg envelope_rg	30.12 Å
Shape Rg shape_rg	31.11 Å
Total Rg total_rg	31.83 Å
Total atoms total_atoms	6681
Residues n_residues	851
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.8 Å
Rg (real space) rg_real	31.86 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	1.4770e+08
I(0) uncertainty (real space) i0_real_error	2.1730e+06
Rg (reciprocal space) rg_reciprocal	31.94 Å
I(0) (reciprocal space) i0_reciprocal	147700000.0000
Solution quality estimate total_estimate	0.8908
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.8 Å
Skewness Skewness skewness	0.149
Kurtosis Kurtosis kurtosis	-0.389
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19660000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.837

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Epratuzumab Fab Heavy Chain
Molecular weight formula_weight	23741.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,A
Atom count atom_count	7184

QVQLVQSGAEVKKPGSSVKVSCKASGYTFTSYWLHWVRQAPGQGLEWIGYINPRNDYTEYNQNFKDKATITADESTNTAYMELSSLRSEDTAFYFCARRDITTFYWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Epratuzumab Fab Light Chain
Molecular weight formula_weight	24053.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,B

DIQLTQSPSSLSASVGDRVTMSCKSSQSVLYSANHKNYLAWYQQKPGKAPKLLIYWASTRESGVPSRFSGSGSGTDFTLTISSLQPEDIATYYCHQYLSSWTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	503

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d5vkka_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5vkkb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5vkkb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d5vkkh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5vkkl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5vkkl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	5vkkA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5vkkB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5vkkB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5vkkH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5vkkL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5vkkL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	56.712 Å
Unit-cell length b length_b	61.564 Å
Unit-cell length c length_c	65.285 Å
Unit-cell angle α angle_alpha	71.81 °
Unit-cell angle β angle_beta	81.07 °
Unit-cell angle γ angle_gamma	75.95 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.014 Å
Low-resolution limit resolution_low	49.671 Å
R factor r_factor	0.2131
R_work r_work	0.2121
R_free r_free	0.2366

fit	/app/data/saxs_computation/vk/5vkk/5vkk.fit
pddf	/app/data/pr_computation/vk/5vkk/5vkk.pr.out
profile	/app/data/saxs_computation/vk/5vkk/5vkk.dat

Crystal structure of Fab fragment of anti-CD22 Epratuzumab

1. Protein Identity and Related Structures Protein Identity & Related Structures

Epratuzumab Fab Heavy Chain

State in the Current Structure

Other States of the Same Protein in the Database

Epratuzumab Fab Light Chain

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
