5wko

Crystal structure of antibody 27F3 recognizing the HA from A/California/04/2009 (H1N1) influenza virus

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Antibody 27F3 heavy chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count
2	Insufficient information	Heteromer	Protein 12	Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6N089_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 116–225； UniProt 135–244 Author chain C； PDBConstruct 116–225； UniProt 135–244 Author chain E； PDBConstruct 116–225； UniProt 135–244 Author chain G； PDBConstruct 116–225； UniProt 135–244 Author chain I； PDBConstruct 116–225； UniProt 135–244 Author chain K； PDBConstruct 116–225； UniProt 135–244

Antibody 27F3 light chain

Homo sapiens

UniProt Q6P5S8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count
2	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6P5S8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 105–213； UniProt 126–234 Author chain D； PDBConstruct 105–213； UniProt 126–234 Author chain F； PDBConstruct 105–213； UniProt 126–234 Author chain H； PDBConstruct 105–213； UniProt 126–234 Author chain J； PDBConstruct 105–213； UniProt 126–234 Author chain L； PDBConstruct 105–213； UniProt 126–234

Antibody 27F3 light chain

Homo sapiens

UniProt Q9UL78

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count
2	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Hemagglutinin × 3 （C3W5S1） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9UL78_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–104； UniProt 1–104 Author chain D； PDBConstruct 1–104； UniProt 1–104 Author chain F； PDBConstruct 1–104； UniProt 1–104 Author chain H； PDBConstruct 1–104； UniProt 1–104 Author chain J； PDBConstruct 1–104； UniProt 1–104 Author chain L； PDBConstruct 1–104； UniProt 1–104

Hemagglutinin

Influenza A virus

UniProt C3W5S1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count
2	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （A0A023ZYH9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3W5S1_I09A0
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 5–331； UniProt 18–344 Author chain N； PDBConstruct 5–331； UniProt 18–344 Author chain O； PDBConstruct 5–331； UniProt 18–344 Author chain S； PDBConstruct 5–331； UniProt 18–344 Author chain T； PDBConstruct 5–331； UniProt 18–344 Author chain U； PDBConstruct 5–331； UniProt 18–344

Hemagglutinin

Influenza A virus

UniProt A0A023ZYH9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （C3W5S1）	Consistent with protein count
2	Insufficient information	Heteromer	Protein 12	Antibody 27F3 heavy chain × 3 （Q6N089） Antibody 27F3 light chain × 3 （Q6P5S8,Q9UL78） Hemagglutinin × 3 （C3W5S1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A023ZYH9_9INFA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain P； PDBConstruct 1–174； UniProt 345–518 Author chain Q； PDBConstruct 1–174； UniProt 345–518 Author chain R； PDBConstruct 1–174； UniProt 345–518 Author chain V； PDBConstruct 1–174； UniProt 345–518 Author chain W； PDBConstruct 1–174； UniProt 345–518 Author chain X； PDBConstruct 1–174； UniProt 345–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5wko
Deposition date deposition_date	2017-07-25
Structure title title	Crystal structure of antibody 27F3 recognizing the HA from A/California/04/2009 (H1N1) influenza virus
Keywords keywords	27F3 H1 HA A/California/04/2009, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5wko__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

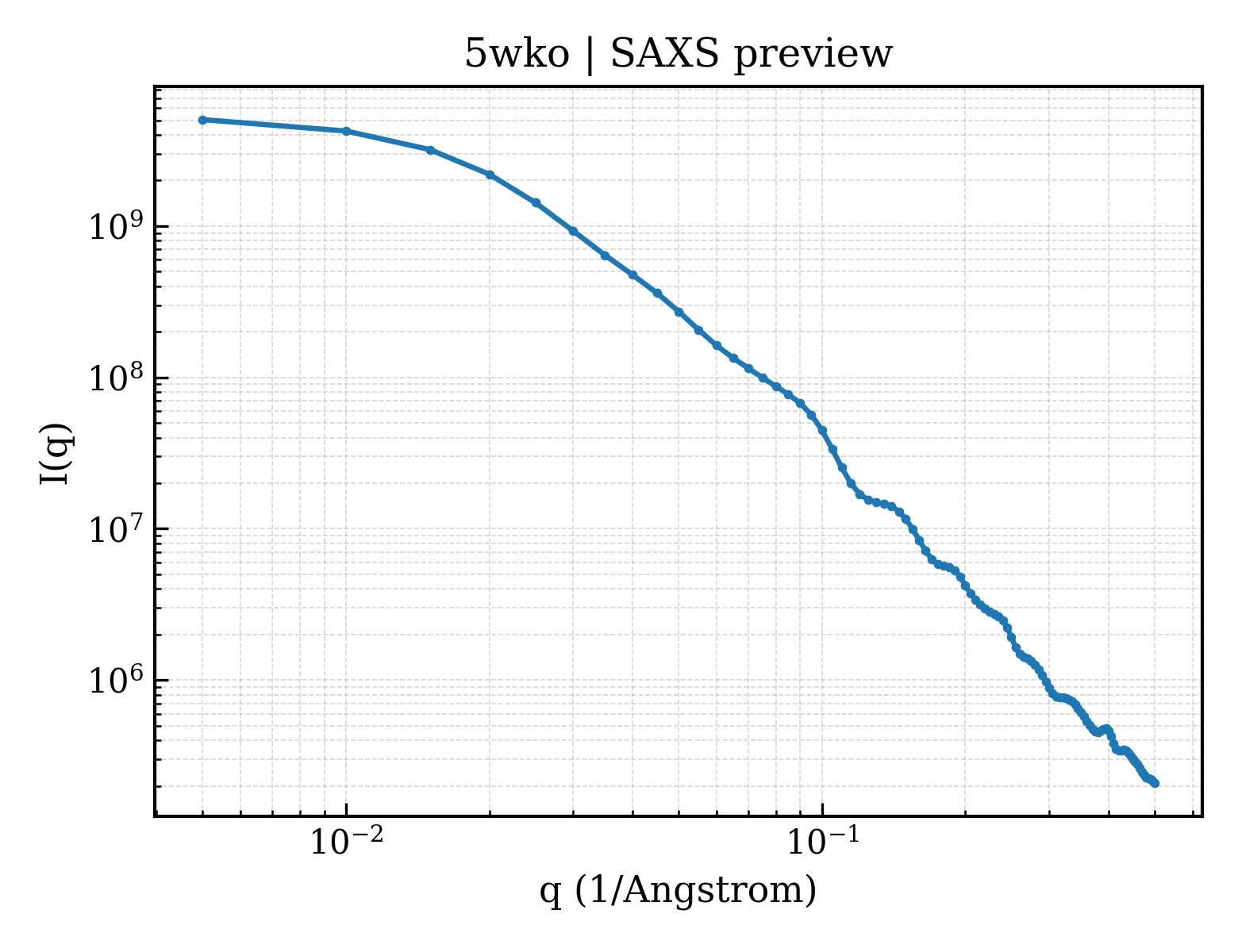

5wko__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5wko__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.27 Å
Rg (electron density)	52.91 Å
Total Rg	53.02 Å
Atom count	21661
Residues	2804
Excluded volume	383150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5wko__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5wko__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Antibody 27F3 heavy chain
Molecular weight formula_weight	23817.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K
Atom count atom_count	43322

QVQLVQSGAEVKKPGSSVQVSCRASGGTFGNYAINWVRQAPGQGLEWMGGISPIFGPPKYAQKFQGRVTISADISSSTAYMDLSSLSSDDTAVYYCARKLEPPYYFYSYMDVWGKGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Antibody 27F3 light chain
Molecular weight formula_weight	23140.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L

EIVLTQSPGTLSLSPGERATLSCRASQSVSSSYLAWYQQKPGQAPRLLIYGASSRATGIPDRFSGSGSGTDFTLTITRLEPEDFAVYYCQQYVSTPLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	36729.4 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,S,T,U

ADPGDTLCIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDKHNGKLCKLRGVAPLHLGKCNIAGWILGNPECESLSTASSWSYIVETPSSDNGTCYPGDFIDYEELREQLSSVSSFERFEIFPKTSSWPNHDSNKGVTAACPHAGAKSFYKNLIWLVKKGNSYPKLSKSYINDKGKEVLVLWGIHHPSTSADQQSLYQNADTYVFVGSSRYSKKFKPEIAIRPKVRDQEGRMNYYWTLVEPGDKITFEATGNLVVPRYAFAMERNAGSGIIISDTPVHDCNTTCQTPKGAINTSLPFQNIHPITIGKCPKYVKSTKLRLATGLRNIPSIQSR

Source Source

Source organism organism	Influenza A virus
NCBI taxonomy ID ncbi_taxonomy_id	641501
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	20206.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q,R,V,W,X

GLFGAIAGFIEGGWTGMVDGWYGYHHQNEQGSGYAADLKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNHLEKRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDYHDSNVKNLYEKVRSQLKNNAKEIGNGCFEFYHKCDNTCMESVKNGTYDYPKYSEEAKLNREEIDSGR

Source Source

Source organism organism	Influenza A virus
Common name common_name	A/Uganda/MUWRP-176/2010(H1N1)
NCBI taxonomy ID ncbi_taxonomy_id	1487164
Host organism host_organism	Trichoplusia ni

▼

6. Fold Classification (SCOP + CATH) 36 domains

CATH v4.4 (36 domains)

Domain ID domain_id	5wkoA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoE02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoG02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoJ01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoJ02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoK02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5wkoM01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoM02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoN01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoN02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoO01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoO02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoP01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5wkoQ01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5wkoR01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5wkoS01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoS02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoT01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoT02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoU01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	5wkoU02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	5wkoV01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5wkoW01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5wkoX01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	190.580 Å
Unit-cell length b length_b	191.486 Å
Unit-cell length c length_c	391.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 2 2 21
Space-group number int_tables_number	17
Crystal system crystal_system	—

Resolution resolution	3.492 Å
Low-resolution limit resolution_low	49.451 Å
R factor r_factor	0.2473
R_work r_work	0.2462
R_free r_free	0.2683

Crystal structure of antibody 27F3 recognizing the HA from A/California/04/2009 (H1N1) influenza virus

1. Protein Identity and Related Structures Protein Identity & Related Structures

Antibody 27F3 heavy chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Antibody 27F3 light chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Antibody 27F3 light chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Hemagglutinin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Hemagglutinin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5wko__assembly_1__model_1

5wko__assembly_1__model_1 | I(q)

5wko__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 36 domains

CATH v4.4 (36 domains)

7. Citations (1)
