SAXSdb — 5w1d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protocadherin-15

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 401–818	Fragment：residues 401-818	CA CALCIUM ION × 6 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1 M Tris pH 8.5 2.0 M MgAc 23% PEG 400	Resolution 3.35 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5W1D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
11IY Protocadherin-15 extracellular domains 1-7 Deposited 2026-02-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 28–817（790 aa） Chain D 28–817（790 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
4APX CRYSTAL STRUCTURE OF MOUSE CADHERIN-23 EC1-2 AND PROTOCADHERIN-15 EC1- 2 FORM I Deposited 2012-04-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 27–259（233 aa） Fragment：EC1-2, RESIDUES 27-259	Not recorded	CA CALCIUM ION × 7 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 K POTASSIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.1M MES, 8% PEG8000, PH6.5	Resolution 1.65 Å R-free 0.193
4AQ8 CRYSTAL STRUCTURE OF MOUSE CADHERIN-23 EC1-2 AND PROTOCADHERIN-15 EC1- 2 FORM II Deposited 2012-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 27–259（233 aa） Fragment：EC1-2, RESIDUES 27-259	Not recorded	CA CALCIUM ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 MES, 10% PEG 8000, PH 7.5	Resolution 2.63 Å R-free 0.243
4AQ8 CRYSTAL STRUCTURE OF MOUSE CADHERIN-23 EC1-2 AND PROTOCADHERIN-15 EC1- 2 FORM II Deposited 2012-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 27–259（233 aa） Fragment：EC1-2, RESIDUES 27-259	Not recorded	CA CALCIUM ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 MES, 10% PEG 8000, PH 7.5	Resolution 2.63 Å R-free 0.243
4AQA CRYSTAL STRUCTURE OF DEAFNESS ASSOCIATED MUTANT MOUSE CADHERIN-23 EC1- 2D124G AND PROTOCADHERIN-15 EC1-2 FORM I Deposited 2012-04-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 27–259（233 aa） Fragment：EC1-2, RESIDUES 27-259	Not recorded	CA CALCIUM ION × 7 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.1 MES, 8% PEG 20000, PH 6.5	Resolution 1.96 Å R-free 0.228
4AQE CRYSTAL STRUCTURE OF DEAFNESS ASSOCIATED MUTANT MOUSE CADHERIN-23 EC1- 2S70P AND PROTOCADHERIN-15 EC1-2 FORM I Deposited 2012-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 27–259（233 aa） Fragment：EC1-2, RESIDUES 27-259	Not recorded	CA CALCIUM ION × 7 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.1 M MES, 12% PEG 4000, PH 6.5	Resolution 2.27 Å R-free 0.239
4XXW Crystal structure of mouse Cadherin-23 EC1-2 and Protocadherin-15 EC1-2 splice variant Deposited 2015-01-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 27–254（228 aa）	Not recorded	CA CALCIUM ION × 7 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M Ammonium Acetate 0.1 M HEPES, pH 7.5 25% (v/v) isopropanol	Resolution 2.26 Å R-free 0.233
4XXW Crystal structure of mouse Cadherin-23 EC1-2 and Protocadherin-15 EC1-2 splice variant Deposited 2015-01-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–254（228 aa）	Not recorded	CA CALCIUM ION × 7 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M Ammonium Acetate 0.1 M HEPES, pH 7.5 25% (v/v) isopropanol	Resolution 2.26 Å R-free 0.233
5KJ4 Crystal Structure of Mouse Protocadherin-15 EC9-10 Deposited 2016-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 924–1149（226 aa） Fragment：Cadherin 9 and 10, residues 924-1149	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；0.095M HEPES (pH7.5), 0.19M CaCl2, 26.6% v/v PEG 400	Resolution 3.35 Å R-free 0.196
5KJ4 Crystal Structure of Mouse Protocadherin-15 EC9-10 Deposited 2016-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 924–1149（226 aa） Fragment：Cadherin 9 and 10, residues 924-1149	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；0.095M HEPES (pH7.5), 0.19M CaCl2, 26.6% v/v PEG 400	Resolution 3.35 Å R-free 0.196
5KJ4 Crystal Structure of Mouse Protocadherin-15 EC9-10 Deposited 2016-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 924–1149（226 aa） Fragment：Cadherin 9 and 10, residues 924-1149	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；0.095M HEPES (pH7.5), 0.19M CaCl2, 26.6% v/v PEG 400	Resolution 3.35 Å R-free 0.196
5KJ4 Crystal Structure of Mouse Protocadherin-15 EC9-10 Deposited 2016-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 924–1149（226 aa） Fragment：Cadherin 9 and 10, residues 924-1149	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；0.095M HEPES (pH7.5), 0.19M CaCl2, 26.6% v/v PEG 400	Resolution 3.35 Å R-free 0.196
5TPK Crystal Structure of Mouse Protocadherin-15 EC7-8 V875A Deposited 2016-10-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–923（209 aa） Fragment：Extracellular domain residues 715-924	Mutation：V875A	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2M AMMONIUM CHLORIDE, 10% PEG3350	Resolution 2.00 Å R-free 0.229
6BWN Crystal Structure of Mouse Protocadherin-15 EC6-7 Deposited 2017-12-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 615–818（204 aa） Fragment：Cadherin domains 6-7, residues 615-818	Not recorded	CA CALCIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；30% PEG1500	Resolution 2.94 Å R-free 0.242
6BXU Crystal Structure of Mouse Protocadherin-15 EC5-7 I582T Deposited 2017-12-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 507–818（312 aa） Fragment：CADHERIN DOMAINS 5-7, RESIDUES 507-818	Not recorded	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Na formate, 40% MPD	Resolution 3.79 Å R-free 0.283
6BXU Crystal Structure of Mouse Protocadherin-15 EC5-7 I582T Deposited 2017-12-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 507–818（312 aa） Fragment：CADHERIN DOMAINS 5-7, RESIDUES 507-818	Not recorded	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Na formate, 40% MPD	Resolution 3.79 Å R-free 0.283
6C10 Crystal structure of mouse PCDH15 EC11-EL Deposited 2018-01-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1151–1388（238 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 M Lithium sulfate, 30% (w/v) PEG4000, 0.1 M Tris pH 8.5	Resolution 1.40 Å R-free 0.195
6C13 CryoEM structure of mouse PCDH15-4EC-LHFPL5 complex Deposited 2018-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 821–1465（645 aa） Chain B 821–1465（645 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.33 Å
6C14 CryoEM structure of mouse PCDH15-1EC-LHFPL5 complex Deposited 2018-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1144–1465（322 aa） Chain C 1144–1465（322 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.50 Å
6CV7 Mouse Protocadherin-15 Extracellular Cadherin Domains 1 through 3 Deposited 2018-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–395（369 aa）	Not recorded	CA CALCIUM ION × 10 EDO 1,2-ETHANEDIOL × 10 MAN alpha-D-mannopyranose × 10 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；35% Ethylene glycol	Resolution 1.69 Å R-free 0.188
6EET Crystal structure of mouse Protocadherin-15 EC9-MAD12 Deposited 2018-08-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 919–1374（456 aa）	Not recorded	MAN alpha-D-mannopyranose × 3 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES sodium salt, 30% (w/v) MPD, 5% (w/v) PEG4000	Resolution 3.23 Å R-free 0.234
6N22 Crystal structure of mouse Protocadherin-15 EC1-2 BAP Deposited 2018-11-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–265（239 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.02 M calcium chloride, 0.1 M sodium acetate, 30% (v/v) MPD	Resolution 2.40 Å R-free 0.233
8TON Crystal Structure of Engineered Mouse Protocadherin-15 EC3-EC7 Connection Deposited 2023-08-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 262–396（135 aa） Chain A 719–820（102 aa）	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；15% w/v PEG 20000, 0.1 M Tris HCl pH 8.5, 0.6 uM Spermine Tetrahydrochloride	Resolution 1.94 Å R-free 0.223
8UMZ Crystal Structure of Engineered Mouse Protocadherin-15 EC4-EC7 Connection Deposited 2023-10-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 392–510（119 aa） Chain A 719–820（102 aa）	Not recorded	CA CALCIUM ION × 5 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1 M Sodium cacodylate pH 6.5,40% v/v MPD,5% w/v PEG 8000	Resolution 1.63 Å R-free 0.274
8UMZ Crystal Structure of Engineered Mouse Protocadherin-15 EC4-EC7 Connection Deposited 2023-10-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 392–510（119 aa） Chain B 719–820（102 aa）	Not recorded	CA CALCIUM ION × 5 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1 M Sodium cacodylate pH 6.5,40% v/v MPD,5% w/v PEG 8000	Resolution 1.63 Å R-free 0.274

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PCD15_MOUSE
Isoform	Q99PJ1-21
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–421； UniProt 401–818

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5w1d
Deposition date deposition_date	2017-06-02
Structure title title	Crystal Structure of Mouse Protocadherin-15 EC4-7
Keywords keywords	Hearing, Mechanotransduction, Adhesion, Calcium-binding protein, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	49.76 Å
Radius of gyration Rg (electron density) rg_electron	52.18 Å
Forward intensity I(0) i0	29601400.00
Molecular weight molecular_weight	44459.0 kDa
Excluded volume excluded_volume	55681 Å³
Envelope volume envelope_volume	91861 Å³
Hydration-shell volume shell_volume	17505 Å³
Envelope diameter envelope_diameter	175.5 Å
Shell Rg shell_rg	43.08 Å
Envelope Rg envelope_rg	51.71 Å
Shape Rg shape_rg	52.26 Å
Total Rg total_rg	51.44 Å
Total atoms total_atoms	3125
Residues n_residues	405
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	168.7 Å
Rg (real space) rg_real	51.40 Å
Rg uncertainty (real space) rg_real_error	2.54 Å
I(0) (real space) i0_real	2.9600e+07
I(0) uncertainty (real space) i0_real_error	6.2160e+05
Rg (reciprocal space) rg_reciprocal	49.77 Å
I(0) (reciprocal space) i0_reciprocal	29540000.0000
Solution quality estimate total_estimate	0.5598
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.519
Kurtosis Kurtosis kurtosis	-0.735
Angular range angular_range	— – 0.1600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	862900.0000
Real-space data points n_real_points	33
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.079; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.030; Smooth: 0.007

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protocadherin-15
Molecular weight formula_weight	47121.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3126

MASTMPSYQGYILESAPVGATISESLNLTTPLRIVALDKDIEDTKDPELHLFLNDYTSVFTVTPTGITRYLTLLQPVDREEQQTYTFLITAFDGVQESEPVVVNIRVMDANDNTPTFPEISYDVYVYTDMSPGDSVIQLTAVDADEGSNGEISYEILVGGKGDFVINKTTGLVSIAPGVELIVGQTYALTVQASDNAPPAERRHSICTVYIEVLPPNNQSPPRFPQLMYSLEVSEAMRIGAILLNLQATDREGDPITYAIENGDPQRVFNLSETTGILSLGKALDRESTDRYILIVTASDGRPDGTSTATVNIVVTDVNDNAPVFDPYLPRNLSVVEEEANAFVGQVRATDPDAGINGQVHYSLGNFNNLFRITSNGSIYTAVKLNREARDHYELVVVATDGAVHPRHSTLTLYIKVLDIDLEHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5w1dA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

Domain ID domain_id	5w1dA04
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

▶

8. Citations (1)

▶

Unit-cell length a length_a	78.863 Å
Unit-cell length b length_b	78.863 Å
Unit-cell length c length_c	289.469 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	3.350 Å
Low-resolution limit resolution_low	76.090 Å
R factor r_factor	0.2296
R_work r_work	0.2271
R_free r_free	0.2788

fit	/app/data/saxs_computation/w1/5w1d/5w1d.fit
pddf	/app/data/pr_computation/w1/5w1d/5w1d.pr.out
profile	/app/data/saxs_computation/w1/5w1d/5w1d.dat

Crystal Structure of Mouse Protocadherin-15 EC4-7

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protocadherin-15

State in the Current Structure

Other States of the Same Protein in the Database

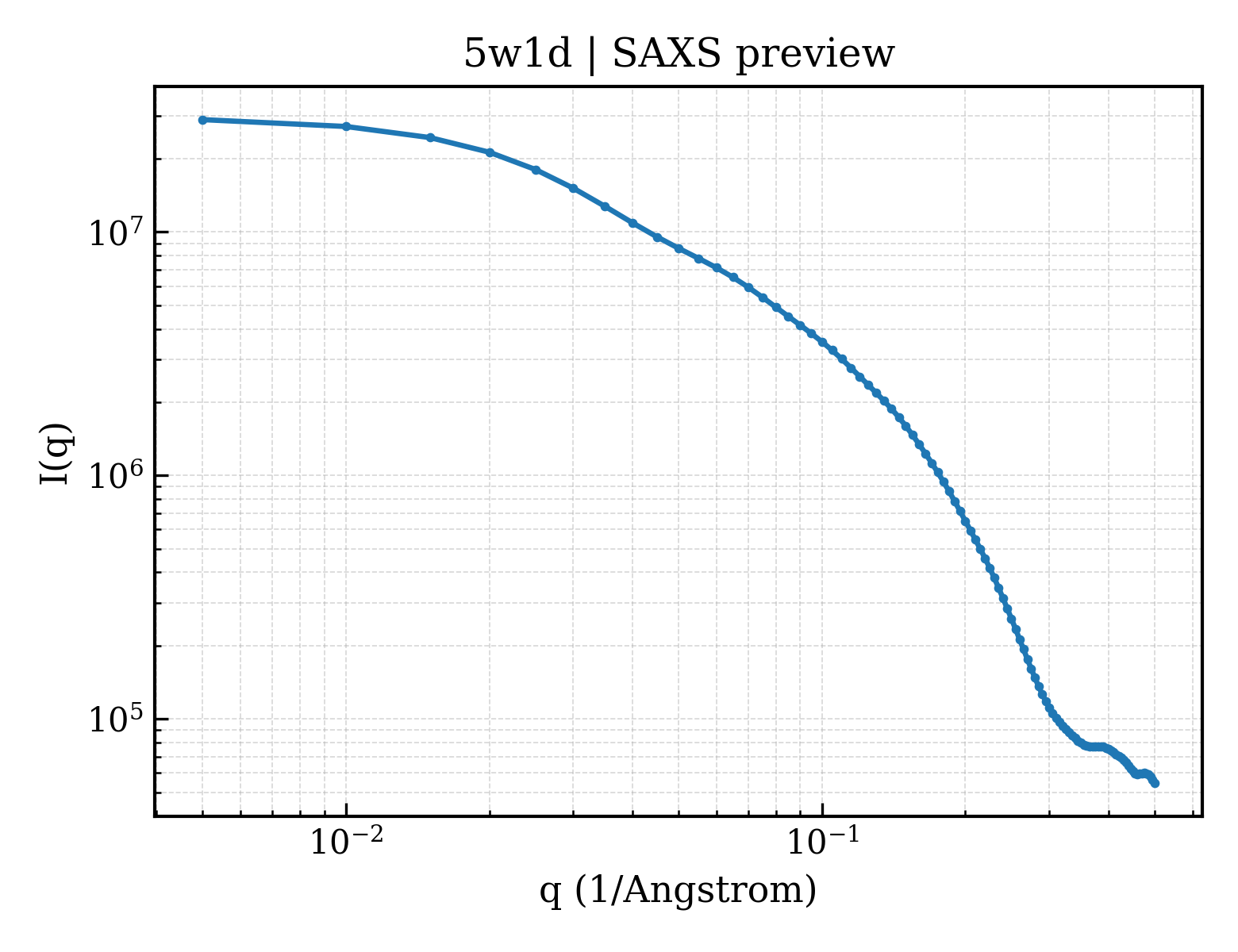

SAXS scattering curve SAXS Profile

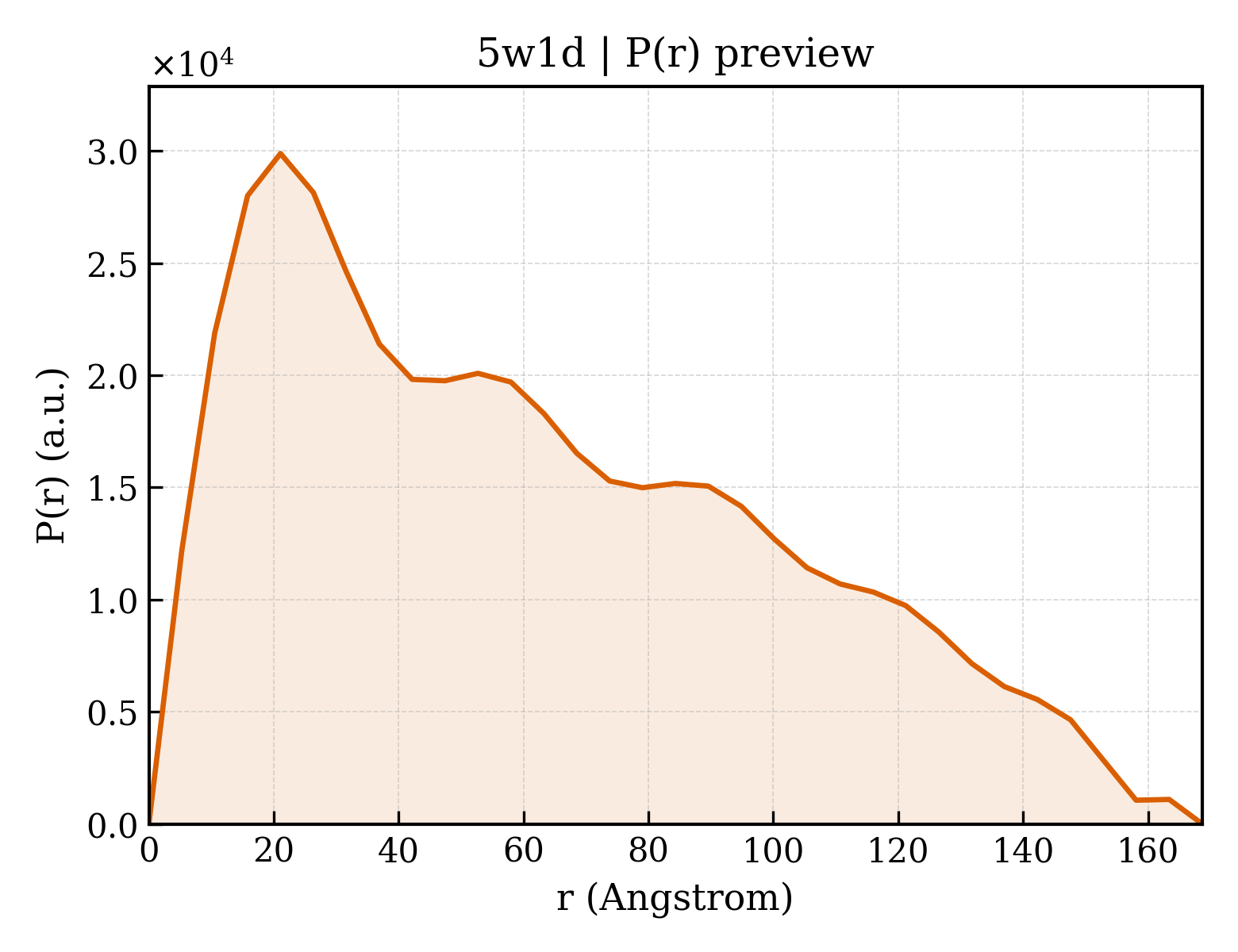

P(r) Distance Distribution P(r) Distribution
