SAXSdb — 6c13

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protocadherin-15

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 6	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCD15_MOUSE
Isoform	Q99PJ1-18
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–649； UniProt 821–1465 Author chain B； PDBConstruct 5–649； UniProt 821–1465

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6c13
Deposition date deposition_date	2018-01-03
Structure title title	CryoEM structure of mouse PCDH15-4EC-LHFPL5 complex
Keywords keywords	PCDH15, LHFPL5, protocadherin, tip link, hair cell, TMHS, hearing, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6c13__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

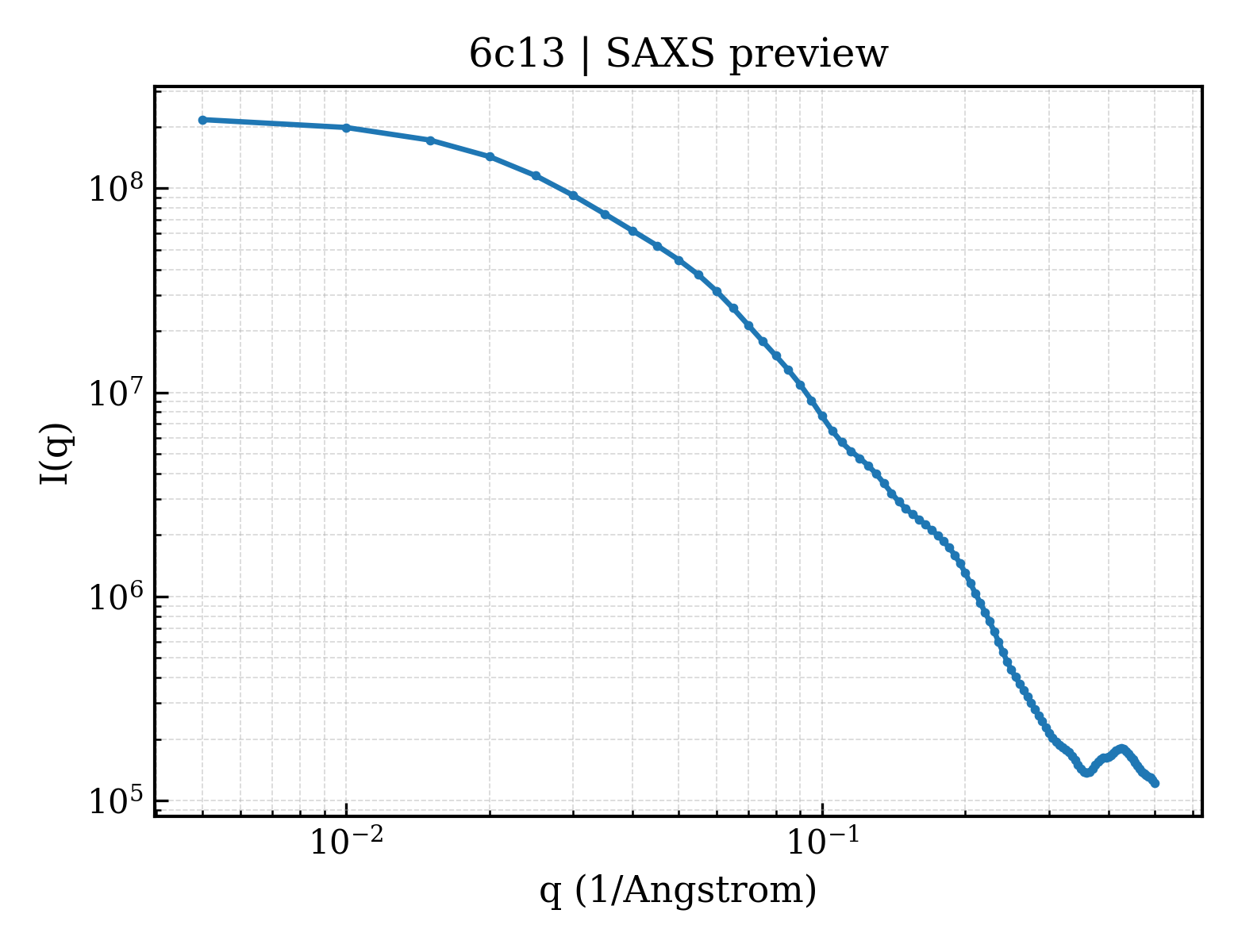

6c13__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

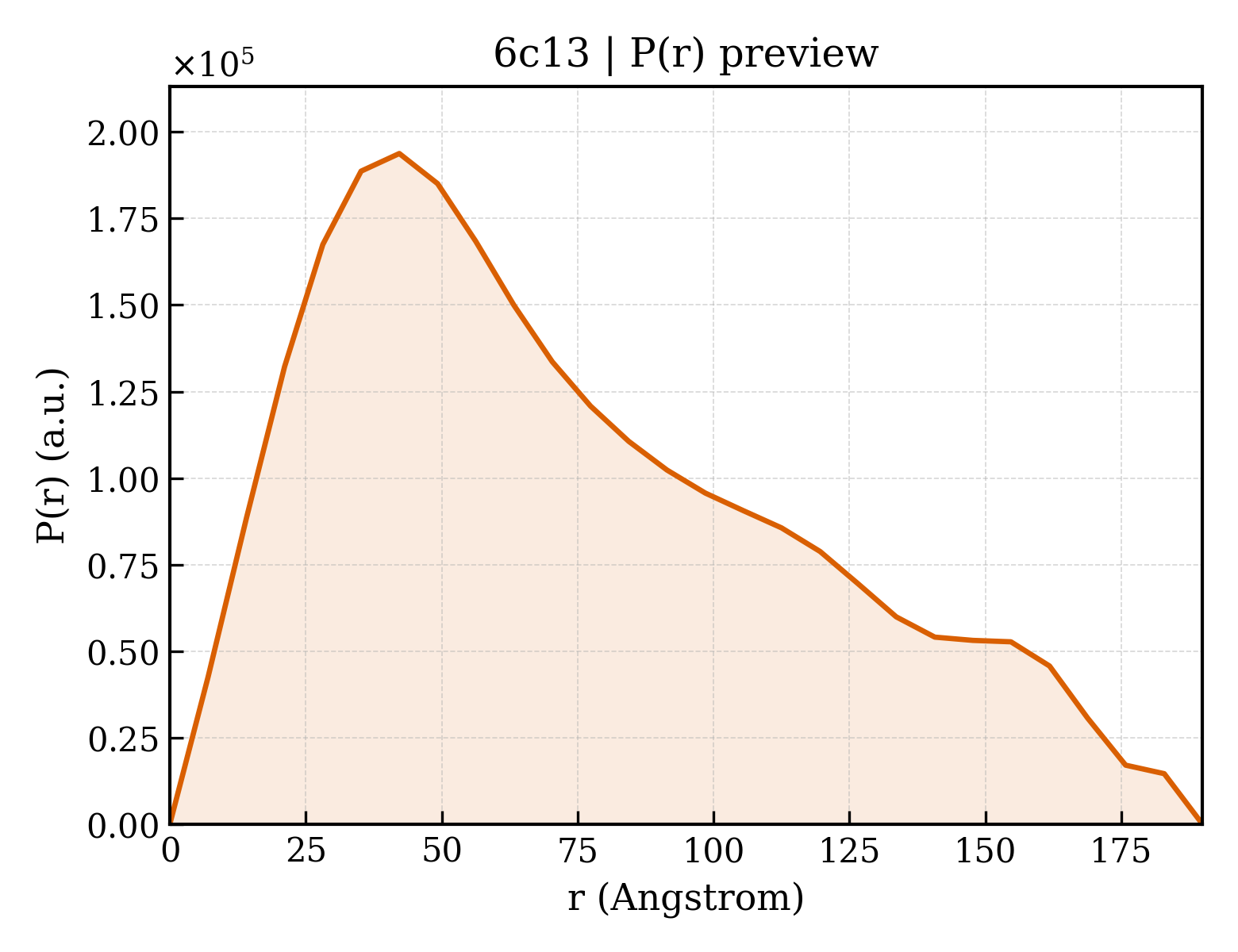

6c13__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	58.93 Å
Rg (electron density)	60.83 Å
Total Rg	60.18 Å
Atom count	8862
Residues	1084
Excluded volume	158460 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6c13__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Protocadherin-15
Molecular weight formula_weight	72989.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8862

QYDDSPVFTNSTYTVVVEENLPAGTSFLQIEAKDVDLGANVSYRIRSPEVKHLFALHPFTGELSLLRSLDYEAFPDQEASITFLAEAFDIYGTMPPGIATVTVIVKDMNDYPPVFSKRIYKGMVAPDAVKGTPITTVYAEDADPPGMPASRVRYRVDDVQFPYPASIFDVEEDSGRVVTRVNLNEEPTTIFKLVVVAFDDGEPVMSSSATVRILVLHPGEIPRFTQEEYRPPPVSELAARGTVVGVISAAAINQSIVYSIVAGNEEDKFGINNVTGVIYVNSPLDYETRTSYVLRVQADSLEVVLANLRVPSKSNTAKVYIEIQDENDHPPVFQKKFYIGGVSEDARMFASVLRVKATDRDTGNYSAMAYRLIIPPIKEGKEGFVVETYTGLIKTAMLFHNMRRSYFKFQVIATDDYGKGLSGKADVLVSVVNQLDMQVIVSNVPPTLVEKKIEDLTEILDRYVQEQIPGAKVVVESIGARRHGDAYSLEDYSKCDLTVYAIDPQTNRAIDRNELFKFLDGKLLDINKDFQPYYGEGGRILEIRTPEAVTSIKKRGESLGYTEGALLALAFIIILCCIPAILVVLVSYRQFKVRQAECTKTARIQSAMPAAKPAAPVPAAPAPPPPPPPPPPGAHLYEELGESAMHKYETALFESRLVPR

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	11.33 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	16733
