Dengue virus 4
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Genome polyprotein × 1 （F8TEL4） | Consistent with protein count |
| UniProt name | F8J1V3_9FLAV |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–47； UniProt 1393–1439 |
Dengue virus 4
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Genome polyprotein × 1 （F8J1V3） | Consistent with protein count |
| UniProt name | F8TEL4_9FLAV |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–618； UniProt 1475–2092 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 5yvy |
| Deposition date deposition_date | 2017-11-27 |
| Structure title title | Crystal structure of unlinked full length NS3 protein (eD4NS2BNS3) from DENV4 in closed conformation |
| Keywords keywords | SERINE PROTEASE, NON-STRUCTURAL PROTEIN 3, DEAH HELICASE, ATPASE, DENGUE VIRUS, FLAVIVIRUS, VIRAL PROTEIN; VIRAL PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

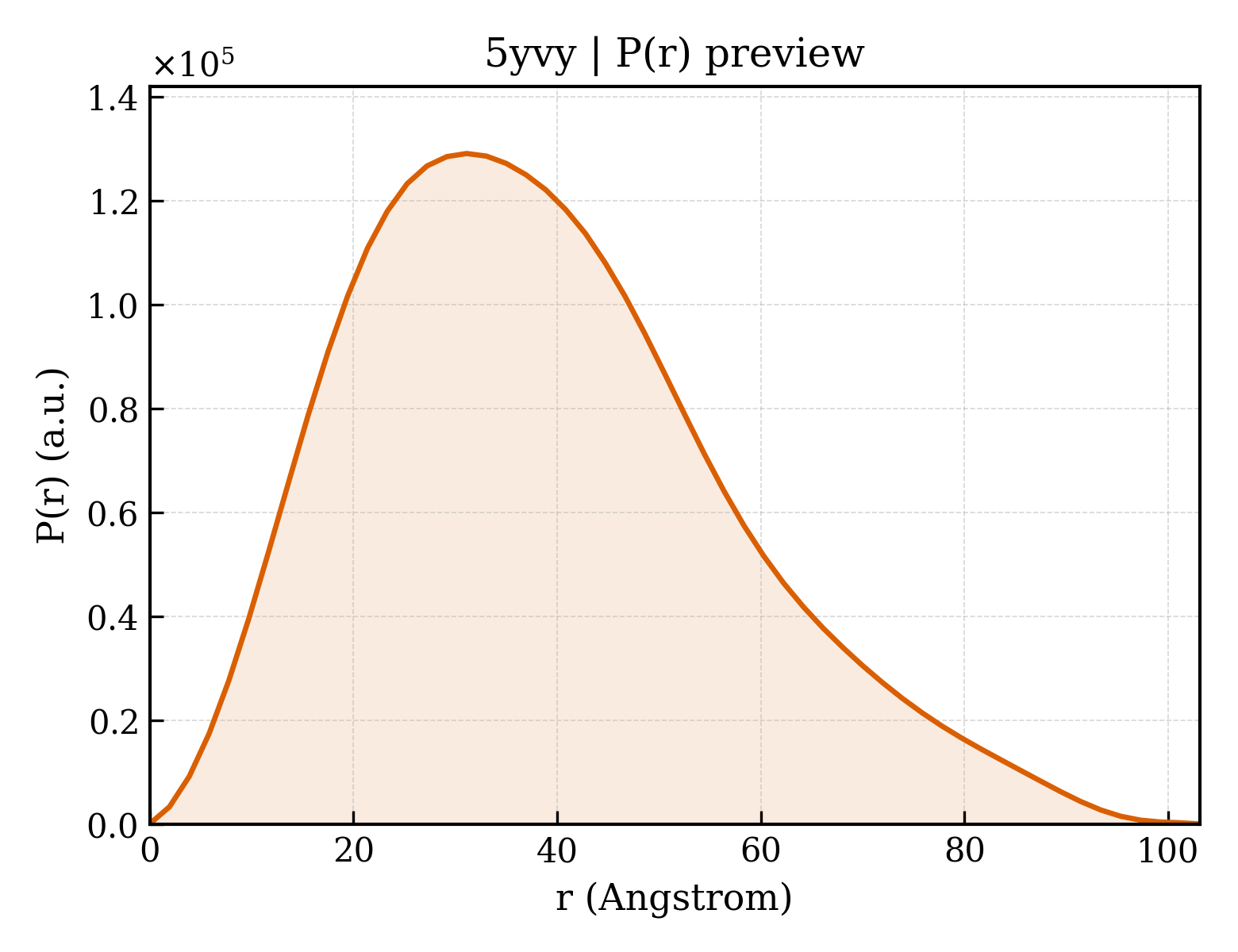

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 29.91 Å |
| Rg (electron density) | 29.35 Å |
| Total Rg | 29.83 Å |
| Atom count | 4687 |
| Residues | 618 |
| Excluded volume | 82719 ų |
| Maximum q | 0.500 Å⁻¹ |
