SAXSdb — 5zf6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polyribonucleotide nucleotidyltransferase 1, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 46–669 Chain B； UniProt 46–669	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1M citrate buffer (pH 5.0), 10% (v/v) 2-propanol, 26% (v/v) polyethylene glycol 400	Resolution 2.80 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5ZF6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3U1K Crystal structure of human PNPase Deposited 2011-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–669（624 aa） Fragment：UNP residues 46-669	Not recorded	CIT CITRIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；10%(v/v) 2-Propanol, 0.1M Sodium citrate tribasic dihydrate, 26%(v/v) Polyethylene glycol 400 , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.13 Å R-free 0.223
3U1K Crystal structure of human PNPase Deposited 2011-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 46–669（624 aa） Fragment：UNP residues 46-669 Chain C 46–669（624 aa） Fragment：UNP residues 46-669 Chain D 46–669（624 aa） Fragment：UNP residues 46-669	Not recorded	CIT CITRIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；10%(v/v) 2-Propanol, 0.1M Sodium citrate tribasic dihydrate, 26%(v/v) Polyethylene glycol 400 , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.13 Å R-free 0.223
9KJR The cryo-EM structure of human PNPase in the open conformation Deposited 2024-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–753（708 aa） Chain B 46–753（708 aa） Chain C 46–753（708 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
9KJT The cryo-EM structure of human PNPase in the closed conformation Deposited 2024-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.84 Å
9NJB hPNPase RNA pre-catalytic state Deposited 2025-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	SO4 SULFATE ION × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.15 Å
9NJC hPNPase bound to PO4 in loop conformation 1 Deposited 2025-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.36 Å
9NJD hPNPase bound to PO4 in loop conformation 3 Deposited 2025-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.44 Å
9NJE hPNPase bound to PO4 in loop conformation 2 Deposited 2025-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.44 Å
9NO0 hPNPase RNA loading state Deposited 2025-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.08 Å
9XYI hPNPase RNA loading state Deposited 2025-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	SO4 SULFATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.46 Å
9XZF hPNPase RNA loading state with extended RNA in the bottom Deposited 2025-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PNPT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–647； UniProt 46–669 Author chain B； PDBConstruct 24–647； UniProt 46–669

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5zf6
Deposition date deposition_date	2018-03-02
Structure title title	Crystal structure of the dimeric human PNPase
Keywords keywords	dimeric human PNPase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.24 Å
Radius of gyration Rg (electron density) rg_electron	33.49 Å
Forward intensity I(0) i0	222357000.00
Molecular weight molecular_weight	120850.0 kDa
Excluded volume excluded_volume	152250 Å³
Envelope volume envelope_volume	207120 Å³
Hydration-shell volume shell_volume	50257 Å³
Envelope diameter envelope_diameter	108.5 Å
Shell Rg shell_rg	41.64 Å
Envelope Rg envelope_rg	32.37 Å
Shape Rg shape_rg	33.50 Å
Total Rg total_rg	34.12 Å
Total atoms total_atoms	8489
Residues n_residues	1108
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

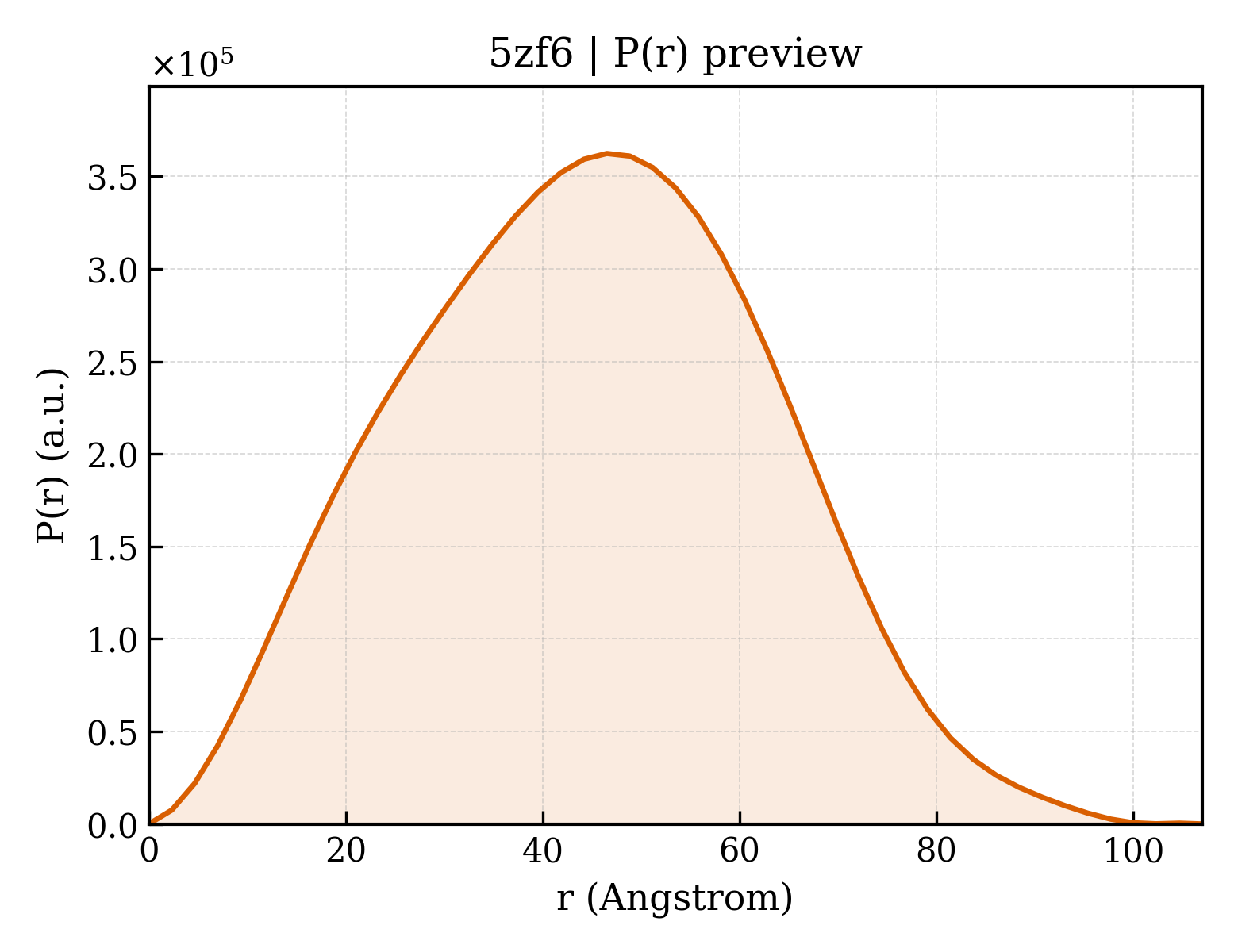

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	107.0 Å
Rg (real space) rg_real	34.05 Å
Rg uncertainty (real space) rg_real_error	0.61 Å
I(0) (real space) i0_real	2.2240e+08
I(0) uncertainty (real space) i0_real_error	3.3460e+06
Rg (reciprocal space) rg_reciprocal	34.17 Å
I(0) (reciprocal space) i0_reciprocal	222400000.0000
Solution quality estimate total_estimate	0.8957
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	46.5 Å
Skewness Skewness skewness	0.068
Kurtosis Kurtosis kurtosis	-0.514
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	29610000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.924

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Polyribonucleotide nucleotidyltransferase 1, mitochondrial
Molecular weight formula_weight	70712.7 kDa
EC 编号 ec_number	2.7.7.8
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8555

MGSSHHHHHHSSGLVPRGSHMASAVAVDLGNRKLEISSGKLARFADGSAVVQSGDTAVMVTAVSKTKPSPSQFMPLVVDYRQKAAAAGRIPTNYLRREIGTSDKEILTSRIIDRSIRPLFPAGYFYDTQVLCNLLAVDGVNEPDVLAINGASVALSLSDIPWNGPVGAVRIGIIDGEYVVNPTRKEMSSSTLNLVVAGAPKSQIVMLEASAENILQQDFCHAIKVGVKYTQQIIQGIQQLVKETGVTKRTPQKLFTPSPEIVKYTHKLAMERLYAVFTDYEHDKVSRDEAVNKIRLDTEEQLKEKFPEADPYEIIESFNVVAKEVFRSIVLNEYKRCDGRDLTSLRNVSCEVDMFKTLHGSALFQRGQTQVLCTVTFDSLESGIKSDQVITAINGIKDKNFMLHYEFPPYATNEIGKVTGLNRRELGHGALAEKALYPVIPRDFPFTIRVTSEVLESNGSSSMASACGGSLALMDSGVPISSAVAGVAIGLVTKTDPEKGEIEDYRLLTDILGIEDYNGDMDFKIAGTNKGITALQADIKLPGIPIKIVMEAIQQASVAKKEILQIMNKTISKPRASRKENGPVVETVQVPLSKRAKFVGPGGYNLKKLQAETGVTISQVDEETFSVFAPTPSAMHEARDFITEICK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	66

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	5zf6A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	5zf6B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

Domain ID domain_id	5zf6B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	81.335 Å
Unit-cell length b length_b	109.334 Å
Unit-cell length c length_c	84.501 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.796 Å
Low-resolution limit resolution_low	42.157 Å
R factor r_factor	0.1967
R_work r_work	0.1929
R_free r_free	0.2489

fit	/app/data/saxs_computation/zf/5zf6/5zf6.fit
pddf	/app/data/pr_computation/zf/5zf6/5zf6.pr.out
profile	/app/data/saxs_computation/zf/5zf6/5zf6.dat
