1. Protein Identity and Related Structures Protein Identity & Related Structures

Polyribonucleotide nucleotidyltransferase 1, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 46–783 Chain B； UniProt 46–783 Chain C； UniProt 46–783	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.84 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9KJT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3U1K Crystal structure of human PNPase Deposited 2011-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–669（624 aa） Fragment：UNP residues 46-669	Not recorded	CIT CITRIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；10%(v/v) 2-Propanol, 0.1M Sodium citrate tribasic dihydrate, 26%(v/v) Polyethylene glycol 400 , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.13 Å R-free 0.223
3U1K Crystal structure of human PNPase Deposited 2011-09-30	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 46–669（624 aa） Fragment：UNP residues 46-669 Chain C 46–669（624 aa） Fragment：UNP residues 46-669 Chain D 46–669（624 aa） Fragment：UNP residues 46-669	Not recorded	CIT CITRIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；10%(v/v) 2-Propanol, 0.1M Sodium citrate tribasic dihydrate, 26%(v/v) Polyethylene glycol 400 , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.13 Å R-free 0.223
5ZF6 Crystal structure of the dimeric human PNPase Deposited 2018-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 46–669（624 aa） Chain B 46–669（624 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1M citrate buffer (pH 5.0), 10% (v/v) 2-propanol, 26% (v/v) polyethylene glycol 400	Resolution 2.80 Å R-free 0.249
9KJR The cryo-EM structure of human PNPase in the open conformation Deposited 2024-11-12	Different construct Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–753（708 aa） Chain B 46–753（708 aa） Chain C 46–753（708 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
9NJB hPNPase RNA pre-catalytic state Deposited 2025-02-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	SO4 SULFATE ION × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.15 Å
9NJC hPNPase bound to PO4 in loop conformation 1 Deposited 2025-02-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.36 Å
9NJD hPNPase bound to PO4 in loop conformation 3 Deposited 2025-02-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.44 Å
9NJE hPNPase bound to PO4 in loop conformation 2 Deposited 2025-02-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.44 Å
9NO0 hPNPase RNA loading state Deposited 2025-03-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.08 Å
9XYI hPNPase RNA loading state Deposited 2025-08-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	SO4 SULFATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.46 Å
9XZF hPNPase RNA loading state with extended RNA in the bottom Deposited 2025-08-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: tetrameric	Chain A 46–783（738 aa） Chain B 46–783（738 aa） Chain C 46–783（738 aa）	Not recorded	PO4 PHOSPHATE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PNPT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–740； UniProt 46–783 Author chain B； PDBConstruct 3–740； UniProt 46–783 Author chain C； PDBConstruct 3–740； UniProt 46–783

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9kjt
Deposition date deposition_date	2024-11-12
Structure title title	The cryo-EM structure of human PNPase in the closed conformation
Keywords keywords	;3'-to-5' exoribonuclease, RNA degradation, RNA import, mitochondria, RNA BINDING PROTEIN ;; RNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.65 Å
Radius of gyration Rg (electron density) rg_electron	40.19 Å
Forward intensity I(0) i0	797237000.00
Molecular weight molecular_weight	233680.0 kDa
Excluded volume excluded_volume	293990 Å³
Envelope volume envelope_volume	393560 Å³
Hydration-shell volume shell_volume	79103 Å³
Envelope diameter envelope_diameter	130.6 Å
Shell Rg shell_rg	47.88 Å
Envelope Rg envelope_rg	39.21 Å
Shape Rg shape_rg	40.19 Å
Total Rg total_rg	40.60 Å
Total atoms total_atoms	16413
Residues n_residues	2130
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	126.1 Å
Rg (real space) rg_real	40.45 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	7.9720e+08
I(0) uncertainty (real space) i0_real_error	1.4200e+07
Rg (reciprocal space) rg_reciprocal	40.65 Å
I(0) (reciprocal space) i0_reciprocal	797400000.0000
Solution quality estimate total_estimate	0.8759
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	119.6 Å
Skewness Skewness skewness	0.132
Kurtosis Kurtosis kurtosis	-0.386
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	253700000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.740

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.84 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	809000

Description description	Polyribonucleotide nucleotidyltransferase 1, mitochondrial
Molecular weight formula_weight	82425.0 kDa
EC 编号 ec_number	2.7.7.8
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	16413

The cryo-EM structure of human PNPase in the closed conformation

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polyribonucleotide nucleotidyltransferase 1, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

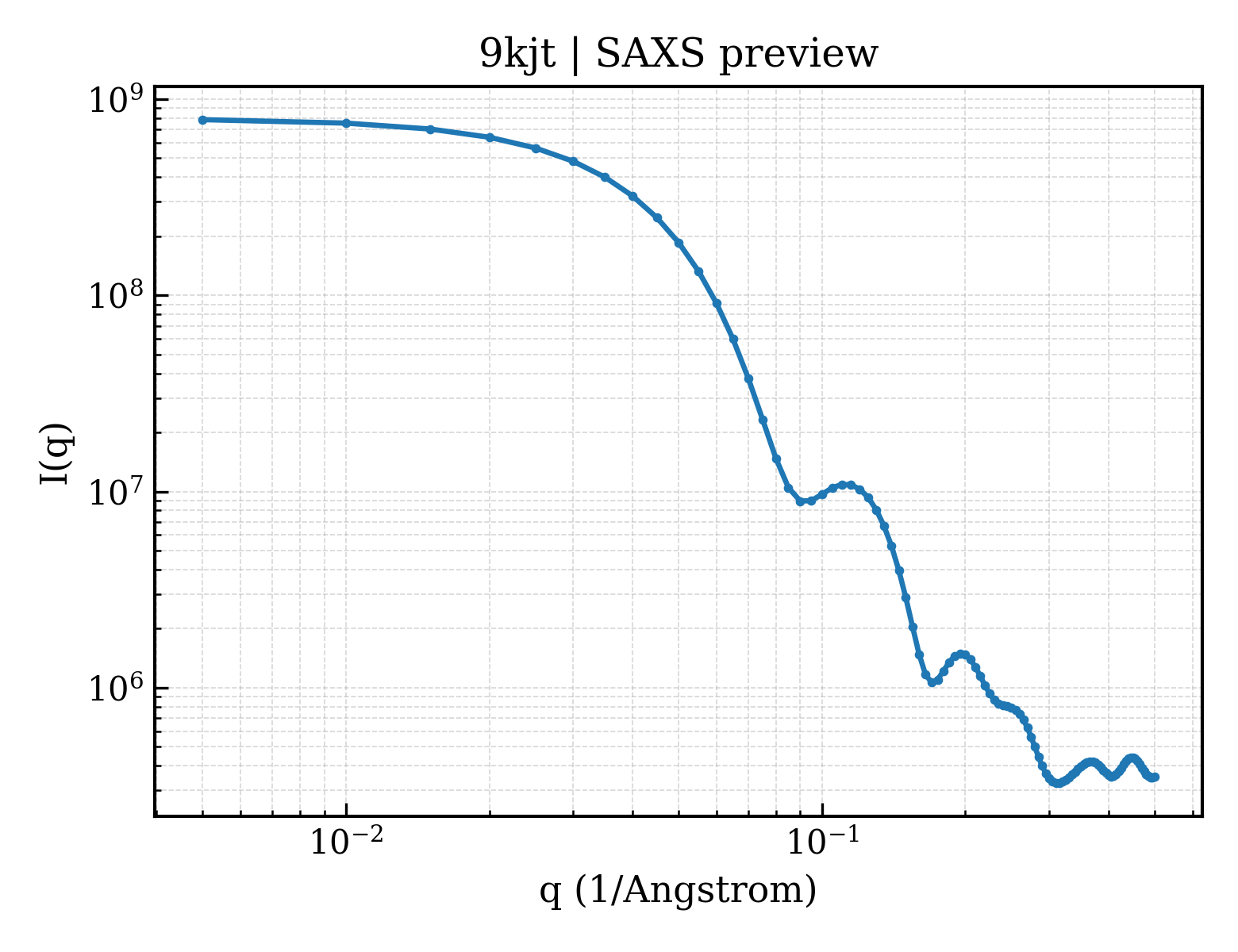

SAXS scattering curve SAXS Profile

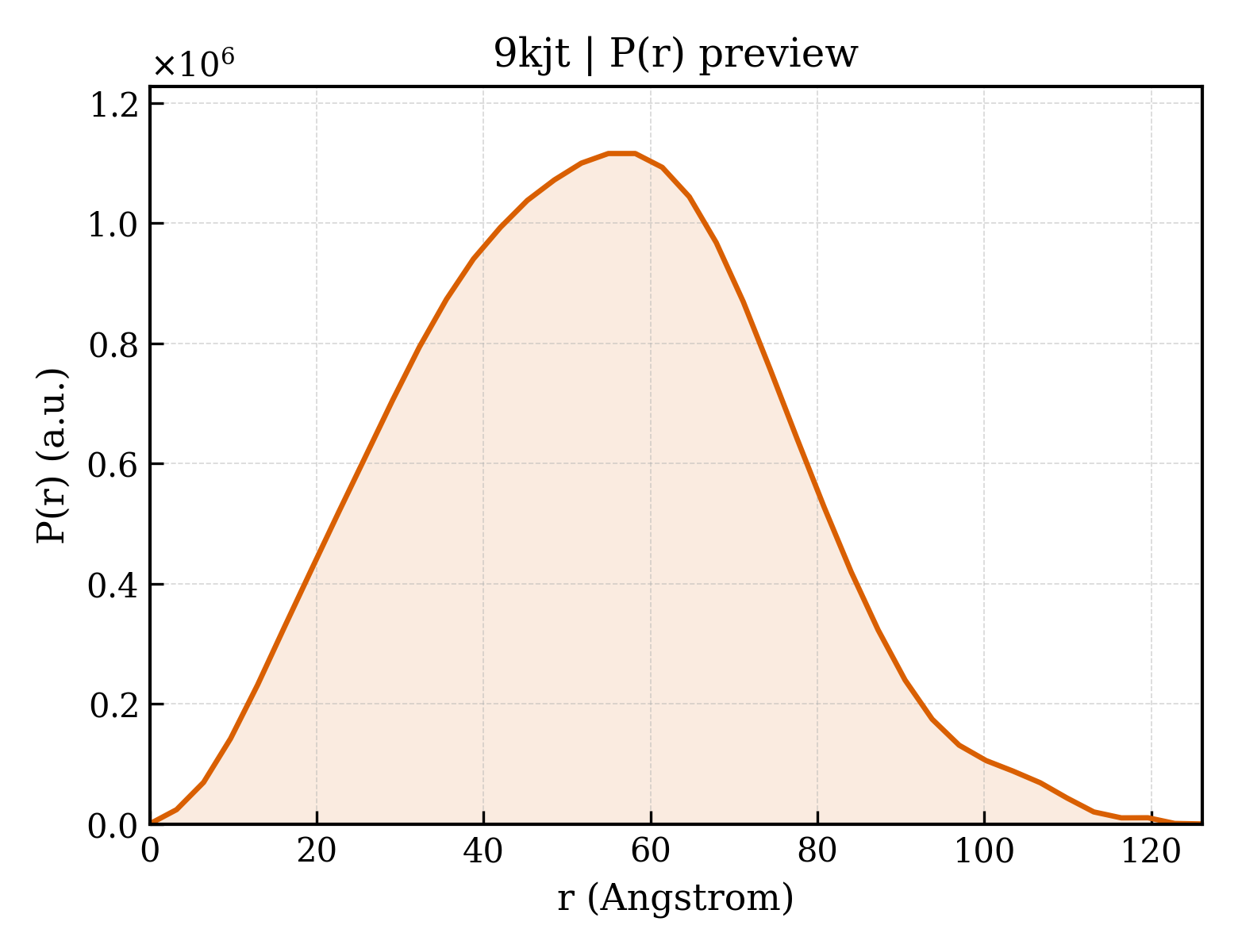

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/kj/9kjt/9kjt.fit
pddf	/app/data/pr_computation/kj/9kjt/9kjt.pr.out
profile	/app/data/saxs_computation/kj/9kjt/9kjt.dat
