SAXSdb — 6akp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Forkhead box protein C2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain C； UniProt 72–172	Not recorded	;DNA (5'-D(APCPAPCPAPAPAPTPAPTPTPTPGPTPGP*T)-3') ; × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；50mM NaOAc pH4.7, 14%PEG4K, 200mM NaCl, 10mM MgCl2, 0.5mM TCEP	Resolution 2.32 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6AKP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D5V SOLUTION STRUCTURE OF THE FORKHEAD DOMAIN OF THE ADIPOCYTE-TRANSCRIPTION FACTOR FREAC-11 (S12) Deposited 1999-10-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 69–162（94 aa） Fragment：DNA-BINDING DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；300 K；Ionic strength (raw mmCIF value) 15 mM；Pressure AMBIENT NMR sample composition 1 MM S12 DBD, 10 MM NACL, 5 MM MGCL2, 0.02% NAN3, 5 MM DTT NMR sample composition 1 MM S12 DBD, 10 MM NACL, 5 MM MGCL2, 0.02% NAN3, 5 MM DTT	Resolution not provided
6AKO Crystal Structure of FOXC2 DBD Bound to DBE2 DNA Deposited 2018-09-03	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 72–172（101 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；50 mM Bis-Tris propane (pH 6.68), 14% PEG4K, 200 mM NaCl, 10 mM MgCl2, 1 mM TCEP	Resolution 2.40 Å R-free 0.250
6LBM Crystal Structure of FOXC2-DBD bound to a palindromic DNA sequence Deposited 2019-11-14	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 72–172（101 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM HEPES, pH 7.5, 8%-12% PEG4000 (w/v), 250 mM NaCl, 10 mM MgCl2 and 1 mM TCEP.	Resolution 2.84 Å R-free 0.263
6O3T Structural basis of FOXC2 and DNA interactions Deposited 2019-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 70–164（95 aa） Chain B 70–164（95 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298.15 K；30% PEG MME 2000, 100 mM sodium acetate pH 4.6, 200 mM ammonium sulfate, 10 mM BME	Resolution 3.06 Å R-free 0.268
9VRQ Crystal structure of FOXC2/NFAT1 complex bound to ARRE2 DNA Deposited 2025-07-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 72–172（101 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM MES 5.93, 200 mM NaCl, 10 mM MgCl2, 1 mM TCEP and 12-15% PEG 4K (w/v)	Resolution 2.80 Å R-free 0.288

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FOXC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 3–103； UniProt 72–172

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6akp
Deposition date deposition_date	2018-09-03
Structure title title	Crystal Structural of FOXC2 DNA binding domain bound to PC promoter
Keywords keywords	FOXC; DNA binding domain; DNA recognition; Crystal Structural; Lymphoedema distichiasis syndrome, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

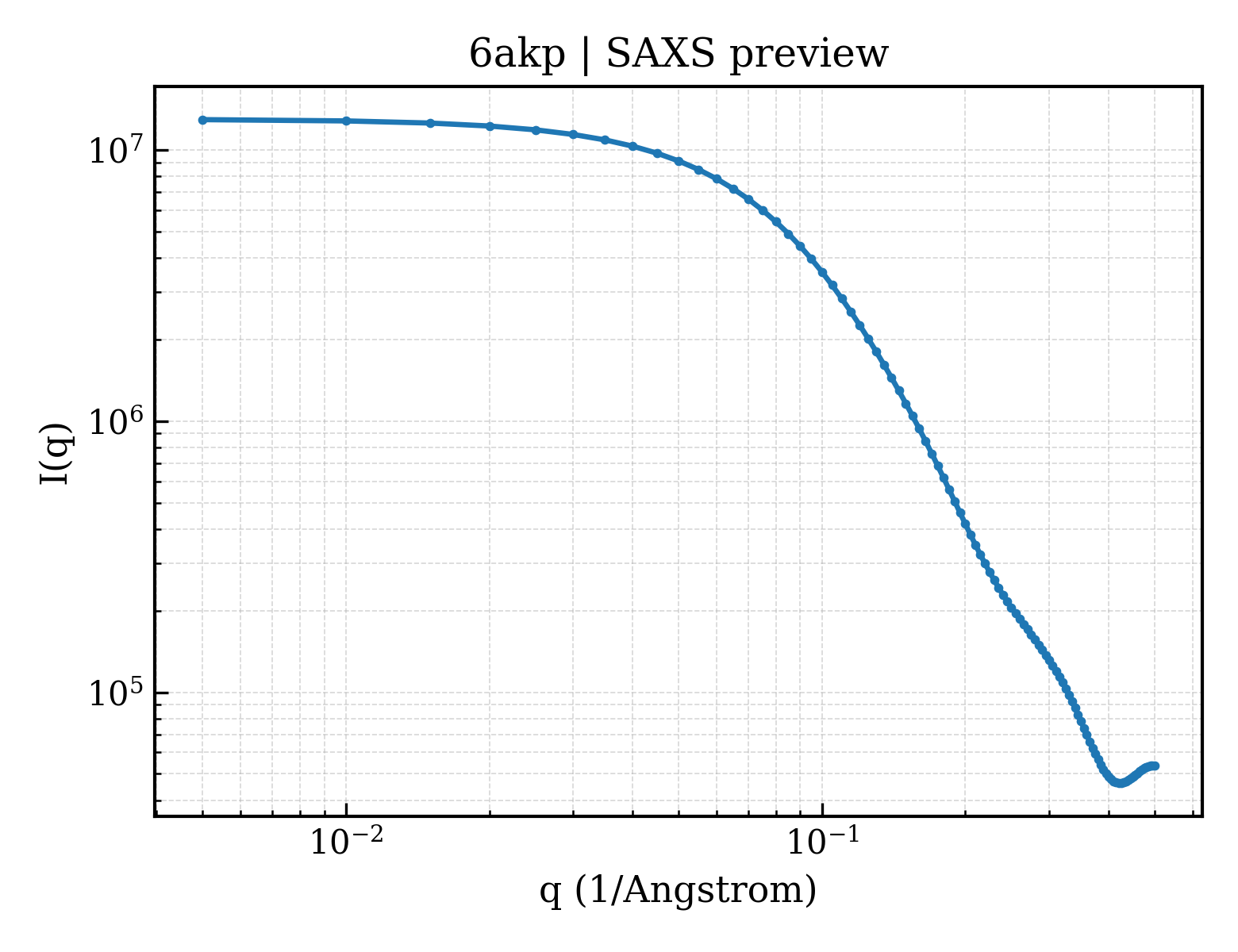

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.67 Å
Radius of gyration Rg (electron density) rg_electron	20.04 Å
Forward intensity I(0) i0	12995700.00
Molecular weight molecular_weight	21085.0 kDa
Excluded volume excluded_volume	23753 Å³
Envelope volume envelope_volume	31772 Å³
Hydration-shell volume shell_volume	14712 Å³
Envelope diameter envelope_diameter	74.9 Å
Shell Rg shell_rg	24.37 Å
Envelope Rg envelope_rg	20.51 Å
Shape Rg shape_rg	19.98 Å
Total Rg total_rg	20.74 Å
Total atoms total_atoms	1448
Residues n_residues	126
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

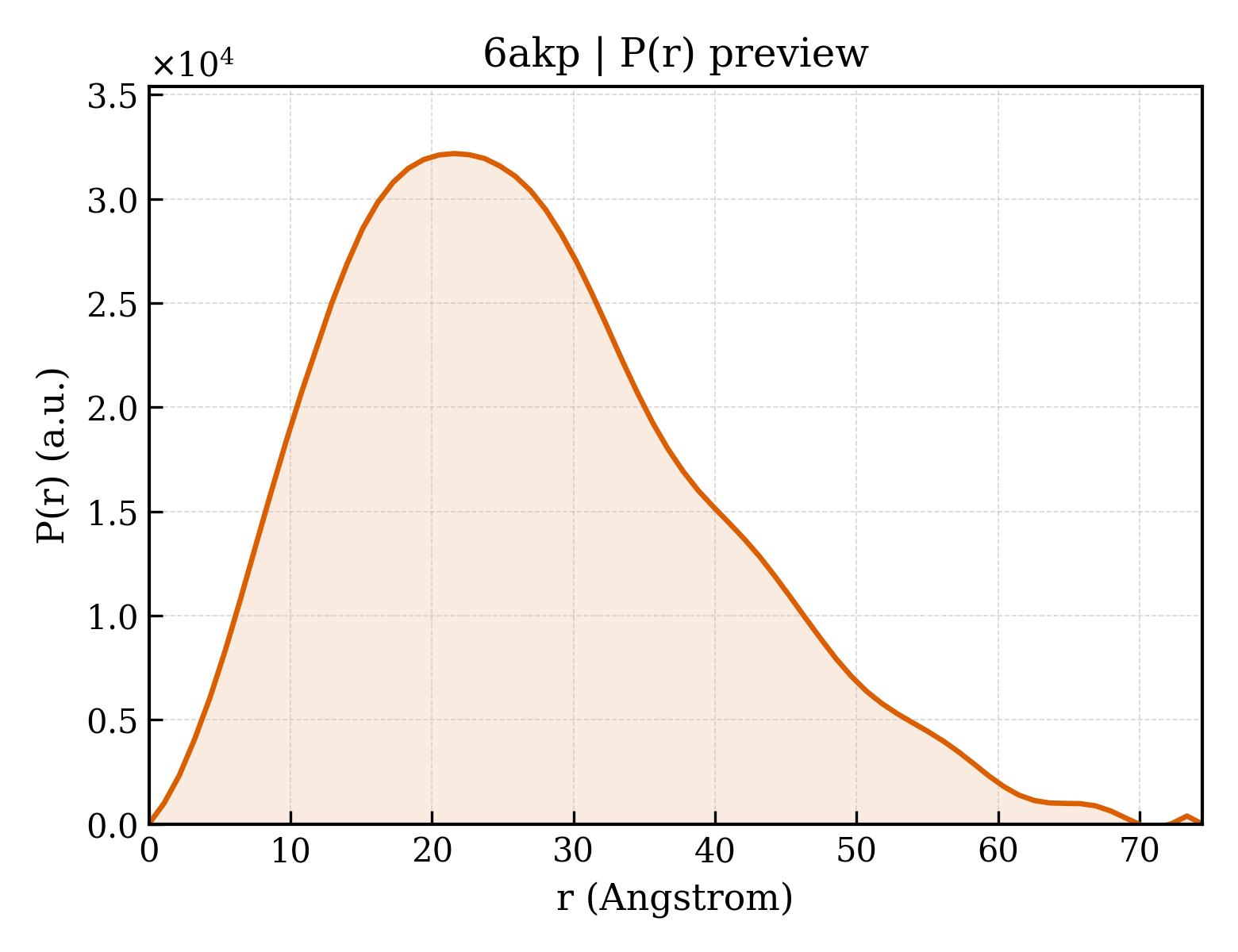

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	74.4 Å
Rg (real space) rg_real	20.85 Å
Rg uncertainty (real space) rg_real_error	0.75 Å
I(0) (real space) i0_real	1.3000e+07
I(0) uncertainty (real space) i0_real_error	1.6660e+05
Rg (reciprocal space) rg_reciprocal	20.81 Å
I(0) (reciprocal space) i0_reciprocal	13000000.0000
Solution quality estimate total_estimate	0.7580
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.6 Å
Skewness Skewness skewness	0.546
Kurtosis Kurtosis kurtosis	-0.114
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1336000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.718; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.700; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(APCPAPCPAPAPAPTPAPTPTPTPGPTPGP*T)-3') ;
Molecular weight formula_weight	4896.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A,B
Atom count atom_count	1464

ACACAAATATTTGTGT

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Forkhead box protein C2
Molecular weight formula_weight	12330.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GPKPPYSYIALITMAIQNAPEKKITLNGIYQFIMDRFPFYRENKQGWQNSIRHNLSLNECFVKVPRDDKKPGKGSYWTLDPDSYNMFENGSFLRRRRRFKKKD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6akpc1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.14 — Forkhead DNA-binding domain

Domain ID domain_id	d6akpc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	6akpC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.837 Å
Unit-cell length b length_b	80.214 Å
Unit-cell length c length_c	101.154 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.323 Å
Low-resolution limit resolution_low	37.283 Å
R factor r_factor	0.2204
R_work r_work	0.2174
R_free r_free	0.2470

fit	/app/data/saxs_computation/ak/6akp/6akp.fit
pddf	/app/data/pr_computation/ak/6akp/6akp.pr.out
profile	/app/data/saxs_computation/ak/6akp/6akp.dat
