1d5v
SOLUTION STRUCTURE OF THE FORKHEAD DOMAIN OF THE ADIPOCYTE-TRANSCRIPTION FACTOR FREAC-11 (S12)
SAXS Profile

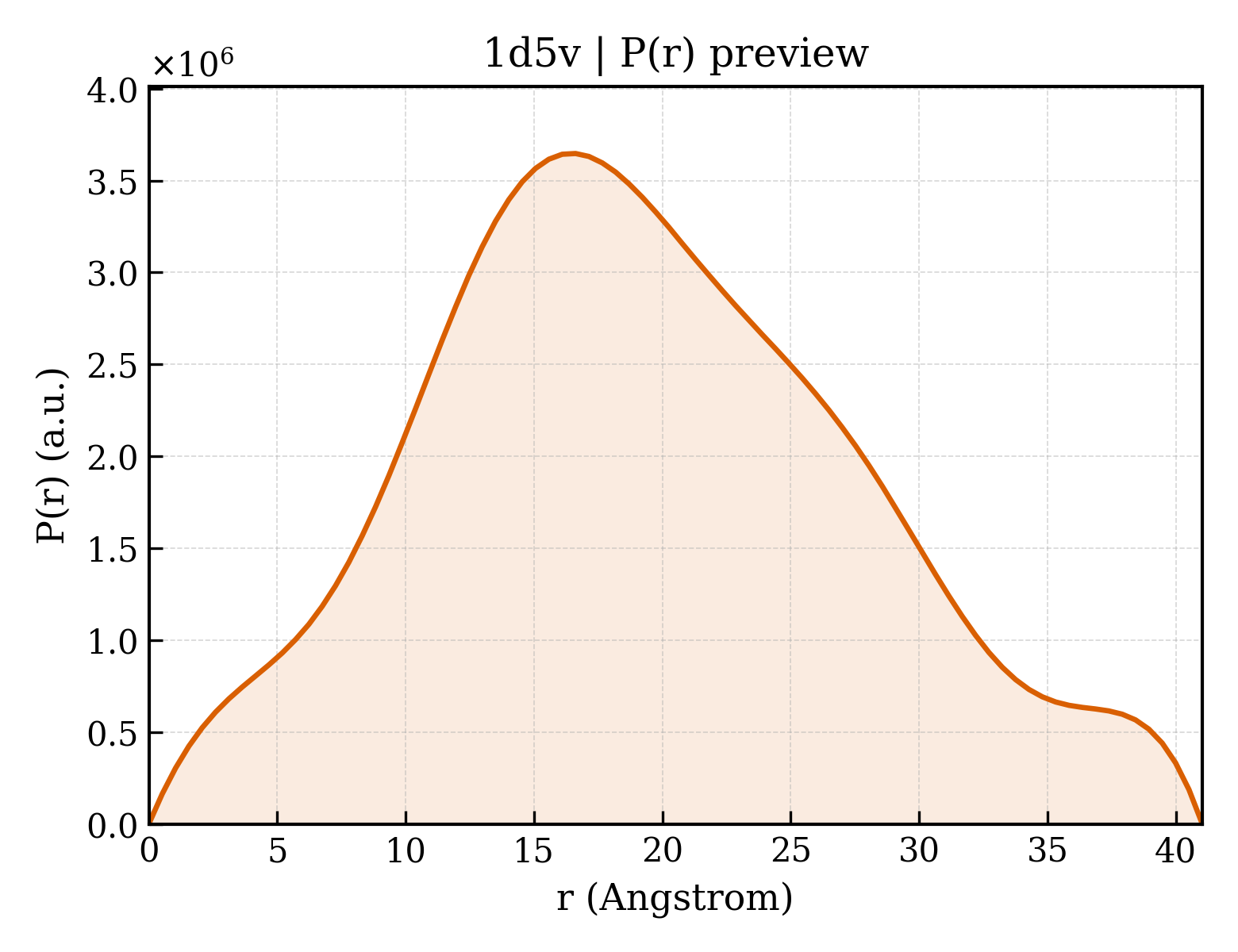

P(r) Distribution
1. Structure Basics
| entry_id | 1d5v |
| deposition_date | 1999-10-12 |
| title | SOLUTION STRUCTURE OF THE FORKHEAD DOMAIN OF THE ADIPOCYTE-TRANSCRIPTION FACTOR FREAC-11 (S12) |
| keywords | WINGED HELIX, DNA-RECOGNITION HELIX, GENE REGULATION; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.63 Å |
| rg_electron | 15.53 Å |
| i0 | 988034000.00 |
| molecular_weight | 276420.0 kDa |
| excluded_volume | 349290 ų |
| envelope_volume | 40787 ų |
| shell_volume | 17840 ų |
| envelope_diameter | 68.4 Å |
| shell_rg | 25.73 Å |
| envelope_rg | 20.51 Å |
| shape_rg | 15.49 Å |
| total_rg | 15.88 Å |
| total_atoms | 38725 |
| n_residues | 2350 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.0 Å |
| rg_real | 14.78 Å |
| rg_real_error | 0.05 Å |
| i0_real | 9.4150e+08 |
| i0_real_error | 7.5730e+06 |
| rg_reciprocal | 15.70 Å |
| i0_reciprocal | 988000000.0000 |
| total_estimate | 0.6799 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 16.6 Å |
| skewness | 0.238 |
| kurtosis | -0.385 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.8760 |
| highest_alpha | 167100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.967; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
