SAXSdb — 6atk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aminopeptidase N

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 2	Spike glycoprotein × 1 （P15423） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ZINC ION × 1	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 2	Spike glycoprotein × 1 （P15423） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ZINC ION × 1	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	Spike glycoprotein × 1 （P15423） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMPN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–905； UniProt 66–967 Author chain B； PDBConstruct 4–905； UniProt 66–967 Author chain C； PDBConstruct 4–905； UniProt 66–967

Spike glycoprotein

Human coronavirus 229E

UniProt P15423

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 2	Aminopeptidase N × 1 （P15144） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ZINC ION × 1	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 2	Aminopeptidase N × 1 （P15144） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ZINC ION × 1	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	Aminopeptidase N × 1 （P15144） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_CVH22
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 4–146； UniProt 293–435 Author chain E； PDBConstruct 4–146； UniProt 293–435 Author chain F； PDBConstruct 4–146； UniProt 293–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6atk
Deposition date deposition_date	2017-08-29
Structure title title	Crystal structure of the human coronavirus 229E spike protein receptor binding domain in complex with human aminopeptidase N
Keywords keywords	coronavirus, spike, receptor, Hydrolase-Viral protein complex; Hydrolase/Viral protein
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6atk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6atk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

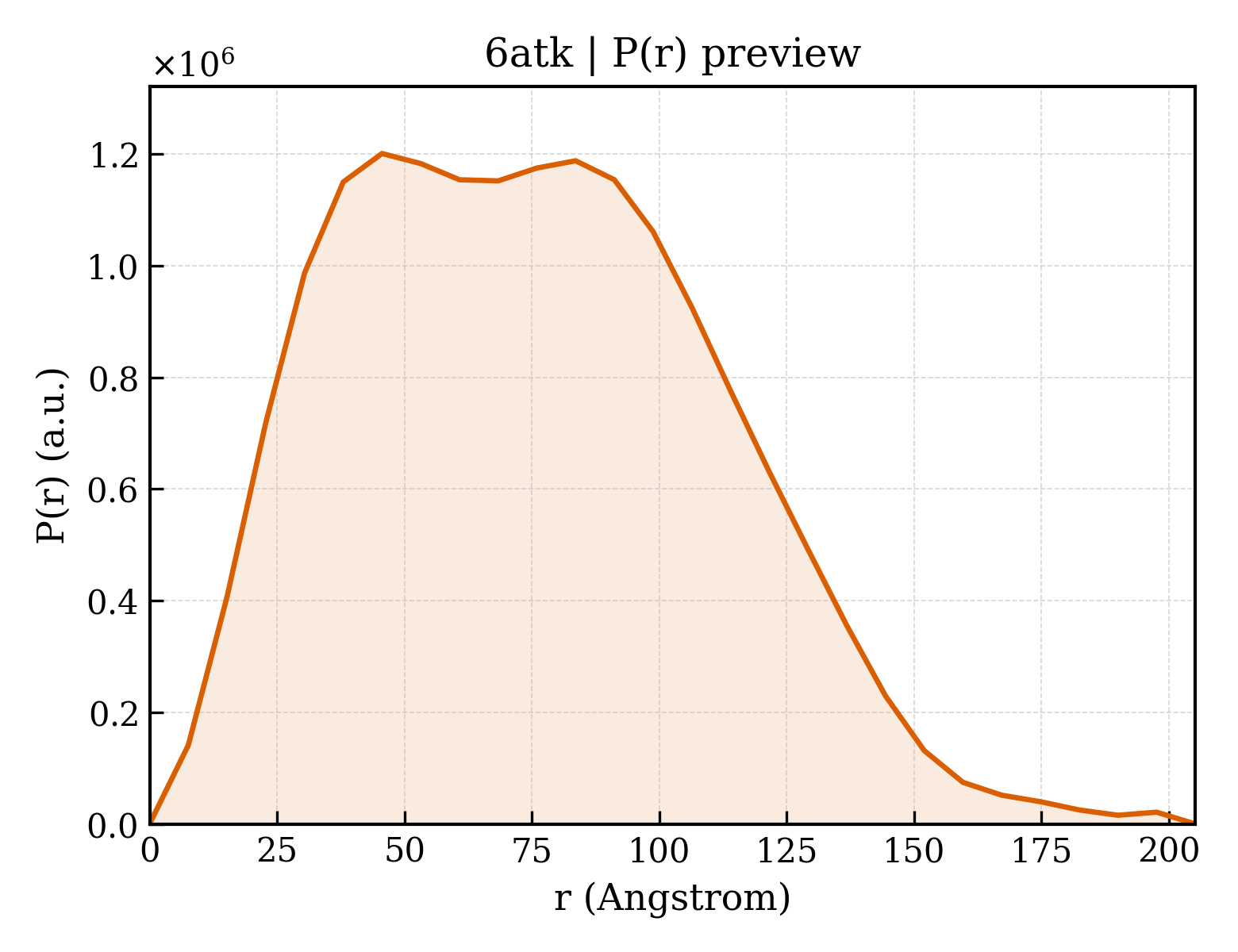

6atk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.38 Å
Rg (electron density)	30.50 Å
Total Rg	31.29 Å
Atom count	7945
Residues	970
Excluded volume	140950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6atk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6atk__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`6atk__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Aminopeptidase N
Molecular weight formula_weight	103465.0 kDa
EC 编号 ec_number	3.4.11.2
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	23660

GRPDQSKAWNRYRLPNTLKPDSYRVTLRPYLTPNDRGLYVFKGSSTVRFTCKEATDVIIIHSKKLNYTLSQGHRVVLRGVGGSQPPDIDKTELVEPTEYLVVHLKGSLVKDSQYEMDSEFEGELADDLAGFYRSEYMEGNVRKVVATTQMQAADARKSFPCFDEPAMKAEFNITLIHPKDLTALSNMLPKGPSTPLPEDPNWNVTEFHTTPKMSTYLLAFIVSEFDYVEKQASNGVLIRIWARPSAIAAGHGDYALNVTGPILNFFAGHYDTPYPLPKSDQIGLPDFNAGAMENWGLVTYRENSLLFDPLSSSSSNKERVVTVIAHELAHQWFGNLVTIEWWNDLWLNEGFASYVEYLGADYAEPTWNLKDLMVLNDVYRVMAVDALASSHPLSTPASEINTPAQISELFDAISYSKGASVLRMLSSFLSEDVFKQGLASYLHTFAYQNTIYLNLWDHLQEAVNNRSIQLPTTVRDIMNRWTLQMGFPVITVDTSTGTLSQEHFLLDPDSNVTRPSEFNYVWIVPITSIRDGRQQQDYWLIDVRAQNDLFSTSGNEWVLLNLNVTGYYRVNYDEENWRKIQTQLQRDHSAIPVINRAQIINDAFNLASAHKVPVTLALNNTLFLIEERQYMPWEAALSSLSYFKLMFDRSEVYGPMKNYLKKQVTPLFIHFRNNTNNWREIPENLMDQYSEVNAISTACSNGVPECEEMVSGLFKQWMENPNNNPIHPNLRSTVYCNAIAQGGEEEWDFAWEQFRNATLVNEADKLRAALACSKELWILNRYLSYTLNPDLIRKQDATSTIISITNNVIGQGLVWDFVQSNWKKLFNDYGGGSFSFSNLIQAVTRRFSTEYELQQLEQFKKDNEETGFGSGTRALEQALEKTKANIKWVKENKEVVLQWFTENSK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	15868.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,D,F

GRPLPVYHKHMFIVLYVDFKPQSGGGKCFNCYPAGVNITLANFNETKGPLCVDTSHFTTKYVAVYANVGRWSASINTGNCPFSFGKVNNFVKFGSVCFSLKDIPGGCAMPIVANWAYSKYYTIGTLYVSWSDGDGITGVPQPVEGV

Source Source

Source organism organism	Human coronavirus 229E
Common name common_name	HCoV-229E
NCBI taxonomy ID ncbi_taxonomy_id	11137
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	15

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	6atkA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1730 — tricorn interacting facor f3 domain

Domain ID domain_id	6atkA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	390 — Neutral Protease; domain 2
Homologous superfamily homologous superfamily	10 — Neutral Protease Domain 2

Domain ID domain_id	6atkA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1910 —

Domain ID domain_id	6atkA04
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	50 — Zincin-like fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	6atkB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1730 — tricorn interacting facor f3 domain

Domain ID domain_id	6atkB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	390 — Neutral Protease; domain 2
Homologous superfamily homologous superfamily	10 — Neutral Protease Domain 2

Domain ID domain_id	6atkB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1910 —

Domain ID domain_id	6atkB04
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	50 — Zincin-like fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	6atkC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1730 — tricorn interacting facor f3 domain

Domain ID domain_id	6atkC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	390 — Neutral Protease; domain 2
Homologous superfamily homologous superfamily	10 — Neutral Protease Domain 2

Domain ID domain_id	6atkC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1910 —

Domain ID domain_id	6atkC04
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	50 — Zincin-like fold
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	153.820 Å
Unit-cell length b length_b	153.820 Å
Unit-cell length c length_c	322.120 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.505 Å
Low-resolution limit resolution_low	49.795 Å
R factor r_factor	0.2452
R_work r_work	0.2444
R_free r_free	0.2668
