SAXSdb — 6bae

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Trastuzumab Fab light chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Trastuzumab Fab heavy chain × 1 （S6B291） Protein L × 1 （Q51918） Immunoglobulin G binding protein A × 1 （Q2UW42） meditope × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGKC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 108–214； UniProt 1–107

Trastuzumab Fab heavy chain

Homo sapiens

UniProt S6B291

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Trastuzumab Fab light chain × 1 （P01834） Protein L × 1 （Q51918） Immunoglobulin G binding protein A × 1 （Q2UW42） meditope × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	S6B291_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 109–223； UniProt 125–239

Protein L

Finegoldia magna

UniProt Q51918

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Trastuzumab Fab light chain × 1 （P01834） Trastuzumab Fab heavy chain × 1 （S6B291） Immunoglobulin G binding protein A × 1 （Q2UW42） meditope × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q51918_FINMA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 4–64； UniProt 477–537

Immunoglobulin G binding protein A

Staphylococcus aureus

UniProt Q2UW42

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Trastuzumab Fab light chain × 1 （P01834） Trastuzumab Fab heavy chain × 1 （S6B291） Protein L × 1 （Q51918） meditope × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q2UW42_STAAU
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 4–54； UniProt 74–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6bae
Deposition date deposition_date	2017-10-12
Structure title title	Trastuzumab Fab v3 in complex with CQFDLSTRRLKC
Keywords keywords	monoclonal antibody, Fab, meditope, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6bae__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6bae__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

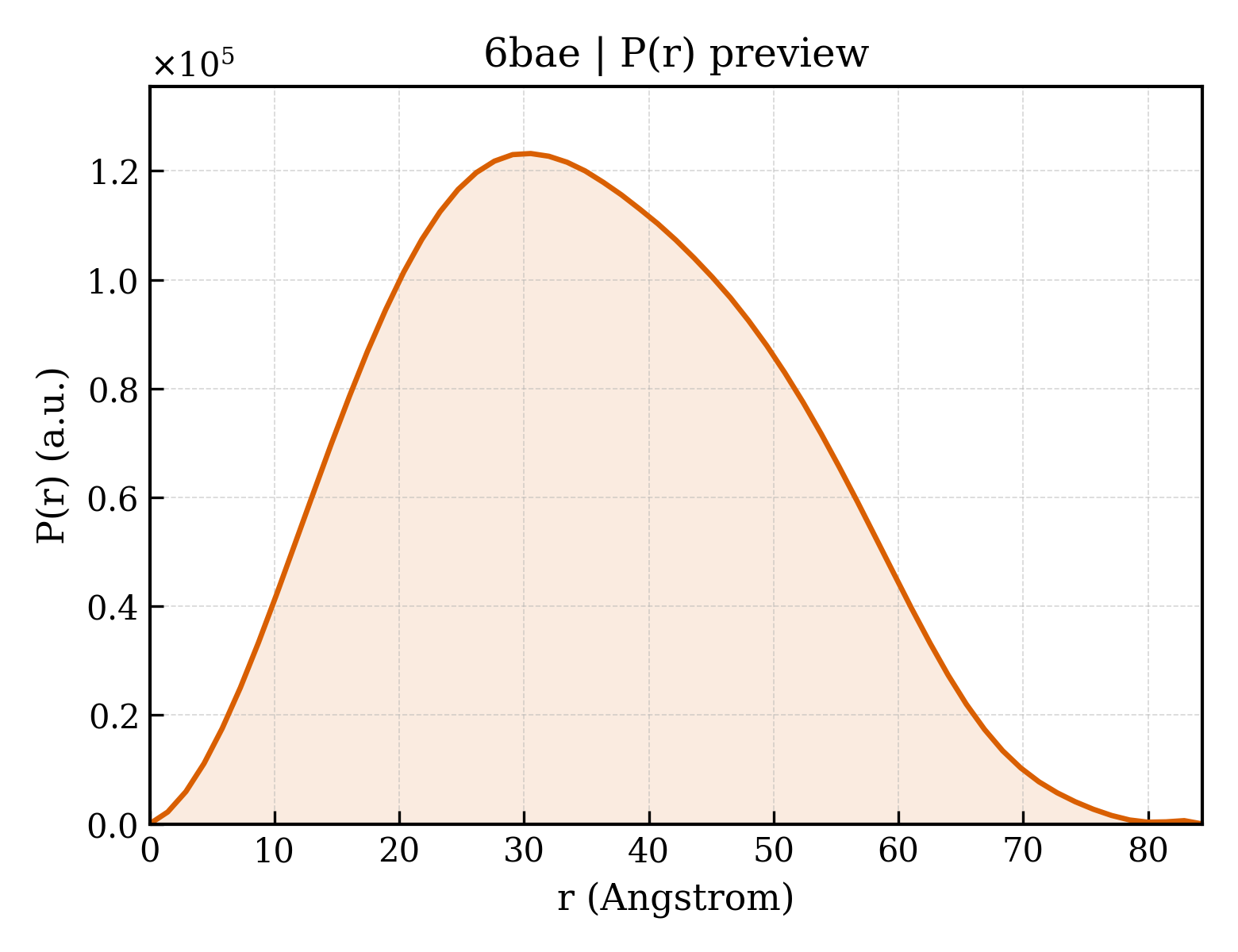

6bae__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.20 Å
Rg (electron density)	26.29 Å
Total Rg	27.06 Å
Atom count	4325
Residues	566
Excluded volume	76235 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6bae__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Trastuzumab Fab light chain
Molecular weight formula_weight	23518.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4914

DIQMTQSPILLSASVGDRVTITCRASQDVNTAVAWYQQRTNGSPRLLIYSASFLYSGVPSRFSGSRSGTDFTLTISSLQPEDEADYYCQQHYTTPPTFGAGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Trastuzumab Fab heavy chain
Molecular weight formula_weight	23806.7 kDa
Mutation mutation	A175C, R217K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EVQLVESGGGLVQPGGSLRLSCAASGFNIKDTYIHWVRQSPGKGLEWVARIYPTNGYTRYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAIYYCSRWGGDGFYAMDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPCVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Protein L
Molecular weight formula_weight	6907.7 kDa
Mutation mutation	T17I, D38A, Y56N, T57H, I58M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GSEVTIKVNLIFADGKIQTAEFKGTFEEATAEAYRYAALLAKVNGEYTADLEDGGNHMNIKFAG

Source Source

Source organism organism	Finegoldia magna
Common name common_name	Peptostreptococcus magnus
NCBI taxonomy ID ncbi_taxonomy_id	1260
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Immunoglobulin G binding protein A
Molecular weight formula_weight	6037.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSYNKDQQSAFYEILNMPNLNEAQRNGFIQSLKDDPSQSTNVLGEAKKLNESQA

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	meditope
Molecular weight formula_weight	1496.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

XCQFDLSTRRLKCX

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	535

▼

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	6baeA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6baeA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6baeB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6baeC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	420 — Immunoglobulin FC, subunit C

Domain ID domain_id	6baeE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	53.310 Å
Unit-cell length b length_b	104.940 Å
Unit-cell length c length_c	117.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.140 Å
Low-resolution limit resolution_low	33.529 Å
R factor r_factor	0.1756
R_work r_work	0.1730
R_free r_free	0.2241
