SAXSdb — 6c6y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

Betacoronavirus England 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	JC57-14 Heavy chain × 1 JC57-14 Light chain × 1 SULFATE ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	JC57-14 Heavy chain × 1 JC57-14 Light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_CVEMC
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 1–208； UniProt 381–588 Author chain S； PDBConstruct 1–208； UniProt 381–588

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6c6y
Deposition date deposition_date	2018-01-19
Structure title title	Crystal structure of Middle-East Respiratory Syndrome (MERS) coronavirus neutralizing antibody JC57-14 isolated from a vaccinated rhesus macaque in complex with MERS Receptor Binding Domain
Keywords keywords	antibody, neutralizing, vaccine, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6c6y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6c6y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

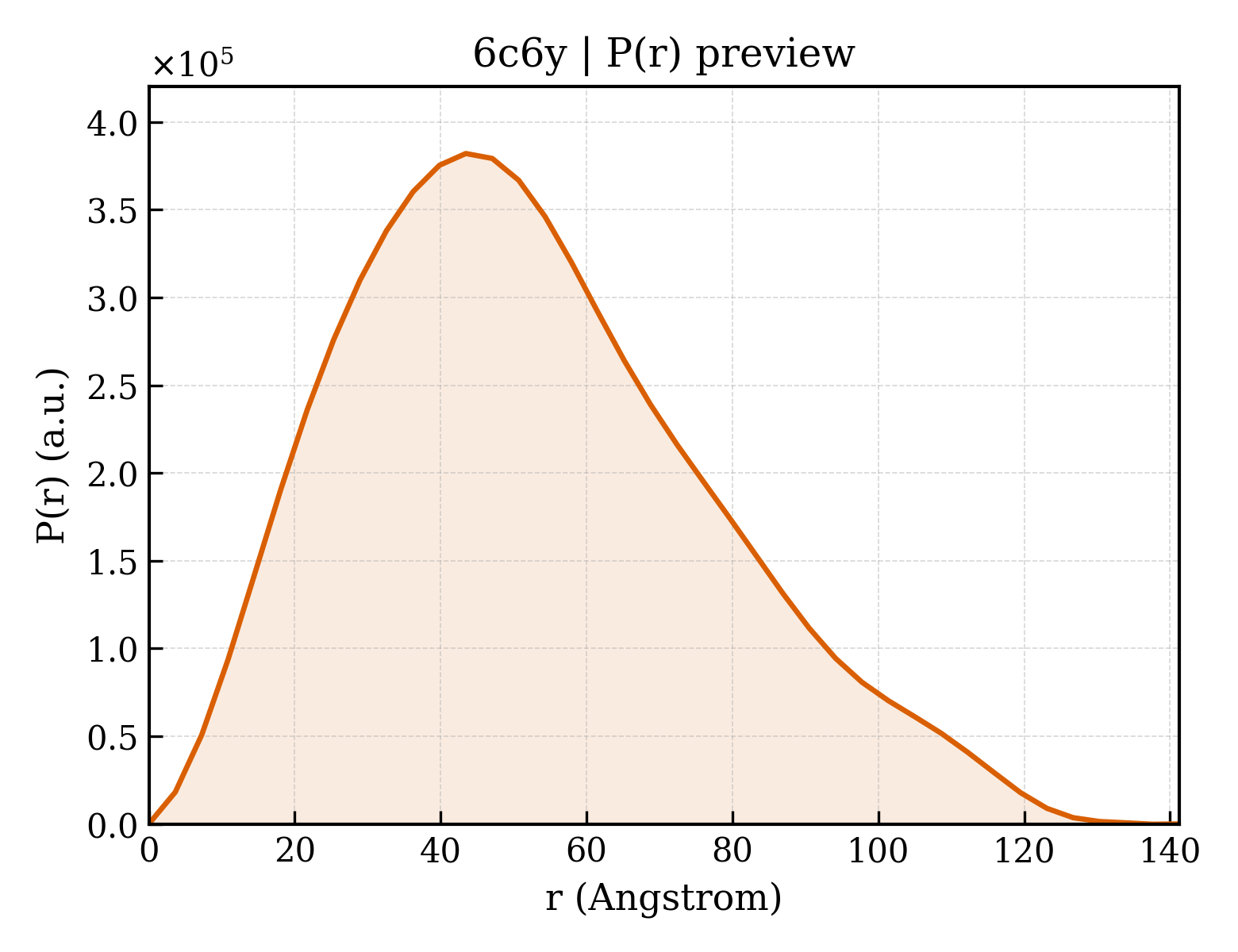

6c6y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.60 Å
Rg (electron density)	31.32 Å
Total Rg	31.96 Å
Atom count	4868
Residues	636
Excluded volume	86307 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6c6y__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6c6y__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	JC57-14 Heavy chain
Molecular weight formula_weight	23074.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,H
Atom count atom_count	9703

QVQLQESGPGLVKPSETLSLTCAVSGDSISSNYWSWIRQPPGKGLEWIGRFSGSGGSTDFNPSLKSRVTISTDTSKNQFSLNLRSVTAADTAVYYCAKTYSGTFDYWGQGVLVTVSSASTKGPSVFPLAPSSRSTSESTAALGCLVKDYFPEPVTVSWNSGSLTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYVCNVNHKPSNTKVDKRVEIA

Source Source

Source organism organism	Macaca mulatta
Common name common_name	Rhesus monkey
NCBI taxonomy ID ncbi_taxonomy_id	9544
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	JC57-14 Light chain
Molecular weight formula_weight	23571.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,L

DIQMTQSPSSLSASVGDRVTITCRASQDINNYLSWYQQKPGKAPKPLIYYASSLETGVPSRFSGSRSGTDYTLTISSLQLEDFATYYCQQYNNSPYSFGQGTKVEIKRTVAAPSVFIFPPSEDQVKSGTVSVVCLLNNFYPREASVKWKVDGALKTGNSQESVTEQDSKDNTYSLSSTLTLSSTEYQSHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Macaca mulatta
Common name common_name	Rhesus monkey
NCBI taxonomy ID ncbi_taxonomy_id	9544
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	22964.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R,S

VECDFSPLLSGTPPQVYNFKRLVFTNCNYNLTKLLSLFSVNDFTCSQISPAAIASNCYSSLILDYFSYPLSMKSDLSVSSAGPISQFNYKQSFSNPTCLILATVPHNLTTITKPLKYSYINKCSRFLSDDRTEVPQLVNANQYSPCVSIVPSTVWEDGDYYRKQLSPLEGGGWLVASGSTVAMTEQLQMGFGITVQYGTDTNSVCPKL

Source Source

Source organism organism	Betacoronavirus England 1
NCBI taxonomy ID ncbi_taxonomy_id	1263720
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

Domain ID domain_id	6c6yA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6c6yR01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

Domain ID domain_id	6c6yR02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	210 — ubp-family deubiquitinating enzyme fold
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	6c6yS01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

Domain ID domain_id	6c6yS02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	210 — ubp-family deubiquitinating enzyme fold
Homologous superfamily homologous superfamily	30 —

▶

Unit-cell length a length_a	81.580 Å
Unit-cell length b length_b	148.070 Å
Unit-cell length c length_c	259.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.320 Å
Low-resolution limit resolution_low	42.440 Å
R factor r_factor	0.2340
R_work r_work	0.2320
R_free r_free	0.2670

Crystal structure of Middle-East Respiratory Syndrome (MERS) coronavirus neutralizing antibody JC57-14 isolated from a vaccinated rhesus macaque in complex with MERS Receptor Binding Domain
