6dxb

Crystal structure of chalcone synthase from Arabidopsis thaliana

Method: X-RAY DIFFRACTION D_max: 128.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chalcone synthase

Arabidopsis thaliana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–395 Chain C； UniProt 1–395	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1 M HEPES (pH 7.5), 0.3 M ammonium acetate, 14% (v/v) PEG 8000, and 5 mM DTT	Resolution 1.55 Å R-free 0.163
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–395 Chain D； UniProt 1–395	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1 M HEPES (pH 7.5), 0.3 M ammonium acetate, 14% (v/v) PEG 8000, and 5 mM DTT	Resolution 1.55 Å R-free 0.163

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6DXB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6DXD Crystal structure of chalcone synthase from Arabidopsis thaliana - C347S mutant Deposited 2018-06-28	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–395（395 aa） Chain C 1–395（395 aa）	Mutation：C347S Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C347S Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1 M HEPES (pH 7.5), 0.3 M ammonium acetate, 14% (v/v) PEG 8000, and 5 mM DTT	Resolution 1.59 Å R-free 0.169
6DXD Crystal structure of chalcone synthase from Arabidopsis thaliana - C347S mutant Deposited 2018-06-28	Different mutation/modification Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–395（395 aa） Chain D 1–395（395 aa）	Mutation：C347S Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C347S Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1 M HEPES (pH 7.5), 0.3 M ammonium acetate, 14% (v/v) PEG 8000, and 5 mM DTT	Resolution 1.59 Å R-free 0.169
6DXE Crystal structure of chalcone synthase from Arabidopsis thaliana - M64I F170S G173A S213G Q217A T270V C347S mutant Deposited 2018-06-28	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–395（395 aa） Chain C 1–395（395 aa）	Mutation：M64I, F170S, G173A, S213G, Q217A, T270V, C347S Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M64I, F170S, G173A, S213G, Q217A, T270V, C347S Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.125 NaSCN, 20% (v/v) PEG 3350, and 5 mM DTT	Resolution 1.61 Å R-free 0.202
9WBE Crystal structure of the CHS-CHIL complex Deposited 2025-08-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–395（395 aa） Chain B 1–395（395 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M trimethylamine N-oxide dihydrate, 0.1 M Tris pH 8.5, 20% (w/v) polyethylene glycol monomethyl ether 2000	Resolution 1.91 Å R-free 0.204

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHSY_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–395； UniProt 1–395 Author chain B； PDBConstruct 1–395； UniProt 1–395 Author chain C； PDBConstruct 1–395； UniProt 1–395 Author chain D； PDBConstruct 1–395； UniProt 1–395

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

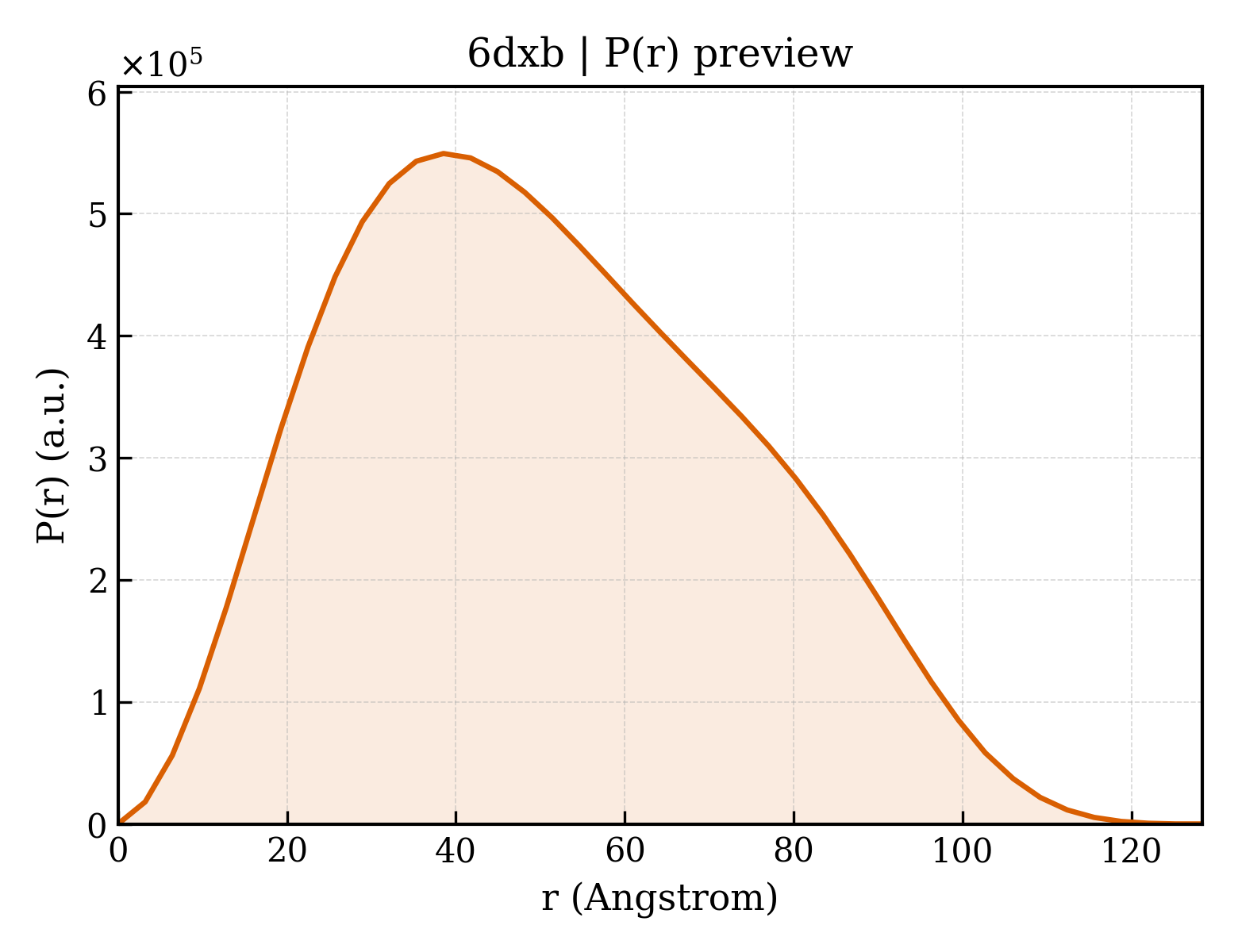

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6dxb
Deposition date deposition_date	2018-06-28
Structure title title	Crystal structure of chalcone synthase from Arabidopsis thaliana
Keywords keywords	Thiolase, Flavonoid, Polyketide synthase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.23 Å
Radius of gyration Rg (electron density) rg_electron	38.89 Å
Forward intensity I(0) i0	425576000.00
Molecular weight molecular_weight	170150.0 kDa
Excluded volume excluded_volume	213630 Å³
Envelope volume envelope_volume	262150 Å³
Hydration-shell volume shell_volume	55195 Å³
Envelope diameter envelope_diameter	129.5 Å
Shell Rg shell_rg	45.56 Å
Envelope Rg envelope_rg	38.58 Å
Shape Rg shape_rg	38.90 Å
Total Rg total_rg	39.18 Å
Total atoms total_atoms	23983
Residues n_residues	1550
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.4 Å
Rg (real space) rg_real	39.29 Å
Rg uncertainty (real space) rg_real_error	0.97 Å
I(0) (real space) i0_real	4.2560e+08
I(0) uncertainty (real space) i0_real_error	7.9890e+06
Rg (reciprocal space) rg_reciprocal	39.26 Å
I(0) (reciprocal space) i0_reciprocal	425600000.0000
Solution quality estimate total_estimate	0.8878
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	38.5 Å
Skewness Skewness skewness	0.307
Kurtosis Kurtosis kurtosis	-0.640
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	122000000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.893

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Chalcone synthase
Molecular weight formula_weight	43202.7 kDa
EC 编号 ec_number	2.3.1.74
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,B,D
Atom count atom_count	25857

MVMAGASSLDEIRQAQRADGPAGILAIGTANPENHVLQAEYPDYYFRITNSEHMTDLKEKFKRMCDKSTIRKRHMHLTEEFLKENPHMCAYMAPSLDTRQDIVVVEVPKLGKEAAVKAIKEWGQPKSKITHVVFCTTSGVDMPGADYQLTKLLGLRPSVKRLMMYQQGCFAGGTVLRIAKDLAENNRGARVLVVCSEITAVTFRGPSDTHLDSLVGQALFSDGAAALIVGSDPDTSVGEKPIFEMVSAAQTILPDSDGAIDGHLREVGLTFHLLKDVPGLISKNIVKSLDEAFKPLGISDWNSLFWIAHPGGPAILDQVEIKLGLKEEKMRATRHVLSEYGNMSSACVLFILDEMRRKSAKDGVATTGEGLEWGVLFGFGPGLTVETVVLHSVPL

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	Mouse-ear cress
NCBI Class编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1680

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6dxba1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxba2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d6dxbd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

CATH v4.4 (8 domains)

Domain ID domain_id	6dxbA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	6dxbD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.640 Å
Unit-cell length b length_b	137.560 Å
Unit-cell length c length_c	108.560 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.59 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.549 Å
Low-resolution limit resolution_low	38.681 Å
R factor r_factor	0.1409
R_work r_work	0.1407
R_free r_free	0.1633
