SAXSdb — 6ekb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DnaJ/Hsp40 cysteine-rich domain superfamily protein

Arabidopsis thaliana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 57–136	Mutation：K56M	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；20 % PEG 10,000, 8 % ethylene glycol and 0.1 M HEPES-NaOH pH 7.5	Resolution 1.90 Å R-free 0.216

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6EKB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain B1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain B8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain T1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain T8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain D1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain D8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain F1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain F8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain H1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain H8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain J1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain J8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain L1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain L8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain N1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain N8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain P1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain P8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
6EKC Crystal structure of the BSD2 homolog of Arabidopsis thaliana bound to the octameric assembly of RbcL from Thermosynechococcus elongatus Deposited 2017-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain R1 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R2 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R3 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R4 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R5 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R6 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R7 57–136（80 aa） Fragment：mature protein, residues 53-136 Chain R8 57–136（80 aa） Fragment：mature protein, residues 53-136	Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M Mutation：K56M	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；21 % PEG 3350 and 0.12M DL-malic acid pH 7.0	Resolution 2.63 Å R-free 0.274
8ILB The complexes of RbcL, AtRaf1 and AtBSD2 (LFB) Deposited 2023-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain F 57–136（80 aa） Chain G 57–136（80 aa） Chain H 57–136（80 aa） Chain I 57–136（80 aa） Chain O 57–136（80 aa） Chain P 57–136（80 aa） Chain Q 57–136（80 aa） Chain R 57–136（80 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ILM The cryo-EM structure of eight Rubisco large subunits (RbcL), two Arabidopsis thaliana Rubisco accumulation factors 1 (AtRaf1), and seven Arabidopsis thaliana Bundle Sheath Defective 2 (AtBSD2) Deposited 2023-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain C 57–136（80 aa） Chain L 57–136（80 aa） Chain M 57–136（80 aa） Chain N 57–136（80 aa） Chain O 57–136（80 aa） Chain P 57–136（80 aa） Chain Q 57–136（80 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9CI2 Anthoceros agrestis Rubisco octamer core complexed with small subunits and Arabidopsis thaliana BSD2 Deposited 2024-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain 1 1–136（136 aa） Chain 2 1–136（136 aa） Chain 3 1–136（136 aa） Chain 4 1–136（136 aa）	Not recorded	MG MAGNESIUM ION × 4 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM Tris pH 8.0 50 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

4 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9SN73_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–81； UniProt 57–136

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ekb
Deposition date deposition_date	2017-09-26
Structure title title	Crystal structure of the BSD2 homolog of Arabidopsis thaliana
Keywords keywords	zinc finger, assembly chaperone, Rubisco, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.98 Å
Radius of gyration Rg (electron density) rg_electron	13.92 Å
Forward intensity I(0) i0	1169000.00
Molecular weight molecular_weight	6463.0 kDa
Excluded volume excluded_volume	7677 Å³
Envelope volume envelope_volume	9395 Å³
Hydration-shell volume shell_volume	6640 Å³
Envelope diameter envelope_diameter	52.0 Å
Shell Rg shell_rg	17.43 Å
Envelope Rg envelope_rg	14.43 Å
Shape Rg shape_rg	14.08 Å
Total Rg total_rg	14.33 Å
Total atoms total_atoms	435
Residues n_residues	62
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.9 Å
Rg (real space) rg_real	14.21 Å
Rg uncertainty (real space) rg_real_error	0.64 Å
I(0) (real space) i0_real	1.1690e+06
I(0) uncertainty (real space) i0_real_error	1.5850e+04
Rg (reciprocal space) rg_reciprocal	14.20 Å
I(0) (reciprocal space) i0_reciprocal	1169000.0000
Solution quality estimate total_estimate	0.6459
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	12.2 Å
Skewness Skewness skewness	0.588
Kurtosis Kurtosis kurtosis	-0.165
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	80750.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.436; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.084; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DnaJ/Hsp40 cysteine-rich domain superfamily protein
Molecular weight formula_weight	8355.5 kDa
Mutation mutation	K56M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	464

MAANNNPQGTKPNSLVCANCEGEGCVACSQCKGGGVNLIDHFNGQFKAGALCWLCRGKKEVLCGDCNGAGFIGGFLSTFDE

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	Mouse-ear cress
NCBI Class编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	29

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.708 Å
Unit-cell length b length_b	55.708 Å
Unit-cell length c length_c	48.131 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1901
R_work r_work	0.1888
R_free r_free	0.2158

fit	/app/data/saxs_computation/ek/6ekb/6ekb.fit
pddf	/app/data/pr_computation/ek/6ekb/6ekb.pr.out
profile	/app/data/saxs_computation/ek/6ekb/6ekb.dat

Crystal structure of the BSD2 homolog of Arabidopsis thaliana

1. Protein Identity and Related Structures Protein Identity & Related Structures

DnaJ/Hsp40 cysteine-rich domain superfamily protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

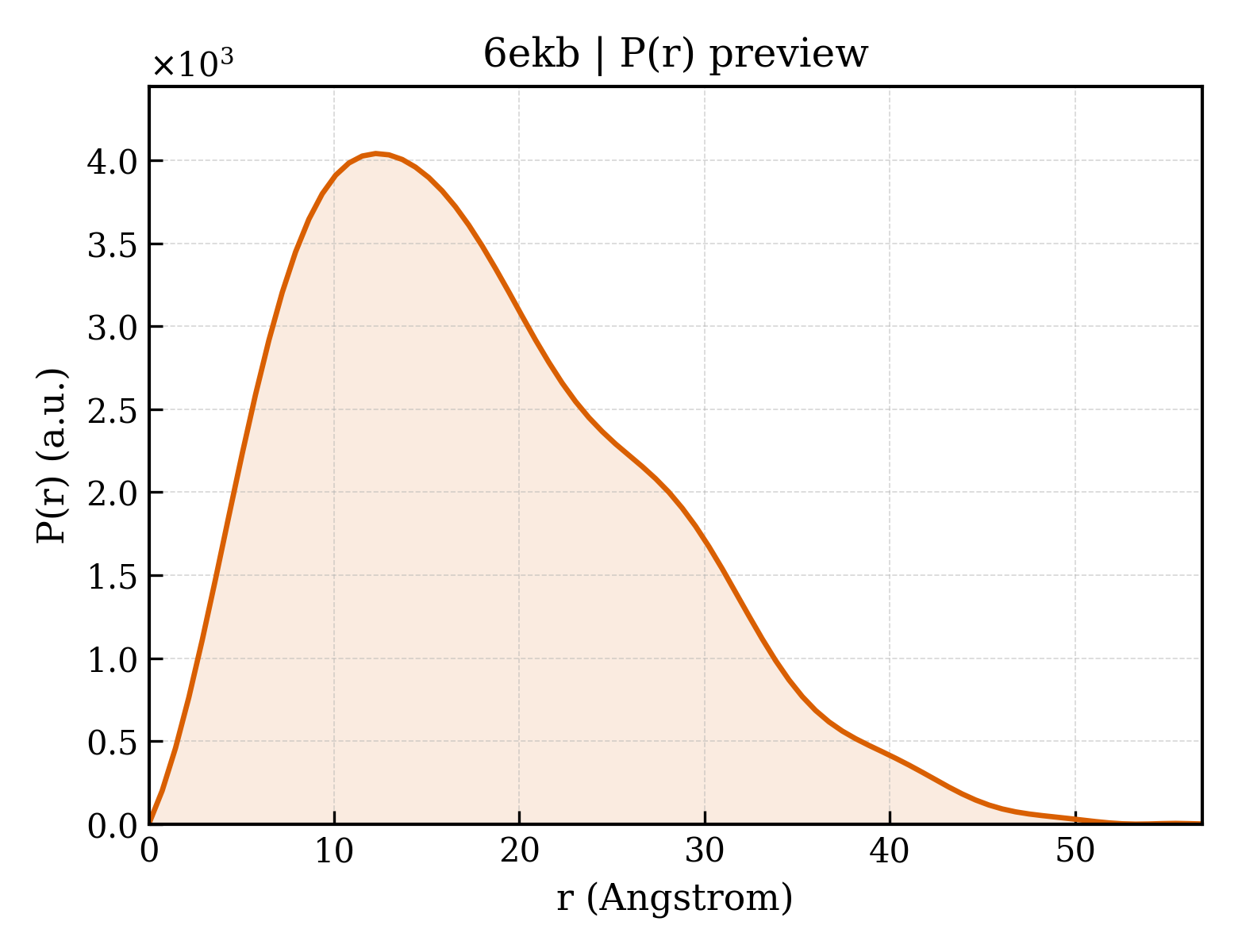

P(r) Distance Distribution P(r) Distribution
