SAXSdb — 6fx7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

[Protein ADP-ribosylglutamate] hydrolase AF_1521

Archaeoglobus fulgidus DSM 4304

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–192	Mutation：K15R, K35E, Y74C, F97L, I103V, S105G, E110G, Y145R, N162D	AR6 [(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHYL[HYDROXY-[[(2R,3S,4R,5S)-3,4,5-TRIHYDROXYOXOLAN-2-YL]METHOXY]PHOSPHORYL] HYDROGEN PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25 %w/v PEG3350, 0,2M sodium chloride, 0.1 M bis-tris, 2mM ADP-ribose	Resolution 1.82 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6FX7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HJZ Crystal structure of AF1521 protein containing a macroH2A domain Deposited 2003-03-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–192（192 aa） Fragment：MACROH2A	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.1M MES BUFFER, PH 6.5 18% PEG 5000 MME, 0.2M AMMONIUM SULPHATE, 25MM MANGANESE CHLORIDE	Resolution 1.70 Å R-free 0.227
1HJZ Crystal structure of AF1521 protein containing a macroH2A domain Deposited 2003-03-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–192（192 aa） Fragment：MACROH2A	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.1M MES BUFFER, PH 6.5 18% PEG 5000 MME, 0.2M AMMONIUM SULPHATE, 25MM MANGANESE CHLORIDE	Resolution 1.70 Å R-free 0.227
1VHU Crystal structure of a putative phosphoesterase Deposited 2003-12-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–199（198 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.34 Å R-free 0.180
2BFQ MACRO DOMAINS ARE ADP-RIBOSE BINDING MOLECULES Deposited 2004-12-10	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–192（192 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AR6 [(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHYL[HYDROXY-[[(2R,3S,4R,5S)-3,4,5-TRIHYDROXYOXOLAN-2-YL]METHOXY]PHOSPHORYL] HYDROGEN PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；30% PEG 4000, 0.2 AMMONIUM ACETATE, 0.1 TRI SODIUM CITRATE (PH 5.6), 18MG/ML PROTEIN, 1.5 MM ADP-RIBOSE, 5MM DTT. CRYO BUFFER CONTAINED 20% GLYCEROL	Resolution 1.50 Å R-free 0.233
2BFR The Macro domain is an ADP-ribose binding module Deposited 2004-12-10	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–192（192 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；20% PEG 8000, 0.2 MAGNESIUM ACETATE, 0.1M SODIUM CACODYLATE (PH 4.5). 18MG/ML PROTEIN, 1.5MM ADP, 5MM DTT. CRYOBUFFER CONTAINED 20% GLYCEROL.	Resolution 2.50 Å R-free 0.237
7WR6 Crystal structure of ADP-riboxanated caspase-4 in complex with Af1521 Deposited 2022-01-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–192（192 aa）	Not recorded	5ZY [[(3~{a}~{S},5~{R},6~{R},6~{a}~{R})-2-azanylidene-3-[(4~{R})-4-azanyl-5-oxidanylidene-pentyl]-6-oxidanyl-3~{a},5,6,6~{a}-tetrahydrofuro[2,3-d][1,3]oxazol-5-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；27% PEG 3350, 0.05M CAPSO pH 9.0	Resolution 1.96 Å R-free 0.228

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Y1521_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–215； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6fx7
Deposition date deposition_date	2018-03-08
Structure title title	Crystal structure of in vitro evolved Af1521
Keywords keywords	Macro domain, ADP-ribose binding, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

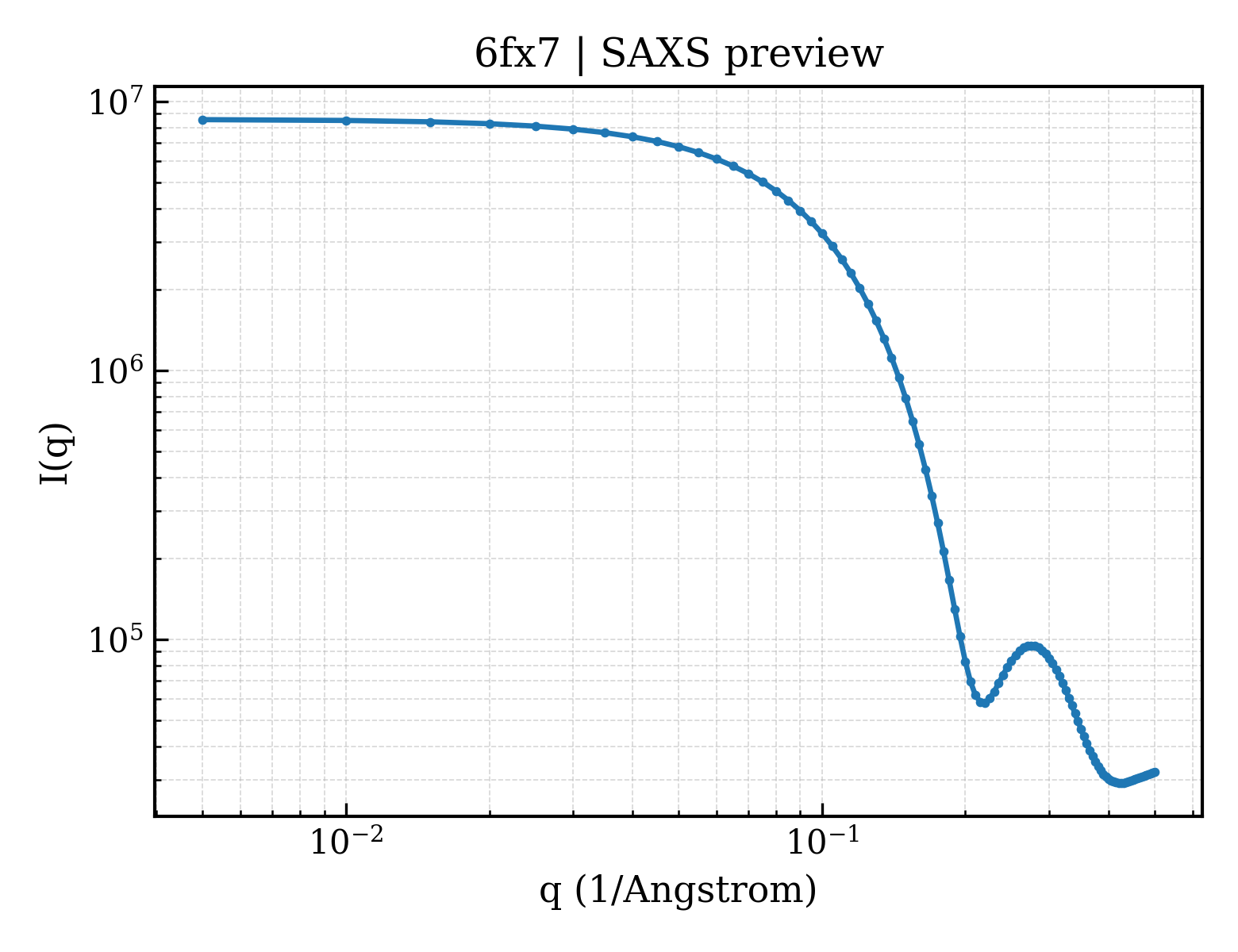

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.77 Å
Radius of gyration Rg (electron density) rg_electron	15.47 Å
Forward intensity I(0) i0	8577820.00
Molecular weight molecular_weight	21590.0 kDa
Excluded volume excluded_volume	27048 Å³
Envelope volume envelope_volume	29726 Å³
Hydration-shell volume shell_volume	15796 Å³
Envelope diameter envelope_diameter	50.0 Å
Shell Rg shell_rg	21.83 Å
Envelope Rg envelope_rg	15.78 Å
Shape Rg shape_rg	15.44 Å
Total Rg total_rg	16.61 Å
Total atoms total_atoms	1512
Residues n_residues	193
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

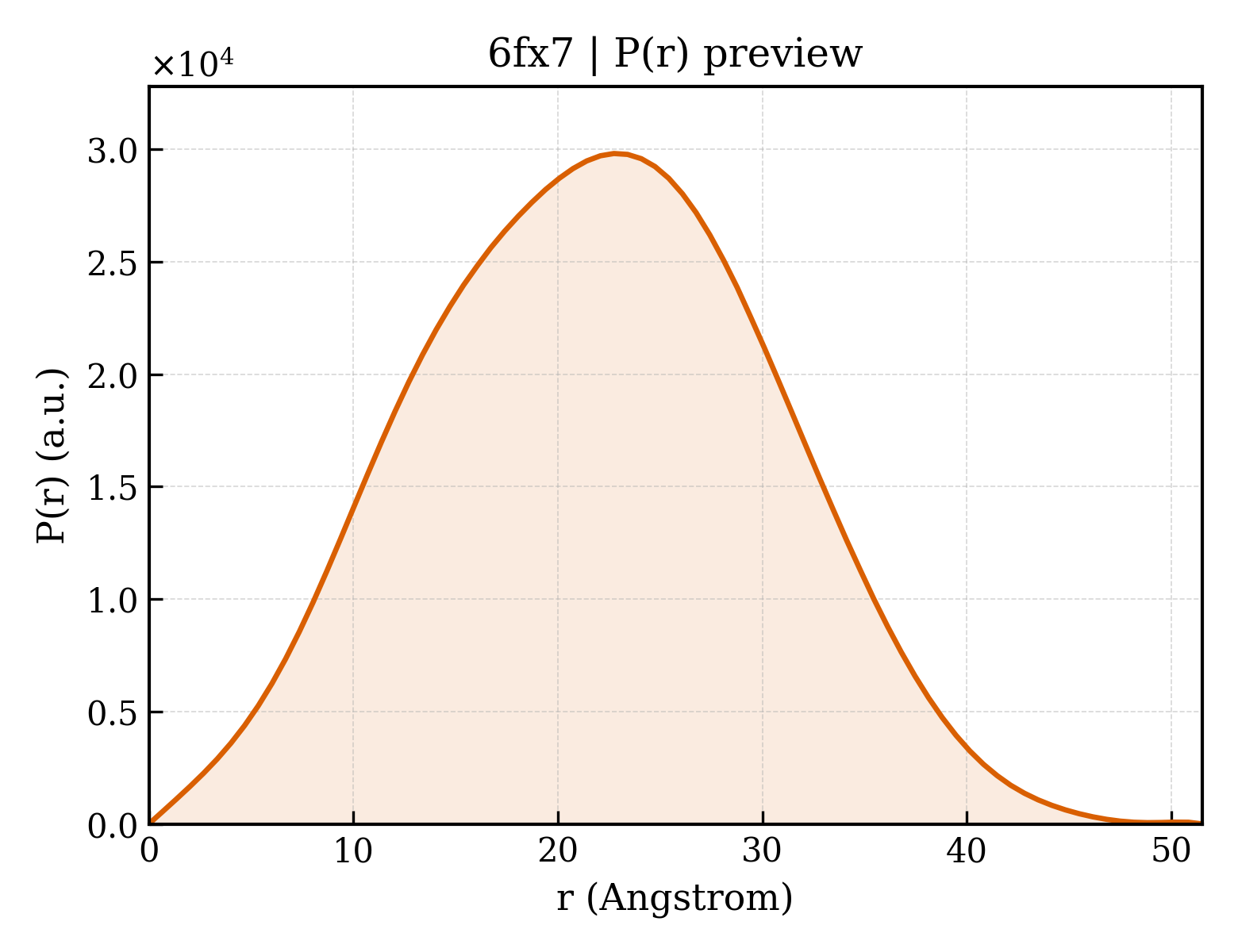

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.5 Å
Rg (real space) rg_real	16.64 Å
Rg uncertainty (real space) rg_real_error	0.23 Å
I(0) (real space) i0_real	8.5780e+06
I(0) uncertainty (real space) i0_real_error	8.7590e+04
Rg (reciprocal space) rg_reciprocal	16.66 Å
I(0) (reciprocal space) i0_reciprocal	8578000.0000
Solution quality estimate total_estimate	0.8977
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.7 Å
Skewness Skewness skewness	0.054
Kurtosis Kurtosis kurtosis	-0.455
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2284000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	[Protein ADP-ribosylglutamate] hydrolase AF_1521
Molecular weight formula_weight	23575.9 kDa
EC 编号 ec_number	3.2.2.-
Mutation mutation	K15R, K35E, Y74C, F97L, I103V, S105G, E110G, Y145R, N162D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1642

MGHHHHHHHHHHSSGHIDDDDKHMEVLFEAKVGDITLRLAQGDITQYPAKAIVNAANERLEHGGGVAYAIAKACAGDAGLYTEISKKAMREQFGRDCIDHGEVVVTPAMNLEERGIKYVLHTVGPVCGGMWSGELKEKLYKAFLGPLEKAEEMGVESIAFPAVSAGIRGCDLEKVVETFLEAVKDFKGSAVKEVALVIYDRKSAEVALKVFERSL

来源 Source

来源生物 organism	Archaeoglobus fulgidus DSM 4304
NCBI Class编号 ncbi_taxonomy_id	224325
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHYL [HYDROXY-[[(2R,3S,4R,5S)-3,4,5-TRIHYDROXYOXOLAN-2-YL]METHOXY]PHOSPHORYL] HYDROGEN PHOSPHATE ;
Molecular weight formula_weight	559.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	100

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6fx7a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.50 — Macro domain-like
Superfamily Superfamily superfamily	c.50.1 — Macro domain-like
Family Family family	c.50.1.2 — Macro domain

Domain ID domain_id	d6fx7a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	6fx7A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	220 — Leucine Aminopeptidase, subunit E; domain 1
Homologous superfamily homologous superfamily	10 — Leucine Aminopeptidase, subunit E, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	141.312 Å
Unit-cell length b length_b	39.535 Å
Unit-cell length c length_c	35.964 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	70.020 Å
R factor r_factor	0.1880
R_work r_work	0.1870
R_free r_free	0.2120

fit	/app/data/saxs_computation/fx/6fx7/6fx7.fit
pddf	/app/data/pr_computation/fx/6fx7/6fx7.pr.out
profile	/app/data/saxs_computation/fx/6fx7/6fx7.dat

Crystal structure of in vitro evolved Af1521
