SAXSdb — 6igk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endothelin receptor type B,Endolysin,Endothelin receptor type B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–161	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	Endothelin-3 × 1 （P14138） OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 12 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：LIPIDIC CUBIC PHASE；pH 6；293 K；PEG 500DME, Ammonium citrate tribasic	Resolution 2.00 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6IGK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4UIS The cryoEM structure of human gamma-Secretase complex Deposited 2015-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–162（162 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 0.1% DIGITONIN, 25 MM HEPES, PH 7.4, AND 150 MM NACL.；pH 7.4；0.1% DIGITONIN, 25 MM HEPES, PH 7.4, AND 150 MM NACL. cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 100, TEMPERATURE- 277, INSTRUMENT- FEI VITROBOT MARK IV, METHOD- BLOT FOR 3 SECONDS BEFORE PLUNGING,	Resolution 4.40 Å
6A73 Complex structure of CSN2 with IP6 Deposited 2018-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–164（163 aa）	Mutation：C54T, C97A	IHP INOSITOL HEXAKISPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium sulfate ,100mM Bis-Tris pH 5.5, 25%PEG 3350.	Resolution 2.45 Å R-free 0.288
6A73 Complex structure of CSN2 with IP6 Deposited 2018-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–164（163 aa）	Mutation：C54T, C97A	IHP INOSITOL HEXAKISPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium sulfate ,100mM Bis-Tris pH 5.5, 25%PEG 3350.	Resolution 2.45 Å R-free 0.288
6A9E Crystal structure of the N-terminal domain of Atg2 Deposited 2018-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–161（161 aa）	Mutation：D20N, C54T, C97A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-Tris	Resolution 3.21 Å R-free 0.266
6A9E Crystal structure of the N-terminal domain of Atg2 Deposited 2018-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–161（161 aa）	Mutation：D20N, C54T, C97A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-Tris	Resolution 3.21 Å R-free 0.266
6A9J Crystal structure of the PE-bound N-terminal domain of Atg2 Deposited 2018-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–161（161 aa）	Mutation：D20N, C54T, C97A	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-Tris	Resolution 2.70 Å R-free 0.268
6A9J Crystal structure of the PE-bound N-terminal domain of Atg2 Deposited 2018-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–161（161 aa）	Mutation：D20N, C54T, C97A	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, ammonium sulfate, Bis-Tris	Resolution 2.70 Å R-free 0.268
6E67 Structure of beta2 adrenergic receptor fused to a Gs peptide Deposited 2018-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–161（160 aa） Fragment：beta-2 (UNP residues 1-232), lysozyme (UNP residues 2-161), GS (UNP residues 1024-1036)	Mutation：;M96T, M98T, N187E, C22A, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A ;	P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7；293 K；100 mM Bis-Tris, pH 7.0, 75-125 mM ammonium acetate, 50-75 mM potassium fluoride, 38-42% PEG400, 6% ethylene glycol, 1.5% 1,2-propaneiol	Resolution 3.70 Å R-free 0.307
6E67 Structure of beta2 adrenergic receptor fused to a Gs peptide Deposited 2018-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–161（160 aa） Fragment：beta-2 (UNP residues 1-232), lysozyme (UNP residues 2-161), GS (UNP residues 1024-1036)	Mutation：;M96T, M98T, N187E, C22A, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A,M96T, M98T, N187E, C1054T, C1097A ;	P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7；293 K；100 mM Bis-Tris, pH 7.0, 75-125 mM ammonium acetate, 50-75 mM potassium fluoride, 38-42% PEG400, 6% ethylene glycol, 1.5% 1,2-propaneiol	Resolution 3.70 Å R-free 0.307
6IGL Crystal Structure of human ETB receptor in complex with IRL1620 Deposited 2018-09-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–161（160 aa）	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	CIT CITRIC ACID × 1 SO4 SULFATE ION × 4 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 3	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5；293 K；PEG 500DME, (NH4)2SO4 or NH4Cl	Resolution 2.70 Å R-free 0.241
6K41 cryo-EM structure of alpha2BAR-GoA complex Deposited 2019-05-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–161（160 aa）	Not recorded	CZX 4-[(1~{S})-1-(2,3-dimethylphenyl)ethyl]-1~{H}-imidazole × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
6K42 cryo-EM structure of alpha2BAR-Gi1 complex Deposited 2019-05-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–161（160 aa）	Not recorded	CZX 4-[(1~{S})-1-(2,3-dimethylphenyl)ethyl]-1~{H}-imidazole × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6KPC Crystal structure of an agonist bound GPCR Deposited 2019-08-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–161（160 aa）	Mutation：G78L,T127A,T153L,G210A,C54T,C97A,R242E,G304E	E3R 7-[(6aR,9R,10aR)-1-Hydroxy-9-(hydroxymethyl)-6,6-dimethyl-6a,7,8,9,10,10a-hexahydro-6H-benzo[c]chromen-3-yl]- 7-methyloctanenitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；100 mM HEPES sodium pH 7.0, 25% PEG 400, 220 mM Sodium sulfate decahydrate	Resolution 3.20 Å R-free 0.262
6LRY Crystal structure of human endothelin ETB receptor in complex with sarafotoxin S6b Deposited 2020-01-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–161（160 aa）	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5；293 K；PEG 600, Ammonium sulfate	Resolution 3.00 Å R-free 0.304
6N48 Structure of beta2 adrenergic receptor bound to BI167107, Nanobody 6B9, and a positive allosteric modulator Deposited 2018-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–161（160 aa） Fragment：chimera of lysozyme and B2AR (UNP residues 29-234,263-348)	Mutation：M1096T, M1098T, N1187E	P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1 1WV (2S)-2,3-dihydroxypropyl (7Z)-tetradec-7-enoate × 1 KBY N-[(3R)-4-(4-tert-butylphenyl)-3-({2-[(4-methoxyphenyl)sulfanyl]-5-[methyl(propan-2-yl)sulfamoyl]benzene-1-carbonyl}amino)butanoyl]glycine × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 8；293 K；100 mM Tris-HCl, pH 8.0, 150-200 mM lithium acetate, 43-45% PEG400	Resolution 3.20 Å R-free 0.274
6NI3 B2V2R-Gs protein subcomplex of a GPCR-G protein-beta-arrestin mega-complex Deposited 2018-12-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–161（160 aa）	Not recorded	P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7C2M Crystal structure of mycolic acid transporter MmpL3 from Mycobacterium smegmatis complexed with NITD-349 Deposited 2020-05-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–161（160 aa）	Mutation：C803T,C846A	FFU N-(4,4-dimethylcyclohexyl)-4,6-bis(fluoranyl)-1H-indole-2-carboxamide × 1 L6T alpha-D-glucopyranosyl 6-O-dodecyl-alpha-D-glucopyranoside × 5 MHA (CARBAMOYLMETHYL-CARBOXYMETHYL-AMINO)-ACETIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；293 K；15% (v/v) polyethylene glycol monomethyl ether 350 (PEGMME 350), 50 mM ADA (N-(2-Acetamido) iminodiacetic acid) (pH 6.5) and 10% (v/v) polyethylene glycol 2000 (PEG2000), protein concentration 5mg/ml, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.281
7C2N Crystal structure of mycolic acid transporter MmpL3 from Mycobacterium smegmatis complexed with SPIRO Deposited 2020-05-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–161（160 aa）	Mutation：C803T,C846A	L6T alpha-D-glucopyranosyl 6-O-dodecyl-alpha-D-glucopyranoside × 5 MHA (CARBAMOYLMETHYL-CARBOXYMETHYL-AMINO)-ACETIC ACID × 2 FG0 1'-(2,3-dihydro-1,4-benzodioxin-6-ylmethyl)spiro[6,7-dihydrothieno[3,2-c]pyran-4,4'-piperidine] × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；293 K；15% (v/v) polyethylene glycol monomethyl ether 350 (PEGMME 350), 50 mM ADA (N-(2-Acetamido) iminodiacetic acid) (pH 6.5) and 12.5% (v/v) polyethylene glycol 2000 (PEG2000), protein concentration 5mg/ml, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.82 Å R-free 0.273
7DDZ The Crystal Structure of Human Neuropeptide Y Y2 Receptor with JNJ-31020028 Deposited 2020-10-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–161（160 aa）	Not recorded	H46 ~{N}-[4-[4-[(1~{S})-2-(diethylamino)-2-oxidanylidene-1-phenyl-ethyl]piperazin-1-yl]-3-fluoranyl-phenyl]-2-pyridin-3-yl-benzamide × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293.15 K；0.1 M HEPES, pH 7.0-7.5, 250-350 mM (NH4)2SO4, and 20-30% PEG500DME, or 0.1 M MES, pH 6.0-6.5, 380-420 mM NH4 tartrate, and 24-26% PEG500DME	Resolution 2.80 Å R-free 0.289
7KWA Structure of DCN1 bound to N-((4S,5S)-3-(aminomethyl)-7-ethyl-4-(4-fluorophenyl)-6-oxo-1-phenyl-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridin-5-yl)-3-(trifluoromethyl)benzamide Deposited 2020-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–164（164 aa）	Not recorded	YHP N-[(4S,5S)-3-(aminomethyl)-7-ethyl-4-(4-fluorophenyl)-6-oxo-1-phenyl-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridin-5-yl]-3-(trifluoromethyl)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；277 K；6% PEG3350, 0.2M NH4Br	Resolution 1.57 Å R-free 0.209

16 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A097J809_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 242–401； UniProt 2–161

Endothelin receptor type B,Endolysin,Endothelin receptor type B

Homo sapiens

UniProt P24530

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 66–303 Chain A； UniProt 311–407	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	Endothelin-3 × 1 （P14138） OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 12 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：LIPIDIC CUBIC PHASE；pH 6；293 K；PEG 500DME, Ammonium citrate tribasic	Resolution 2.00 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6IGK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5X93 Human endothelin receptor type-B in complex with antagonist K-8794 Deposited 2017-03-05	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 66–303（238 aa） Chain A 311–407（97 aa）	Mutation：R124Y,D154A,K270A,C1054A,I1094R,S342A,I381A,C396A,C400A,C405A Mutation：R124Y,D154A,K270A,C1054A,I1094R,S342A,I381A,C396A,C400A,C405A	K87 3-[6-[(4-tert-butylphenyl)sulfonylamino]-5-(2-methoxyphenoxy)-2-pyrimidin-2-yl-pyrimidin-4-yl]oxy-N-(2,6-dimethylphenyl)propanamide × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 11 CLR CHOLESTEROL × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；PEG 500 DME, (NH4)2SO4, MOPS	Resolution 2.20 Å R-free 0.239
5XPR Human endothelin receptor type-B in complex with antagonist bosentan Deposited 2017-06-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 66–303（238 aa） Chain A 311–407（97 aa）	Mutation：R124Y,K270A,C1054A,I1094R,S342A,I381A,C396A,C400A,C405A Mutation：R124Y,K270A,C1054A,I1094R,S342A,I381A,C396A,C400A,C405A	K86 4-tert-butyl-N-[6-(2-hydroxyethyloxy)-5-(2-methoxyphenoxy)-2-pyrimidin-2-yl-pyrimidin-4-yl]benzenesulfonamide × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；PEG 500 DME, Na2SO4, MOPS	Resolution 3.60 Å R-free 0.297
6IGL Crystal Structure of human ETB receptor in complex with IRL1620 Deposited 2018-09-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 66–303（238 aa） Chain A 311–407（97 aa）	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	CIT CITRIC ACID × 1 SO4 SULFATE ION × 4 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 3	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5；293 K；PEG 500DME, (NH4)2SO4 or NH4Cl	Resolution 2.70 Å R-free 0.241
6K1Q Human endothelin receptor type-B in complex with inverse agonist IRL2500 Deposited 2019-05-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 66–303（238 aa） Chain A 311–407（97 aa）	Mutation：;R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A,R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A,R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A ; Mutation：;R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A,R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A,R124Y, K270A,C97A, I137R,S342A, I381A, C396A, C400A, C405A ;	D2U (2~{S})-2-[[(2~{R})-2-[(3,5-dimethylphenyl)carbonyl-methyl-amino]-3-(4-phenylphenyl)propanoyl]amino]-3-(1~{H}-indol-3-yl)propanoic acid × 1 PO4 PHOSPHATE ION × 4 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7.5；293 K；30% PEG300, 150 mM NaH2PO4,10 mM TCEP, 100 mM Bis-tris	Resolution 2.70 Å R-free 0.265
6LRY Crystal structure of human endothelin ETB receptor in complex with sarafotoxin S6b Deposited 2020-01-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 66–303（238 aa） Chain A 311–407（97 aa）	Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A Mutation：R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5；293 K；PEG 600, Ammonium sulfate	Resolution 3.00 Å R-free 0.304
8HBD Cryo-EM structure of IRL1620-bound ETBR-Gi complex Deposited 2022-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–424（398 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8HCX Cryo-EM structure of Endothelin1-bound ETBR-Gq complex Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 27–424（398 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8XVE Cryo-EM structure of ETBR bound with BQ3020 Deposited 2024-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 67–406（340 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8XVH Cryo-EM structure of ETBR bound with Endothelin1 Deposited 2024-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 67–406（340 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8XWP Cryo-EM structure of ET-1 bound ETBR-DNGI complex Deposited 2024-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 66–407（342 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8XWQ Cryo-EM structure of ET-1 bound ETBR-DNGI complex Deposited 2024-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 66–407（342 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
8ZRT Cryo-EM structure focused on the receptor of the ET-1 bound ETBR-DNGI complex Deposited 2024-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 66–407（342 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EDNRB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–241； UniProt 66–303 Author chain A； PDBConstruct 402–498； UniProt 311–407

Endothelin-3

OrganismNot specified

UniProt P14138

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 97–117	Not recorded	Endothelin receptor type B,Endolysin,Endothelin receptor type B × 1 （P24530,A0A097J809） OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 12 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：LIPIDIC CUBIC PHASE；pH 6；293 K；PEG 500DME, Ammonium citrate tribasic	Resolution 2.00 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	EDN3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–21； UniProt 97–117

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6igk
Deposition date deposition_date	2018-09-25
Structure title title	Crystal Structure of human ETB receptor in complex with Endothelin-3
Keywords keywords	alpha helical, SIGNALING PROTEIN-PROTEIN BINDING complex; SIGNALING PROTEIN/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.33 Å
Radius of gyration Rg (electron density) rg_electron	30.33 Å
Forward intensity I(0) i0	45754100.00
Molecular weight molecular_weight	59848.0 kDa
Excluded volume excluded_volume	77915 Å³
Envelope volume envelope_volume	95475 Å³
Hydration-shell volume shell_volume	27982 Å³
Envelope diameter envelope_diameter	107.4 Å
Shell Rg shell_rg	35.24 Å
Envelope Rg envelope_rg	30.28 Å
Shape Rg shape_rg	30.33 Å
Total Rg total_rg	30.85 Å
Total atoms total_atoms	4207
Residues n_residues	492
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

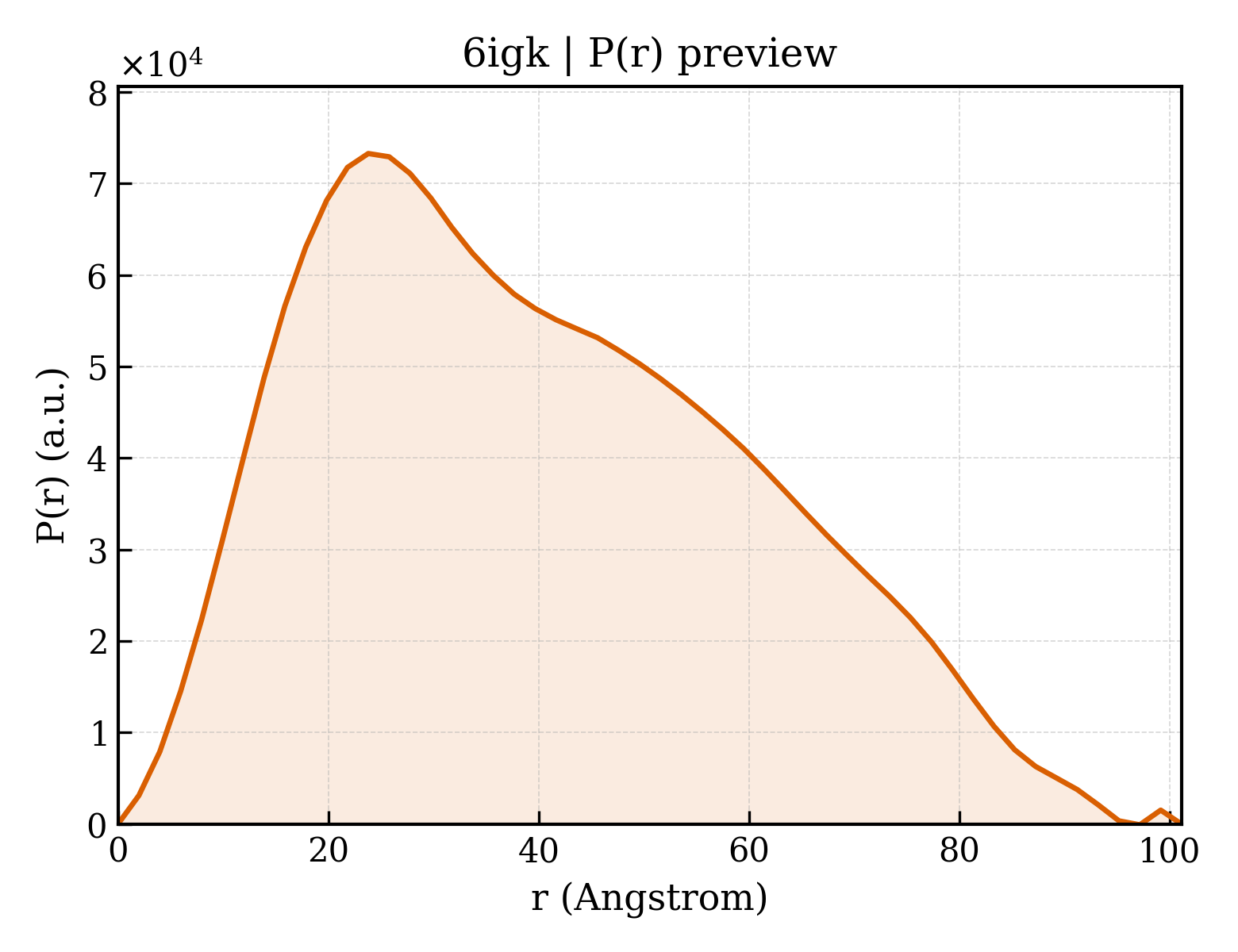

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.1 Å
Rg (real space) rg_real	31.61 Å
Rg uncertainty (real space) rg_real_error	1.08 Å
I(0) (real space) i0_real	4.5750e+07
I(0) uncertainty (real space) i0_real_error	7.5280e+05
Rg (reciprocal space) rg_reciprocal	31.50 Å
I(0) (reciprocal space) i0_reciprocal	45750000.0000
Solution quality estimate total_estimate	0.7698
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.8 Å
Skewness Skewness skewness	0.406
Kurtosis Kurtosis kurtosis	-0.668
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10830000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.602; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Endothelin receptor type B,Endolysin,Endothelin receptor type B
Molecular weight formula_weight	55956.7 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	R124Y,D154A,K270A,C1052T,C1095A,S342A,I381A,C396A,C400A,C405A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4385

GGGLAPAEVPKGDRTAGSPPRTISPPPCQGPIEIKETFKYINTVVSCLVFVLGIIGNSTLLYIIYKNKCMRNGPNILIASLALGDLLHIVIAIPINVYKLLAEDWPFGAEMCKLVPFIQKASVGITVLSLCALSIDRYRAVASWSRIKGIGVPKWTAVEIVLIWVVSVVLAVPEAIGFDIITMDYKGSYLRICLLHPVQKTAFMQFYATAKDWWLFSFYFCLPLAITAFFYTLMTCEMLRKNIFEMLRIDEGLRLKIYKDTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYLNDHLKQRREVAKTVFCLVLVFALCWLPLHLARILKLTLYNQNDPNRCELLSFLLVLDYIGINMASLNSCANPIALYLVSKRFKNAFKSALCCWAQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Endothelin-3
Molecular weight formula_weight	2650.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

CTCFTYKDKECVYYCHLDIIW

Entity 3 Entity 3 non-polymer

Description description	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	356.5 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▶

8. Citations (1)

▶

Unit-cell length a length_a	65.550 Å
Unit-cell length b length_b	172.280 Å
Unit-cell length c length_c	121.330 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	49.599 Å
R factor r_factor	0.1853
R_work r_work	0.1834
R_free r_free	0.2271

fit	/app/data/saxs_computation/ig/6igk/6igk.fit
pddf	/app/data/pr_computation/ig/6igk/6igk.pr.out
profile	/app/data/saxs_computation/ig/6igk/6igk.dat

Crystal Structure of human ETB receptor in complex with Endothelin-3
