1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone-lysine N-methyltransferase ASH1L

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2026–2288	Not recorded	Mortality factor 4-like protein 1 × 1 （Q9UBU8） ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1 M Tris-HCl pH 8.5, 20 % PEG 6000, 0.2 M Trimethylamine-N-oxide	Resolution 2.60 Å R-free 0.237

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6INE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3MQM Crystal Structure of the Bromodomain of human ASH1L Deposited 2010-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2438–2564（127 aa） Fragment：BROMODOMAIN of human ASH1L (UNP RESIDUES 2438:2564)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.15M NaNO3 20% PEG3350 10% EtGly, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.54 Å R-free 0.259
3MQM Crystal Structure of the Bromodomain of human ASH1L Deposited 2010-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2438–2564（127 aa） Fragment：BROMODOMAIN of human ASH1L (UNP RESIDUES 2438:2564)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.15M NaNO3 20% PEG3350 10% EtGly, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.54 Å R-free 0.259
3MQM Crystal Structure of the Bromodomain of human ASH1L Deposited 2010-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2438–2564（127 aa） Fragment：BROMODOMAIN of human ASH1L (UNP RESIDUES 2438:2564) Chain B 2438–2564（127 aa） Fragment：BROMODOMAIN of human ASH1L (UNP RESIDUES 2438:2564)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.15M NaNO3 20% PEG3350 10% EtGly, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.54 Å R-free 0.259
3OPE Structural Basis of Auto-inhibitory mechanism of Histone methyltransferase Deposited 2010-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP RESIDUES 2074-2293)	Not recorded	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Bistrisprofane, PEG, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.299
3OPE Structural Basis of Auto-inhibitory mechanism of Histone methyltransferase Deposited 2010-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP RESIDUES 2074-2293)	Not recorded	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Bistrisprofane, PEG, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.299
4YNM ASH1L wild-type SET domain in complex with S-adenosyl methionine (SAM) Deposited 2015-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Not recorded	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.19 Å R-free 0.278
4YNM ASH1L wild-type SET domain in complex with S-adenosyl methionine (SAM) Deposited 2015-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Not recorded	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.19 Å R-free 0.278
4YNP ASH1L SET domain S2259M mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：S2259M	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.90 Å R-free 0.319
4YNP ASH1L SET domain S2259M mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：S2259M	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.90 Å R-free 0.319
4YPA ASH1L SET domain Q2265A mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：Q2265A	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG 4000, magnesium chloride, Tris	Resolution 2.30 Å R-free 0.303
4YPA ASH1L SET domain Q2265A mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：Q2265A	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG 4000, magnesium chloride, Tris	Resolution 2.30 Å R-free 0.303
4YPA ASH1L SET domain Q2265A mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：Q2265A	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG 4000, magnesium chloride, Tris	Resolution 2.30 Å R-free 0.303
4YPA ASH1L SET domain Q2265A mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：Q2265A	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG 4000, magnesium chloride, Tris	Resolution 2.30 Å R-free 0.303
4YPE ASH1L SET domain H2193F mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：H2193F	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.20 Å R-free 0.263
4YPE ASH1L SET domain H2193F mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：H2193F	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mM Tris	Resolution 2.20 Å R-free 0.263
4YPU ASH1L SET domain K2264L mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：K2264L	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mm Tris	Resolution 2.60 Å R-free 0.305
4YPU ASH1L SET domain K2264L mutant in complex with S-adenosyl methionine (SAM) Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa） Fragment：SET domain (UNP residues 2074-2293)	Mutation：K2264L	ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 3350, 20 mm Tris	Resolution 2.60 Å R-free 0.305
6AGO Crystal structure of MRG15-ASH1L Histone methyltransferase complex Deposited 2018-08-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2039–2293（255 aa）	Not recorded	SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；295 K；Ammonium Acetate	Resolution 3.10 Å R-free 0.272
6AGO Crystal structure of MRG15-ASH1L Histone methyltransferase complex Deposited 2018-08-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2039–2293（255 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；295 K；Ammonium Acetate	Resolution 3.10 Å R-free 0.272
6WZW Ash1L SET domain in complex with AS-85 Deposited 2020-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 3 UG7 N-{[3-(3-carbamothioylphenyl)-1-{1-[(trifluoromethyl)sulfonyl]piperidin-4-yl}-1H-indol-6-yl]methyl}azetidine-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1 M HEPES pH 7.5, 30% PEG3350	Resolution 1.69 Å R-free 0.206
6X0P Ash1L SET domain Q2265A mutant in complex with AS-5 Deposited 2020-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2074–2293（220 aa）	Mutation：Q2265A	UK7 3-[6-(aminomethyl)-1-(2-hydroxyethyl)-1H-indol-3-yl]benzene-1-carbothioamide × 1 ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；290 K；0.1 M Tris pH 8.5, 0.2 M MgCl2, 30% PEG4000	Resolution 1.69 Å R-free 0.213
6X0P Ash1L SET domain Q2265A mutant in complex with AS-5 Deposited 2020-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2074–2293（220 aa）	Mutation：Q2265A	UK7 3-[6-(aminomethyl)-1-(2-hydroxyethyl)-1H-indol-3-yl]benzene-1-carbothioamide × 1 ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；290 K；0.1 M Tris pH 8.5, 0.2 M MgCl2, 30% PEG4000	Resolution 1.69 Å R-free 0.213
6X0P Ash1L SET domain Q2265A mutant in complex with AS-5 Deposited 2020-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2074–2293（220 aa）	Mutation：Q2265A	UK7 3-[6-(aminomethyl)-1-(2-hydroxyethyl)-1H-indol-3-yl]benzene-1-carbothioamide × 1 ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；290 K；0.1 M Tris pH 8.5, 0.2 M MgCl2, 30% PEG4000	Resolution 1.69 Å R-free 0.213
6X0P Ash1L SET domain Q2265A mutant in complex with AS-5 Deposited 2020-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2074–2293（220 aa）	Mutation：Q2265A	UK7 3-[6-(aminomethyl)-1-(2-hydroxyethyl)-1H-indol-3-yl]benzene-1-carbothioamide × 1 ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；290 K；0.1 M Tris pH 8.5, 0.2 M MgCl2, 30% PEG4000	Resolution 1.69 Å R-free 0.213
7Y0I Solution structures of ASH1L PHD domain in complex with H3K4me2 peptide Deposited 2022-06-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2584–2635（52 aa）	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Ionic strength (raw mmCIF value) null；Pressure 1 NMR sample composition 50 mM sodium phosphate, 100 mM sodium chloride, 100 uM ZINC ION, 2.0 mM [U-100% 2H] DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 50 mM sodium phosphate, 100 mM sodium chloride, 100 uM ZINC ION, 2.0 mM [U-100% 2H] DTT, 100% D2O \| 100% D2O	Resolution not provided
8VLD Crystal structure of Ash1L PHD finger in complex with histone H3K4me2 Deposited 2024-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2584–2636（53 aa） Chain B 2584–2636（53 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；1.6 M sodium citrate pH 6.5	Resolution 1.92 Å R-free 0.249
8VLF Crystal structure of Ash1L PHD finger in complex with histone H3K4me3 Deposited 2024-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2584–2636（53 aa） Chain B 2584–2636（53 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；1.6 M sodium citrate pH 6.5	Resolution 1.34 Å R-free 0.188
8VLH Crystal structure of Ash1L PHD-BAH domains Deposited 2024-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2584–2839（256 aa） Chain B 2584–2839（256 aa）	Not recorded	ZN ZINC ION × 4 SR STRONTIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M Bis-Tris propane pH 10, 0.25 M strontium chloride, 0.01 M ammonium sulfate, and 25% PEG 8000	Resolution 2.40 Å R-free 0.284

14 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ASH1L_HUMAN
Isoform	Q9NR48-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–267； UniProt 2026–2288

Mortality factor 4-like protein 1

Homo sapiens

UniProt Q9UBU8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 190–362	Not recorded	Histone-lysine N-methyltransferase ASH1L × 1 （Q9NR48） ZN ZINC ION × 3 SAM S-ADENOSYLMETHIONINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1 M Tris-HCl pH 8.5, 20 % PEG 6000, 0.2 M Trimethylamine-N-oxide	Resolution 2.60 Å R-free 0.237

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6INE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2AQL Crystal Structure of the MRG15 MRG domain Deposited 2005-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 190–362（173 aa） Chain B 190–362（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；298 K；PEG 10000, cacodylate, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.273
2EFI Solution structure of the chromo domain of Mortality factor 4-like protein 1 from human Deposited 2007-02-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：Chromo domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.13mM Chromo domain U-15N, 13C; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2F5J Crystal structure of MRG domain from human MRG15 Deposited 2005-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 190–362（173 aa） Fragment：MRG domain Chain B 190–362（173 aa） Fragment：MRG domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；20% PEG 4000, 0.1M HEPES, 5% iso-propanol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.243
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2F5K Crystal structure of the chromo domain of human MRG15 Deposited 2005-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 1–90（90 aa） Fragment：chromo domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；14% PEG 3350, 0.2M potassium nitrate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.273
2LKM Structural Basis for Molecular Interactions Involving MRG Domains: Implications in Chromatin Biology Deposited 2011-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 194–362（169 aa） Fragment：UNP residues 194-362	Mutation：K201R	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N] protein_1, 0.9 mM protein_2, 50 mM sodium phosphate, 10 % [U-100% 2H] D2O, 5 mM [U-2H] DTT, 0.2 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N] protein_1, 0.9 mM protein_2, 50 mM potassium chloride, 100 % [U-100% 2H] D2O, 5 mM [U-2H] DTT, 0.2 % sodium azide, 100% D2O \| 100% D2O NMR sample composition 0.9 mM protein_1, 0.9 mM [U-100% 13C; U-100% 15N] protein_2, 50 mM sodium phosphate, 10 % [U-100% 2H] D2O, 5 mM [U-2H] DTT, 0.2 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM protein_1, 0.9 mM [U-100% 13C; U-100% 15N] protein_2, 50 mM sodium phosphate, 100 % [U-100% 2H] D2O, 5 mM [U-2H] DTT, 0.2 % sodium azide, 100% D2O \| 100% D2O	Resolution not provided
2N1D Solution structure of the MRG15-MRGBP complex Deposited 2015-03-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 194–362（169 aa） Fragment：UNP residues 194-362	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；308 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] protein 1, 0.8 mM protein 2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] protein 1, 0.8 mM protein 2, 100% D2O \| 100% D2O NMR sample composition 0.9 mM protein 1, 0.9 mM [U-100% 13C; U-100% 15N] protein 2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM protein 1, 0.9 mM [U-100% 13C; U-100% 15N] protein 2, 100% D2O \| 100% D2O	Resolution not provided
7S4A MRG15 complex with PALB2 peptide Deposited 2021-09-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 152–323（172 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；Ammonium sulfate, Tris HCl	Resolution 2.69 Å R-free 0.297
7S4A MRG15 complex with PALB2 peptide Deposited 2021-09-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 152–323（172 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；Ammonium sulfate, Tris HCl	Resolution 2.69 Å R-free 0.297
8BPA Cryo-EM structure of the human SIN3B histone deacetylase complex at 3.7 Angstrom Deposited 2022-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–362（362 aa）	Not recorded	ZN ZINC ION × 5 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8C60 Cryo-EM structure of the human SIN3B full-length complex at 3.4 Angstrom resolution Deposited 2023-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–362（362 aa）	Not recorded	ZN ZINC ION × 5 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MO4L1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–177； UniProt 190–362

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ine
Deposition date deposition_date	2018-10-25
Structure title title	Crystal Structure of human ASH1L-MRG15 complex
Keywords keywords	Complex, H3K36 methyltransferase, TRANSFERASE, TRANSFERASE-PROTEIN BINDING complex; TRANSFERASE/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.07 Å
Radius of gyration Rg (electron density) rg_electron	26.09 Å
Forward intensity I(0) i0	38788500.00
Molecular weight molecular_weight	48086.0 kDa
Excluded volume excluded_volume	60114 Å³
Envelope volume envelope_volume	75999 Å³
Hydration-shell volume shell_volume	25039 Å³
Envelope diameter envelope_diameter	88.1 Å
Shell Rg shell_rg	32.27 Å
Envelope Rg envelope_rg	25.88 Å
Shape Rg shape_rg	26.04 Å
Total Rg total_rg	26.95 Å
Total atoms total_atoms	3370
Residues n_residues	406
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

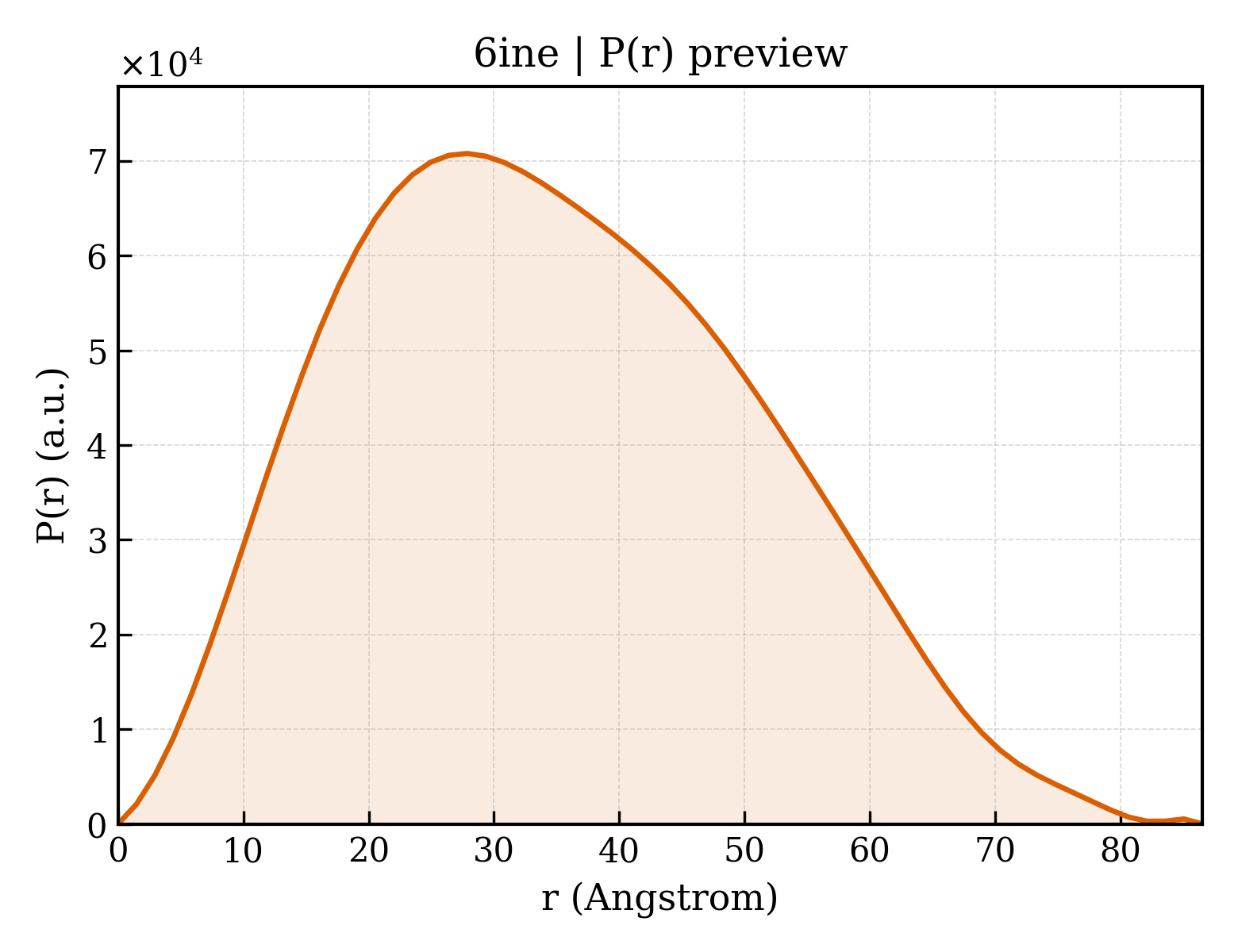

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.5 Å
Rg (real space) rg_real	27.10 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	3.8790e+07
I(0) uncertainty (real space) i0_real_error	5.7290e+05
Rg (reciprocal space) rg_reciprocal	27.10 Å
I(0) (reciprocal space) i0_reciprocal	38790000.0000
Solution quality estimate total_estimate	0.8992
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.9 Å
Skewness Skewness skewness	0.289
Kurtosis Kurtosis kurtosis	-0.564
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3829000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.900

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone-lysine N-methyltransferase ASH1L
Molecular weight formula_weight	31208.6 kDa
EC 编号 ec_number	2.1.1.43
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3443

MADPGLFPAPIHVGKYLRQKRIDFQLPYDILWQWKHNQLYKKPDVPLYKKIRSNVYVDVKPLSGYEATTCNCKKPDDDTRKGCVDDCLNRMIFAECSPNTCPCGEQCCNQRIQRHEWVQCLERFRAEEKGWGIRTKEPLKAGQFIIEYLGEVVSEQEFRNRMIEQYHNHSDHYCLNLDSGMVIDSYRMGNEARFINHSCDPNCEMQKWSVNGVYRIGLYALKDMPAGTELTYDYNFHSFNVEKQQLCKCGFEKCRGIIGGKSQRVNG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Mortality factor 4-like protein 1
Molecular weight formula_weight	20458.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SSDPMNRVEVKVKIPEELKPWLVDDWDLITRQKQLFYLPAKKNVDSILEDYANYKKSRGNTDNKEYAVNEVVAGIKEYFNVMLGTQLLYKFERPQYAEILADHPDAPMSQVYGAPHLLRLFVRIGAMLAYTPLDEKSLALLLNYLHDFLKYLAKNSATLFSASDYEVAPPEYHRKAV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	S-ADENOSYLMETHIONINE
Molecular weight formula_weight	398.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	67

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6ineB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	30 — MRG domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	73.120 Å
Unit-cell length b length_b	73.120 Å
Unit-cell length c length_c	202.818 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1975
R_work r_work	0.1931
R_free r_free	0.2372

fit	/app/data/saxs_computation/in/6ine/6ine.fit
pddf	/app/data/pr_computation/in/6ine/6ine.pr.out
profile	/app/data/saxs_computation/in/6ine/6ine.dat
