SAXSdb — 6j21

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Substance-P receptor,Endolysin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	;5-[[(2~{R},3~{S})-2-[(1~{R})-1-[3,5-bis(trifluoromethyl)phenyl]ethoxy]-3-(4-fluorophenyl)morpholin-4-yl]methyl]-1,2-dihydro-1,2,4-triazol-3-one ; × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D9IEF7_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 226–235； UniProt 2–11 Author chain A； PDBConstruct 242–342； UniProt 61–161

Substance-P receptor,Endolysin

Homo sapiens

UniProt P25103

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	;5-[[(2~{R},3~{S})-2-[(1~{R})-1-[3,5-bis(trifluoromethyl)phenyl]ethoxy]-3-(4-fluorophenyl)morpholin-4-yl]methyl]-1,2-dihydro-1,2,4-triazol-3-one ; × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NK1R_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–225； UniProt 2–226 Author chain A； PDBConstruct 343–441； UniProt 237–335

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6j21
Deposition date deposition_date	2018-12-30
Structure title title	Crystal structure of the human NK1 substance P receptor
Keywords keywords	GPCR, Complex, Antagonist, signalling protein, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6j21__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6j21__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

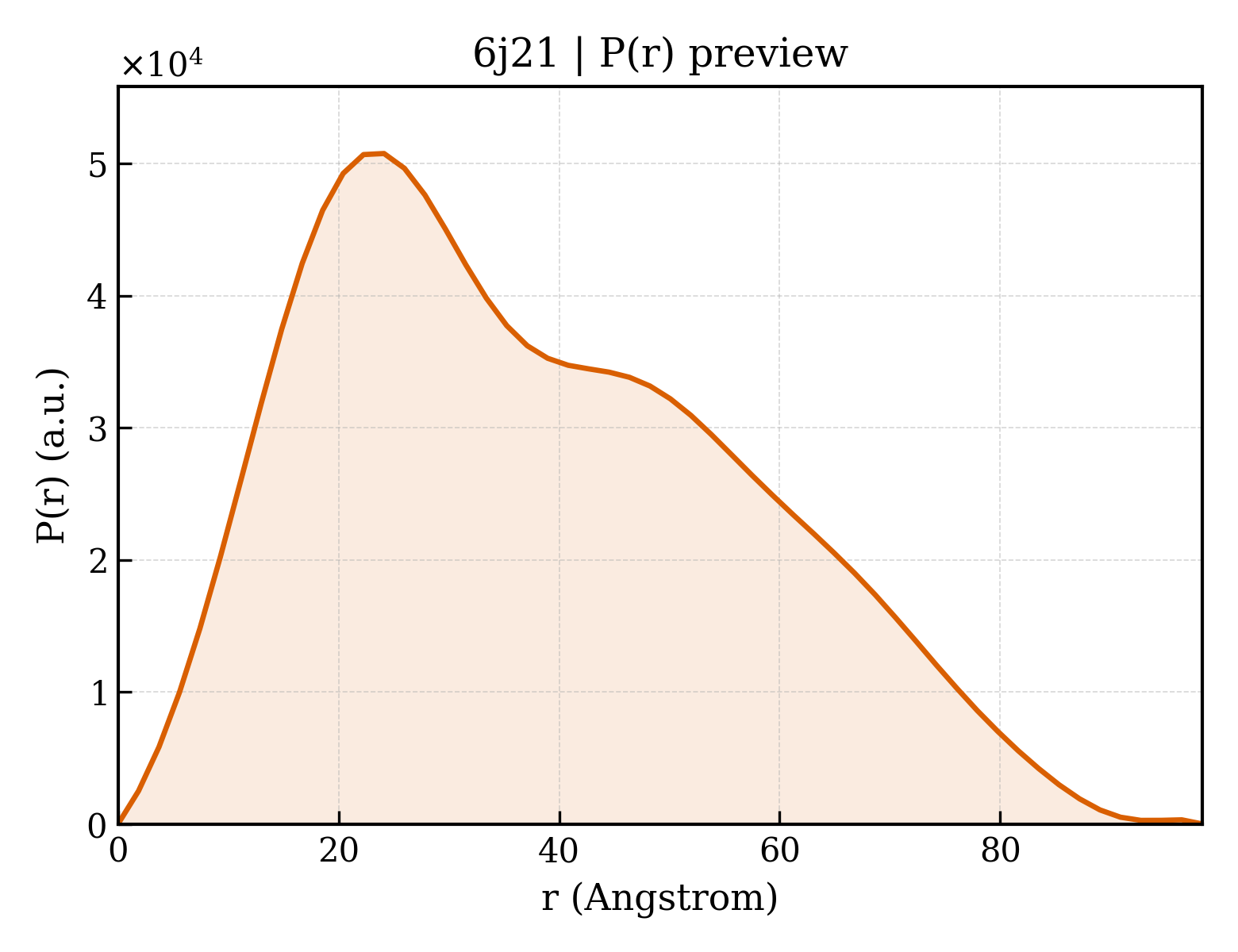

6j21__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.69 Å
Rg (electron density)	28.84 Å
Total Rg	29.34 Å
Atom count	3138
Residues	398
Excluded volume	56581 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6j21__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Substance-P receptor,Endolysin
Molecular weight formula_weight	50428.8 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	E78N,Y121W,Q165A,T222R,C97A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3138

DNVLPVDSDLSPNISTNTSEPNQFVQPAWQIVLWAAAYTVIVVTSVVGNVVVMWIILAHKRMRTVTNYFLVNLAFADASMAAFNTVVNFTYAVHNEWYYGLFYCKFHNFFPIAAVFASIWSMTAVAFDRYMAIIHPLQPRLSATATKVVICVIWVLALLLAFPAGYYSTTETMPSRVVCMIEWPEHPNKIYEKVYHICVTVLIYFLPLLVIGYAYTVVGIRLWASNIFEMLRIDEGGGSGGDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYHEQVSAKRKVVKMMIVVVCTFAICWLPFHIFFLLPYINPDLYLKKFIQQVYLAIMWLAMSSTMYNPIIYCCLNDRFRLGFKHAFRCCPFISAGDYEGLE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	;5-[[(2~{R},3~{S})-2-[(1~{R})-1-[3,5-bis(trifluoromethyl)phenyl]ethoxy]-3-(4-fluorophenyl)morpholin-4-yl]methyl]-1,2-dihydro-1,2,4-triazol-3-one ;
Molecular weight formula_weight	534.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	356.5 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	103.110 Å
Unit-cell length b length_b	103.110 Å
Unit-cell length c length_c	158.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	29.980 Å
R factor r_factor	0.2190
R_work r_work	0.2170
R_free r_free	0.2560

Crystal structure of the human NK1 substance P receptor
