SAXSdb — 6k2d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanylate-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–479	Not recorded	E3 ubiquitin-protein ligase ipaH9.8 × 1 （Q8VSC3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Sodium/potassium phosphate pH 6.5	Resolution 3.60 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6K2D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DG3 STRUCTURE OF HUMAN GUANYLATE BINDING PROTEIN-1 IN NUCLEOTIDE FREE FORM Deposited 1999-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–592（592 aa） Fragment：FULL LENGTH PROTEIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100MM MES-NAOH, 7.5% PEG6000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.276
1F5N HUMAN GUANYLATE BINDING PROTEIN-1 IN COMPLEX WITH THE GTP ANALOGUE, GMPPNP. Deposited 2000-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–592（592 aa）	Mutation：Q507H	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；15-20% PEG3350, 150-200mM MgCl2, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 1.70 Å R-free 0.255
2B8W Crystal-structure of the N-terminal Large GTPase Domain of human Guanylate Binding protein 1 (hGBP1) in complex with GMP/AlF4 Deposited 2005-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–317（317 aa） Fragment：N-terminal Large GTPase domain Chain B 1–317（317 aa） Fragment：N-terminal Large GTPase domain	Not recorded	MG MAGNESIUM ION × 2 ALF TETRAFLUOROALUMINATE ION × 2 5GP GUANOSINE-5'-MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions 298 K；5% PEG3350, 150 mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.22 Å R-free 0.233
2B92 Crystal-structure of the N-terminal Large GTPase Domain of human Guanylate Binding protein 1 (hGBP1) in complex with GDP/AlF3 Deposited 2005-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–317（317 aa） Fragment：N-terminal Large GTPase domain Chain B 1–317（317 aa） Fragment：N-terminal Large GTPase domain	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions 298 K；12.5% Peg3350, 125mM Na2HPO4 (from Hampton Research peg/ion screen supplied at pH9.1), VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.250
2BC9 Crystal-structure of the N-terminal large GTPase Domain of human Guanylate Binding protein 1 (hGBP1) in complex with non-hydrolysable GTP analogue GppNHp Deposited 2005-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–317（317 aa） Fragment：N-terminal Large GTPase doamin	Not recorded	MG MAGNESIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10 % Peg 3350, 100 mM NaSCN, 40 mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.269
2D4H Crystal-structure of the N-terminal large GTPase Domain of human Guanylate Binding protein 1 (hGBP1) in complex with GMP Deposited 2005-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–317（317 aa） Fragment：N-terminal Large GTPase domain	Not recorded	5GP GUANOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 298 K；20% Peg 3350, 130 mM NH4NO3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.275
2D4H Crystal-structure of the N-terminal large GTPase Domain of human Guanylate Binding protein 1 (hGBP1) in complex with GMP Deposited 2005-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–317（317 aa） Fragment：N-terminal Large GTPase domain	Not recorded	5GP GUANOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 298 K；20% Peg 3350, 130 mM NH4NO3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.275
6K1Z Crystal structure of farnesylated hGBP1 Deposited 2019-05-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–592（592 aa）	Not recorded	FAR FARNESYL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.02M Citric acid/0.08M BIS-TRIS propane (pH 8.8), 16% w/v Polyethylene glycol 3350	Resolution 2.31 Å R-free 0.267
6LOJ The complex structure of IpaH9.8-LRR and hGBP1 Deposited 2020-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–592（592 aa）	Mutation：Q507H	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；2.5M NaCl, 0.1M K/Na phosphate buffer, pH 6	Resolution 3.72 Å R-free 0.256
8CQB Cryo-EM structure of the human GBP1 dimer bound to GDP-AlF3 Deposited 2023-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–592（592 aa） Chain B 1–592（592 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5u mM HEPES pH7.4, 150 mM NaCl, 1 mM DTT, 200 uM GDP, 10 mM NaF, 300 uM AlCl3, 5 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8Q4L GBP1 bound by 14-3-3sigma Deposited 2023-08-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 7–583（577 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；150 mM KCl, 20 mM HEPES-KOH pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.12 Å

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GBP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–481； UniProt 1–479

E3 ubiquitin-protein ligase ipaH9.8

Shigella flexneri

UniProt Q8VSC3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 22–252	Fragment：LRR domain	Guanylate-binding protein 1 × 1 （P32455）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Sodium/potassium phosphate pH 6.5	Resolution 3.60 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6K2D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5B0N Structure of Shigella effector LRR domain Deposited 2015-11-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–244（223 aa） Fragment：UNP residues 22-244	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BIS-TRIS pH5.5, 0.2M Lithium Sulfate monohydrate, 25% (w/v) PEG3350	Resolution 1.80 Å R-free 0.259
5B0N Structure of Shigella effector LRR domain Deposited 2015-11-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 22–244（223 aa） Fragment：UNP residues 22-244	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BIS-TRIS pH5.5, 0.2M Lithium Sulfate monohydrate, 25% (w/v) PEG3350	Resolution 1.80 Å R-free 0.259
5B0T Structure of Shigella effector LRR domain Deposited 2015-11-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–244（223 aa） Fragment：UNP residues 21-244	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BIS-TRIS pH5.5, 0.2M Ammonium Sulfate, 25% (w/v) PEG3350	Resolution 2.00 Å R-free 0.265

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IPA9_SHIFL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–236； UniProt 22–252

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6k2d
Deposition date deposition_date	2019-05-14
Structure title title	The crystal structure of GBP1 with LRR domain of IpaH9.8
Keywords keywords	Complex, HYDROLASE-TRANSFERASE complex; HYDROLASE/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.91 Å
Radius of gyration Rg (electron density) rg_electron	39.13 Å
Forward intensity I(0) i0	81449700.00
Molecular weight molecular_weight	72944.0 kDa
Excluded volume excluded_volume	91870 Å³
Envelope volume envelope_volume	130720 Å³
Hydration-shell volume shell_volume	32651 Å³
Envelope diameter envelope_diameter	151.0 Å
Shell Rg shell_rg	38.07 Å
Envelope Rg envelope_rg	40.07 Å
Shape Rg shape_rg	39.14 Å
Total Rg total_rg	39.03 Å
Total atoms total_atoms	5138
Residues n_residues	642
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

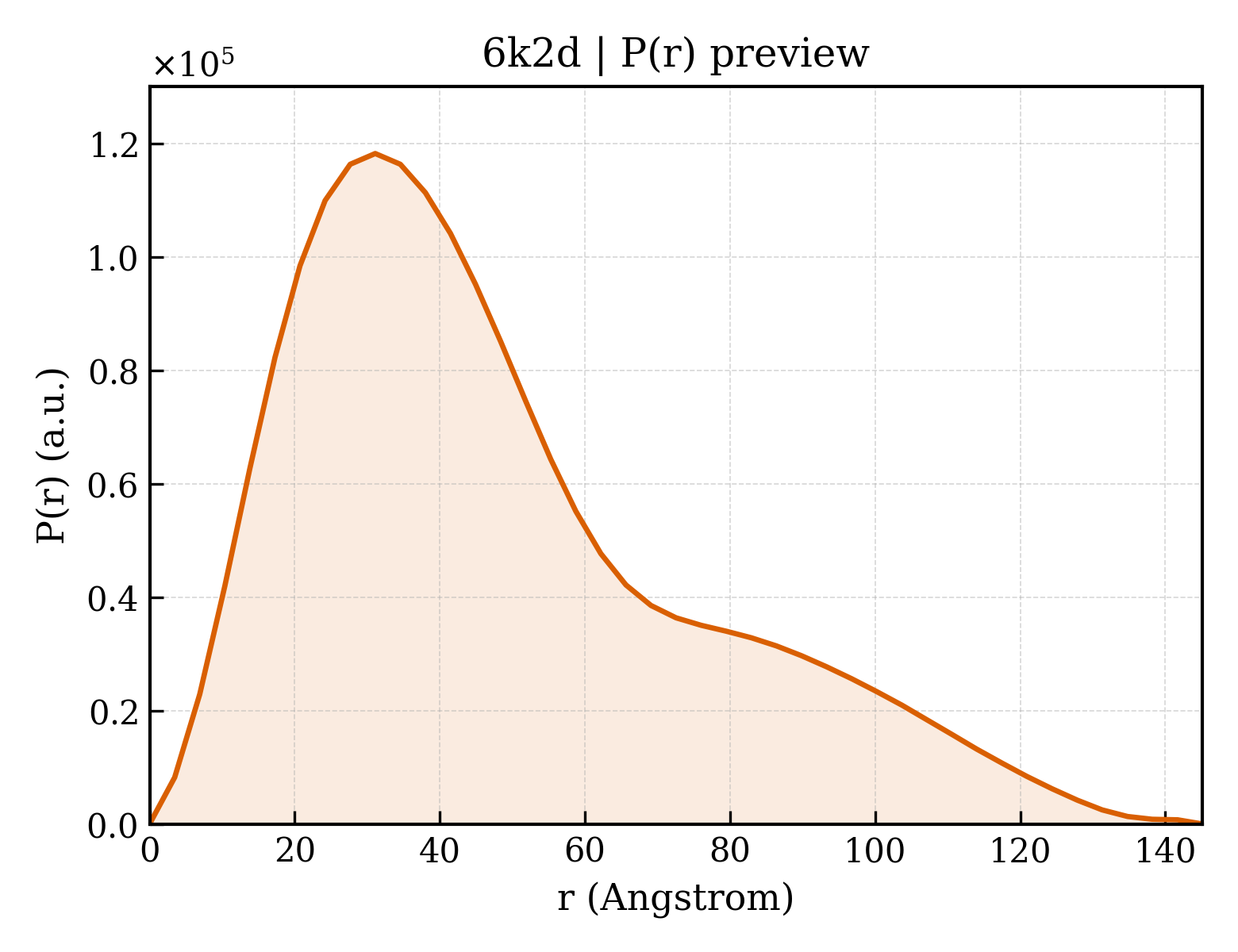

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	145.1 Å
Rg (real space) rg_real	39.05 Å
Rg uncertainty (real space) rg_real_error	1.84 Å
I(0) (real space) i0_real	8.1450e+07
I(0) uncertainty (real space) i0_real_error	1.3630e+06
Rg (reciprocal space) rg_reciprocal	38.34 Å
I(0) (reciprocal space) i0_reciprocal	81390000.0000
Solution quality estimate total_estimate	0.6741
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	31.1 Å
Skewness Skewness skewness	0.854
Kurtosis Kurtosis kurtosis	0.061
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11150000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.245; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.248; Smooth: 0.774

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Guanylate-binding protein 1
Molecular weight formula_weight	54577.1 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5138

SEMASEIHMTGPMCLIENTNGRLMANPEALKILSAITQPMVVVAIVGLYRTGKSYLMNKLAGKKKGFSLGSTVQSHTKGIWMWCVPHPKKPGHILVLLDTEGLGDVEKGDNQNDSWIFALAVLLSSTFVYNSIGTINQQAMDQLYYVTELTHRIRSKSSPDENENEVEDSADFVSFFPDFVWTLRDFSLDLEADGQPLTPDEYLTYSLKLKKGTSQKDETFNLPRLCIRKFFPKKKCFVFDRPVHRRKLAQLEKLQDEELDPEFVQQVADFCSYIFSNSKTKTLSGGIQVNGPRLESLVLTYVNAISSGDLPCMENAVLALAQIENSAAVQKAIAHYEQQMGQKVQLPTETLQELLDLHRDSEREAIEVFIRSSFKDVDHLFQKELAAQLEKKRDDFCKQNQEASSDRCSALLQVIFSPLEEEVKAGIYSKPGGYRLFVQKLQDLKKKYYEEPRKGIQAEEILQTYLKSKESMTDAILQTD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	E3 ubiquitin-protein ligase ipaH9.8
Molecular weight formula_weight	26757.1 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SGRPMTYADYFSAWDKWEKQALPGEERDEAVSRLKECLINNSDELRLDRLNLSSLPDNLPAQITLLNVSYNQLTNLPELPVTLKKLYSASNKLSELPVLPPALESLQVQHNELENLPALPDSLLTMNISYNEIVSLPSLPQALKNLRATRNFLTELPAFSEGNNPVVREYFFDRNQISHIPESILNLRNECSIHISDNPLSSHALPALQRLTSSPDYHGPRIYFSMSDGQQNTLHR

来源 Source

来源生物 organism	Shigella flexneri
NCBI Class编号 ncbi_taxonomy_id	623
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	6k2dA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	6k2dB00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

▶

8. Citations (1)

▶

Unit-cell length a length_a	211.736 Å
Unit-cell length b length_b	211.736 Å
Unit-cell length c length_c	56.975 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.600 Å
Low-resolution limit resolution_low	48.392 Å
R factor r_factor	0.2429
R_work r_work	0.2404
R_free r_free	0.2872

fit	/app/data/saxs_computation/k2/6k2d/6k2d.fit
pddf	/app/data/pr_computation/k2/6k2d/6k2d.pr.out
profile	/app/data/saxs_computation/k2/6k2d/6k2d.dat
