SAXSdb — 6l87

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AT-rich interactive domain-containing protein 4A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 171–414	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；302 K；Ionic strength (raw mmCIF value) 720；Pressure 1 NMR sample composition：10 mM sodium phosphate, 700 mM sodium chloride, 1 mM EDTA, 1 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：10 mM sodium phosphate, 700 mM sodium chloride, 1 mM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6L87	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LCC Solution structure of RBBP1 chromobarrel domain Deposited 2011-04-28	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 568–635（68 aa） Fragment：UNP RESIDUES 568-635	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.4；Pressure ambient NMR sample composition 0.5 mM [U-95% 15N] entity-1, 50 mM sodium phosphate-2, 50 mM sodium chloride-3, 5 mM DTT-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-95% 13C; U-95% 15N] entity-5, 50 mM sodium phosphate-6, 50 mM sodium chloride-7, 5 mM DTT-8, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MAM Solution structure of the interdigitated double Tudor domain of RBBP1 Deposited 2013-07-15	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–121（118 aa） Fragment：UNP RESIDUES 4-121	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.8；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.6 mM [U-95% 13C; U-95% 15N] entity-1, 10 % [U-99% 2H] D2O-2, 0.0004 % DSS-3, 15 mM DTT-4, 50 mM sodium chloride-5, 50 mM TRIS-6, 2 mM EDTA-7, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YRV Solution structure of the RBB1NT domain of human RB(retinoblastoma)-binding protein 1 Deposited 2007-04-03	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–273（104 aa） Fragment：UNP region 170-273	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.2mM sample U-15N,13C; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
6BPH Crystal structure of the chromodomain of RBBP1 Deposited 2017-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 568–635（68 aa）	Not recorded	UNX UNKNOWN LIGAND × 34	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG 3350, 0.2M magnesium chloride, 0.1M HEPES, pH 7.5	Resolution 1.85 Å R-free 0.226
7SMC p107 pocket domain complexed with ARID4A peptide Deposited 2021-10-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 953–967（15 aa） Fragment：UNP residues 953-967	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100 mM MES, pH 6.5, 4% PEG400, 1.6 M ammonium sulfate	Resolution 2.70 Å R-free 0.298
7SMC p107 pocket domain complexed with ARID4A peptide Deposited 2021-10-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 953–967（15 aa） Fragment：UNP residues 953-967	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100 mM MES, pH 6.5, 4% PEG400, 1.6 M ammonium sulfate	Resolution 2.70 Å R-free 0.298
7V8N Crystal structure of the PWWP-ARID domain of ARID4A Deposited 2021-08-23	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 169–417（249 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.4 M ammonium phosphate dibasic, 0.1 M Tris pH8.0	Resolution 2.05 Å R-free 0.231
7V8N Crystal structure of the PWWP-ARID domain of ARID4A Deposited 2021-08-23	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 169–417（249 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.4 M ammonium phosphate dibasic, 0.1 M Tris pH8.0	Resolution 2.05 Å R-free 0.231

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARI4A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–221； UniProt 171–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6l87
Deposition date deposition_date	2019-11-05
Structure title title	Solution structure of the tandem PWWP-ARID domains of human RBBP1
Keywords keywords	DNA binding, PWWP, ARID, GENE REGULATION; GENE REGULATION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.06 Å
Radius of gyration Rg (electron density) rg_electron	19.67 Å
Forward intensity I(0) i0	3834800000.00
Molecular weight molecular_weight	531200.0 kDa
Excluded volume excluded_volume	666130 Å³
Envelope volume envelope_volume	88455 Å³
Hydration-shell volume shell_volume	29728 Å³
Envelope diameter envelope_diameter	83.1 Å
Shell Rg shell_rg	32.24 Å
Envelope Rg envelope_rg	25.37 Å
Shape Rg shape_rg	19.67 Å
Total Rg total_rg	19.87 Å
Total atoms total_atoms	74600
Residues n_residues	4580
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.7 Å
Rg (real space) rg_real	20.07 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	3.8350e+09
I(0) uncertainty (real space) i0_real_error	4.9430e+07
Rg (reciprocal space) rg_reciprocal	20.07 Å
I(0) (reciprocal space) i0_reciprocal	3835000000.0000
Solution quality estimate total_estimate	0.7814
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	63.6 Å
Skewness Skewness skewness	0.385
Kurtosis Kurtosis kurtosis	-0.209
Angular range angular_range	— – 0.3950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1816000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.732; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	AT-rich interactive domain-containing protein 4A
Molecular weight formula_weight	26604.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	74600

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/l8/6l87/6l87.fit
pddf	/app/data/pr_computation/l8/6l87/6l87.pr.out
profile	/app/data/saxs_computation/l8/6l87/6l87.dat

Solution structure of the tandem PWWP-ARID domains of human RBBP1

1. Protein Identity and Related Structures Protein Identity & Related Structures

AT-rich interactive domain-containing protein 4A

State in the Current Structure

Other States of the Same Protein in the Database

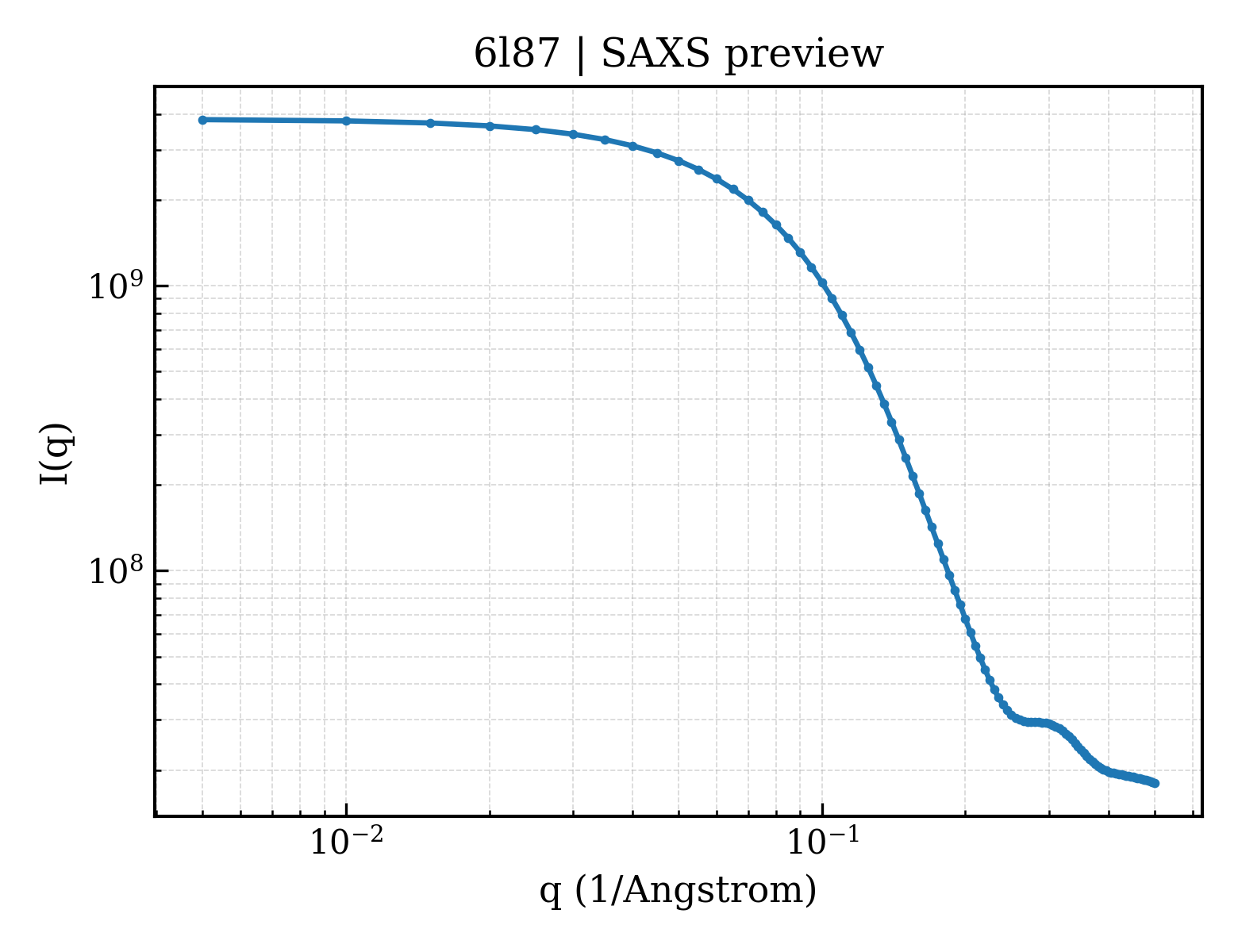

SAXS scattering curve SAXS Profile
