SAXSdb — 6p50

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-7 receptor subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 21–239	Not recorded	anti-IL-7R 4A10 Fab heavy chain × 1 anti-IL-7R 4A10 Fab light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；25% PEG 3350, 0.2 M sodium malonate pH 6.0, 20% glycerol	Resolution 2.90 Å R-free 0.330

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6P50	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI3 Crystal structure of the complex of human interleukin-7 with glycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；292 K；18% w/v PEG 3350, 0.1 M HEPES pH 7.4, 0.2 M NaCl, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.90 Å R-free 0.267
3UP1 Crystal structure of the unliganded human interleukin-7 receptor extracellular domain Deposited 2011-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–239（219 aa） Chain B 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 2 SO4 SULFATE ION × 5 GOL GLYCEROL × 4 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；292 K；1.26M (NH4)2SO4, 0.1 M Tris-HCl pH 8.5, 0.2 M Li2SO4, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.15 Å R-free 0.257
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–231（196 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–231（196 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–231（196 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
9XEA Structure of the transmembrane domain dimer of human IL-7R V253G mutant Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 236–266（31 aa） Chain B 236–266（31 aa）	Mutation：V253G Mutation：V253G	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；306 K；Ionic strength (raw mmCIF value) 25；Pressure 1 NMR sample composition 0.6 mM [U-100% 13C; U-100% 15N; U-85% 2H] The transmembrane domain of the IL-7R-V253G dimer, 60 mM POPC, 150 mM DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM [U-13C; U-15N] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM [U-15N; U-2H] Transmembrane domain of the IL-7R V253G mutant, 0.4 mM [U-13C] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL7RA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 5–223； UniProt 21–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6p50
Deposition date deposition_date	2019-05-29
Structure title title	Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha Fab 4A10
Keywords keywords	Interleukin-7 receptor extracellular dohmain, Antibody 4A10 Fab fragment, protein polymer, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.10 Å
Radius of gyration Rg (electron density) rg_electron	28.83 Å
Forward intensity I(0) i0	52435100.00
Molecular weight molecular_weight	56720.0 kDa
Excluded volume excluded_volume	70881 Å³
Envelope volume envelope_volume	92652 Å³
Hydration-shell volume shell_volume	28511 Å³
Envelope diameter envelope_diameter	105.2 Å
Shell Rg shell_rg	34.14 Å
Envelope Rg envelope_rg	29.09 Å
Shape Rg shape_rg	28.82 Å
Total Rg total_rg	29.37 Å
Total atoms total_atoms	3990
Residues n_residues	522
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

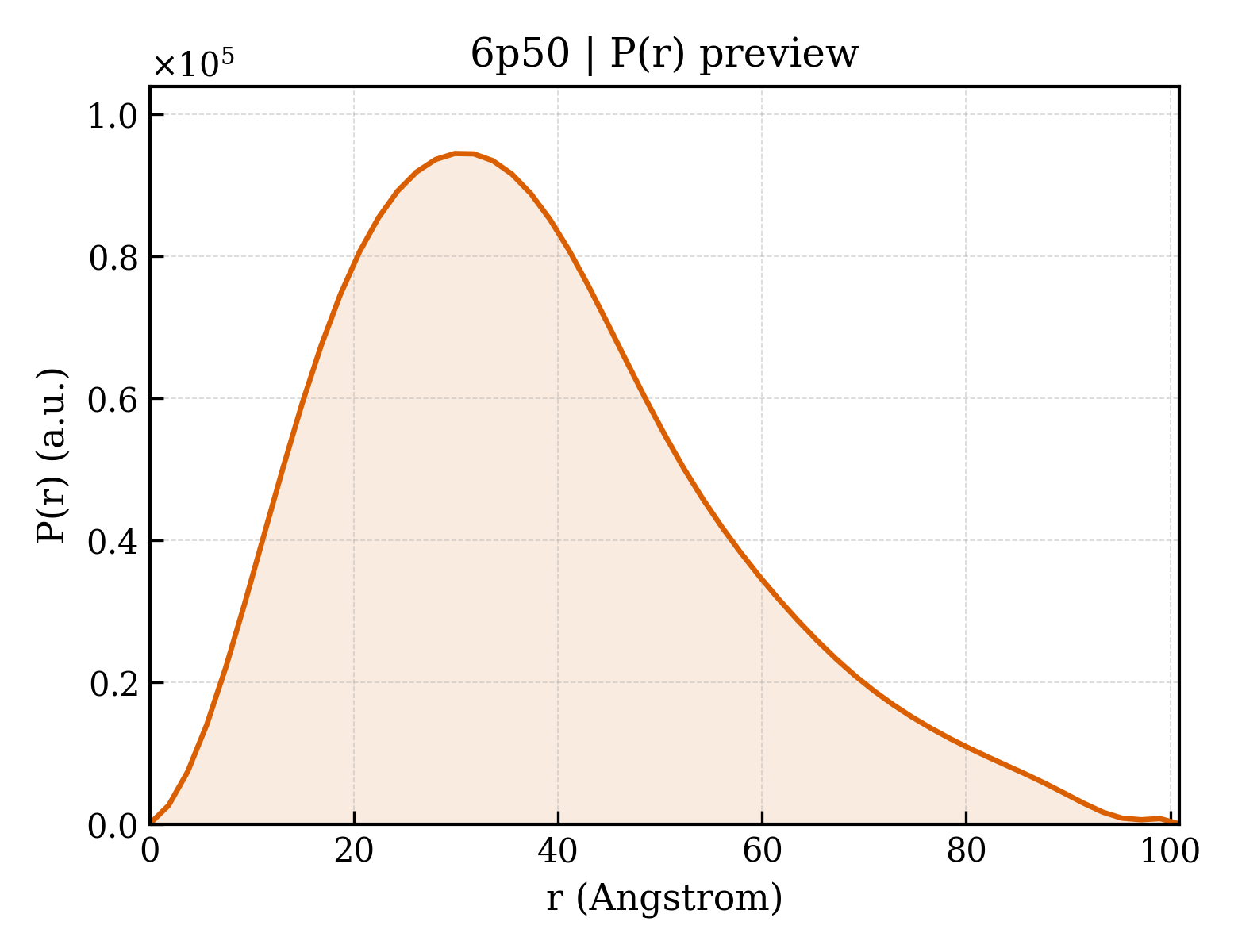

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.9 Å
Rg (real space) rg_real	29.34 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	5.2440e+07
I(0) uncertainty (real space) i0_real_error	8.5080e+05
Rg (reciprocal space) rg_reciprocal	29.24 Å
I(0) (reciprocal space) i0_reciprocal	52430000.0000
Solution quality estimate total_estimate	0.8411
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.9 Å
Skewness Skewness skewness	0.598
Kurtosis Kurtosis kurtosis	-0.039
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8865000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.870; Smooth: 0.770

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Interleukin-7 receptor subunit alpha
Molecular weight formula_weight	25691.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	3990

GSHMESGYAQNGDLEDAELDDYSFSCYSQLEVNGSQHSLTCAFEDPDVNTTNLEFEICGALVEVKCLNFRKLQEIYFIETKKFLLIGKSNICVKVGEKSLTCKKIDLTTIVKPEAPFDLSVVYREGANDFVVTFNTSHLQKKYVKVLMHDVAYRQEKDENKWTHVNLSSTKLTLLQRKLQPAAMYEIKVRSIPDHYFKGFWSEWSPSYYFRTPEINNSSGEMD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 2 Entity 2 polymer

Description description	anti-IL-7R 4A10 Fab heavy chain
Molecular weight formula_weight	24360.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQPGAELVMPGASVKLSCKASGYTFTSYWMHWVKQRPGEGLEWIGEIDPSDSYTNDNQKFKGKATLTVDKSSSTAYMQLSSLTSEDSAVYYCARRLYSNSYYYAMDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSQTVTCNVAHPASSTKVDKKIVPRDCG

Entity 3 Entity 3 polymer

Description description	anti-IL-7R 4A10 Fab light chain
Molecular weight formula_weight	23606.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASLGGKVTITCKASQDIKKYIAWYQHKPGKGPRLLIHYTSTLQPGIPSRFSGSGSGRDYSFSISNLEPVDIATYYCLQYDNLLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPRDINVKWKIDGSERQNGVLNSWTDQDSKDSTYNMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6p50h1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6p50h2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6p50l1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6p50l2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (3 domains)

Domain ID domain_id	6p50C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1870 —

Domain ID domain_id	6p50H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6p50L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	145.113 Å
Unit-cell length b length_b	40.171 Å
Unit-cell length c length_c	105.097 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.48 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	38.610 Å
R factor r_factor	0.2879
R_work r_work	0.2855
R_free r_free	0.3298

fit	/app/data/saxs_computation/p5/6p50/6p50.fit
pddf	/app/data/pr_computation/p5/6p50/6p50.pr.out
profile	/app/data/saxs_computation/p5/6p50/6p50.dat
