1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-7 receptor subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 36–231	Not recorded	IL7R binder × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 36–231	Not recorded	IL7R binder × 1 EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 36–231	Not recorded	IL7R binder × 1 EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7OPB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI3 Crystal structure of the complex of human interleukin-7 with glycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；292 K；18% w/v PEG 3350, 0.1 M HEPES pH 7.4, 0.2 M NaCl, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.90 Å R-free 0.267
3UP1 Crystal structure of the unliganded human interleukin-7 receptor extracellular domain Deposited 2011-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–239（219 aa） Chain B 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 2 SO4 SULFATE ION × 5 GOL GLYCEROL × 4 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；292 K；1.26M (NH4)2SO4, 0.1 M Tris-HCl pH 8.5, 0.2 M Li2SO4, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.15 Å R-free 0.257
6P50 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha Fab 4A10 Deposited 2019-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；25% PEG 3350, 0.2 M sodium malonate pH 6.0, 20% glycerol	Resolution 2.90 Å R-free 0.330
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
9XEA Structure of the transmembrane domain dimer of human IL-7R V253G mutant Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 236–266（31 aa） Chain B 236–266（31 aa）	Mutation：V253G Mutation：V253G	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；306 K；Ionic strength (raw mmCIF value) 25；Pressure 1 NMR sample composition 0.6 mM [U-100% 13C; U-100% 15N; U-85% 2H] The transmembrane domain of the IL-7R-V253G dimer, 60 mM POPC, 150 mM DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM [U-13C; U-15N] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM [U-15N; U-2H] Transmembrane domain of the IL-7R V253G mutant, 0.4 mM [U-13C] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL7RA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–196； UniProt 36–231 Author chain B； PDBConstruct 1–196； UniProt 36–231 Author chain C； PDBConstruct 1–196； UniProt 36–231

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7opb
Deposition date deposition_date	2021-05-31
Structure title title	IL7R in complex with an antagonist
Keywords keywords	protein binder, IL7R, antagonist, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

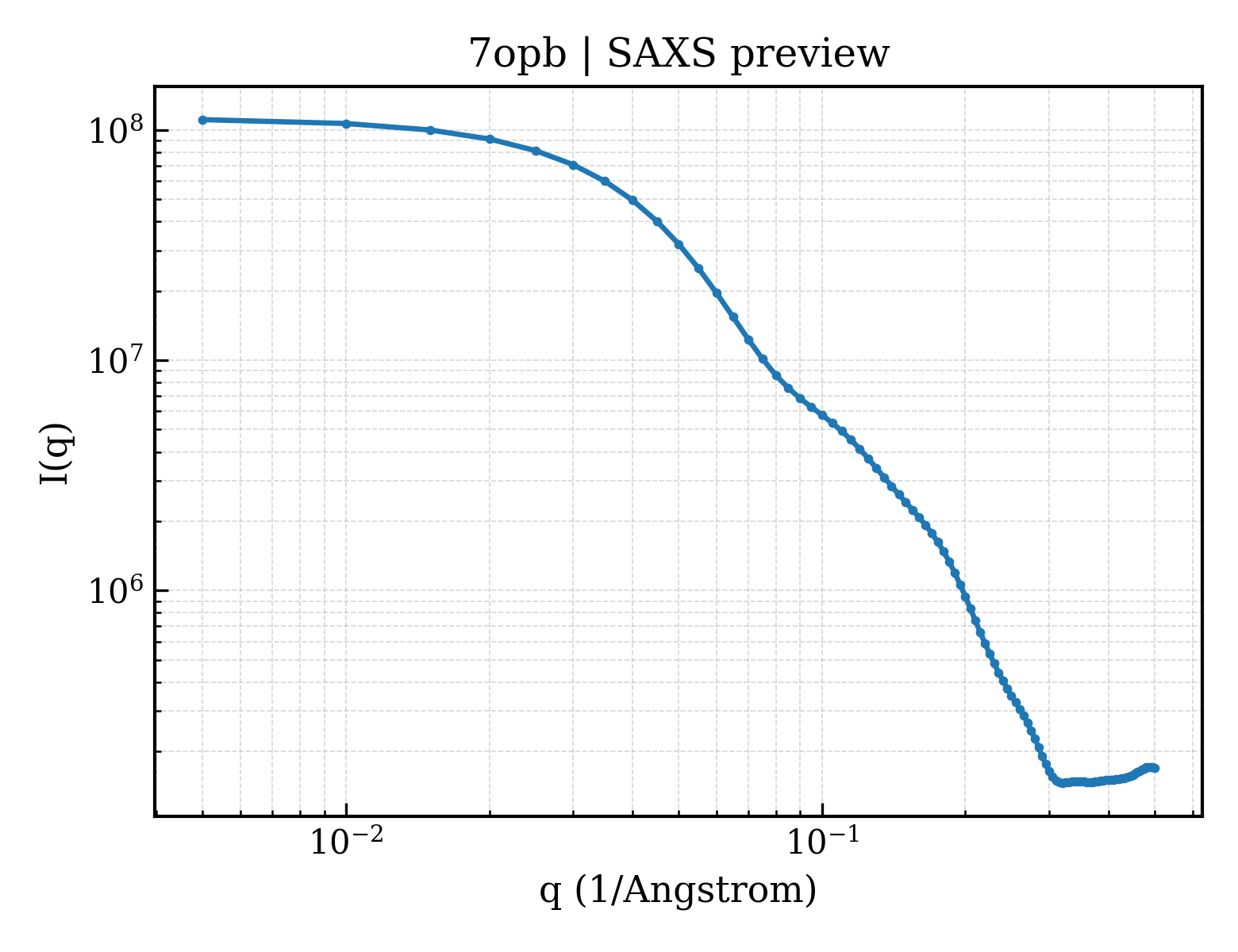

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.33 Å
Radius of gyration Rg (electron density) rg_electron	39.08 Å
Forward intensity I(0) i0	112500000.00
Molecular weight molecular_weight	88169.0 kDa
Excluded volume excluded_volume	111590 Å³
Envelope volume envelope_volume	160930 Å³
Hydration-shell volume shell_volume	36145 Å³
Envelope diameter envelope_diameter	137.6 Å
Shell Rg shell_rg	42.32 Å
Envelope Rg envelope_rg	37.96 Å
Shape Rg shape_rg	39.08 Å
Total Rg total_rg	39.30 Å
Total atoms total_atoms	6205
Residues n_residues	752
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

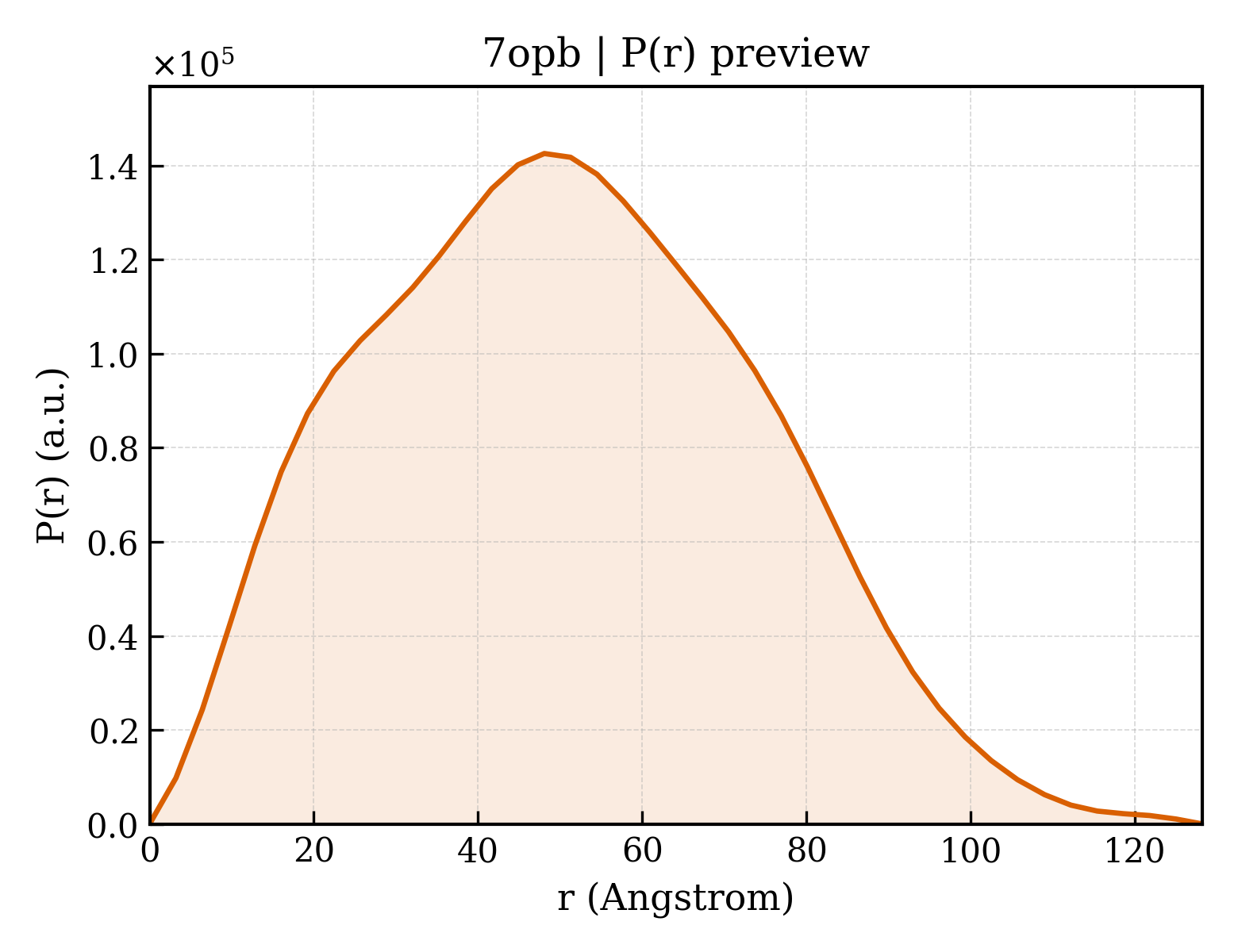

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.2 Å
Rg (real space) rg_real	39.35 Å
Rg uncertainty (real space) rg_real_error	1.20 Å
I(0) (real space) i0_real	1.1250e+08
I(0) uncertainty (real space) i0_real_error	1.9310e+06
Rg (reciprocal space) rg_reciprocal	39.35 Å
I(0) (reciprocal space) i0_reciprocal	112500000.0000
Solution quality estimate total_estimate	0.8994
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	48.1 Å
Skewness Skewness skewness	0.209
Kurtosis Kurtosis kurtosis	-0.528
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4856000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.886

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Interleukin-7 receptor subunit alpha
Molecular weight formula_weight	22862.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6547

DDYSFSCYSQLEVNGSQHSLTCAFEDPDVNITNLEFEICGALVEVKCLNFRKLQEIYFIETKKFLLIGKSNICVKVGEKSLTCKKIDLTTIVKPEAPFDLSVVYREGANDFVVTFNTSHLQKKYVKVLMHDVAYRQEKDENKWTHVNLSSTKLTLLQRKLQPAAMYEIKVRSIPDHYFKGFWSEWSPSYYFRTPEI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	IL7R binder
Molecular weight formula_weight	6443.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

SVIEKLRKLEKQARKQGDEVLVMLARMVLEYLEKGWVSEEDADESADRIEEVLKK

来源 Source

来源生物 organism	Escherichia coli BL21(DE3)
NCBI Class编号 ncbi_taxonomy_id	469008
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	309

▶

8. Citations (1)

▶

Unit-cell length a length_a	132.182 Å
Unit-cell length b length_b	132.182 Å
Unit-cell length c length_c	58.877 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.144 Å
Low-resolution limit resolution_low	43.960 Å
R factor r_factor	0.1946
R_work r_work	0.1938
R_free r_free	0.2109

fit	/app/data/saxs_computation/op/7opb/7opb.fit
pddf	/app/data/pr_computation/op/7opb/7opb.pr.out
profile	/app/data/saxs_computation/op/7opb/7opb.dat
