SAXSdb — 9xea

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-7 receptor subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 236–266 Chain B； UniProt 236–266	Mutation：V253G	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；306 K；Ionic strength (raw mmCIF value) 25；Pressure 1 NMR sample composition：0.6 mM [U-100% 13C; U-100% 15N; U-85% 2H] The transmembrane domain of the IL-7R-V253G dimer, 60 mM POPC, 150 mM DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.6 mM [U-13C; U-15N] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.4 mM [U-15N; U-2H] Transmembrane domain of the IL-7R V253G mutant, 0.4 mM [U-13C] Transmembrane domain of the IL-7R V253G mutant, 60 mM deuterated Deuterated POPC, 150 mM deuterated Deuterated DHPC, 25 mM MES, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9XEA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI2 Crystal structure of the complex of human interleukin-7 with unglycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；292 K；20% w/v PEG 8000, 0.1M MES, 0.2 M calcium acetate, pH 6.0, sitting drop, temperature 292K	Resolution 2.70 Å R-free 0.267
3DI3 Crystal structure of the complex of human interleukin-7 with glycosylated human interleukin-7 receptor alpha ectodomain Deposited 2008-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–239（219 aa） Fragment：UNP residues 21 to 239 (ligand binding ectodomain)	Mutation：I118V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；292 K；18% w/v PEG 3350, 0.1 M HEPES pH 7.4, 0.2 M NaCl, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.90 Å R-free 0.267
3UP1 Crystal structure of the unliganded human interleukin-7 receptor extracellular domain Deposited 2011-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–239（219 aa） Chain B 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 2 SO4 SULFATE ION × 5 GOL GLYCEROL × 4 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；292 K；1.26M (NH4)2SO4, 0.1 M Tris-HCl pH 8.5, 0.2 M Li2SO4, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.15 Å R-free 0.257
6P50 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha Fab 4A10 Deposited 2019-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；25% PEG 3350, 0.2 M sodium malonate pH 6.0, 20% glycerol	Resolution 2.90 Å R-free 0.330
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–239（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
6P67 Crystal Structure of a Complex of human IL-7Ralpha with an anti-IL-7Ralpha 2B8 Fab Deposited 2019-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 21–239（219 aa）	Not recorded	FUC alpha-L-fucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；17% PEG 3350, 10% MPD, 0.2 lithium sulfate, 0.1 M imidazole pH 6.5, 20% glycerol	Resolution 2.90 Å R-free 0.266
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–231（196 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–231（196 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211
7OPB IL7R in complex with an antagonist Deposited 2021-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–231（196 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0,1 M Phosphate/Citrate, 25% v/v PEG Smear Low Cryoprotected with 25% PEG-400	Resolution 2.14 Å R-free 0.211

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL7RA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–31； UniProt 236–266 Author chain B； PDBConstruct 1–31； UniProt 236–266

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9xea
Deposition date deposition_date	2025-10-27
最后修订 last_revision	2026-04-22
Structure title title	Structure of the transmembrane domain dimer of human IL-7R V253G mutant
Keywords keywords	IL-7R, V253G mutation, transmembrane domain dimer, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.88 Å
Radius of gyration Rg (electron density) rg_electron	15.88 Å
Forward intensity I(0) i0	95497600.00
Molecular weight molecular_weight	102730.0 kDa
Excluded volume excluded_volume	137460 Å³
Envelope volume envelope_volume	25273 Å³
Hydration-shell volume shell_volume	11912 Å³
Envelope diameter envelope_diameter	64.8 Å
Shell Rg shell_rg	23.91 Å
Envelope Rg envelope_rg	20.30 Å
Shape Rg shape_rg	15.82 Å
Total Rg total_rg	16.50 Å
Total atoms total_atoms	15420
Residues n_residues	930
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.5 Å
Rg (real space) rg_real	15.06 Å
Rg uncertainty (real space) rg_real_error	0.11 Å
I(0) (real space) i0_real	9.2030e+07
I(0) uncertainty (real space) i0_real_error	9.2630e+05
Rg (reciprocal space) rg_reciprocal	16.23 Å
I(0) (reciprocal space) i0_reciprocal	95500000.0000
Solution quality estimate total_estimate	0.5985
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	14.7 Å
Skewness Skewness skewness	0.408
Kurtosis Kurtosis kurtosis	-0.625
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	4.1320
Highest regularization parameter α highest_alpha	15990.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.778; Stabil: 0.946; Sysdev: 0.000; Positv: 1.000; Valcen: 0.619; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Interleukin-7 receptor subunit alpha
Molecular weight formula_weight	3427.2 kDa
Mutation mutation	V253G
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	15420

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/xe/9xea/9xea.fit
pddf	/app/data/pr_computation/xe/9xea/9xea.pr.out
profile	/app/data/saxs_computation/xe/9xea/9xea.dat

Structure of the transmembrane domain dimer of human IL-7R V253G mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-7 receptor subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

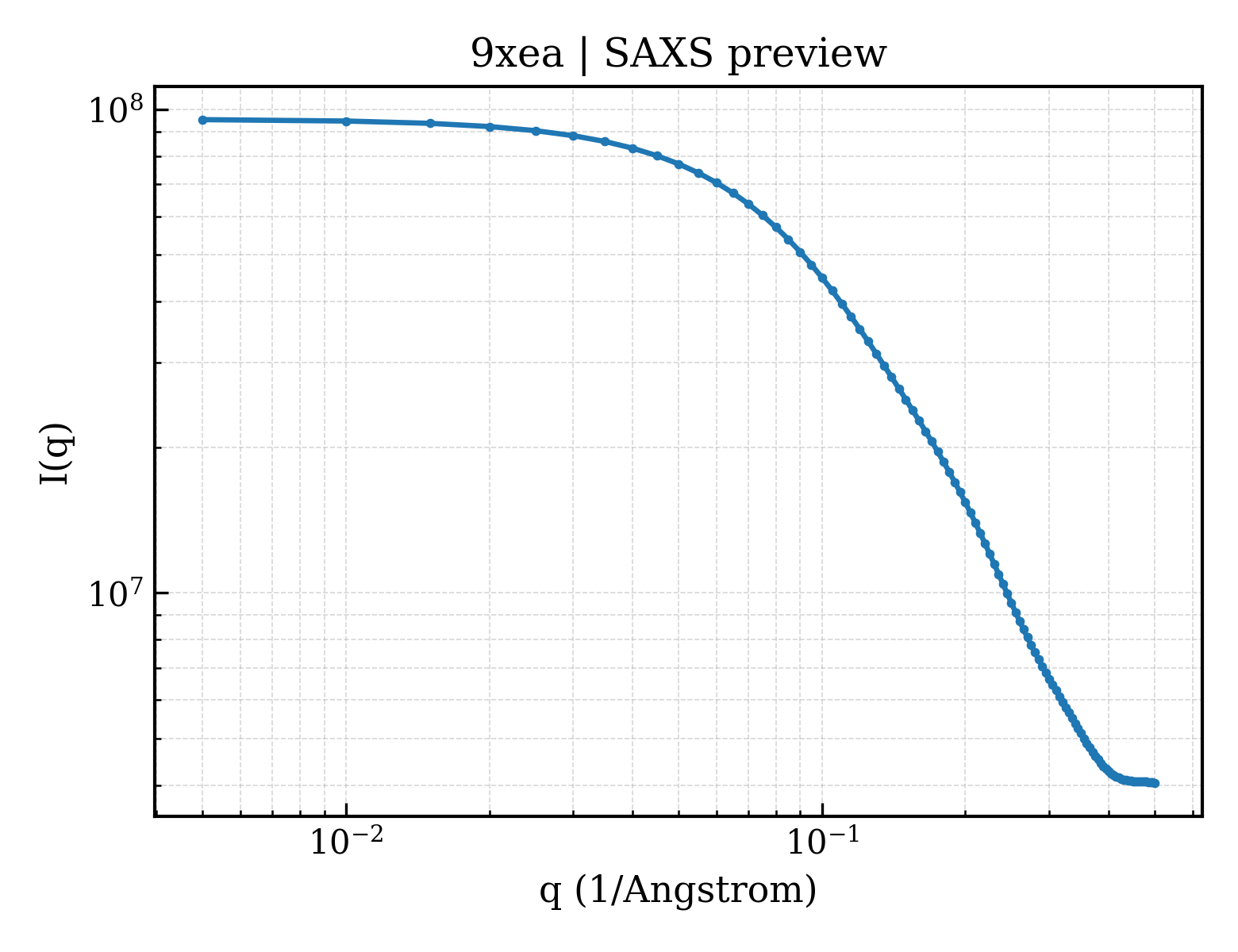

SAXS scattering curve SAXS Profile

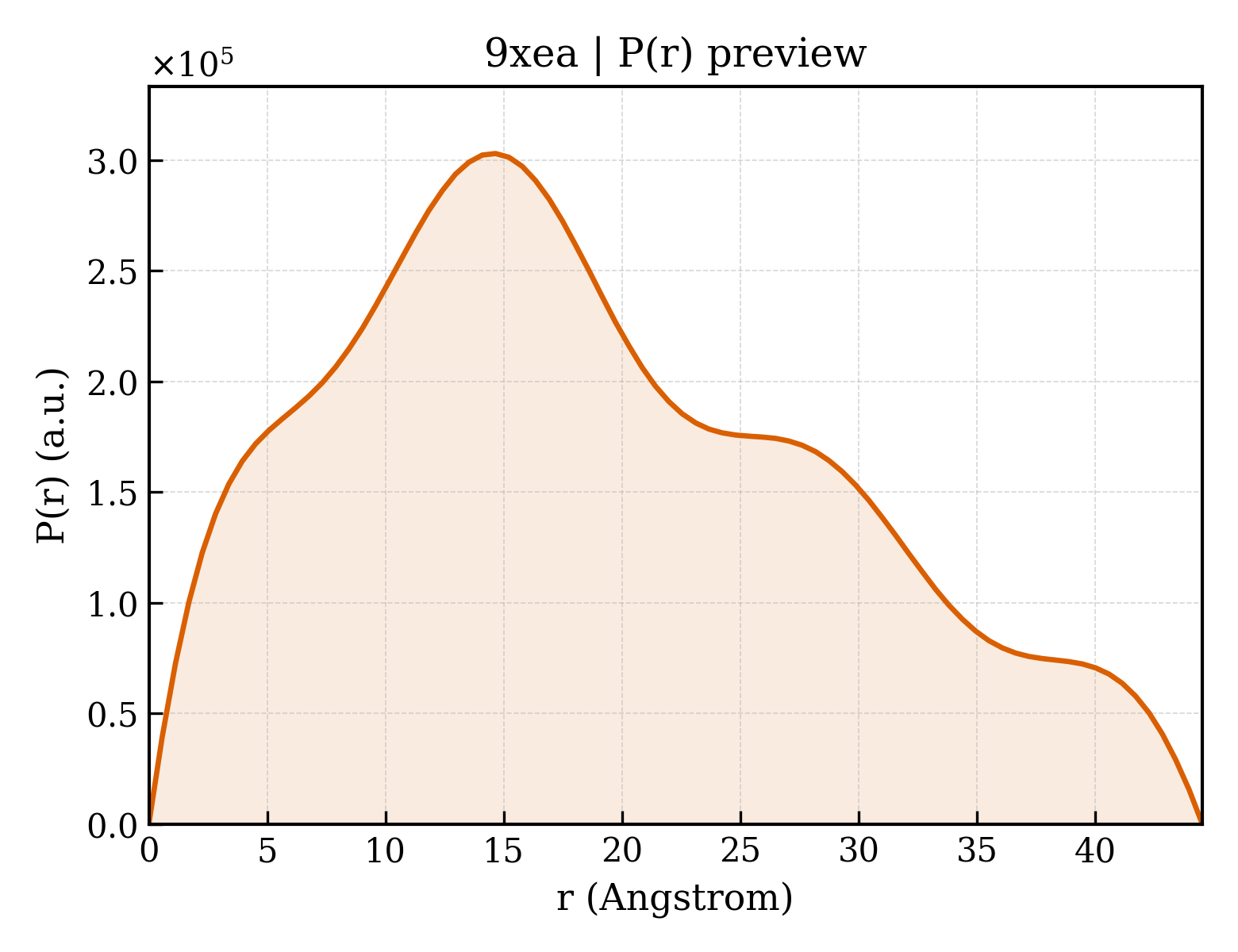

P(r) Distance Distribution P(r) Distribution
