1. Protein Identity and Related Structures Protein Identity & Related Structures

Isocitrate dehydrogenase [NADP] cytoplasmic

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ISOCITRIC ACID × 2 MAGNESIUM ION × 2 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FORMIC ACID × 5 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ISOCITRIC ACID × 2 MAGNESIUM ION × 2 FORMIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IDHC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–414； UniProt 1–414 Author chain B； PDBConstruct 1–414； UniProt 1–414 Author chain C； PDBConstruct 1–414； UniProt 1–414 Author chain D； PDBConstruct 1–414； UniProt 1–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6pay
Deposition date deposition_date	2019-06-12
Structure title title	Structure of HsICDH1:Mg(II):ICT:NADPH(50%) complex reveals structural basis for observation of half-sites reactivity
Keywords keywords	substrate complex, half-sites reactivity, ICDH mechanism, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6pay__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6pay__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

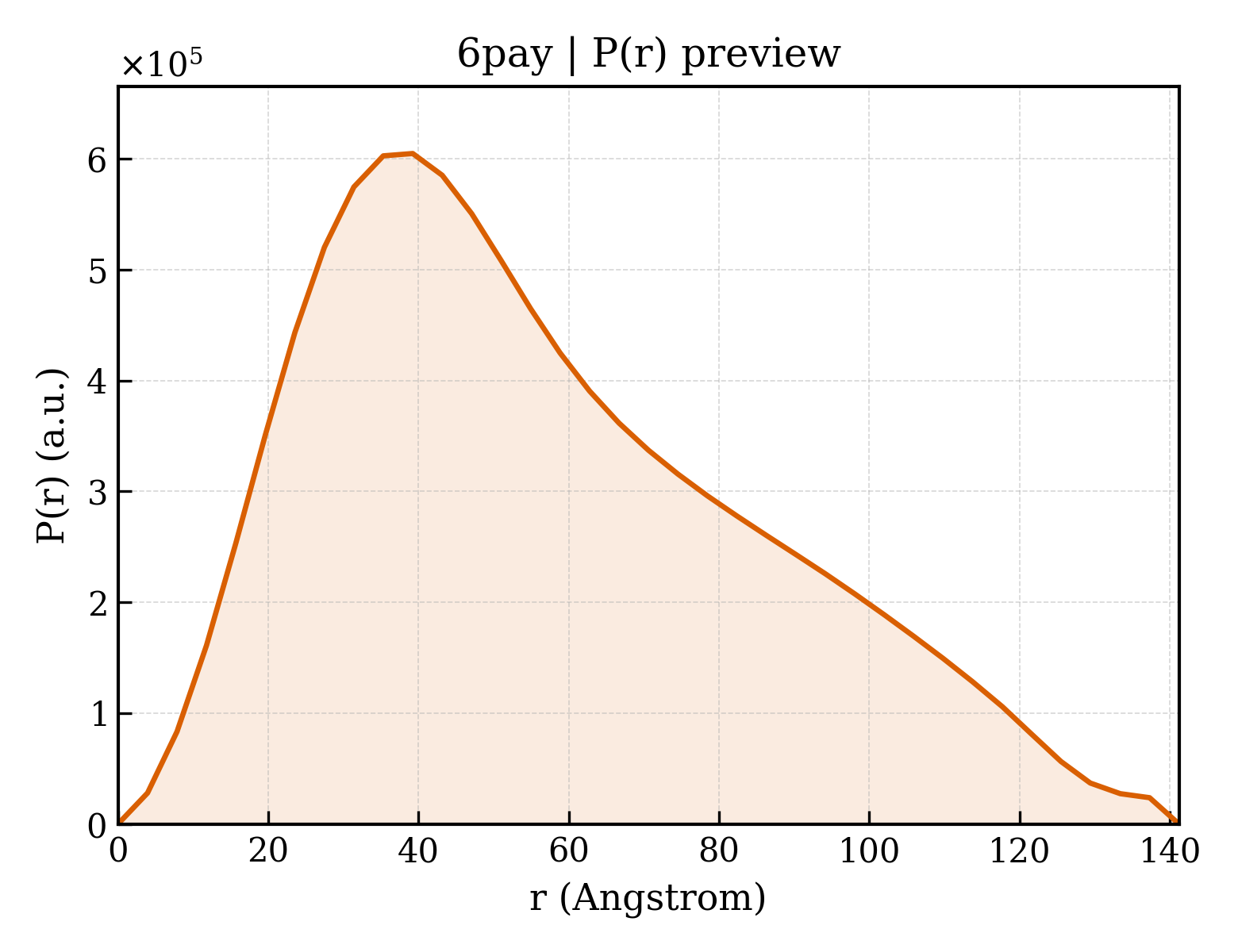

6pay__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.19 Å
Rg (electron density)	27.41 Å
Total Rg	28.15 Å
Atom count	12518
Residues	815
Excluded volume	114460 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6pay__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6pay__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Isocitrate dehydrogenase [NADP] cytoplasmic
Molecular weight formula_weight	46720.2 kDa
EC 编号 ec_number	1.1.1.42
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	25350

MSKKISGGSVVEMQGDEMTRIIWELIKEKLIFPYVELDLHSYDLGIENRDATNDQVTKDAAEAIKKHNVGVKCATITPDEKRVEEFKLKQMWKSPNGTIRNILGGTVFREAIICKNIPRLVSGWVKPIIIGRHAYGDQYRATDFVVPGPGKVEITYTPSDGTQKVTYLVHNFEEGGGVAMGMYNQDKSIEDFAHSSFQMALSKGWPLYLSTKNTILKKYDGRFKDIFQEIYDKQYKSQFEAQKIWYEHRLIDDMVAQAMKSEGGFIWACKNYDGDVQSDSVAQGYGSLGMMTSVLVCPDGKTVEAEAAHGTVTRHYRMYQKGQETSTNPIASIFAWTRGLAHRAKLDNNKELAFFANALEEVSIETIEAGFMTKDLAACIKGLPNVQRSDYLNTFEFMDKLGENLKIKLAQAKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ISOCITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	361

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6paya_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.1 — Dimeric isocitrate & isopropylmalate dehydrogenases

Domain ID domain_id	d6payb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.1 — Dimeric isocitrate & isopropylmalate dehydrogenases

Domain ID domain_id	d6payc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.1 — Dimeric isocitrate & isopropylmalate dehydrogenases

Domain ID domain_id	d6payd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.1 — Dimeric isocitrate & isopropylmalate dehydrogenases

CATH v4.4 (4 domains)

Domain ID domain_id	6payA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

Domain ID domain_id	6payB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

Domain ID domain_id	6payC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

Domain ID domain_id	6payD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

▶

Unit-cell length a length_a	94.600 Å
Unit-cell length b length_b	74.600 Å
Unit-cell length c length_c	142.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.20 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.199 Å
Low-resolution limit resolution_low	47.105 Å
R factor r_factor	0.2246
R_work r_work	0.2242
R_free r_free	0.2422
