1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin-like growth factor 1 receptor

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Insulin-like growth factor I × 1 （P05019）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGF1R_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1262； UniProt 31–1292 Author chain D； PDBConstruct 1–1262； UniProt 31–1292

Insulin-like growth factor I

Homo sapiens

UniProt P05019

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Insulin-like growth factor 1 receptor × 2 （Q60751）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGF1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–70； UniProt 49–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6pyh
Deposition date deposition_date	2019-07-29
Structure title title	Cryo-EM structure of full-length IGF1R-IGF1 complex. Only the extracellular region of the complex is resolved.
Keywords keywords	IGF1R, IGF1, SIGNALING PROTEIN-HORMONE complex; SIGNALING PROTEIN/HORMONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6pyh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6pyh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

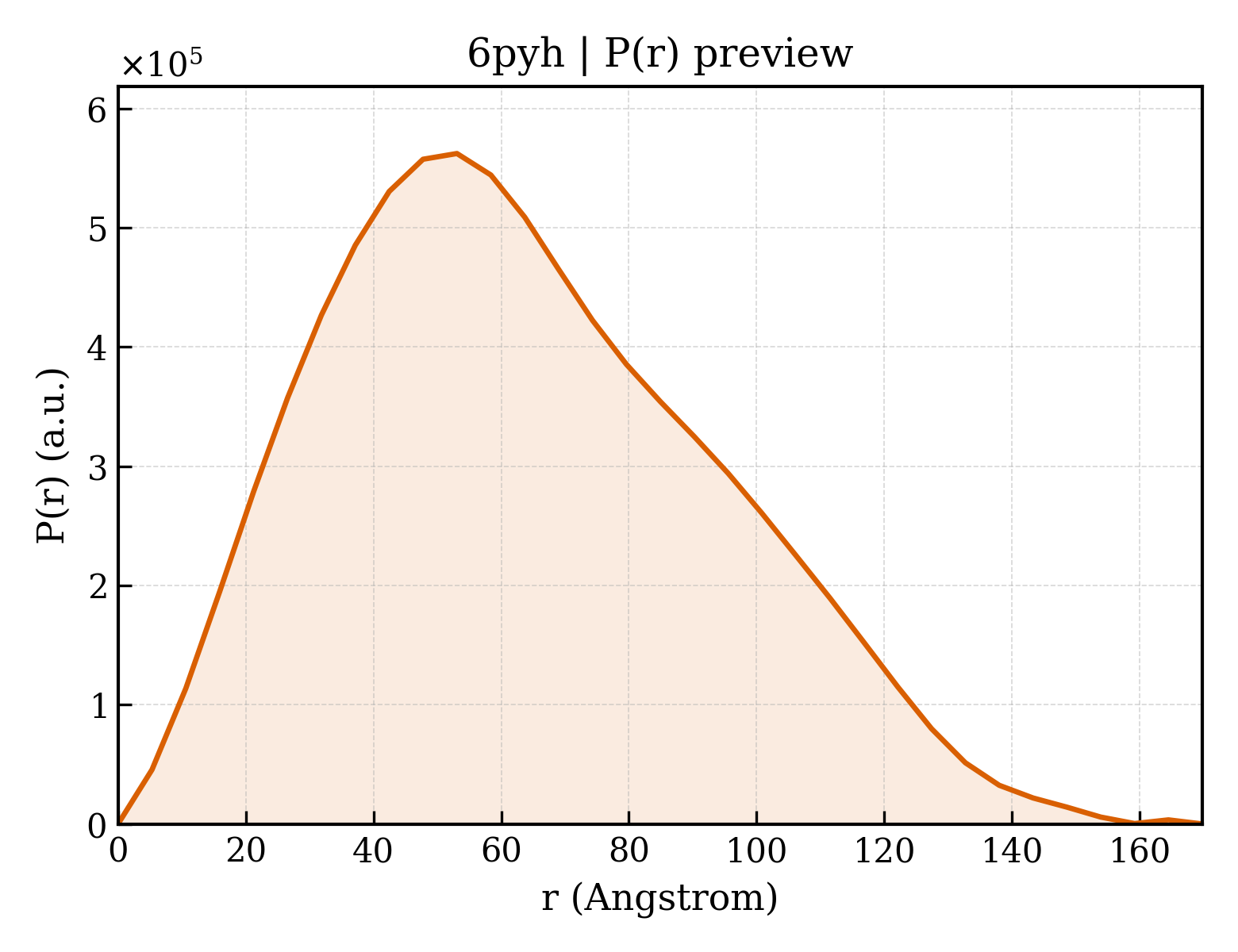

6pyh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.29 Å
Rg (electron density)	49.28 Å
Total Rg	49.34 Å
Atom count	13187
Residues	1648
Excluded volume	233630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6pyh__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Insulin-like growth factor 1 receptor
Molecular weight formula_weight	145279.9 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	13187

EICGPGIDIRNDYQQLKRLENCTVIEGFLHILLISKAEDYRSYRFPKLTVITEYLLLFRVAGLESLGDLFPNLTVIRGWKLFYNYALVIFEMTNLKDIGLYNLRNITRGAIRIEKNADLCYLSTIDWSLILDAVSNNYIVGNKPPKECGDLCPGTLEEKPMCEKTTINNEYNYRCWTTNRCQKMCPSVCGKRACTENNECCHPECLGSCHTPDDNTTCVACRHYYYKGVCVPACPPGTYRFEGWRCVDRDFCANIPNAESSDSDGFVIHDDECMQECPSGFIRNSTQSMYCIPCEGPCPKVCGDEEKKTKTIDSVTSAQMLQGCTILKGNLLINIRRGNNIASELENFMGLIEVVTGYVKIRHSHALVSLSFLKNLRLILGEEQLEGNYSFYVLDNQNLQQLWDWNHRNLTVRSGKMYFAFNPKLCVSEIYRMEEVTGTKGRQSKGDINTRNNGERASCESDVLRFTSTTTWKNRIIITWHRYRPPDYRDLISFTVYYKEAPFKNVTEYDGQDACGSNSWNMVDVDLPPNKEGEPGILLHGLKPWTQYAVYVKAVTLTMVENDHIRGAKSEILYIRTNASVPSIPLDVLSASNSSSQLIVKWNPPTLPNGNLSYYIVRWQRQPQDGYLYRHNYCSKDKIPIRKYADGTIDVEEVTENPKTEVCGGDKGPCCACPKTEAEKQAEKEEAEYRKVFENFLHNSIFVPRPERRRRDVMQVANTTMSSRSRNTTVADTYNITDPEEFETEYPFFESRVDNKERTVISNLRPFTLYRIDIHSCNHEAEKLGCSASNFVFARTMPAEGADDIPGPVTWEPRPENSIFLKWPEPENPNGLILMYEIKYGSQVEDQRECVSRQEYRKYGGAKLNRLNPGNYTARIQATSLSGNGSWTDPVFFYVPAKTTYENFMHLIIALPVAILLIVGGLVIMLYVFHRKRNNSRLGNGVLYASVNPEAFSAADVYVPDEWEVAREKITMNRELGQGSFGMVYEGVAKGVVKDEPETRVAIKTVNEAASMRERIEFLNEASVMKEFNCHHVVRLLGVVSQGQPTLVIMELMTRGDLKSYLRSLRPEVEQNNLVLIPPSLSKMIQMAGEIADGMAYLNANKFVHRNLAARNCMVAEDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMSPESLKDGVFTTHSDVWSFGVVLWEIATLAEQPYQGLSNEQVLRFVMEGGLLDKPDNCPDMLFELMRMCWQYNPKMRPSFLEIIGSIKDEMEPSFQEVSFYYSEENKPPEPGTSSGLEVLFQ

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Insulin-like growth factor I
Molecular weight formula_weight	7663.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GPETLCGAELVDALQFVCGDRGFYFNKPTGYGSSSRRAPQTGIVDECCFRSCDLRRLEMYCAPLKPAKSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	51573
