SAXSdb — 6r2s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Duffy receptor

Plasmodium vivax (strain Salvador I)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Antibody DB9 light chain × 1 Antibody DB9 heavy chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PVDR_PLAVS
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 3–300； UniProt 211–508

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6r2s
Deposition date deposition_date	2019-03-18
Structure title title	The structure of Plasmodium vivax Duffy binding protein (PvDBP) bound to human antibody DB9
Keywords keywords	Plasmodium vivax, Invasion, Broadly-neutralising human monoclonal antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6r2s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6r2s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

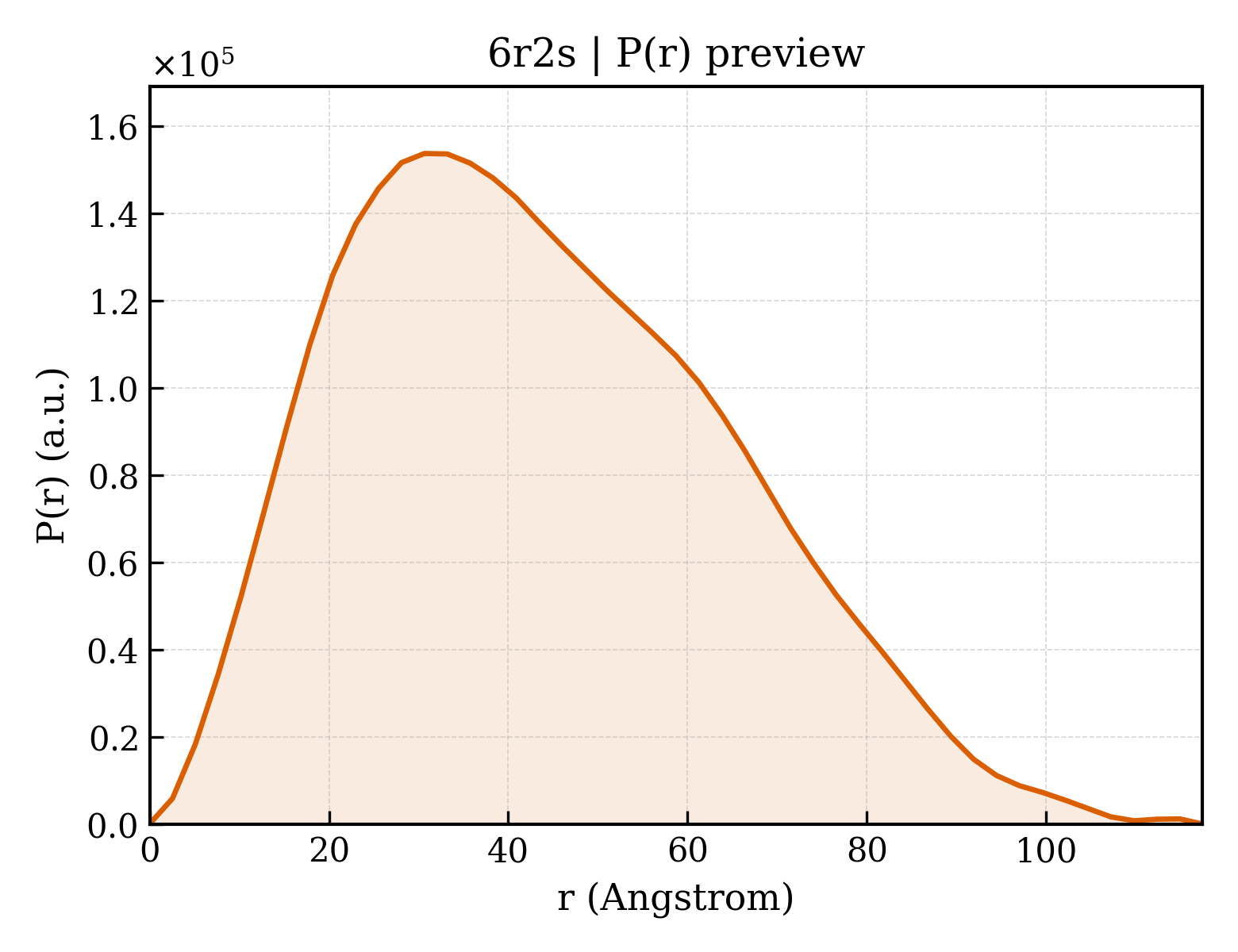

6r2s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.07 Å
Rg (electron density)	33.77 Å
Total Rg	34.29 Å
Atom count	5752
Residues	730
Excluded volume	102130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6r2s__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Antibody DB9 light chain
Molecular weight formula_weight	25440.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5752

MGWSCIILFLVATATGVHGDIVMTQSPSTLSASVGDRVTITCRASQSISSWLAWYQQRPGKAPRLLIYKASSLLSGVPSRFGGSGSGTDFTLTISSLQPDDFATYHCQHYNTYPWTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Antibody DB9 heavy chain
Molecular weight formula_weight	29428.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

HPLCLSLHRCPLPGPTAPRFYRLNSTMGWSCIILFLVATATGVHSEVQLQESGPGLVKPSETLSLTCTVSGGSVSSSTYYWGWVRQPPGKGLEWIGSIYYSGSTYYNPSLKSRVTISVDTSKNQFSLKLSSVTAADTAVYYCARDGTGALDLWGRGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHTCPPDPST

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Duffy receptor
Molecular weight formula_weight	35695.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SGNTVMKNCNYKRKRRERDWDCNTKKDVCIPDRRYQLCMKELTNLVNNTDTNFHRDITFRKLYLKRKLIYDAAVEGDLLLKLNNYRYNKDFCKDIRWSLGDFGDIIMGTDMEGIGYSKVVENNLRSIFGTDEKAQQRRKQWWNESKAQIWTAMMYSVKKRLKGNFIWICKLNVAVNIEPQIYRWIREWGRDYVSELPTEVQKLKEKCDGKINYTDKKVCKVPPCQNACKSYDQWITRKKNQWDVLSNKFISVKNAEKVQTAGIVTPYDILKQELDEFNEVAFENEINKRDGAYIELCVCS

Source Source

Source organism organism	Plasmodium vivax (strain Salvador I)
NCBI taxonomy ID ncbi_taxonomy_id	126793
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6r2sa1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6r2sa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6r2sc1
Class class	a — All alpha proteins
Fold Fold fold	a.264 — Duffy binding domain-like
Superfamily Superfamily superfamily	a.264.1 — Duffy binding domain-like
Family Family family	a.264.1.1 — Duffy binding domain

Domain ID domain_id	d6r2sc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	6r2sA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6r2sA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6r2sB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6r2sC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1310 — 5 helical Cullin repeat like
Homologous superfamily homologous superfamily	20 — Duffy-antigen binding domain

Domain ID domain_id	6r2sC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	830 —

▶

Unit-cell length a length_a	173.560 Å
Unit-cell length b length_b	173.560 Å
Unit-cell length c length_c	169.730 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	3.040 Å
Low-resolution limit resolution_low	42.040 Å
R factor r_factor	0.2040
R_work r_work	0.2020
R_free r_free	0.2380
