1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-actinin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 825–894	Not recorded	ACE-ASN-ALA-ARG-ARG-LYS-LEU-LYS-GLY-ALA-ILE-LEU-THR-THR-MET-LEU-ALA-THR-ARG-ASN-PHE × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M BIS-TRIS pH 6.5, 25% w/v Polyethylene glycol 3,350	Resolution 1.28 Å R-free 0.199
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 825–894	Not recorded	ACE-ASN-ALA-ARG-ARG-LYS-LEU-LYS-GLY-ALA-ILE-LEU-THR-THR-MET-LEU-ALA-THR-ARG-ASN-PHE × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M BIS-TRIS pH 6.5, 25% w/v Polyethylene glycol 3,350	Resolution 1.28 Å R-free 0.199

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6TS3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H8B EF-hands 3,4 from alpha-actinin / Z-repeat 7 from titin Deposited 2001-02-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 822–894（73 aa） Fragment：EF-HANDS 3&4 RESIDUE 822-894	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；300 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.7 MM COMPLEX	Resolution not provided
1HCI CRYSTAL STRUCTURE OF THE ROD DOMAIN OF ALPHA-ACTININ Deposited 2001-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 274–746（473 aa） Fragment：SPECTRIN-LIKE REPEATS 1,2,3, AND 4 - AMINO ACIDS 274 - 746 Chain B 274–746（473 aa） Fragment：SPECTRIN-LIKE REPEATS 1,2,3, AND 4 - AMINO ACIDS 274 - 746	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.9 M (NH4)2SO4, 0.1 M TRISHCL PH 8.5	Resolution 2.80 Å R-free 0.295
1QUU CRYSTAL STRUCTURE OF TWO CENTRAL SPECTRIN-LIKE REPEATS FROM ALPHA-ACTININ Deposited 1999-07-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 391–637（247 aa） Fragment：SPECTRIN-LIKE REPEATS 2 AND 3 - AMINO ACIDS 391 TO 637	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；26% PEG 400 (FLUKA), 100 MM MGSO4, 100 MM HEPES OR TRIS-HCL, pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.310
4D1E THE CRYSTAL STRUCTURE OF HUMAN MUSCLE ALPHA-ACTININ-2 Deposited 2014-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–894（876 aa） Fragment：RESIDUES 19-894	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M MG FORMATE 5% PEG SMEAR, 0.01 M EDTA	Resolution 3.50 Å R-free 0.258
5A36 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, UNP RESIDUES 19-266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；30% POLYETHYLENE GLYCOL 1500, pH 7.5	Resolution 2.00 Å R-free 0.269
5A36 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, UNP RESIDUES 19-266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；30% POLYETHYLENE GLYCOL 1500, pH 7.5	Resolution 2.00 Å R-free 0.269
5A37 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；28% POLYETHYLENE GLYCOL 2000, pH 7.5	Resolution 1.88 Å R-free 0.216
5A37 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；28% POLYETHYLENE GLYCOL 2000, pH 7.5	Resolution 1.88 Å R-free 0.216
5A38 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19 TO 266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；22% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 1.90 Å R-free 0.231
5A38 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19 TO 266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；22% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 1.90 Å R-free 0.231
5A4B Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19-266	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 2.01 Å R-free 0.235
5A4B Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19-266	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 2.01 Å R-free 0.235
6SWT Affimer9 co-crystalised with the CH domains of alpha actinin 2. Deposited 2019-09-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–270（252 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M ammonium tartrate	Resolution 1.20 Å R-free 0.164
7A8T Crystal structure of sarcomeric protein FATZ-1 (mini-FATZ-1 construct) in complex with rod domain of alpha-actinin-2 Deposited 2020-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 274–746（473 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；100 mM HEPES (pH 7.0), 16% w/v Jeffamine ED-2003	Resolution 2.69 Å R-free 0.235
7A8U Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with rod domain of alpha-actinin-2 Deposited 2020-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 274–746（473 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；100 mM Tris-HCl (pH 8.5), 200 mM trimethylamine N-oxide, 20% w/v polyethylene glycol 2,000 methyl ether	Resolution 3.80 Å R-free 0.239
7ANK Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with half dimer of alpha-actinin-2 Deposited 2020-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–507（507 aa） Chain B 509–894（386 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM Bis-Tris propane (pH 7.5), 100 mM sodium citrate, 10 mM zinc chloride, 12% w/w polyethylene glycol 3,350	Resolution 3.20 Å R-free 0.284
7B55 Crystal structure of CaMKII-actinin complex bound to MES Deposited 2020-12-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.60 Å R-free 0.214
7B56 Crystal structure of CaMKII-actinin complex bound to AMPPNP Deposited 2020-12-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.45 Å R-free 0.215
7B57 Crystal structure of CaMKII-actinin complex bound to ADP Deposited 2020-12-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	MG MAGNESIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.95 Å R-free 0.247

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACTN2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–73； UniProt 825–894 Author chain B； PDBConstruct 4–73； UniProt 825–894

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ts3
Deposition date deposition_date	2019-12-19
Structure title title	EF-hands 3 and 4 of alpha-actinin in complex with CaMKII regulatory segment
Keywords keywords	CaMKII-binding protein, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.94 Å
Radius of gyration Rg (electron density) rg_electron	17.45 Å
Forward intensity I(0) i0	6793070.00
Molecular weight molecular_weight	19223.0 kDa
Excluded volume excluded_volume	24168 Å³
Envelope volume envelope_volume	27784 Å³
Hydration-shell volume shell_volume	14243 Å³
Envelope diameter envelope_diameter	66.5 Å
Shell Rg shell_rg	22.20 Å
Envelope Rg envelope_rg	17.64 Å
Shape Rg shape_rg	17.46 Å
Total Rg total_rg	18.21 Å
Total atoms total_atoms	1352
Residues n_residues	180
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

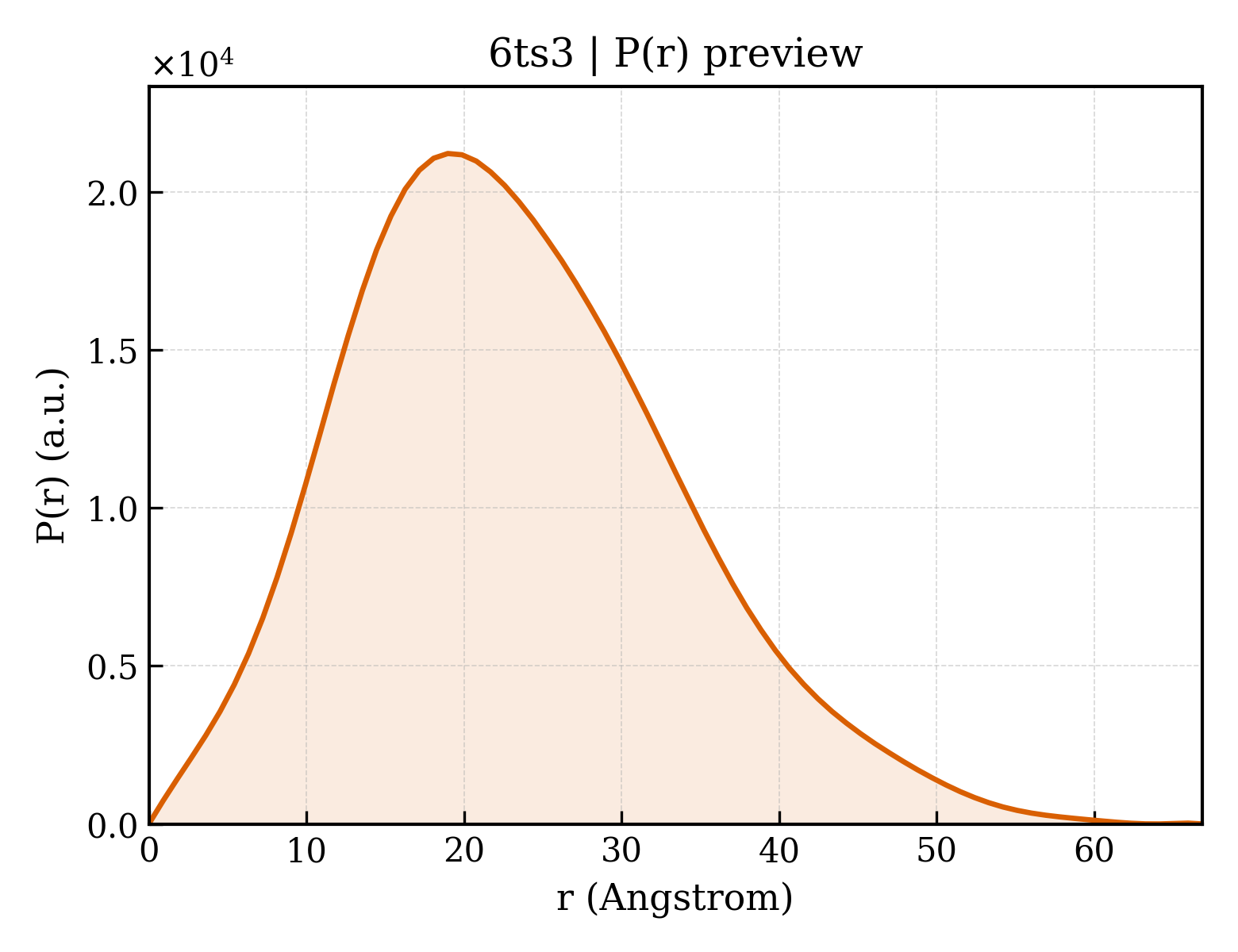

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	66.8 Å
Rg (real space) rg_real	17.99 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	6.7930e+06
I(0) uncertainty (real space) i0_real_error	8.4100e+04
Rg (reciprocal space) rg_reciprocal	17.98 Å
I(0) (reciprocal space) i0_reciprocal	6793000.0000
Solution quality estimate total_estimate	0.8161
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.0 Å
Skewness Skewness skewness	0.476
Kurtosis Kurtosis kurtosis	-0.004
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1828000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.576; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Alpha-actinin-2
Molecular weight formula_weight	7903.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1668

SNATDTAEQVIASFRILASDKPYILAEELRRELPPDQAQYCIKRMPAYSGPGSVPGALDYAAFSSALYGESDL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ACE-ASN-ALA-ARG-ARG-LYS-LEU-LYS-GLY-ALA-ILE-LEU-THR-THR-MET-LEU-ALA-THR-ARG-ASN-PHE
Molecular weight formula_weight	2424.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

NARRKLKGAILTTMLATRNFSG

Entity 3 Entity 3 non-polymer

Description description	ACETYL GROUP
Molecular weight formula_weight	44.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	266

▶

8. Citations (1)

▶

Unit-cell length a length_a	43.355 Å
Unit-cell length b length_b	47.270 Å
Unit-cell length c length_c	47.472 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.280 Å
Low-resolution limit resolution_low	44.460 Å
R factor r_factor	0.1839
R_work r_work	0.1832
R_free r_free	0.1989

fit	/app/data/saxs_computation/ts/6ts3/6ts3.fit
pddf	/app/data/pr_computation/ts/6ts3/6ts3.pr.out
profile	/app/data/saxs_computation/ts/6ts3/6ts3.dat
