SAXSdb — 7a8t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-actinin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 274–746	Not recorded	Myozenin-1 × 2 （Q9NP98）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；100 mM HEPES (pH 7.0), 16% w/v Jeffamine ED-2003	Resolution 2.69 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7A8T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H8B EF-hands 3,4 from alpha-actinin / Z-repeat 7 from titin Deposited 2001-02-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 822–894（73 aa） Fragment：EF-HANDS 3&4 RESIDUE 822-894	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；300 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.7 MM COMPLEX	Resolution not provided
1HCI CRYSTAL STRUCTURE OF THE ROD DOMAIN OF ALPHA-ACTININ Deposited 2001-05-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 274–746（473 aa） Fragment：SPECTRIN-LIKE REPEATS 1,2,3, AND 4 - AMINO ACIDS 274 - 746 Chain B 274–746（473 aa） Fragment：SPECTRIN-LIKE REPEATS 1,2,3, AND 4 - AMINO ACIDS 274 - 746	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.9 M (NH4)2SO4, 0.1 M TRISHCL PH 8.5	Resolution 2.80 Å R-free 0.295
1QUU CRYSTAL STRUCTURE OF TWO CENTRAL SPECTRIN-LIKE REPEATS FROM ALPHA-ACTININ Deposited 1999-07-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 391–637（247 aa） Fragment：SPECTRIN-LIKE REPEATS 2 AND 3 - AMINO ACIDS 391 TO 637	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；26% PEG 400 (FLUKA), 100 MM MGSO4, 100 MM HEPES OR TRIS-HCL, pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.310
4D1E THE CRYSTAL STRUCTURE OF HUMAN MUSCLE ALPHA-ACTININ-2 Deposited 2014-05-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–894（876 aa） Fragment：RESIDUES 19-894	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M MG FORMATE 5% PEG SMEAR, 0.01 M EDTA	Resolution 3.50 Å R-free 0.258
5A36 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, UNP RESIDUES 19-266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；30% POLYETHYLENE GLYCOL 1500, pH 7.5	Resolution 2.00 Å R-free 0.269
5A36 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, UNP RESIDUES 19-266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；30% POLYETHYLENE GLYCOL 1500, pH 7.5	Resolution 2.00 Å R-free 0.269
5A37 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；28% POLYETHYLENE GLYCOL 2000, pH 7.5	Resolution 1.88 Å R-free 0.216
5A37 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；28% POLYETHYLENE GLYCOL 2000, pH 7.5	Resolution 1.88 Å R-free 0.216
5A38 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19 TO 266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；22% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 1.90 Å R-free 0.231
5A38 Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-05-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19 TO 266	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；22% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 1.90 Å R-free 0.231
5A4B Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-06-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19-266	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 2.01 Å R-free 0.235
5A4B Mutations in the Calponin homology domain of Alpha-Actinin-2 affect Actin binding and incorporation in muscle. Deposited 2015-06-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–266（248 aa） Fragment：CALPONIN HOMOLOGY DOMAIN, RESIDUES 19-266	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL 3350, pH 7.5	Resolution 2.01 Å R-free 0.235
6SWT Affimer9 co-crystalised with the CH domains of alpha actinin 2. Deposited 2019-09-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–270（252 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M ammonium tartrate	Resolution 1.20 Å R-free 0.164
6TS3 EF-hands 3 and 4 of alpha-actinin in complex with CaMKII regulatory segment Deposited 2019-12-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M BIS-TRIS pH 6.5, 25% w/v Polyethylene glycol 3,350	Resolution 1.28 Å R-free 0.199
6TS3 EF-hands 3 and 4 of alpha-actinin in complex with CaMKII regulatory segment Deposited 2019-12-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 825–894（70 aa）	Not recorded	ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M BIS-TRIS pH 6.5, 25% w/v Polyethylene glycol 3,350	Resolution 1.28 Å R-free 0.199
7A8U Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with rod domain of alpha-actinin-2 Deposited 2020-08-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 274–746（473 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；100 mM Tris-HCl (pH 8.5), 200 mM trimethylamine N-oxide, 20% w/v polyethylene glycol 2,000 methyl ether	Resolution 3.80 Å R-free 0.239
7ANK Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with half dimer of alpha-actinin-2 Deposited 2020-10-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–507（507 aa） Chain B 509–894（386 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM Bis-Tris propane (pH 7.5), 100 mM sodium citrate, 10 mM zinc chloride, 12% w/w polyethylene glycol 3,350	Resolution 3.20 Å R-free 0.284
7B55 Crystal structure of CaMKII-actinin complex bound to MES Deposited 2020-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.60 Å R-free 0.214
7B56 Crystal structure of CaMKII-actinin complex bound to AMPPNP Deposited 2020-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.45 Å R-free 0.215
7B57 Crystal structure of CaMKII-actinin complex bound to ADP Deposited 2020-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 825–894（70 aa）	Not recorded	MG MAGNESIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M MES pH 6.0, 20% w/v PEG4000, 0.2 M Lithium Sulfate	Resolution 1.95 Å R-free 0.247

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACTN2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–476； UniProt 274–746

Myozenin-1

Homo sapiens

UniProt Q9NP98

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 176–263	Not recorded	Alpha-actinin-2 × 2 （P35609）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；100 mM HEPES (pH 7.0), 16% w/v Jeffamine ED-2003	Resolution 2.69 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7A8T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7A8U Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with rod domain of alpha-actinin-2 Deposited 2020-08-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 92–299（208 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；100 mM Tris-HCl (pH 8.5), 200 mM trimethylamine N-oxide, 20% w/v polyethylene glycol 2,000 methyl ether	Resolution 3.80 Å R-free 0.239
7ANK Crystal structure of sarcomeric protein FATZ-1 (d91-FATZ-1 construct) in complex with half dimer of alpha-actinin-2 Deposited 2020-10-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 92–299（208 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM Bis-Tris propane (pH 7.5), 100 mM sodium citrate, 10 mM zinc chloride, 12% w/w polyethylene glycol 3,350	Resolution 3.20 Å R-free 0.284

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MYOZ1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–92； UniProt 176–263

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7a8t
Deposition date deposition_date	2020-08-31
Structure title title	Crystal structure of sarcomeric protein FATZ-1 (mini-FATZ-1 construct) in complex with rod domain of alpha-actinin-2
Keywords keywords	Z-disk complex, F-actin crosslinking protein, scaffolding protein, fuzzy complex, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	68.90 Å
Radius of gyration Rg (electron density) rg_electron	71.48 Å
Forward intensity I(0) i0	59462100.00
Molecular weight molecular_weight	61267.0 kDa
Excluded volume excluded_volume	76055 Å³
Envelope volume envelope_volume	128650 Å³
Hydration-shell volume shell_volume	21323 Å³
Envelope diameter envelope_diameter	254.3 Å
Shell Rg shell_rg	40.62 Å
Envelope Rg envelope_rg	72.12 Å
Shape Rg shape_rg	71.46 Å
Total Rg total_rg	70.33 Å
Total atoms total_atoms	4309
Residues n_residues	519
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	233.6 Å
Rg (real space) rg_real	70.03 Å
Rg uncertainty (real space) rg_real_error	3.25 Å
I(0) (real space) i0_real	5.9430e+07
I(0) uncertainty (real space) i0_real_error	1.2950e+06
Rg (reciprocal space) rg_reciprocal	64.56 Å
I(0) (reciprocal space) i0_reciprocal	58870000.0000
Solution quality estimate total_estimate	0.5702
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.3 Å
Skewness Skewness skewness	0.639
Kurtosis Kurtosis kurtosis	-0.489
Angular range angular_range	— – 0.1150 Å⁻¹
Current regularization parameter α current_alpha	0.0006
Highest regularization parameter α highest_alpha	2676000.0000
Real-space data points n_real_points	24
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.012; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.030; Smooth: 0.348

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Alpha-actinin-2
Molecular weight formula_weight	56211.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4309

GSSAVNQENERLMEEYERLASELLEWIRRTIPWLENRTPEKTMQAMQKKLEDFRDYRRKHKPPKVQEKCQLEINFNTLQTKLRISNRPAFMPSEGKMVSDIAGAWQRLEQAEKGYEEWLLNEIRRLERLEHLAEKFRQKASTHETWAYGKEQILLQKDYESASLTEVRALLRKHEAFESDLAAHQDRVEQIAAIAQELNELDYHDAVNVNDRCQKICDQWDRLGTLTQKRREALERMEKLLETIDQLHLEFAKRAAPFNNWMEGAMEDLQDMFIVHSIEEIQSLITAHEQFKATLPEADGERQSIMAIQNEVEKVIQSYNIRISSSNPYSTVTMDELRTKWDKVKQLVPIRDQSLQEELARQHANERLRRQFAAQANAIGPWIQNKMEEIARSSIQITGALEDQMNQLKQYEHNIINYKNNIDKLEGDHQLIQEALVFDNKHTNYTMEHIRVGWELLLTTIARTINEVETQILTRD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Myozenin-1
Molecular weight formula_weight	10459.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GPAMKHITVFKTYISPWERAMGVDPQQKMELGIDLLAYGAKAELPKYKSFNRTAMPYGGYEKASKRMTFQMPKFDLGPLLSEPLVLYNQNLS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d7a8ta1
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.1 — Spectrin repeat
Family Family family	a.7.1.1 — Spectrin repeat

Domain ID domain_id	d7a8ta2
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.1 — Spectrin repeat
Family Family family	a.7.1.1 — Spectrin repeat

Domain ID domain_id	d7a8ta3
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.1 — Spectrin repeat
Family Family family	a.7.1.1 — Spectrin repeat

Domain ID domain_id	d7a8ta4
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.1 — Spectrin repeat
Family Family family	a.7.1.1 — Spectrin repeat

Domain ID domain_id	d7a8ta5
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.440 Å
Unit-cell length b length_b	103.440 Å
Unit-cell length c length_c	218.143 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.690 Å
Low-resolution limit resolution_low	46.580 Å
R factor r_factor	0.2050
R_work r_work	0.2040
R_free r_free	0.2350

fit	/app/data/saxs_computation/a8/7a8t/7a8t.fit
pddf	/app/data/pr_computation/a8/7a8t/7a8t.pr.out
profile	/app/data/saxs_computation/a8/7a8t/7a8t.dat

Crystal structure of sarcomeric protein FATZ-1 (mini-FATZ-1 construct) in complex with rod domain of alpha-actinin-2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-actinin-2

State in the Current Structure

Other States of the Same Protein in the Database

Myozenin-1

State in the Current Structure

Other States of the Same Protein in the Database

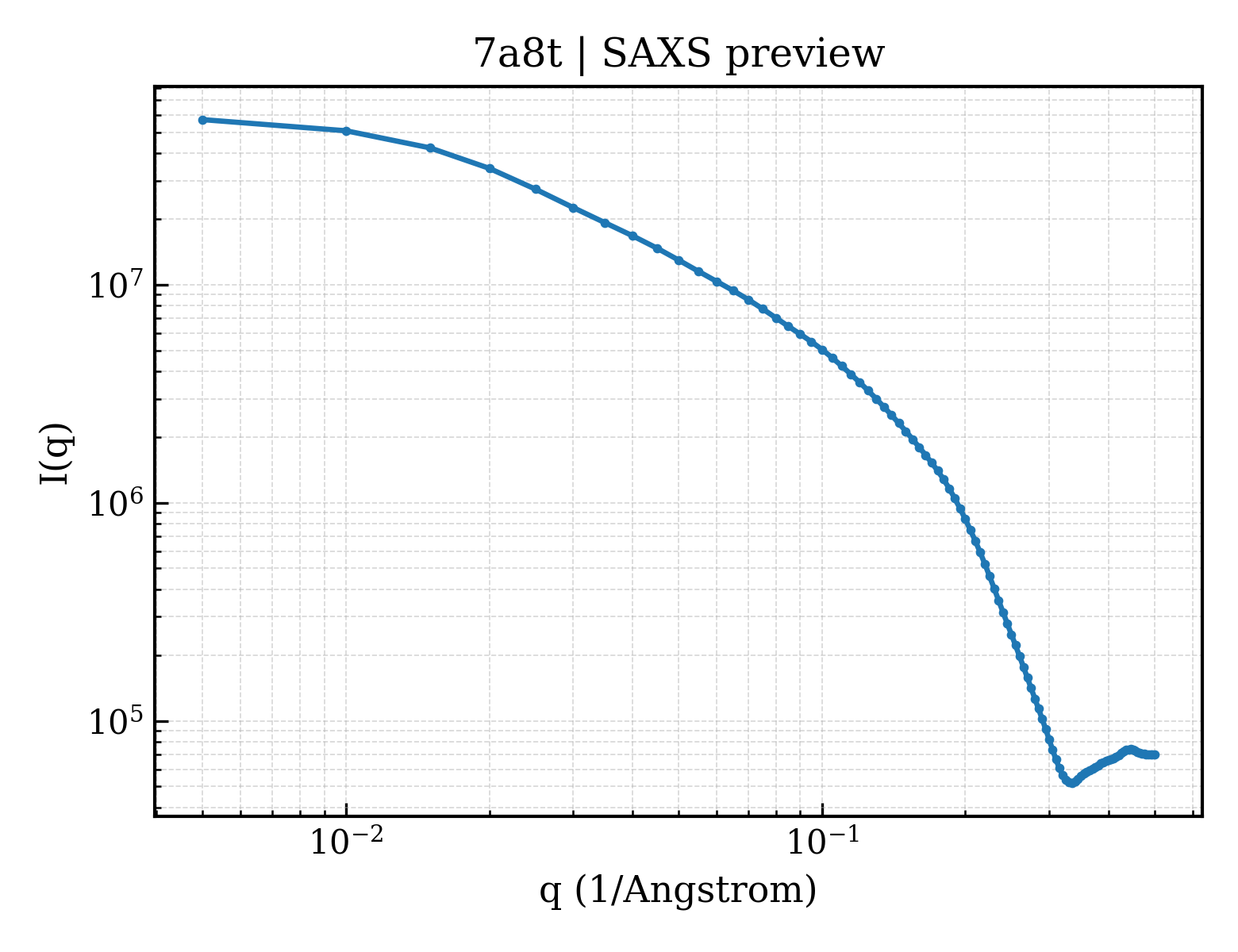

SAXS scattering curve SAXS Profile
