SAXSdb — 6x05

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NUP133

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 55–481	Not recorded	VHH-SAN4 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；24% PEG 3,350, 0.2M Ammonium sulfate, 0.1M Bis-Tris pH 5.5	Resolution 2.10 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6X05	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3KFO Crystal structure of the C-terminal domain from the nuclear pore complex component NUP133 from Saccharomyces cerevisiae Deposited 2009-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 881–1157（277 aa） Fragment：C-terminal domain, residues 881-1157	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% PEG 3350, 200mM Potassium Thiocyanate, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.90 Å R-free 0.245
6X02 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 Deposited 2020-05-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 521–1157（637 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 6.38 Å R-free 0.324
6X03 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 and VHH-SAN9 Deposited 2020-05-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 521–1157（637 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 7.30 Å R-free 0.353
6X04 Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN5 Deposited 2020-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 55–481（427 aa） Chain C 55–481（427 aa） Chain E 55–481（427 aa） Chain G 55–481（427 aa） Chain I 55–481（427 aa） Chain K 55–481（427 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；15% PEG MME 2,000, 0.1M potassium chloride, 0.1M Tris/HCl pH 8	Resolution 2.68 Å R-free 0.261
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 136 PDB declaration: 136-meric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NU133_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–428； UniProt 55–481

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6x05
Deposition date deposition_date	2020-05-15
Structure title title	Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN4
Keywords keywords	STRUCTURAL PROTEIN, Nucleoporin, Nanobody; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.56 Å
Radius of gyration Rg (electron density) rg_electron	27.85 Å
Forward intensity I(0) i0	49639300.00
Molecular weight molecular_weight	55472.0 kDa
Excluded volume excluded_volume	69645 Å³
Envelope volume envelope_volume	88794 Å³
Hydration-shell volume shell_volume	28455 Å³
Envelope diameter envelope_diameter	104.5 Å
Shell Rg shell_rg	32.93 Å
Envelope Rg envelope_rg	28.10 Å
Shape Rg shape_rg	27.83 Å
Total Rg total_rg	28.47 Å
Total atoms total_atoms	3912
Residues n_residues	500
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

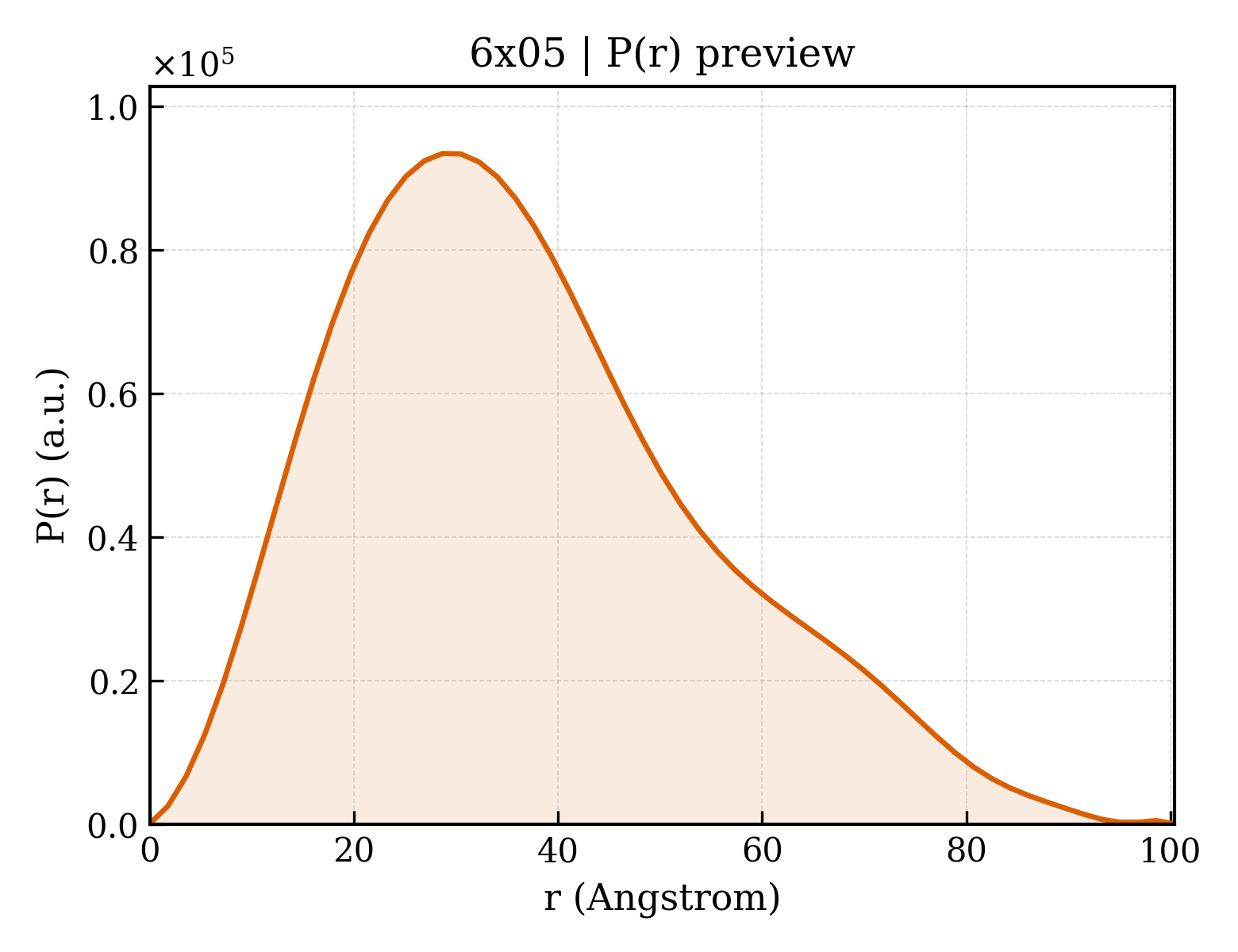

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.4 Å
Rg (real space) rg_real	28.85 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	4.9640e+07
I(0) uncertainty (real space) i0_real_error	7.3550e+05
Rg (reciprocal space) rg_reciprocal	28.76 Å
I(0) (reciprocal space) i0_reciprocal	49640000.0000
Solution quality estimate total_estimate	0.8341
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.7 Å
Skewness Skewness skewness	0.575
Kurtosis Kurtosis kurtosis	-0.160
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10800000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.701; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.786; Smooth: 0.950

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nucleoporin NUP133
Molecular weight formula_weight	48493.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4158

GFDNSKVFTENNRYIVKTLQTDYSSGFSNDDELNGYIDMQIGYGLVNDHKKVYIWNIHSTQKDTPYITVPFRSDDNDEIAVAPRCILTFPATMDESPLALNPNDQDETGGLIIIKGSKAIYYEDINSINNLNFKLSEKFSHELELPINSSGGEKCDLMLNCEPAGIVLSTNMGRIFFITIRNSMGKPQLKLGKLLNKPFKLGIWSKIFNTNSSVVSLRNGPILGKGTRLVYITTNKGIFQTWQLSATNSHPTKLIDVNIYEAILESLQDLYPFAHGTLKIWDSHPLQDESSQLFLSSIYDSSCNETYYILSTIIFDSSSNSFTIFSTYRLNTFMESITDTKFKPKIFIPQMENANDTNEVTSILVMFPNAVVITQVNSKLDSSYSMRRKWEDIVSLRNDIDIIGSGYDSKSLYVLTKQMGVLQFFVKE

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	VHH-SAN4
Molecular weight formula_weight	13505.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

QLQLVESGGGSVQAGGSLTLSCTASESISKRIHGIGWFRQRRGEQREEIAYITTGGRPNLGDSVKDRFTISRDKSNGTVYLQMNSLKPEDTAVYYCHGRGRWWGTEGRLDYWGQGTQVTVSS

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6x05k_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	6x05A01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

8. Citations (1)

▶

Unit-cell length a length_a	93.381 Å
Unit-cell length b length_b	154.693 Å
Unit-cell length c length_c	41.423 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	59.570 Å
R factor r_factor	0.1765
R_work r_work	0.1742
R_free r_free	0.2188

fit	/app/data/saxs_computation/x0/6x05/6x05.fit
pddf	/app/data/pr_computation/x0/6x05/6x05.pr.out
profile	/app/data/saxs_computation/x0/6x05/6x05.dat
