7n84

Double nuclear outer ring from the isolated yeast NPC

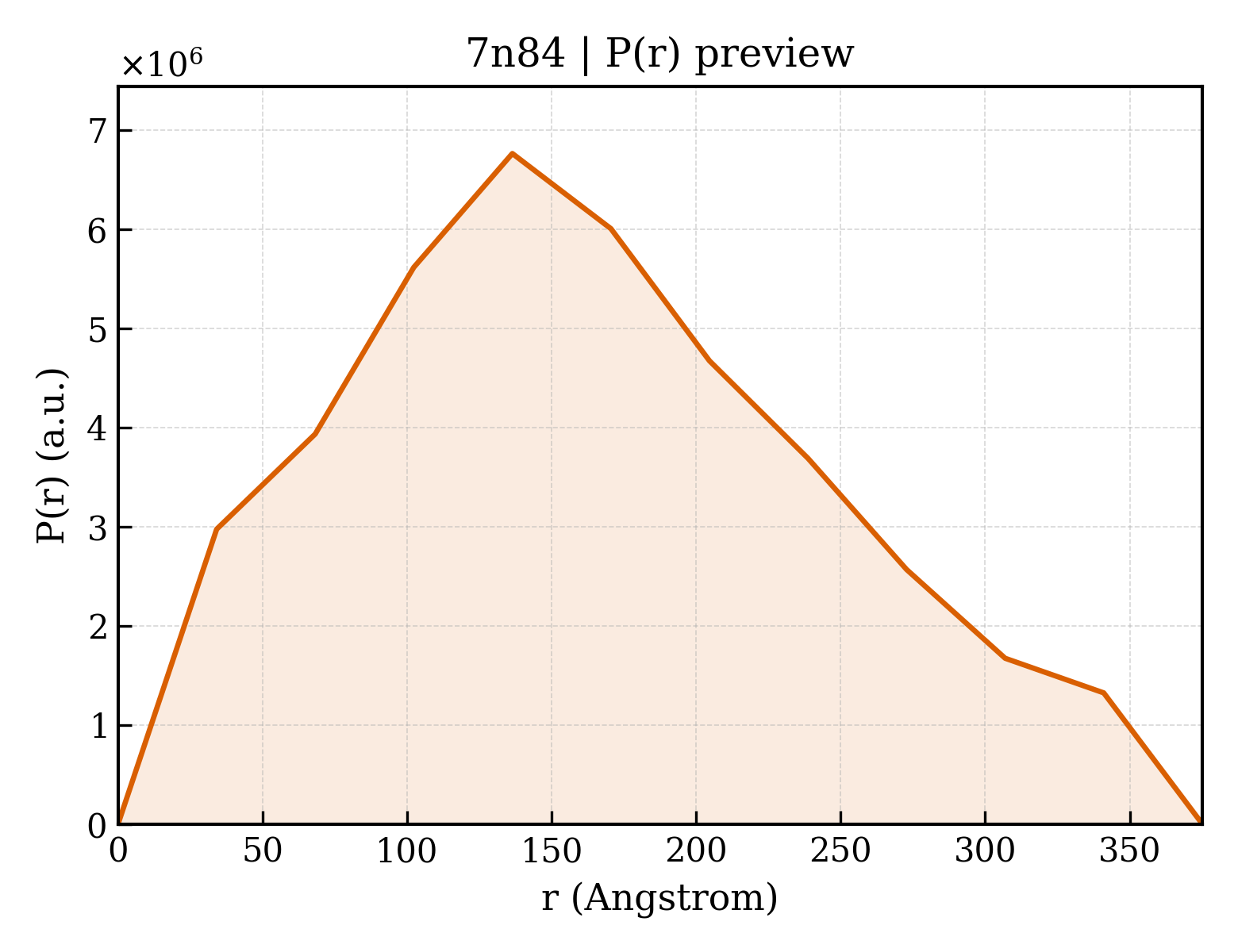

Method: ELECTRON MICROSCOPY Dmax: 375.1 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NUP188

OrganismNot specified

UniProt P52593

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain X； UniProt 1–1655 Not recorded unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain X； UniProt 1–1655 Not recorded unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain X； UniProt 1–1655 Not recorded unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 240 PDB declaration: 240-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.60 Å
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.60 Å
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.60 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7WO9 Cryo-EM structure of full-length Nup188 Deposited 2022-01-20 Different oligomeric state Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.81 Å
7WOO Cryo-EM structure of the inner ring protomer of the Saccharomyces cerevisiae nuclear pore complex Deposited 2022-01-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7WOT Cryo-EM structure of the inner ring monomer of the Saccharomyces cerevisiae nuclear pore complex Deposited 2022-01-22 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain E 1–1655（1655 aa）
Chain Q 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.73 Å
8TJ5 Inner spoke ring of the yeast NPC Deposited 2023-07-20 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain N 1–1655（1655 aa）
Chain P 1–1655（1655 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NU188_YEAST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain X； PDBConstruct 1–1655； UniProt 1–1655

Nucleoporin NUP120

OrganismNot specified

UniProt P35729

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain a； UniProt 1–1037 Chain l； UniProt 1–1037 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain a； UniProt 1–1037 Chain l； UniProt 1–1037 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain a； UniProt 1–1037 Chain l； UniProt 1–1037 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C HG MERCURY (II) ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C HG MERCURY (II) ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C HG MERCURY (II) ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C HG MERCURY (II) ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–729（729 aa） Fragment：UNP residues 1-729
Chain B 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C Mutation：S207C HG MERCURY (II) ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3F7F Structure of Nup120 Deposited 2008-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–729（729 aa） Fragment：UNP residues 1-729
Chain D 1–729（729 aa） Fragment：UNP residues 1-729
Mutation：S207C Mutation：S207C HG MERCURY (II) ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Succinic acid, PEG 3350, Sodium bromide, Ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
3H7N Structure of Nup120 Deposited 2009-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–729（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；Sodium citrate (tribasic dihydrate), Potassium thiocynate, PEG 2000 MME, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.00 Å R-free 0.274
3H7N Structure of Nup120 Deposited 2009-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–729（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；Sodium citrate (tribasic dihydrate), Potassium thiocynate, PEG 2000 MME, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.00 Å R-free 0.274
3H7N Structure of Nup120 Deposited 2009-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–729（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；Sodium citrate (tribasic dihydrate), Potassium thiocynate, PEG 2000 MME, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.00 Å R-free 0.274
3H7N Structure of Nup120 Deposited 2009-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–729（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；Sodium citrate (tribasic dihydrate), Potassium thiocynate, PEG 2000 MME, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.00 Å R-free 0.274
3HXR Nucleoporin Nup120 from S.cerevisiae (aa 1-757) Deposited 2009-06-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–757（757 aa） Fragment：UNP residues 1-757
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；15% PEG3350, 0.2M KSCN, 0.1M Tris-HCl pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 3.00 Å R-free 0.299
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 2–1037（1036 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–1037（1037 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.60 Å R-free 0.347
6X06 Nup120 (aa1-757) from S. cerevisiae bound by VHH-SAN11 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–757（757 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；19% PEG 8,000, 0.1M magnesium chloride, 0.1M Tris/HCl pH 8.5
Resolution 4.27 Å R-free 0.359
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain a 1–1037（1037 aa）
Chain h 1–1037（1037 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain a 1–1037（1037 aa）
Chain h 1–1037（1037 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain a 1–1037（1037 aa）
Chain h 1–1037（1037 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
8TIE Double nuclear outer ring of Nup84-complexes from the yeast NPC Deposited 2023-07-19 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain a 1–1037（1037 aa）
Chain l 1–1037（1037 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å

8 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NU120_YEAST
Isoform —
PDB entities 3
Chains and sequence ranges Author chain a； PDBConstruct 1–1037； UniProt 1–1037 Author chain l； PDBConstruct 1–1037； UniProt 1–1037

Nucleoporin NUP85

OrganismNot specified

UniProt P46673

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain b； UniProt 1–744 Chain m； UniProt 1–744 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain b； UniProt 1–744 Chain m； UniProt 1–744 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain b； UniProt 1–744 Chain m； UniProt 1–744 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–564（564 aa） Fragment：UNP residues 1-564
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–564（564 aa） Fragment：UNP residues 1-564
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–564（564 aa） Fragment：UNP residues 1-564
Chain D 1–564（564 aa） Fragment：UNP residues 1-564
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3F3F Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21 Deposited 2008-10-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–570（570 aa） Fragment：UNP residues 1-570
Chain D 1–570（570 aa） Fragment：UNP residues 1-570
Chain G 1–570（570 aa） Fragment：UNP residues 1-570
Chain H 1–570（570 aa） Fragment：UNP residues 1-570
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；298 K；PEG 10000, MES buffer, pH 6.1, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.265
3F3G Crystal structure of the nucleoporin pair Nup85-Seh1, space group P212121 Deposited 2008-10-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–570（570 aa） Fragment：UNP residues 1-570
Chain D 1–570（570 aa） Fragment：UNP residues 1-570
Chain G 1–570（570 aa） Fragment：UNP residues 1-570
Chain H 1–570（570 aa） Fragment：UNP residues 1-570
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；Sodium citrate, Sodium chloride, Tris-HCl buffer, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.75 Å R-free 0.272
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–570（570 aa） Fragment：UNP residues 1-570
Chain D 1–570（570 aa） Fragment：UNP residues 1-570
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–570（570 aa） Fragment：UNP residues 1-570
Chain H 1–570（570 aa） Fragment：UNP residues 1-570
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 1–570（570 aa） Fragment：UNP residues 1-570
Chain L 1–570（570 aa） Fragment：UNP residues 1-570
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 44–744（701 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 73–743（671 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.60 Å R-free 0.347
6X08 Nup85-Seh1 from S. cerevisiae bound by VHH-SAN2 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–564（564 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；1M ammonium sulfate, di-sodium succinate pH 5.5, and the addition of 4% 1-propanol
Resolution 4.19 Å R-free 0.346
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain b 1–744（744 aa）
Chain i 1–744（744 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain b 1–744（744 aa）
Chain i 1–744（744 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain b 1–744（744 aa）
Chain i 1–744（744 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
8TIE Double nuclear outer ring of Nup84-complexes from the yeast NPC Deposited 2023-07-19 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain b 1–744（744 aa）
Chain m 1–744（744 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NUP85_YEAST
Isoform —
PDB entities 4
Chains and sequence ranges Author chain b； PDBConstruct 1–744； UniProt 1–744 Author chain m； PDBConstruct 1–744； UniProt 1–744

Nucleoporin 145c

OrganismNot specified

UniProt P49687

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain c； UniProt 606–1317 Chain n； UniProt 606–1317 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain c； UniProt 606–1317 Chain n； UniProt 606–1317 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain c； UniProt 606–1317 Chain n； UniProt 606–1317 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG0 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.15 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3BG1 Architecture of a Coat for the Nuclear Pore Membrane Deposited 2007-11-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 731–1158（428 aa） Fragment：Nucleoporin NUP145C
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；294 K；16 % (w/v) PEG 3,350, 400 mM NaCl, 100 mM Na-K tartrate, and 100 mM BIS-TRIS, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.294
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 731–1158（428 aa） Fragment：UNP residues 731-1158
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 731–1158（428 aa） Fragment：UNP residues 731-1158
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 731–1158（428 aa） Fragment：UNP residues 731-1158
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3JRO NUP84-NUP145C-SEC13 edge element of the NPC lattice Deposited 2009-09-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 714–1160（447 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；1.15M sodium malonate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 4.00 Å R-free 0.329
3JRP SEC13 with NUP145C (AA109-179) insertion blade Deposited 2009-09-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 714–784（71 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；289 K；0.1M Tris, 22% PEG 4000, 0.25 M LiCl, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.254
3KEP Crystal structure of the autoproteolytic domain from the nuclear pore complex component NUP145 from Saccharomyces cerevisiae Deposited 2009-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 442–605（164 aa） Fragment：residues 442 to 605
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；100mM HEPES, 25% PEG 3350, 200mM NaCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 1.82 Å R-free 0.244
3KEP Crystal structure of the autoproteolytic domain from the nuclear pore complex component NUP145 from Saccharomyces cerevisiae Deposited 2009-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 442–605（164 aa） Fragment：residues 442 to 605
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；100mM HEPES, 25% PEG 3350, 200mM NaCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 1.82 Å R-free 0.244
3KES Crystal structure of the autoproteolytic domain from the nuclear pore complex component NUP145 from Saccharomyces cerevisiae in the Hexagonal, P61 space group Deposited 2009-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 442–605（164 aa） Fragment：residues 442 to 605
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1600mM tri-sodium citrate dehydrate, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 2.10 Å R-free 0.230
3KES Crystal structure of the autoproteolytic domain from the nuclear pore complex component NUP145 from Saccharomyces cerevisiae in the Hexagonal, P61 space group Deposited 2009-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 442–605（164 aa） Fragment：residues 442 to 605
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1600mM tri-sodium citrate dehydrate, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 2.10 Å R-free 0.230
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 680–1317（638 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 680–1317（638 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.60 Å R-free 0.347
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain c 606–1317（712 aa）
Chain j 606–1317（712 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain c 606–1317（712 aa）
Chain j 606–1317（712 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain c 606–1317（712 aa）
Chain j 606–1317（712 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å

10 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NU145_YEAST
Isoform —
PDB entities 5
Chains and sequence ranges Author chain c； PDBConstruct 1–712； UniProt 606–1317 Author chain n； PDBConstruct 1–712； UniProt 606–1317

Protein transport protein SEC13

OrganismNot specified

UniProt Q04491

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain d； UniProt 1–297 Chain o； UniProt 1–297 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain d； UniProt 1–297 Chain o； UniProt 1–297 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain d； UniProt 1–297 Chain o； UniProt 1–297 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2PM6 Crystal Structure of yeast Sec13/31 edge element of the COPII vesicular coat, native version Deposited 2007-04-20 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–297（297 aa）
Chain D 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；15% PEG 4000, 10% DMSO, 6% dioxanie, 0.1M Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.45 Å R-free 0.301
2PM7 Crystal structure of yeast Sec13/31 edge element of the COPII vesicular coat, selenomethionine version Deposited 2007-04-20 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–297（297 aa）
Chain D 1–297（297 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；15% PEG 4000, 10% DMSO, 6% dioxane, 0.1M Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.35 Å R-free 0.298
2PM9 Crystal structure of yeast Sec13/31 vertex element of the COPII vesicular coat Deposited 2007-04-20 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；8% PEG 3350, 0.1M tri-sodium citrate, 10mM manganese chloride, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.30 Å R-free 0.305
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–297（297 aa） Fragment：UNP residues 1-297
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–297（297 aa） Fragment：UNP residues 1-297
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–297（297 aa） Fragment：UNP residues 1-297
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3JRO NUP84-NUP145C-SEC13 edge element of the NPC lattice Deposited 2009-09-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–297（297 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；1.15M sodium malonate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 4.00 Å R-free 0.329
3JRP SEC13 with NUP145C (AA109-179) insertion blade Deposited 2009-09-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；289 K；0.1M Tris, 22% PEG 4000, 0.25 M LiCl, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.254
3MZK Sec13/Sec16 complex, S.cerevisiae Deposited 2010-05-12 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–297（297 aa）
Chain D 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1mM bis-Tris propane, 0.2M NaBr, 12% polyethylene glycol 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.69 Å R-free 0.243
3MZL Sec13/Sec31 edge element, loop deletion mutant Deposited 2010-05-12 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–297（297 aa）
Chain C 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；289 K；0.1mM bis-Tris propane, 0.2M sodium citrate, 16% polyethylene glycol 3350, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.80 Å R-free 0.300
3MZL Sec13/Sec31 edge element, loop deletion mutant Deposited 2010-05-12 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–297（297 aa）
Chain G 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；289 K；0.1mM bis-Tris propane, 0.2M sodium citrate, 16% polyethylene glycol 3350, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.80 Å R-free 0.300
4BZJ The structure of the COPII coat assembled on membranes Deposited 2013-07-26 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–292（291 aa）
Chain F 2–292（291 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer HEPES, 50 MM KOAC, 1.2 MM MGCL2；pH 6.8；HEPES, 50 MM KOAC, 1.2 MM MGCL2
cryo-EM vitrification conditions Cryogen ETHANE；ETHANE; HOMEMADE PLUNGER
Resolution 40.00 Å
4BZK The structure of the COPII coat assembled on membranes Deposited 2013-07-26 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–297（297 aa）
Chain F 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer HEPES, 50 MM KOAC, 1.2 MM MGCL2；pH 6.8；HEPES, 50 MM KOAC, 1.2 MM MGCL2
cryo-EM vitrification conditions Cryogen ETHANE；ETHANE; HOMEMADE PLUNGER
Resolution 40.00 Å
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–297（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 2–297（296 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.60 Å R-free 0.347
6ZG5 COPII on membranes, outer coat right-handed rod, class1 Deposited 2020-06-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–297（297 aa）
Chain F 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 40.00 Å
6ZG6 COPII on membranes, outer coat vertex Deposited 2020-06-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–297（297 aa）
Chain D 1–297（297 aa）
Chain F 1–297（297 aa）
Chain H 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
6ZL0 COPII on membranes, outer coat left-handed rod Deposited 2020-06-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–297（297 aa）
Chain D 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 40.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain d 1–297（297 aa）
Chain k 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain d 1–297（297 aa）
Chain k 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain d 1–297（297 aa）
Chain k 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
8ADL Cryo-EM structure of the SEA complex Deposited 2022-07-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain H 1–297（297 aa）
Chain P 1–297（297 aa）
Not recorded ZN ZINC ION × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
8TIE Double nuclear outer ring of Nup84-complexes from the yeast NPC Deposited 2023-07-19 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain d 1–297（297 aa）
Chain o 1–297（297 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain H 1–297（297 aa）
Chain P 1–297（297 aa）
Not recorded ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å

19 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SEC13_YEAST
Isoform —
PDB entities 6
Chains and sequence ranges Author chain d； PDBConstruct 1–297； UniProt 1–297 Author chain o； PDBConstruct 1–297； UniProt 1–297

Nucleoporin SEH1

OrganismNot specified

UniProt P53011

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain e； UniProt 1–349 Chain p； UniProt 1–349 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin NUP84 × 16 （P52891） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain e； UniProt 1–349 Chain p； UniProt 1–349 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain e； UniProt 1–349 Chain p； UniProt 1–349 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin NUP84 × 2 （P52891） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3EWE Crystal Structure of the Nup85/Seh1 Complex Deposited 2008-10-14 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–349（349 aa）
Chain C 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Sodium Citrate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.369
3F3F Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21 Deposited 2008-10-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–349（349 aa）
Chain B 1–349（349 aa）
Chain E 1–349（349 aa）
Chain F 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；298 K；PEG 10000, MES buffer, pH 6.1, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.265
3F3G Crystal structure of the nucleoporin pair Nup85-Seh1, space group P212121 Deposited 2008-10-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–349（349 aa）
Chain B 1–349（349 aa）
Chain E 1–349（349 aa）
Chain F 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；Sodium citrate, Sodium chloride, Tris-HCl buffer, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.75 Å R-free 0.272
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–349（349 aa）
Chain B 1–349（349 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–349（349 aa）
Chain F 1–349（349 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
3F3P Crystal structure of the nucleoporin pair Nup85-Seh1, space group P21212 Deposited 2008-10-31 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 1–349（349 aa）
Chain J 1–349（349 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 3350, Tacsimate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.281
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
6X08 Nup85-Seh1 from S. cerevisiae bound by VHH-SAN2 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–349（349 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；1M ammonium sulfate, di-sodium succinate pH 5.5, and the addition of 4% 1-propanol
Resolution 4.19 Å R-free 0.346
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain e 1–349（349 aa）
Chain l 1–349（349 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain e 1–349（349 aa）
Chain l 1–349（349 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain e 1–349（349 aa）
Chain l 1–349（349 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
8ADL Cryo-EM structure of the SEA complex Deposited 2022-07-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 1–349（349 aa）
Chain E 1–349（349 aa）
Chain F 1–349（349 aa）
Chain L 1–349（349 aa）
Chain M 1–349（349 aa）
Chain N 1–349（349 aa）
Not recorded ZN ZINC ION × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain D 1–349（349 aa）
Chain E 1–349（349 aa）
Chain F 1–349（349 aa）
Chain L 1–349（349 aa）
Chain M 1–349（349 aa）
Chain N 1–349（349 aa）
Not recorded ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SEH1_YEAST
Isoform —
PDB entities 7
Chains and sequence ranges Author chain e； PDBConstruct 1–349； UniProt 1–349 Author chain p； PDBConstruct 1–349； UniProt 1–349

Nucleoporin NUP84

OrganismNot specified

UniProt P52891

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain f； UniProt 1–726 Chain q； UniProt 1–726 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP133 × 16 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain f； UniProt 1–726 Chain q； UniProt 1–726 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain f； UniProt 1–726 Chain q； UniProt 1–726 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP133 × 2 （P36161） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–460（460 aa） Fragment：UNP residues 1-460
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–460（460 aa） Fragment：UNP residues 1-460
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 1–460（460 aa） Fragment：UNP residues 1-460
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.273
3JRO NUP84-NUP145C-SEC13 edge element of the NPC lattice Deposited 2009-09-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–424（424 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；1.15M sodium malonate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 4.00 Å R-free 0.329
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–451（451 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 2–451（450 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES
Resolution 7.60 Å R-free 0.347
6X02 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–726（726 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate
Resolution 6.38 Å R-free 0.324
6X03 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 and VHH-SAN9 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–726（726 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate
Resolution 7.30 Å R-free 0.353
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain f 1–726（726 aa）
Chain m 1–726（726 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain f 1–726（726 aa）
Chain m 1–726（726 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain f 1–726（726 aa）
Chain m 1–726（726 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
8TIE Double nuclear outer ring of Nup84-complexes from the yeast NPC Deposited 2023-07-19 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain f 1–726（726 aa）
Chain q 1–726（726 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å

8 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NUP84_YEAST
Isoform —
PDB entities 8
Chains and sequence ranges Author chain f； PDBConstruct 1–726； UniProt 1–726 Author chain q； PDBConstruct 1–726； UniProt 1–726

Nucleoporin NUP133

OrganismNot specified

UniProt P36161

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 136 PDB declaration: 136-meric（136） Consistent with protein copy count Chain g； UniProt 1–1157 Chain r； UniProt 1–1157 Not recorded Nucleoporin NUP188 × 8 （P52593） unknown × 16 Nucleoporin NUP120 × 16 （P35729） Nucleoporin NUP85 × 16 （P46673） Nucleoporin 145c × 16 （P49687） Protein transport protein SEC13 × 16 （Q04491） Nucleoporin SEH1 × 16 （P53011） Nucleoporin NUP84 × 16 （P52891） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
2 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain g； UniProt 1–1157 Chain r； UniProt 1–1157 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å
3 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain g； UniProt 1–1157 Chain r； UniProt 1–1157 Not recorded Nucleoporin NUP188 × 1 （P52593） unknown × 2 Nucleoporin NUP120 × 2 （P35729） Nucleoporin NUP85 × 2 （P46673） Nucleoporin 145c × 2 （P49687） Protein transport protein SEC13 × 2 （Q04491） Nucleoporin SEH1 × 2 （P53011） Nucleoporin NUP84 × 2 （P52891） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 11.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7N84 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3KFO Crystal structure of the C-terminal domain from the nuclear pore complex component NUP133 from Saccharomyces cerevisiae Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 881–1157（277 aa） Fragment：C-terminal domain, residues 881-1157
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% PEG 3350, 200mM Potassium Thiocyanate, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 1.90 Å R-free 0.245
6X02 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 521–1157（637 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate
Resolution 6.38 Å R-free 0.324
6X03 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 and VHH-SAN9 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 521–1157（637 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate
Resolution 7.30 Å R-free 0.353
6X04 Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN5 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 55–481（427 aa）
Chain C 55–481（427 aa）
Chain E 55–481（427 aa）
Chain G 55–481（427 aa）
Chain I 55–481（427 aa）
Chain K 55–481（427 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；15% PEG MME 2,000, 0.1M potassium chloride, 0.1M Tris/HCl pH 8
Resolution 2.68 Å R-free 0.261
6X05 Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN4 Deposited 2020-05-15 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 55–481（427 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；24% PEG 3,350, 0.2M Ammonium sulfate, 0.1M Bis-Tris pH 5.5
Resolution 2.10 Å R-free 0.219
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric
Chain g 1–1157（1157 aa）
Chain n 1–1157（1157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain g 1–1157（1157 aa）
Chain n 1–1157（1157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric
Chain g 1–1157（1157 aa）
Chain n 1–1157（1157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)
Resolution 37.00 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NU133_YEAST
Isoform —
PDB entities 9
Chains and sequence ranges Author chain g； PDBConstruct 1–1157； UniProt 1–1157 Author chain r； PDBConstruct 1–1157； UniProt 1–1157

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7n84

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7n84
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7n84
Deposition date deposition_date2021-06-13
Structure title titleDouble nuclear outer ring from the isolated yeast NPC
Keywords keywordsnuclear pore complex, outer ring, Nup84 complex, TRANSLOCASE; TRANSLOCASE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier— Å
Radius of gyration Rg (electron density) rg_electron141.90 Å
Forward intensity I(0) i017651200000.00
Molecular weight molecular_weight1178000.0 kDa
Excluded volume excluded_volume1490000 ų
Envelope volume envelope_volume3144000 ų
Hydration-shell volume shell_volume212150 ų
Envelope diameter envelope_diameter539.1 Å
Shell Rg shell_rg92.12 Å
Envelope Rg envelope_rg141.90 Å
Shape Rg shape_rg141.90 Å
Total Rg total_rg141.60 Å
Total atoms total_atoms83142
Residues n_residues10313
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax375.1 Å
Rg (real space) rg_real128.20 Å
Rg uncertainty (real space) rg_real_error2.25 Å
I(0) (real space) i0_real1.6800e+10
I(0) uncertainty (real space) i0_real_error4.3870e+08
Rg (reciprocal space) rg_reciprocal116.10 Å
I(0) (reciprocal space) i0_reciprocal16310000000.0000
Solution quality estimate total_estimate0.9131
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary136.4 Å
Skewness Skewness skewness0.340
Kurtosis Kurtosis kurtosis-0.581
Angular range angular_range— – 0.0550 Å−1
Current regularization parameter α current_alpha0.7252
Highest regularization parameter α highest_alpha493600000.0000
Real-space data points n_real_points12
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.051; Oscil: 0.979; Stabil: 0.980; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.004
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

▶

8. Citations (1)

▶

9. Files and Curves (10)
