7n85

Inner ring spoke from the isolated yeast NPC

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NUP170

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NU170_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 0； PDBConstruct 1–1502； UniProt 1–1502 Author chain Y； PDBConstruct 1–1502； UniProt 1–1502

Nucleoporin NUP157

OrganismNot specified

UniProt P40064

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NU157_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 1； PDBConstruct 1–1391； UniProt 1–1391 Author chain Z； PDBConstruct 1–1391； UniProt 1–1391

Nucleoporin NSP1

OrganismNot specified

UniProt P14907

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSP1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–823； UniProt 1–823 Author chain D； PDBConstruct 1–823； UniProt 1–823 Author chain G； PDBConstruct 1–823； UniProt 1–823 Author chain J； PDBConstruct 1–823； UniProt 1–823

Nucleoporin NUP57

OrganismNot specified

UniProt P48837

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUP57_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–541； UniProt 1–541 Author chain E； PDBConstruct 1–541； UniProt 1–541 Author chain H； PDBConstruct 1–541； UniProt 1–541 Author chain K； PDBConstruct 1–541； UniProt 1–541

Nucleoporin NUP49/NSP49

OrganismNot specified

UniProt Q02199

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUP49_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain C； PDBConstruct 1–472； UniProt 1–472 Author chain F； PDBConstruct 1–472； UniProt 1–472 Author chain I； PDBConstruct 1–472； UniProt 1–472 Author chain L； PDBConstruct 1–472； UniProt 1–472

Nucleoporin NUP192

OrganismNot specified

UniProt P47054

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NU192_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain M； PDBConstruct 1–1683； UniProt 1–1683 Author chain O； PDBConstruct 1–1683； UniProt 1–1683

Nucleoporin NUP188

OrganismNot specified

UniProt P52593

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NU188_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain N； PDBConstruct 1–1655； UniProt 1–1655 Author chain P； PDBConstruct 1–1655； UniProt 1–1655

Nucleoporin NIC96

OrganismNot specified

UniProt P34077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NUP53 × 16 （Q03790） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NUP53 × 2 （Q03790） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NIC96_YEAST
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Q； PDBConstruct 1–839； UniProt 1–839 Author chain R； PDBConstruct 1–839； UniProt 1–839 Author chain S； PDBConstruct 1–839； UniProt 1–839 Author chain T； PDBConstruct 1–839； UniProt 1–839

Nucleoporin NUP53

OrganismNot specified

UniProt Q03790

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin ASM4 × 16 （Q05166）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin ASM4 × 2 （Q05166）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUP53_YEAST
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain U； PDBConstruct 1–475； UniProt 1–475 Author chain W； PDBConstruct 1–475； UniProt 1–475

Nucleoporin ASM4

OrganismNot specified

UniProt Q05166

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 240	Nucleoporin NUP170 × 16 （P38181） Nucleoporin NUP157 × 16 （P40064） Unknown connectors × 16 Nucleoporin NSP1 × 32 （P14907） Nucleoporin NUP57 × 32 （P48837） Nucleoporin NUP49/NSP49 × 32 （Q02199） Nucleoporin NUP192 × 16 （P47054） Nucleoporin NUP188 × 16 （P52593） Nucleoporin NIC96 × 32 （P34077） Nucleoporin NUP53 × 16 （Q03790）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 30	Nucleoporin NUP170 × 2 （P38181） Nucleoporin NUP157 × 2 （P40064） Unknown connectors × 2 Nucleoporin NSP1 × 4 （P14907） Nucleoporin NUP57 × 4 （P48837） Nucleoporin NUP49/NSP49 × 4 （Q02199） Nucleoporin NUP192 × 2 （P47054） Nucleoporin NUP188 × 2 （P52593） Nucleoporin NIC96 × 4 （P34077） Nucleoporin NUP53 × 2 （Q03790）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUP59_YEAST
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain V； PDBConstruct 1–528； UniProt 1–528 Author chain X； PDBConstruct 1–528； UniProt 1–528

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7n85
Deposition date deposition_date	2021-06-13
Structure title title	Inner ring spoke from the isolated yeast NPC
Keywords keywords	nuclear pore complex, inner ring, spoke, TRANSLOCASE; TRANSLOCASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7n85__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

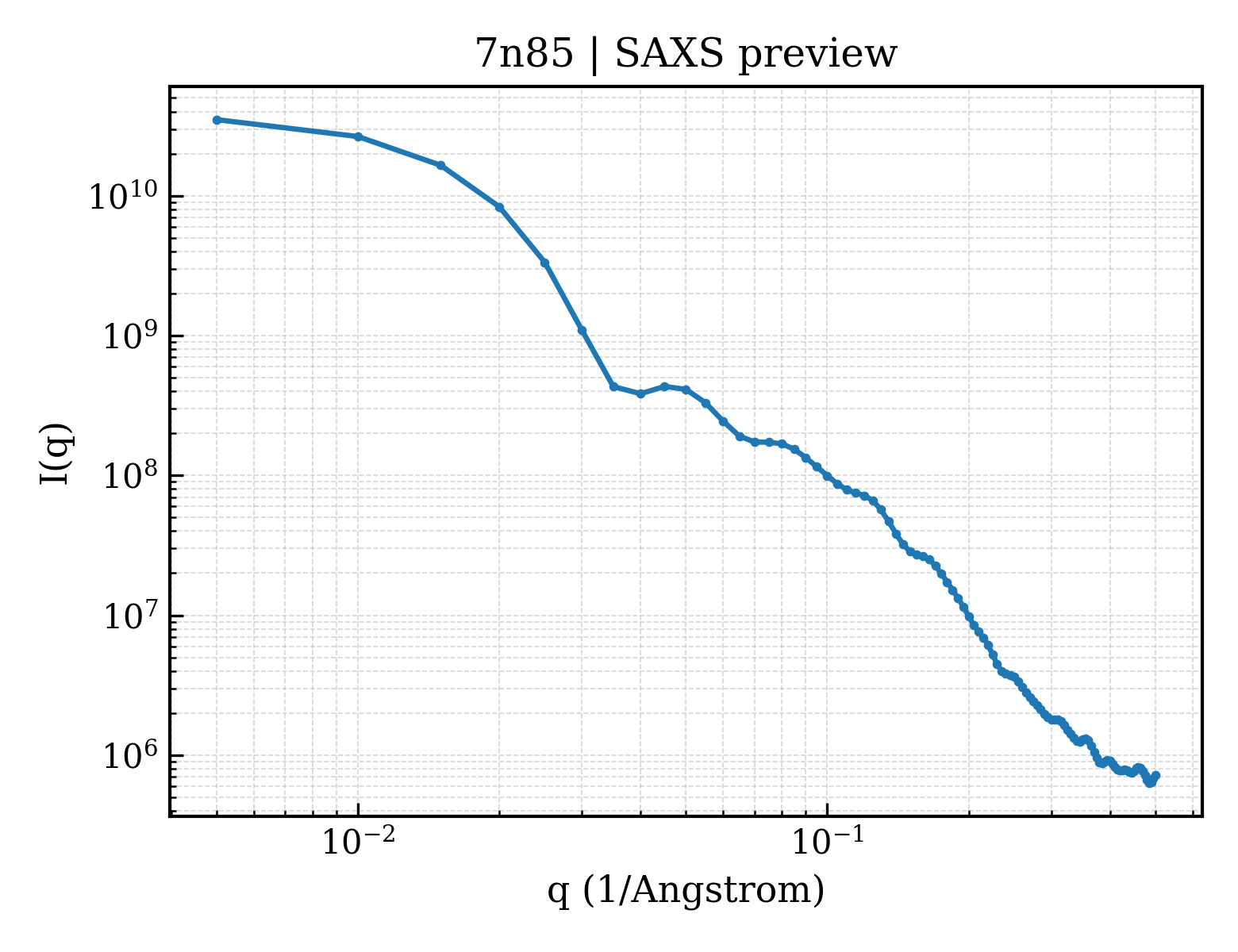

7n85__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

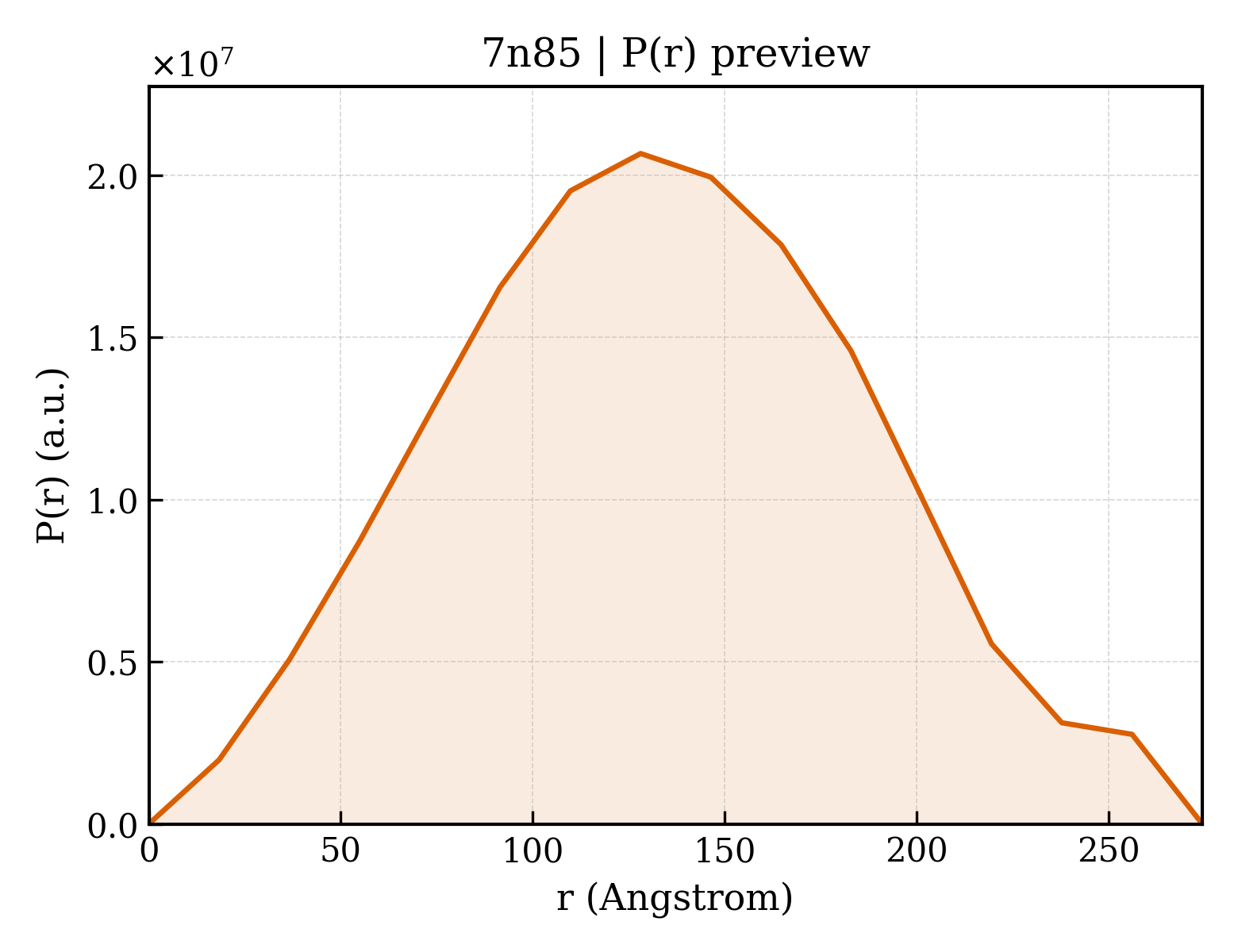

7n85__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	326.30 Å
Total Rg	326.50 Å
Atom count	984936
Residues	124672
Excluded volume	17679000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7n85__assembly_1__model_1`	240-meric （240）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7n85__assembly_2__model_1`	30-meric （30）	Excluded	—	—
	Exclusion reason： Auxiliary symmetry representation; not a complete or representative biological assembly.
3	1	`7n85__assembly_3__model_1`	30-meric （30）	Excluded	—	—
	Exclusion reason： Auxiliary symmetry representation; not a complete or representative biological assembly.

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Nucleoporin NUP170
Molecular weight formula_weight	169652.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	0,Y
Atom count atom_count	123117

MFQSFFHNNGPAAAGETFSDSRSYPLTNHQEVPRNGLNELASSATKAQQQPTHILNSYPITGSNPLMRASAMGATSGSINPNMSNMNEHIRVSGMGTSKPLDLAGKYIDHLQHKDSNTPVLDERSYYNSGVDYNFSREKNGLGAFTPFEKQDVFNIPDEILHEFSTSQTKTDMGIFPELNRCWITIDNKLILWNINNDNEYQVVDDMKHTIQKVALVRPKPNTFVPAVKHLLLISTTMELFMFAISLDKATNELSVFNTHLSVPVQGIDVIDIVSHERSGRIFFAGQASGLNIWELHYSGSDDWFNSKCSKVCLTKSALLSLLPTNMLSQIPGVDFIQALFEDNSNGNGGFSQETITQLTIDQQRGIIYSLSSKSTIRAYVITEKSLEGPMSIEPAYISRIIGTTTARAAPILGPKYLKIVKISSVAPEENNNLFLVALTVGGVRLYFNGSMGRFNIEALRLESIKFPPSSVTPEVIQQELLHQQQEQAKRSFPFFSNLMSSEPVLLKFQKKSSVLLETTKASTIISPGIFFSAVIKSSQQTHQQEKKENSSVTGTTATAGSKTVKQQPVTLQHKLFVSVPDYGILKTHGKYVENATFLETAGPVQQIIPLSGLFNATTKPQGFANEFATQYTSETLRVAVLTSTSIEIYKYRTPDEIFEDLIDNPLPFVLNYGAAEACSTALFVTCKSNKSEKLRSNALTFLTMGIPGVVDIKPVYNRYSVSTVSSLLSKPTLSTATTNLQQSITGFSKPSPANKEDFDLDDVILSPRFYGIALLITRLLRDIWGRHVFMTFTDNRVTSHAFISSSDPITPSINNLKSDEISQNRNIISKVSISKDCIEYYLSSINILNEFFITYGDSISQISAPYVLANNSNGRVIDKTEEVANQAESIAINAMIKMVQSIKEGLSFLNVLYEESEVEGFDNQYLGFKDIISFVSLDVQKDLVKLDFKDLFAPNDKTKSLIREILLSIINRNITKGASIEYTATALQERCGSFCSASDILGFRAIEHLRRAKEIGLRNYDSLNYHLKNATALLEQIVDDLSIEKLKEAVSMMLSVNYYPKSIEFLLNIANSMDKGKLACQYVANGFLENDDRKQYYDKRILVYDLVFDTLIKVDELAEKKQSSKTQNQISISNDDEVKLRQKSYEAALKYNDRLFHYHMYDWLVSQNREEKLLDIETPFILPYLMEKAGSSLKISNILWVYYSRRSKFFESAEILYRLATSNFDITLFERIEFLSRANGFCNSVSPLSQKQRIVQLASRIQDACEVAGIQGDILSLVYTDARIDSAIKDELIKTLDGKILSTSELFNDFAVPLSYHEIALFIFKIADFRDHEVIMAKWDELFQSLRMEFNNTGKKEDSMNFINLLSNVLIKIGKNVQDSEFIFPIFELFPIVCNFFYETLPKEHIVSGSIVSIFITAGVSFNKMYYILKELIETSDSDNSVFNKEMTWLIHEWYKSDRKFRDIISYNDIIHLKEYKIDNDPIEKYVKNSGNNLGICFYKE

Entity 2 Entity 2 polymer

Description description	Nucleoporin NUP157
Molecular weight formula_weight	156827.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,Z

MYSTPLKKRIDYDRETFTASASLGGNRLRNRPRDDQNNGKPNLSSRSFLSERKTRKDVLNKYGEAGNTIESELRDVTTHVKISGLTSSEPLQLASEFVQDLSFRDRNTPILDNPDYYSKGLDYNFSDEVGGLGAFTPFQRQQVTNIPDEVLSQVSNTEIKSDMGIFLELNYCWITSDNKLILWNINNSSEYHCIDEIEHTILKVKLVKPSPNTFVSSVENLLIVATLFDIYILTISFNDRTHELNIFNTGLKVNVTGFNVSNIISYERTGQIFFTGATDGVNVWELQYNCSENLFNSKSNKICLTKSNLANLLPTKLIPSIPGGKLIQKVLEGDAGTEEETISQLEVDQSRGVLHTLSTKSIVRSYLITSNGLVGPVLIDAAHIRRGMNALGVKNSPLLSNRAFKIAKIVSISMCENNDLFLAVITTTGVRLYFKGSISRRSIGSLKLDSVKFPPTSISSSLEQNKSFIIGHHPLNTHDTGPLSTQKASSTYINTTCASTIISPGIYFTCVRKRANSGELSKGITNKALLENKEEHKLYVSAPDYGILKNYGKYVENTALLDTTDEIKEIVPLTRSFNYTSTPQGYANVFASQYSAEPLKVAVLTSNALEIYCYRTPDEVFESLIENPLPFIHSYGLSEACSTALYLACKFNKSEHIKSSALAFFSAGIPGVVEIKPKSSRESGSVPPISQNLFDKSGECDGIVLSPRFYGSALLITRLFSQIWEERVFVFKRASKTEKMDAFGISITRPQVEYYLSSISVLADFFNIHRPSFVSFVPPKGSNAITASDAESIAMNALILLINSIKDALSLINVFYEDIDAFKSLLNTLMGAGGVYDSKTREYFFDLKFHDLFTPNAKTKQLIKEILIEVVNANIASGTSADYIVNVLKERFGSFCHSADILCYRAGEHLEAAQKFEMIDSKISRNHLDTAIDLYERCAENIELCELRRVVDIMVKLNYQPKTVGFLLRFADKIDKGNQAQEYVSRGCNTADPRKVFYDKRINVYTLIFEIVKSVDDYTSIEQSPSIANISIFSPASSLKKRVYSVIMNSNNRFFHYCFYDWLVANKRQDYLLRLDSQFVLPYLKERAEKSLEISNLLWFYLFKEEHFLEAADVLYALASSDFDLKLSERIECLARANGLCDSSTSFDQKPALVQLSENIHELFDIASIQDDLLNLVRNETRIDEDYRKQLTLKLNGRVLPLSDLFNDCADPLDYYEIKLRIFKVSQFKDEKVIQGEWNRLLDSMKNAPSPDVGSVGQESFLSSISNTLIRIGKTTRDTDVVFPVHFLMNKILESFIDKSSAADGSVCSMFLLAGVSHLKLYYILSRIIENSEGNVELAKKEMVWLIKDWYQSDSDLRGSIAPEQIKKLEKYDPNTDPVQDYVKDRHHGLK

Entity 3 Entity 3 polymer

Description description	Unknown connectors
Molecular weight formula_weight	3081.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	5,6

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 4 Entity 4 polymer

Description description	Nucleoporin NSP1
Molecular weight formula_weight	86611.7 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G,J

MNFNTPQQNKTPFSFGTANNNSNTTNQNSSTGAGAFGTGQSTFGFNNSAPNNTNNANSSITPAFGSNNTGNTAFGNSNPTSNVFGSNNSTTNTFGSNSAGTSLFGSSSAQQTKSNGTAGGNTFGSSSLFNNSTNSNTTKPAFGGLNFGGGNNTTPSSTGNANTSNNLFGATANANKPAFSFGATTNDDKKTEPDKPAFSFNSSVGNKTDAQAPTTGFSFGSQLGGNKTVNEAAKPSLSFGSGSAGANPAGASQPEPTTNEPAKPALSFGTATSDNKTTNTTPSFSFGAKSDENKAGATSKPAFSFGAKPEEKKDDNSSKPAFSFGAKSNEDKQDGTAKPAFSFGAKPAEKNNNETSKPAFSFGAKSDEKKDGDASKPAFSFGAKPDENKASATSKPAFSFGAKPEEKKDDNSSKPAFSFGAKSNEDKQDGTAKPAFSFGAKPAEKNNNETSKPAFSFGAKSDEKKDGDASKPAFSFGAKSDEKKDSDSSKPAFSFGTKSNEKKDSGSSKPAFSFGAKPDEKKNDEVSKPAFSFGAKANEKKESDESKSAFSFGSKPTGKEEGDGAKAAISFGAKPEEQKSSDTSKPAFTFGAQKDNEKKTEESSTGKSTADVKSSDSLKLNSKPVELKPVSLDNKTLDDLVTKWTNQLTESASHFEQYTKKINSWDQVLVKGGEQISQLYSDAVMAEHSQNKIDQSLQYIERQQDELENFLDNFETKTEALLSDVVSTSSGAAANNNDQKRQQAYKTAQTLDENLNSLSSNLSSLIVEINNVSNTFNKTTNIDINNEDENIQLIKILNSHFDALRSLDDNSTSLEKQINSIKK

Entity 5 Entity 5 polymer

Description description	Nucleoporin NUP57
Molecular weight formula_weight	57547.1 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H,K

MFGFSGSNNGFGNKPAGSTGFSFGQNNNNTNTQPSASGFGFGGSQPNSGTATTGGFGANQATNTFGSNQQSSTGGGLFGNKPALGSLGSSSTTASGTTATGTGLFGQQTAQPQQSTIGGGLFGNKPTTTTGGLFGNSAQNNSTTSGGLFGNKVGSTGSLMGGNSTQNTSNMNAGGLFGAKPQNTTATTGGLFGSKPQGSTTNGGLFGSGTQNNNTLGGGGLFGQSQQPQTNTAPGLGNTVSTQPSFAWSKPSTGSNLQQQQQQQIQVPLQQTQAIAQQQQLSNYPQQIQEQVLKCKESWDPNTTKTKLRAFVYNKVNETEAILYTKPGHVLQEEWDQAMEKKPSPQTIPIQIYGFEGLNQRNQVQTENVAQARIILNHILEKSTQLQQKHELDTASRILKAQSRNVEIEKRILKLGTQLATLKNRGLPLGIAEEKMWSQFQTLLQRSEDPAGLGKTNELWARLAILKERAKNISSQLDSKLMVFNDDTKNQDSMSKGTGEESNDRINKIVEILTNQQRGITYLNEVLEKDAAIVKKYKNKT

Entity 6 Entity 6 polymer

Description description	Nucleoporin NUP49/NSP49
Molecular weight formula_weight	49174.8 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I,L

MFGLNKASSTPAGGLFGQASGASTGNANTGFSFGGTQTGQNTGPSTGGLFGAKPAGSTGGLGASFGQQQQQSQTNAFGGSATTGGGLFGNKPNNTANTGGGLFGANSNSNSGSLFGSNNAQTSRGLFGNNNTNNINNSSSGMNNASAGLFGSKPAGGTSLFGNTSTSSAPAQNQGMFGAKPAGTSLFGNNAGNTTTGGGLFGSKPTGATSLFGSSNNNNNNNNSNNIMSASGGLFGNQQQQLQQQPQMQCALQNLSQLPITPMTRISELPPQIRQEIEQLDQYIQKQVQISHHLKADTIDHDELIDSIPRDVAYLLKSESATSQYLKQDLKKISSFKSLIDEDLLDTQTFSVLLQQLLTPGSKISSNDLDKFFQKKIHLYEKKLEDYCRILSDIETAVNGIDTDLFGAPNNPNSTAITADLGSSEAENLLQLKTGLAAIVSTVIEEFTLFMDIAERIAVLHQKTKTLASLSI

Entity 7 Entity 7 polymer

Description description	Nucleoporin NUP192
Molecular weight formula_weight	191718.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,O

MKWSAIPFQTLYRSIESGEFDFDLFKEVLPDLQNLNLNTDKLKNNASRSQLEKGEIELSDGSTFKVNQEFIFEAISLSDELNLDEIVACELILSGDTTANNGKVQYFLRRQYILQIVSFIVNCFHEDTELYQELIKNGALVSNILSAFKFIHTQLSEIKQQINKAQILENYNALFQQNIKFRRDFLLREYDILSQILYGLVDKGAIMKNKDFILSLLHHVSELDSNDFFIIYYTPAFFHLFASLRVLPDADVKLLHSQFMKDLKDDSIYTKPVKVALIFIFFAYFIGWCKEDPKRRADTMDFKTDVDEPMTSAVELGAIEQILIFAADTSIVEQDKSMELFYDIRSLLERHIPRLIPKQLLDDEKIFSQTTNSTYNPASATDNMSGRGLWNPSYPGMMSTTGTARLNSMPNNVNEYSYTTIVLSDQTQEFFLSSFDDVLQTIITDCAFLLTKIKDAEEDSLLSGEDLTLDDISLKADLERFFLSIYFFYASRPEYSCTFWSDKESNAYGFIEWCSRCNDNLMRSCFYLMVSSLSFGPENALNVYHYFGENSSISWKNIAQCLSDYTKKISNFNSSLHKRQQFSESTHNDIDSTAVALEEGLNEEAVIFLSSLLTLVGSVTYQVDEDVKSSLSKVFSDVLFEFTKINTPLVGAAFKVISNLVPKLESSRTKFWSFLDSLIFKDSSLNYSSESYRNAFTNVLTKYSDVLGFLQLFHNLISIHSRENNSEYMVFGKLAFPTRLGQGYRKVGIWPYFDYIFNDILAHVDQIVDIRNKRAVQLPILKIIYTGLCSFDYSVILNSIPAAANLDALVDCENFFNYVQECPAIPIFNYIFTEKIYKSIFNVVDVGVDQLSIELEGGKNQAELLQLAVKIINKVLDYQETYVEELFPIVKKHGKTDYFLPKNYSLHGLRSFYDAIFFNIPLVAHLGLYVGVDDQILATNSLRILAKLSERSNGSVASLSKRNKLLTIFDSVDESARIKDAFITQLESSITDAGVLALKLELLDFLTSNLSNYSRTMTISHLLLGFQVSNVISLGPNLATFISSGTSLLDSLISVLEASLNSITKDNIDYAPMRLATAALEIILKLCRNPLTSGLLYSYLIKENFFERIMILDPQVTRFTTWNGSPFDNSTEEKCKNFIESESVGAFLSFLAYRNYWTQYLGLFIHKISFSGTKSEVLTYVNYLISNTMYSVRLFSFLDPLNYGNICEPKETLSIFTNVPLNLEQVTLNKYCSGNIYDFHKMENLMRLIKRVRAESLHSNSFSLTVSKEQFLKDADVECIKAKSHFTNIISRNKALELNLSVLHSWVQLVQIIVTDGKLEPSTRSNFILEVFGTIIPKISDYIEFNITFSEELVSLAVFLFDIYNRDRKLITDKGTVDGRLYQLFKTCIQGINSPLSSVALRSDFYILANHYLSRVLSDQVGSEKVLQDLRLGSKKLVEIIWNDVVYGEGTSRVTGILLLDSLIQLANRSKENFILDSLMKTTRLLLIIRSLKNTDALLNSTTEHINIDDLLYELTAFKATVFFLIRVAETRGGASALIENNLFRIIAELSFLKVDPDLGLDLMFDEVYVQNSKFLKVNVTLDNPLLVDKDANGVSLFELIVPIFQLISAVLVSMGSSNKAVVQTVKGLLNTYKRLVIGIFKRDLLREKEDKKNSSDPNNQSLNEMVKLIVMLCTLTGYQNND

Entity 8 Entity 8 polymer

Description description	Nucleoporin NUP188
Molecular weight formula_weight	188753.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,P

MATPSFGNSSPQLTFTHVANFMNDAAADVSAVDAKQLAQIRQFLKANKTNLIESLNTIRQNVTSSGDHNKLRSTIANLLQINVDNDPFFAQSEDLSHAVEFFMSERSSRLHIVYSLLVNPDIDLETYSFIDNDRFNVVGKLISIISSVIQNYDIITASSLAHDYNNDQDMFTIVSLVQLKKFSDLKFILQILQILNLMILNTKVPVDIVNQWFLQYQNQFVEFCRNINSTDKSIDTSSLQLYKFQNFQDLSYLSETLISRISSLFTITTILILGLNTSIAQFDIQSPLYMDTETFDTVNSALENDVATNIVNEDPIFHPMIHYSWSFILYYRRALQSSESFDDSDITKFALFAESHDVLQKLNTLSEILSFDPVYTTVITVFLEFSLNFIPITASTSRVFAKIISKAPEQFIENFLTNDTFEKKLSIIKAKLPLLNESLIPLINLALIDTEFANFELKDICSFAVTKSSLNDLDYDLIADTITNSSSSSDIIVPDLIELKSDLLVAPPLENENSNCLLSIPKSTKGKILTIKQQQQQQQQQNGQQPPTTSNLIIFLYKFNGWSLVGRILQNLLHSYMEKGTQLDDLQHELMISIIKLVTNVVDPKTSIEKSSEILSYLSNSLDTSASTINGASIIQVIFEIFEISLQRKDYTSIVQCCEFMTMLTPNYLHLVSSYLNKSDLLDKYGKTGLSNMILGSVELSTGDYTFTIQLLKLTKVFIRESLSLKNIHISKRSKIDIINKLILHAIHIFESYYNWKYNNFLQKFEIAFHLTLIFYDVLHDVFTINPHQKDQLIISSSANKLLQLFLTPMDSIDLAPNTLTNILISPLNTTTKILGDKILGNLYSKVMNNSFKLCTLLIAIRGSNRDLKPSNLEKLLFINSSKLVDVYTLPSYVHFKVQIIELLSYLVEAPWNDDYPFLLSFLGEAKSMAFLKEVLSDLSSPVQDWNLLRSLYIFFTTLLESKQDGLSILFLTGQFASNKKINDESSIDKKSSILTVLQKNSLLLDSTPEEVSCKLLETITYVLNTWTNSKIFIKDPKFVNSLLAKLKDSKKLFQKKENLTRDETVSLIKKYKLISRIVEIFALCIYNSTDSNSEILNFLNQEDLFELVHHFFQIDGFNKTFHDELNLKFKEKWPSLELQSFQKIPLSRINENENFGYDIPLLDIVLKADRSWNEPSKSQTNFKEEITDASLNLQYVNYEISTAKAWGALITTFVKRSTVPLNDGFVDLVEHFLKLNIDFGSDKQMFTQIYLERIELSFYILYSFKLSGKLLKEEKIIELMNKIFTIFKSGEIDFIKNIGKSLKNNFYRPLLRSVLVLLELVSSGDRFIELISDQLLEFFELVFSKGVYLILSEILCQINKCSTRGLSTDHTTQIVNLEDNTQDLLLLLSLFKKITNVNPSKNFNVILASSLNEVGTLKVILNLYSSAHLIRINDEPILGQITLTFISELCSIEPIAAKLINSGLYSVLLESPLSVAIQQGDIKPEFSPRLHNIWSNGLLSIVLLLLSQFGIKVLPETCLFVSYFGKQIKSTIYNWGDNKLAVSSSLIKETNQLVLLQKMLNLLNYQELFIQPKNSDDQQEAVELVIGLDSEHDKKRLSAALSKFLTHPKYLNSRIIPTTLEEQQQLEDESSRLEFVKGISRDIKALQDSLFKDV

Entity 9 Entity 9 polymer

Description description	Nucleoporin NIC96
Molecular weight formula_weight	96291.6 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,R,S,T

MLETLRGNKLHSGTSKGANKKLNELLESSDNLPSASSELGSIQVSINELRRRVFQLRSKNKASKDYTKAHYLLANSGLSFEDVDAFIKDLQTNQFLEPNPPKIIESEELEFYIRTKKEENILMSIEQLLNGATKDFDNFINHNLNLDWAQHKNEVMKNFGILIQDKKTVDHKKSISSLDPKLPSWGNKGNNILNSNESRLNVNENNILREKFENYARIVFQFNNSRQANGNFDIANEFISILSSANGTRNAQLLESWKILESMKSKDINIVEVGKQYLEQQFLQYTDNLYKKNMNEGLATNVNKIKSFIDTKLKKADKSWKISNLTVINGVPIWALIFYLLRAGLIKEALQVLVENKANIKKVEQSFLTYFKAYASSKDHGLPVEYSTKLHTEYNQHIKSSLDGDPYRLAVYKLIGRCDLSRKNIPAVTLSIEDWLWMHLMLIKEKDAENDPVYERYSLEDFQNIIISYGPSRFSNYYLQTLLLSGLYGLAIDYTYTFSEMDAVHLAIGLASLKLFKIDSSTRLTKKPKRDIRFANILANYTKSFRYSDPRVAVEYLVLITLNEGPTDVELCHEALRELVLETKEFTVLLGKIGRDGARIPGVIEERQPLLHVRDEKEFLHTITEQAARRADEDGRIYDSILLYQLAEEYDIVITLVNSLLSDTLSASDLDQPLVGPDDNSETNPVLLARRMASIYFDNAGISRQIHVKNKEICMLLLNISSIRELYFNKQWQETLSQMELLDLLPFSDELSARKKAQDFSNLDDNIVKNIPNLLIITLSCISNMIHILNESKYQSSTKGQQIDSLKNVARQCMIYAGMIQYRMPRETYSTLINIDVSL

Entity 10 Entity 10 polymer

Description description	Nucleoporin NUP53
Molecular weight formula_weight	52688.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,W

MADLQKQENSSRFTNVSVIAPESQGQHEQQKQQEQLEQQKQPTGLLKGLNGFPSAPQPLFMEDPPSTVSGELNDNPAWFNNPRKRAIPNSIIKRSNGQSLSPVRSDSADVPAFSNSNGFNNVTFGSKKDPRILKNVSPNDNNSANNNAHSSDLGTVVFDSNEAPPKTSLADWQKEDGIFSSKTDNIEDPNLSSNITFDGKPTATPSPFRPLEKTSRILNFFDKNTKTTPNTASSEASAGSKEGASTNWDDHAIIIFGYPETIANSIILHFANFGEILEDFRVIKDFKKLNSKNMSKSPSLTAQKYPIYTGDGWVKLTYKSELSKSRALQENGIIMNGTLIGCVSYSPAALKQLASLKKSEEIINNKTSSQTSLSSKDLSNYRKTEGIFEKAKAKAVTSKVRNAEFKVSKNSTSFKNPRRLEIKDGRSLFLRNRGKIHSGVLSSIESDLKKREQASKSKKSWLNRLNNWLFGWNDL

Entity 11 Entity 11 polymer

Description description	Nucleoporin ASM4
Molecular weight formula_weight	58853.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V,X

MFGIRSGNNNGGFTNLTSQAPQTTQMFQSQSQLQPQPQPQPQQQQQHLQFNGSSDASSLRFGNSLSNTVNANNYSSNIGNNSINNNNIKNGTNNISQHGQGNNPSWVNNPKKRFTPHTVIRRKTTKQNSSSDINQNDDSSSMNATMRNFSKQNQDSKHNERNKSAANNDINSLLSNFNDIPPSVTLQDWQREDEFGSIPSLTTQFVTDKYTAKKTNRSAYDSKNTPNVFDKDSYVRIANIEQNHLDNNYNTAETNNKVHETSSKSSSLSAIIVFGYPESISNELIEHFSHFGHIMEDFQVLRLGRGINPNTFRIFHNHDTGCDENDSTVNKSITLKGRNNESNNKKYPIFTGESWVKLTYNSPSSALRALQENGTIFRGSLIGCIPYSKNAVEQLAGCKIDNVDDIGEFNVSMYQNSSTSSTSNTPSPPNVIITDGTLLREDDNTPAGHAGNPTNISSPIVANSPNKRLDVIDGKLPFMQNAGPNSNIPNLLRNLESKMRQQEAKYRNNEPAGFTHKLSNWLFGWNDL

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	7.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	145000

Inner ring spoke from the isolated yeast NPC

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NUP170

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP157

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NSP1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP57

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP49/NSP49

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP192

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP188

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NIC96

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin NUP53

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Nucleoporin ASM4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
