SAXSdb — 6x07

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NIC96

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 186–839	Not recorded	VHH-SAN12 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；8% PEG 8,000 and 0.1M tri-sodium citrate pH 5	Resolution 2.10 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6X07	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2QX5 Structure of nucleoporin Nic96 Deposited 2007-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 186–839（654 aa） Fragment：residues 186-839	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Potassium Thiocyanate, 1mM Cetyltrimethylammonium bromide, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.50 Å R-free 0.285
2QX5 Structure of nucleoporin Nic96 Deposited 2007-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 186–839（654 aa） Fragment：residues 186-839	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；18% PEG 3350, 0.1M Bis Tris propane, 0.2M Potassium Thiocyanate, 1mM Cetyltrimethylammonium bromide, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.50 Å R-free 0.285
2RFO Crystral Structure of the nucleoporin Nic96 Deposited 2007-10-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 189–839（651 aa） Fragment：UNP residues 189-839	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；3-10% PEG3350, 0.1M BisTris pH6.5, 0.05M lithium sulfate, 3% 1,6-hexandiole, 0.01mM DTE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.285
2RFO Crystral Structure of the nucleoporin Nic96 Deposited 2007-10-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 189–839（651 aa） Fragment：UNP residues 189-839	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；3-10% PEG3350, 0.1M BisTris pH6.5, 0.05M lithium sulfate, 3% 1,6-hexandiole, 0.01mM DTE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.285
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 240 PDB declaration: 240-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.60 Å
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.60 Å
7N85 Inner ring spoke from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.60 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7WOO Cryo-EM structure of the inner ring protomer of the Saccharomyces cerevisiae nuclear pore complex Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–839（839 aa） Chain Z 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.71 Å
7WOT Cryo-EM structure of the inner ring monomer of the Saccharomyces cerevisiae nuclear pore complex Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–839（839 aa） Chain M 1–839（839 aa） Chain N 1–839（839 aa） Chain Z 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
8TJ5 Inner spoke ring of the yeast NPC Deposited 2023-07-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric	Chain Q 1–839（839 aa） Chain R 1–839（839 aa） Chain S 1–839（839 aa） Chain T 1–839（839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å

7 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NIC96_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–669； UniProt 186–839

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6x07
Deposition date deposition_date	2020-05-15
Structure title title	Nic96 from S. cerevisiae bound by VHH-SAN12
Keywords keywords	Nucleoporin, nanobody, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.32 Å
Radius of gyration Rg (electron density) rg_electron	43.20 Å
Forward intensity I(0) i0	95393200.00
Molecular weight molecular_weight	79973.0 kDa
Excluded volume excluded_volume	100400 Å³
Envelope volume envelope_volume	137010 Å³
Hydration-shell volume shell_volume	30655 Å³
Envelope diameter envelope_diameter	148.4 Å
Shell Rg shell_rg	40.22 Å
Envelope Rg envelope_rg	43.02 Å
Shape Rg shape_rg	43.17 Å
Total Rg total_rg	43.14 Å
Total atoms total_atoms	5642
Residues n_residues	730
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

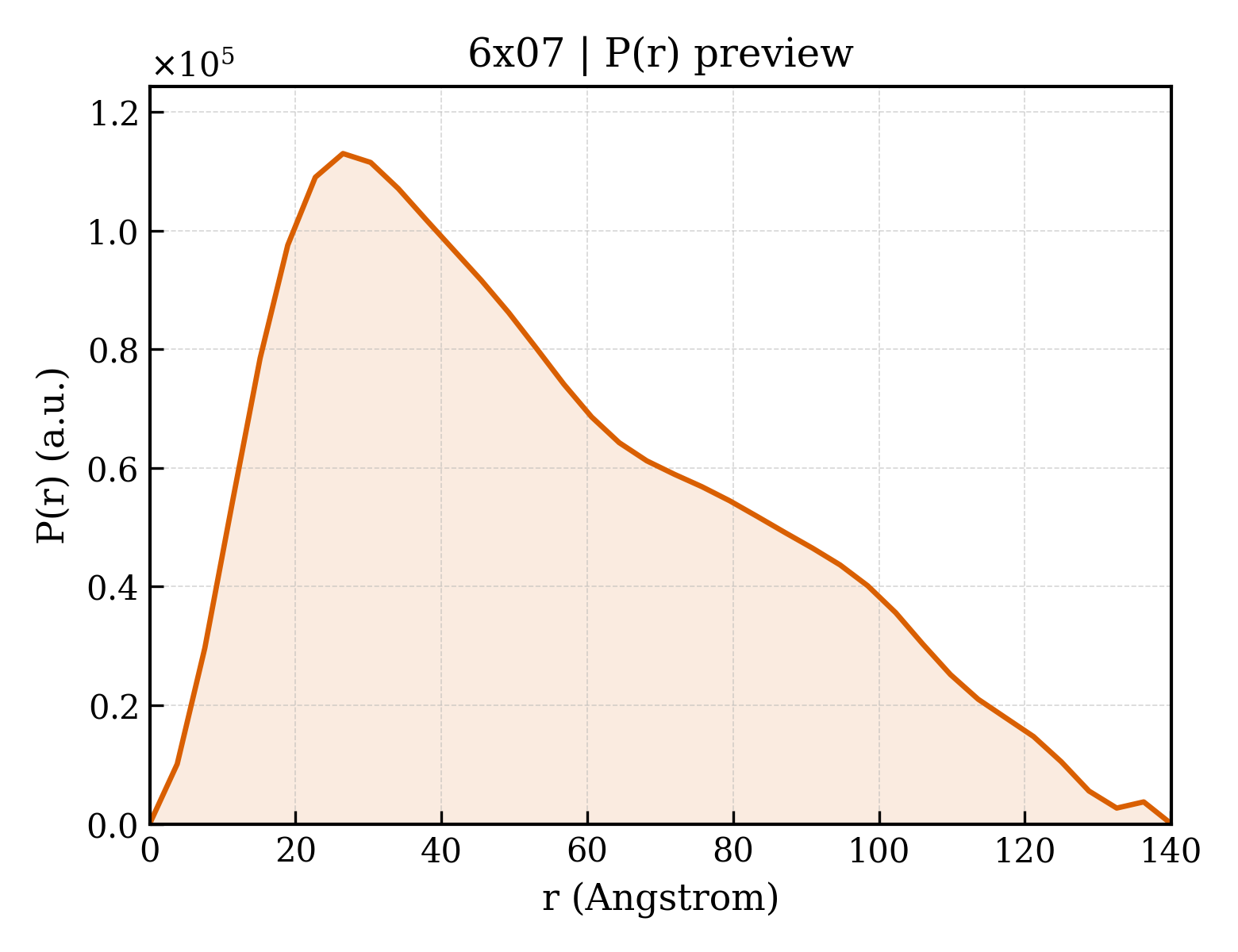

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.1 Å
Rg (real space) rg_real	42.96 Å
Rg uncertainty (real space) rg_real_error	1.94 Å
I(0) (real space) i0_real	9.5390e+07
I(0) uncertainty (real space) i0_real_error	1.9870e+06
Rg (reciprocal space) rg_reciprocal	42.33 Å
I(0) (reciprocal space) i0_reciprocal	95330000.0000
Solution quality estimate total_estimate	0.6988
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.5 Å
Skewness Skewness skewness	0.550
Kurtosis Kurtosis kurtosis	-0.587
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5458000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.553; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.350; Smooth: 0.071

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nucleoporin NIC96
Molecular weight formula_weight	76575.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5802

GPGSEFELGAPAGRQGNKGNNILNSNESRLNVNENNILREKFENYARIVFQFNNSRQANGNFDIANEFISILSSANGTRNAQLLESWKILESMKSKDINIVEVGKQYLEQQFLQYTDNLYKKNMNEGLATNVNKIKSFIDTKLKKADKSWKISNLTVINGVPIWALIFYLLRAGLIKEALQVLVENKANIKKVEQSFLTYFKAYASSKDHGLPVEYSTKLHTEYNQHIKSSLDGDPYRLAVYKLIGRCDLSRKNIPAVTLSIEDWLWMHLMLIKEKDAENDPVYERYSLEDFQNIIISYGPSRFSNYYLQTLLLSGLYGLAIDYTYTFSEMDAVHLAIGLASLKLFKIDSSTRLTKKPKRDIRFANILANYTKSFRYSDPRVAVEYLVLITLNEGPTDVELCHEALRELVLETKEFTVLLGKIGRDGARIPGVIEERQPLLHVRDEKEFLHTITEQAARRADEDGRIYDSILLYQLAEEYDIVITLVNSLLSDTLSASDLDQPLVGPDDNSETNPVLLARRMASIYFDNAGISRQIHVKNKEICMLLLNISSIRELYFNKQWQETLSQMELLDLLPFSDELSARKKAQDFSNLDDNIVKNIPNLLIITLSCISNMIHILNESKYQSSTKGQQIDSLKNVARQCMIYAGMIQYRMPRETYSTLINIDVSL

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	VHH-SAN12
Molecular weight formula_weight	14426.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQVQLVETGGGLVQAGGSLRLSCATSGFNFRLRTMGWYRQAPGKERELVASITSGGSTDYADSVKGRFTISRDNAKNTISLEMNSLKPDDTAVYYCNIWAPTTAAITNWGQGTQVTVSSLPETGGLEHHHHHH

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6x07b_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

▶

8. Citations (1)

▶

Unit-cell length a length_a	48.126 Å
Unit-cell length b length_b	79.653 Å
Unit-cell length c length_c	283.515 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	60.910 Å
R factor r_factor	0.2277
R_work r_work	0.2271
R_free r_free	0.2452

fit	/app/data/saxs_computation/x0/6x07/6x07.fit
pddf	/app/data/pr_computation/x0/6x07/6x07.pr.out
profile	/app/data/saxs_computation/x0/6x07/6x07.dat
