SAXSdb — 6x03

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoporin NUP84

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–726	Not recorded	Nucleoporin NUP133 × 1 （P36161） VHH-SAN8 × 1 VHH-SAN9 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 7.30 Å R-free 0.353

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6X03	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–460（460 aa） Fragment：UNP residues 1-460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–460（460 aa） Fragment：UNP residues 1-460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.273
3IKO Crystal structure of the heterotrimeric Sec13-Nup145C-Nup84 nucleoporin complex Deposited 2009-08-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–460（460 aa） Fragment：UNP residues 1-460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.273
3JRO NUP84-NUP145C-SEC13 edge element of the NPC lattice Deposited 2009-09-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–424（424 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；1.15M sodium malonate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 4.00 Å R-free 0.329
4XMM Structure of the yeast coat nucleoporin complex, space group C2 Deposited 2015-01-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–451（451 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES	Resolution 7.38 Å R-free 0.353
4XMN Structure of the yeast coat nucleoporin complex, space group P212121 Deposited 2015-01-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 2–451（450 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；PEG 20000, ethanol, MES	Resolution 7.60 Å R-free 0.347
6X02 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 Deposited 2020-05-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–726（726 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 6.38 Å R-free 0.324
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 136 PDB declaration: 136-meric	Chain f 1–726（726 aa） Chain q 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain f 1–726（726 aa） Chain q 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain f 1–726（726 aa） Chain q 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain f 1–726（726 aa） Chain m 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain f 1–726（726 aa） Chain m 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain f 1–726（726 aa） Chain m 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
8TIE Double nuclear outer ring of Nup84-complexes from the yeast NPC Deposited 2023-07-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain f 1–726（726 aa） Chain q 1–726（726 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM HEPES,50mM Potassium acetate,20mM NaCl,2mM MgCl2,1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å

8 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NUP84_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–726； UniProt 1–726

Nucleoporin NUP133

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P36161

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 521–1157	Not recorded	Nucleoporin NUP84 × 1 （P52891） VHH-SAN8 × 1 VHH-SAN9 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 7.30 Å R-free 0.353

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6X03	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3KFO Crystal structure of the C-terminal domain from the nuclear pore complex component NUP133 from Saccharomyces cerevisiae Deposited 2009-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 881–1157（277 aa） Fragment：C-terminal domain, residues 881-1157	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% PEG 3350, 200mM Potassium Thiocyanate, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.90 Å R-free 0.245
6X02 Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 Deposited 2020-05-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 521–1157（637 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；6% PEG 8,000, 30% ethylene glycol, 0.1M imidazole titrated with MES pH 6.5, 15mM sodium nitrate, 15mM sodium phosphate dibasic, 15mM ammonium sulfate	Resolution 6.38 Å R-free 0.324
6X04 Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN5 Deposited 2020-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 55–481（427 aa） Chain C 55–481（427 aa） Chain E 55–481（427 aa） Chain G 55–481（427 aa） Chain I 55–481（427 aa） Chain K 55–481（427 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；15% PEG MME 2,000, 0.1M potassium chloride, 0.1M Tris/HCl pH 8	Resolution 2.68 Å R-free 0.261
6X05 Nup133 (aa55-481) from S. cerevisiae bound by VHH-SAN4 Deposited 2020-05-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 55–481（427 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；24% PEG 3,350, 0.2M Ammonium sulfate, 0.1M Bis-Tris pH 5.5	Resolution 2.10 Å R-free 0.219
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 136 PDB declaration: 136-meric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N84 Double nuclear outer ring from the isolated yeast NPC Deposited 2021-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain g 1–1157（1157 aa） Chain r 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 11.60 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain g 1–1157（1157 aa） Chain n 1–1157（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NU133_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–643； UniProt 521–1157

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6x03
Deposition date deposition_date	2020-05-15
Structure title title	Nup84-Nup133 (aa521-1157) from S. cerevisiae bound by VHH-SAN8 and VHH-SAN9
Keywords keywords	STRUCTURAL PROTEIN, Nucleoporin, Nanobody; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	62.15 Å
Radius of gyration Rg (electron density) rg_electron	63.43 Å
Forward intensity I(0) i0	215449000.00
Molecular weight molecular_weight	99183.0 kDa
Excluded volume excluded_volume	114210 Å³
Envelope volume envelope_volume	302600 Å³
Hydration-shell volume shell_volume	44649 Å³
Envelope diameter envelope_diameter	202.5 Å
Shell Rg shell_rg	52.50 Å
Envelope Rg envelope_rg	60.83 Å
Shape Rg shape_rg	63.43 Å
Total Rg total_rg	63.01 Å
Total atoms total_atoms	7091
Residues n_residues	1429
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

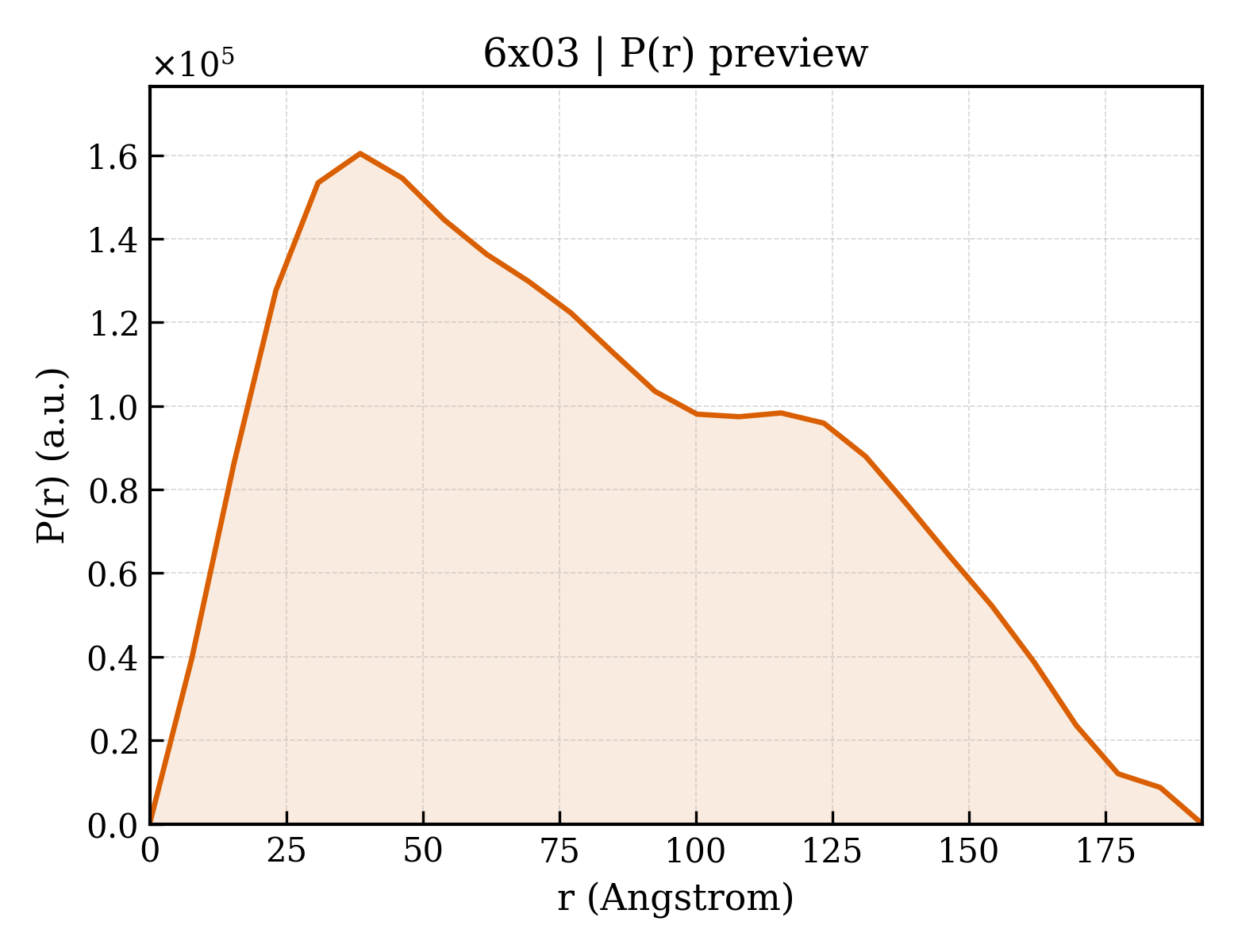

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	192.7 Å
Rg (real space) rg_real	62.99 Å
Rg uncertainty (real space) rg_real_error	2.09 Å
I(0) (real space) i0_real	2.1540e+08
I(0) uncertainty (real space) i0_real_error	4.7560e+06
Rg (reciprocal space) rg_reciprocal	61.34 Å
I(0) (reciprocal space) i0_reciprocal	214800000.0000
Solution quality estimate total_estimate	0.7663
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	38.5 Å
Skewness Skewness skewness	0.372
Kurtosis Kurtosis kurtosis	-0.857
Angular range angular_range	— – 0.1250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11310000.0000
Real-space data points n_real_points	26
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.784; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.608; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Nucleoporin NUP84
Molecular weight formula_weight	83718.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7091

MELSPTYQTERFTKFSDTLKEFKIEQNNEQNPIDPFNIIREFRSAAGQLALDLANSGDESNVISSKDWELEARFWHLVELLLVFRNADLDLDEMELHPYNSRGLFEKKLMQDNKQLYQIWIVMVWLKENTYVMERPKNVPTSKWLNSITSGGLKSCDLDFPLRENTNVLDVKDKEEDHIFFKYIYELILAGAIDEALEEAKLSDNISICMILCGIQEYLNPVIDTQIANEFNTQQGIKKHSLWRRTVYSLSQQAGLDPYERAIYSYLSGAIPNQEVLQYSDWESDLHIHLNQILQTEIENYLLENNQVGTDELILPLPSHALTVQEVLNRVASRHPSESEHPIRVLMASVILDSLPSVIHSSVEMLLDVVKGTEASNDIIDKPYLLRIVTHLAICLDIINPGSVEEVDKSKLITTYISLLKLQGLYENIPIYATFLNESDCLEACSFILSSLEDPQVRKKQIETINFLRLPASNILRRTTQRVFDETEQEYSPSNEISISFDVNNIDMHLIYGVEWLIEGKLYVDAVHSIIALSRRFLLNGRVKALEQFMERNNIGEICKNYELEKIADNISKDENEDQFLEEITQYEHLIKGIREYEEWQKSVSLLSSESNIPTLIEKLQGFSKDTFELIKTFLVDLTSSNFADSADYEILYEIRALYTPFLLMELHKKLVEAAKLLKIPKFISEALAFTSLVANENDKIYLLFQSSGKLKEYLDLVARTATLSN

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nucleoporin NUP133
Molecular weight formula_weight	75009.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MADPGFSLDQESIEHDLKLTSEEIFHSNGKYIPPMLNTLGQHLSVRKEFFQNFLTFVAKNFNYKISPELKLDLIEKFEILNCCIKFNSIIRQSDVLNDIWEKTLSNYNLTQNEHLTTKTVVINSPDVFPVIFKQFLNHVVFVLFPSQNQNFKLNVTNLINLCFYDGILEEGEKTIRYELLELDPMEVDTSKLPWFINFDYLNCINQCFFDFTFACEEEGSLDSYKEGLLKIVKILYYQFNQFKIWINTQPVKSVNANDNFININNLYDDNHLDWNHVLCKVNLKEQCIQIAEFYKDLSGLVQTLQTLDQNDSTTVSLYETFFNEFPKEFSFTLFEYLIKHKKLNDLIFRFPQQHDVLIQFFQESAPKYGHVAWIQQILDGSYADAMNTLKNITVDDSKKGESLSECELHLNVAKLSSLLVEKDNLDINTLRKIQYNLDTIDAEKNISNKLKKGEVQICKRFKNGSIREVFNILVEELKSTTVVNLSDLVELYSMLDDEESLFIPLRLLSVDGNLLNFEVKKFLNALVWRRIVLLNASNEGDKLLQHIVKRVFDEELPKNNDFPLPSVDLLCDKSLLTPEYISETYGRFPIDQNAIREEIYEEISQVETLNSDNSLEIKLHSTIGSVAKEKNYTINYETNTVEY

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	VHH-SAN8
Molecular weight formula_weight	14150.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QLQLVETGGGLVQAGGSLRLSCVASGRTFTSYAMGWFRQAPGKEREFVAAISRLASGTDYADSVKGRFTISRNNDKNTVYLQMNNLIPEDTAVYYCAALQALRFSLPIAMATMKNGRADSWGQGTQVTVSS

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	VHH-SAN9
Molecular weight formula_weight	13826.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVQLVESGGGSVQAGGSLRLSCAVSGGTLSTLAMGWFRQAPGQEREFVARIGWTNGDTGYADSVKGRFTISRDNVKNTVYLQMNNLKPEDTALYYCATRRPYGSTLYPPNTESAHDNWGQGTQVTVSS

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	72.252 Å
Unit-cell length b length_b	295.205 Å
Unit-cell length c length_c	295.609 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	7.300 Å
Low-resolution limit resolution_low	147.800 Å
R factor r_factor	0.3365
R_work r_work	0.3352
R_free r_free	0.3534

fit	/app/data/saxs_computation/x0/6x03/6x03.fit
pddf	/app/data/pr_computation/x0/6x03/6x03.pr.out
profile	/app/data/saxs_computation/x0/6x03/6x03.dat
