SAXSdb — 6xi8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA polymerase II transcription factor B subunit 3

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 259–321	Not recorded	Serine/threonine-protein kinase KIN28 × 1 （P06242） Cyclin CCL1 × 1 （P37366） ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.64 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6XI8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5OQJ STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH Deposited 2017-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 29 PDB declaration: 31-meric	Chain 3 1–321（321 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE BLOTTED FOR 8 S AND PLUNGE-FROZEN IN LIQUID ETHANE.	Resolution 4.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric	Chain 3 1–321（321 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.	Resolution 5.80 Å
6GYM Structure of a yeast closed complex with distorted DNA (CCdist) Deposited 2018-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 29 PDB declaration: 31-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 16 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
7KUE CryoEM structure of Yeast TFIIK (Kin28/Ccl1/Tfb3) Complex Deposited 2020-11-24	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–321（321 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.50 Å
7O4I Yeast RNA polymerase II transcription pre-initiation complex with initial transcription bubble Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7O4J Yeast RNA polymerase II transcription pre-initiation complex (consensus) Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7O4K Yeast TFIIH in the contracted state within the pre-initiation complex Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 10 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7O4L Yeast TFIIH in the expanded state within the pre-initiation complex Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 11 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7O72 Yeast RNA polymerase II transcription pre-initiation complex with closed promoter DNA Deposited 2021-04-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7O73 Yeast RNA polymerase II transcription pre-initiation complex with closed distorted promoter DNA Deposited 2021-04-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7O75 Yeast RNA polymerase II transcription pre-initiation complex with open promoter DNA Deposited 2021-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain 3 1–321（321 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7ZS9 Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome (complex A) Deposited 2022-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric	Chain 3 1–321（321 aa）	Not recorded	ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7ZSA Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP (complex B) Deposited 2022-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric	Chain 3 1–321（321 aa）	Not recorded	ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7ZSB Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP, complex C Deposited 2022-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric	Chain 3 1–321（321 aa）	Not recorded	ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TFB3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–63； UniProt 259–321

Serine/threonine-protein kinase KIN28

OrganismNot specified

UniProt P06242

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 3–303	Non-standard monomer：Yes (specific site not provided by mmCIF)	RNA polymerase II transcription factor B subunit 3 × 1 （Q03290） Cyclin CCL1 × 1 （P37366） ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.64 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6XI8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7KUE CryoEM structure of Yeast TFIIK (Kin28/Ccl1/Tfb3) Complex Deposited 2020-11-24	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–306（306 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.50 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KIN28_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–301； UniProt 3–303

Cyclin CCL1

OrganismNot specified

UniProt P37366

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 47–370	Not recorded	RNA polymerase II transcription factor B subunit 3 × 1 （Q03290） Serine/threonine-protein kinase KIN28 × 1 （P06242） ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.64 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6XI8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7KUE CryoEM structure of Yeast TFIIK (Kin28/Ccl1/Tfb3) Complex Deposited 2020-11-24	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–393（393 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；blotted for 2 seconds with Whatman 41 ashless filter paper	Resolution 3.50 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCL1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–324； UniProt 47–370

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6xi8
Deposition date deposition_date	2020-06-19
Structure title title	Yeast TFIIK (Kin28/Ccl1/Tfb3) Complex
Keywords keywords	Polymerase CTD, TFIIH, Phosphorylation, Kinase, CDK, Cyclin, Transciption, Transciption-Transferase complex; Transciption/Transferase
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.15 Å
Radius of gyration Rg (electron density) rg_electron	27.20 Å
Forward intensity I(0) i0	79626900.00
Molecular weight molecular_weight	71252.0 kDa
Excluded volume excluded_volume	89785 Å³
Envelope volume envelope_volume	116690 Å³
Hydration-shell volume shell_volume	35335 Å³
Envelope diameter envelope_diameter	106.6 Å
Shell Rg shell_rg	34.67 Å
Envelope Rg envelope_rg	27.89 Å
Shape Rg shape_rg	27.22 Å
Total Rg total_rg	27.95 Å
Total atoms total_atoms	5022
Residues n_residues	635
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

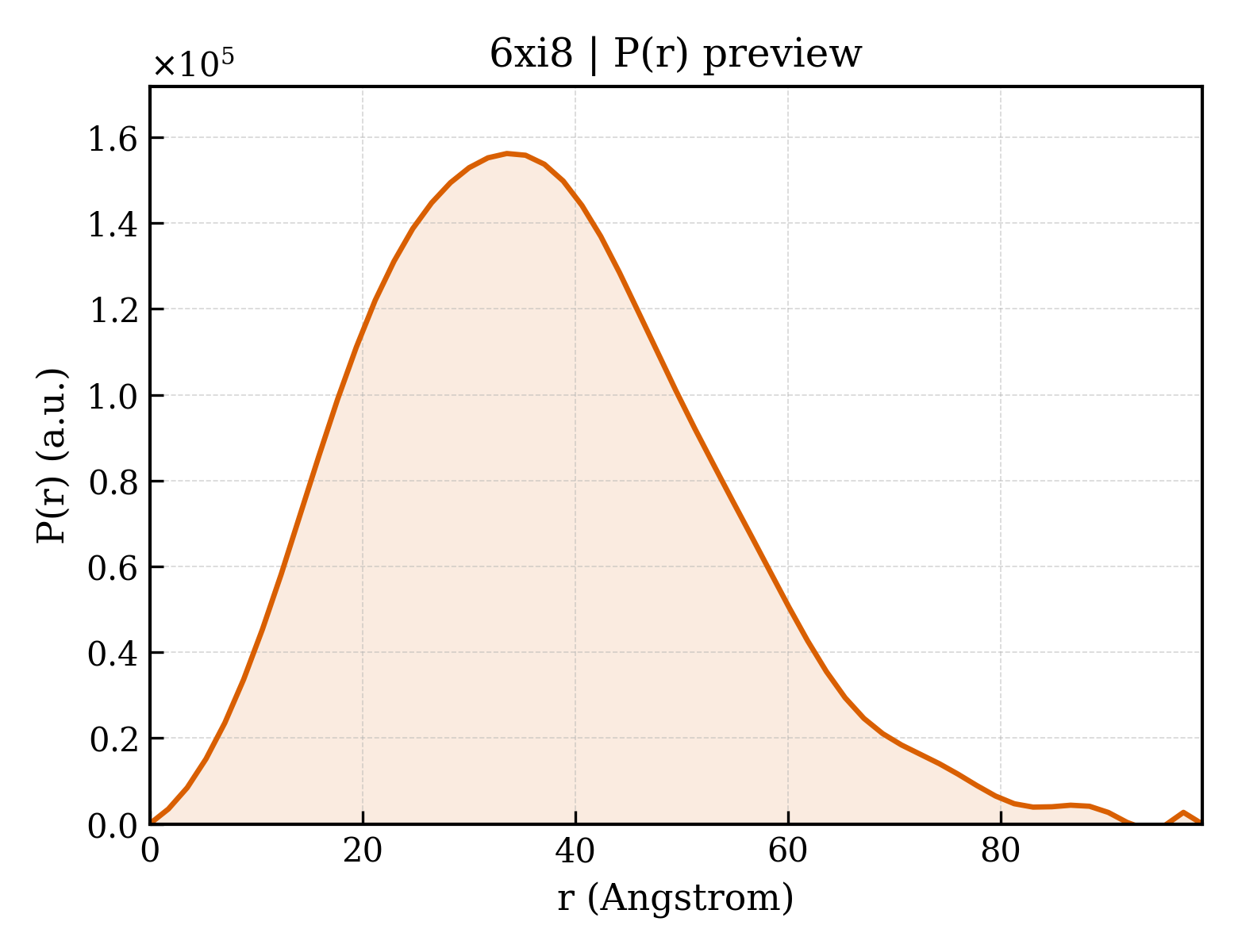

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.9 Å
Rg (real space) rg_real	28.17 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	7.9630e+07
I(0) uncertainty (real space) i0_real_error	1.2250e+06
Rg (reciprocal space) rg_reciprocal	28.16 Å
I(0) (reciprocal space) i0_reciprocal	79630000.0000
Solution quality estimate total_estimate	0.7779
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	33.6 Å
Skewness Skewness skewness	0.442
Kurtosis Kurtosis kurtosis	0.005
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	32350000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.715; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	RNA polymerase II transcription factor B subunit 3
Molecular weight formula_weight	7191.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	5022

PFNGDREAHPPFTLKGSVYNDPFIKDLEHRKEFIASGFNTNYAYERVLTEAFMGLGCVISEEL

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein kinase KIN28
Molecular weight formula_weight	34725.0 kDa
EC 编号 ec_number	2.7.11.23
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

VNMEYTKEKKVGEGTYAVVYLGCQHSTGRKIAIKEIKTSEFKDGLDMSAIREVKYLQEMQHPNVIELIDIFMAYDNLNLVLEFLPTDLEVVIKDKSILFTPADIKAWMLMTLRGVYHCHRNFILHRDLKPNNLLFSPDGQIKVADFGLARAIPAPHEILTSNVVTRWYRAPELLFGAKHYTSAIDIWSVGVIFAELMLRIPYLPGQNDVDQMEVTFRALGTPTDRDWPEVSSFMTYNKLQIYPPPSRDELRKRFIAASEYALDFMCGMLTMNPQKRWTAVQCLESDYFKELPPPSDPSSIK

Entity 3 Entity 3 polymer

Description description	Cyclin CCL1
Molecular weight formula_weight	37552.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DLYRHSSQYRMWSYTKDQLQEKRVDTNARAIAYIEENLLKFREAHNLTEEEIKVLEAKAIPLTMEEELDLVNFYAKKVQVIAQHLNLPTEVVATAISFFRRFFLENSVMQIDPKSIVHTTIFLACKSENYFISVDSFAQKAKSTRDSVLKFEFKLLESLKFSLLNHHPYKPLHGFFLDIQNVLYGKVDLNYMGQIYDRCKKRITAALLTDVVYFYTPPQITLATLLIEDEALVTRYLETKFPSREGSQESVPGNEKEEPQNDASTTEKNKEKSTESEEYSIDSAKLLTIIRECKSIIEDCKPPSTEEAKKIAAKNYYCQNPSTL

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.64 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	129955

fit	/app/data/saxs_computation/xi/6xi8/6xi8.fit
pddf	/app/data/pr_computation/xi/6xi8/6xi8.pr.out
profile	/app/data/saxs_computation/xi/6xi8/6xi8.dat
