SAXSdb — 6xlf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent molecular chaperone HSC82

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Hsp90 co-chaperone AHA1 × 2 （Q12449） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2 POTASSIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSC82_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–705； UniProt 1–705 Author chain B； PDBConstruct 1–705； UniProt 1–705

Hsp90 co-chaperone AHA1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt Q12449

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	ATP-dependent molecular chaperone HSC82 × 2 （P15108） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2 POTASSIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AHA1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–350； UniProt 1–350 Author chain D； PDBConstruct 1–350； UniProt 1–350

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6xlf
Deposition date deposition_date	2020-06-28
Structure title title	Full-length Hsc82 in complex with Aha1 in the presence of AMP-PNP
Keywords keywords	Co-chaperone, activator, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6xlf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

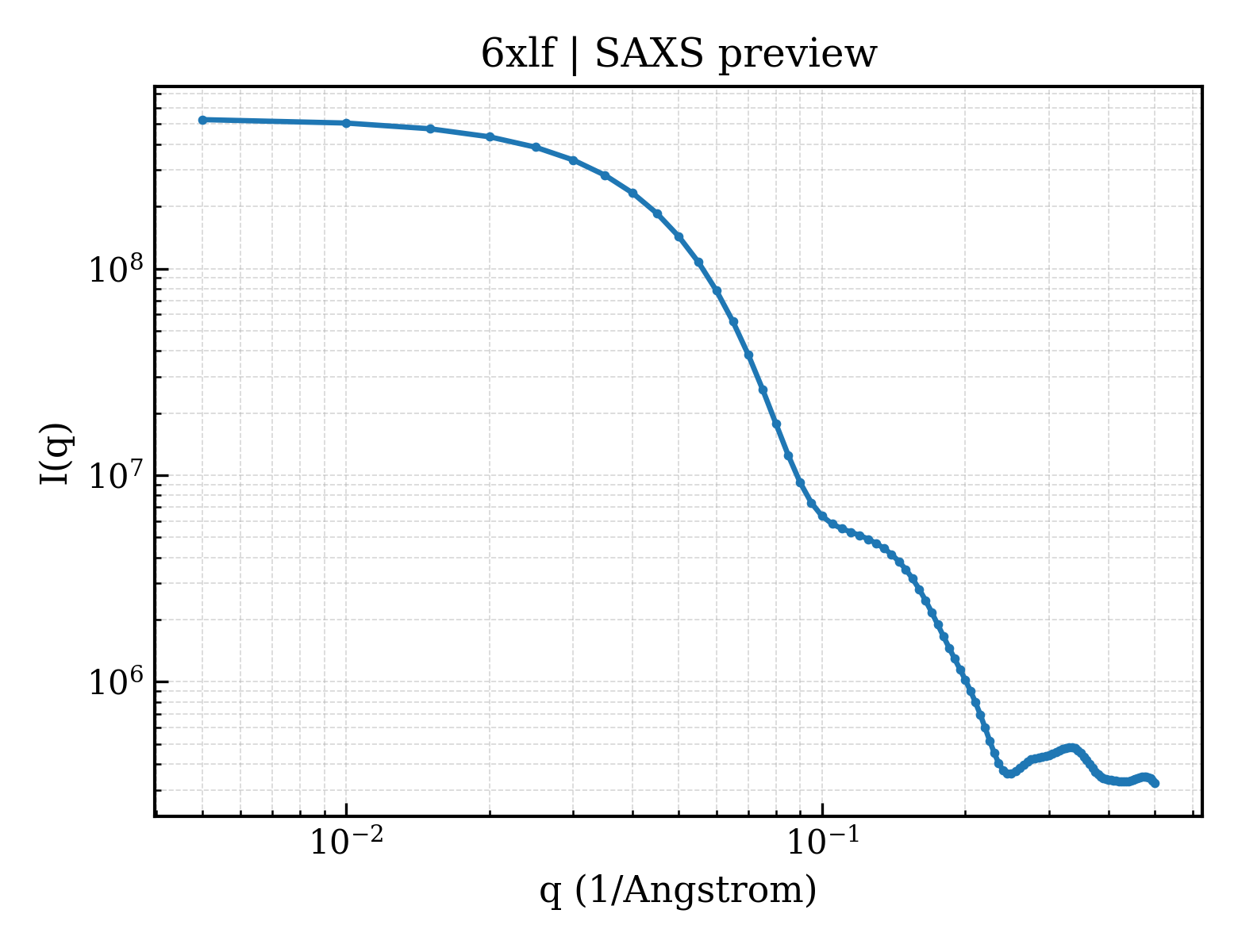

6xlf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6xlf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.15 Å
Rg (electron density)	38.28 Å
Total Rg	38.81 Å
Atom count	13653
Residues	1680
Excluded volume	244360 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6xlf__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ATP-dependent molecular chaperone HSC82
Molecular weight formula_weight	81003.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	13653

MAGETFEFQAEITQLMSLIINTVYSNKEIFLRELISNASDALDKIRYQALSDPKQLETEPDLFIRITPKPEEKVLEIRDSGIGMTKAELINNLGTIAKSGTKAFMEALSAGADVSMIGQFGVGFYSLFLVADRVQVISKNNEDEQYIWESNAGGSFTVTLDEVNERIGRGTVLRLFLKDDQLEYLEEKRIKEVIKRHSEFVAYPIQLLVTKEVEKEVPIPEEEKKDEEKKDEDDKKPKLEEVDEEEEEKKPKTKKVKEEVQELEELNKTKPLWTRNPSDITQEEYNAFYKSISNDWEDPLYVKHFSVEGQLEFRAILFIPKRAPFDLFESKKKKNNIKLYVRRVFITDEAEDLIPEWLSFVKGVVDSEDLPLNLSREMLQQNKIMKVIRKNIVKKLIEAFNEIAEDSEQFDKFYSAFAKNIKLGVHEDTQNRAALAKLLRYNSTKSVDELTSLTDYVTRMPEHQKNIYYITGESLKAVEKSPFLDALKAKNFEVLFLTDPIDEYAFTQLKEFEGKTLVDITKDFELEETDEEKAEREKEIKEYEPLTKALKDILGDQVEKVVVSYKLLDAPAAIRTGQFGWSANMERIMKAQALRDSSMSSYMSSKKTFEISPKSPIIKELKKRVDEGGAQDKTVKDLTNLLFETALLTSGFSLEEPTSFASRINRLISLGLNIDEDEETETAPEASTEAPVEEVPADTEMEEVD

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Hsp90 co-chaperone AHA1
Molecular weight formula_weight	39486.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MVVNNPNNWHWVDKNCIGWAKEYFKQKLVGVEAGSVKDKKYAKIKSVSSIEGDCEVNQRKGKVISLFDLKITVLIEGHVDSKDGSALPFEGSINVPEVAFDSEASSYQFDISIFKETSELSEAKPLIRSELLPKLRQIFQQFGKDLLATHGNDIQVPESQVKSNYTRGNQKSSFTEIKDSASKPKKNALPSSTSTSAPVSSTNKVPQNGSGNSTSIYLEPTFNVPSSELYETFLDKQRILAWTRSAQFFNSGPKLETKEKFELFGGNVISELVSCEKDKKLVFHWKLKDWSAPFNSTIEMTFHESQEFHETKLQVKWTGIPVGEEDRVRANFEEYYVRSIKLTFGFGAVL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6xlfC01
Class class	3 — Alpha Beta
Architecture architecture	15 — Super Roll
Topology topology	10 — Bactericidal permeability-increasing protein; domain 1
Homologous superfamily homologous superfamily	20 — Activator of Hsp90 ATPase Aha1, N-terminal domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.15 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	76347
