6zqo

EYFP mutant - F165G

Method: X-RAY DIFFRACTION Dmax: 60.5 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

G protein/GFP fusion protein

Recombinant vesicular stomatitis Indiana virus rVSV-G/GFP

UniProt B7UCZ6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 512–750 Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；5.7 mg/ml in 20mM Tris 8.0 200 mM NaCl mixed with a 1.44M (NH4)2SO4, 60mM Bicine pH 9.0 reservoir solution. Resolution 2.20 Å R-free 0.340

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6ZQO Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7EYE Cryo-EM (SPA) structure of Nup155 N-terminus (19-863) at 5.1 Angstrom resolution Deposited 2021-05-30 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 512–750（239 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Buffer was freshly made.
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3 seconds before plunging
Resolution 5.10 Å
7EYQ Cryo-EM (SPA) structure of human Nup155 Longer N-terminus (19-1069) at 5.4 Angstrom resolution Deposited 2021-05-31 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 512–750（239 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Buffer was freshly made.
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3 seconds before plunging
Resolution 5.40 Å
7FBS structure of a channel Deposited 2021-07-12 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 512–750（239 aa）
Mutation：I1487Q,F1488Q,M1489Q NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 6OU [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate × 11 4Y4 1-[2-[(2R)-2-oxidanyl-3-(propylamino)propoxy]phenyl]-3-phenyl-propan-1-one × 1 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7XSU Cardiac sodium channel in complex with LqhIII Deposited 2022-05-15 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 512–750（239 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 BMA beta-D-mannopyranose × 1 6OU [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate × 6 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.1
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9NTM SPEF1 bound to 14-pf microtubule Deposited 2025-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 89 PDB declaration: 89-meric
Chain 1A 512–750（239 aa）
Chain 1B 512–750（239 aa）
Chain 1C 512–750（239 aa）
Chain 1D 512–750（239 aa）
Chain 1E 512–750（239 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 42 MG MAGNESIUM ION × 42 GDP GUANOSINE-5'-DIPHOSPHATE × 42 TA1 TAXOL × 42 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name B7UCZ6_9RHAB
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 13–249； UniProt 512–750

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

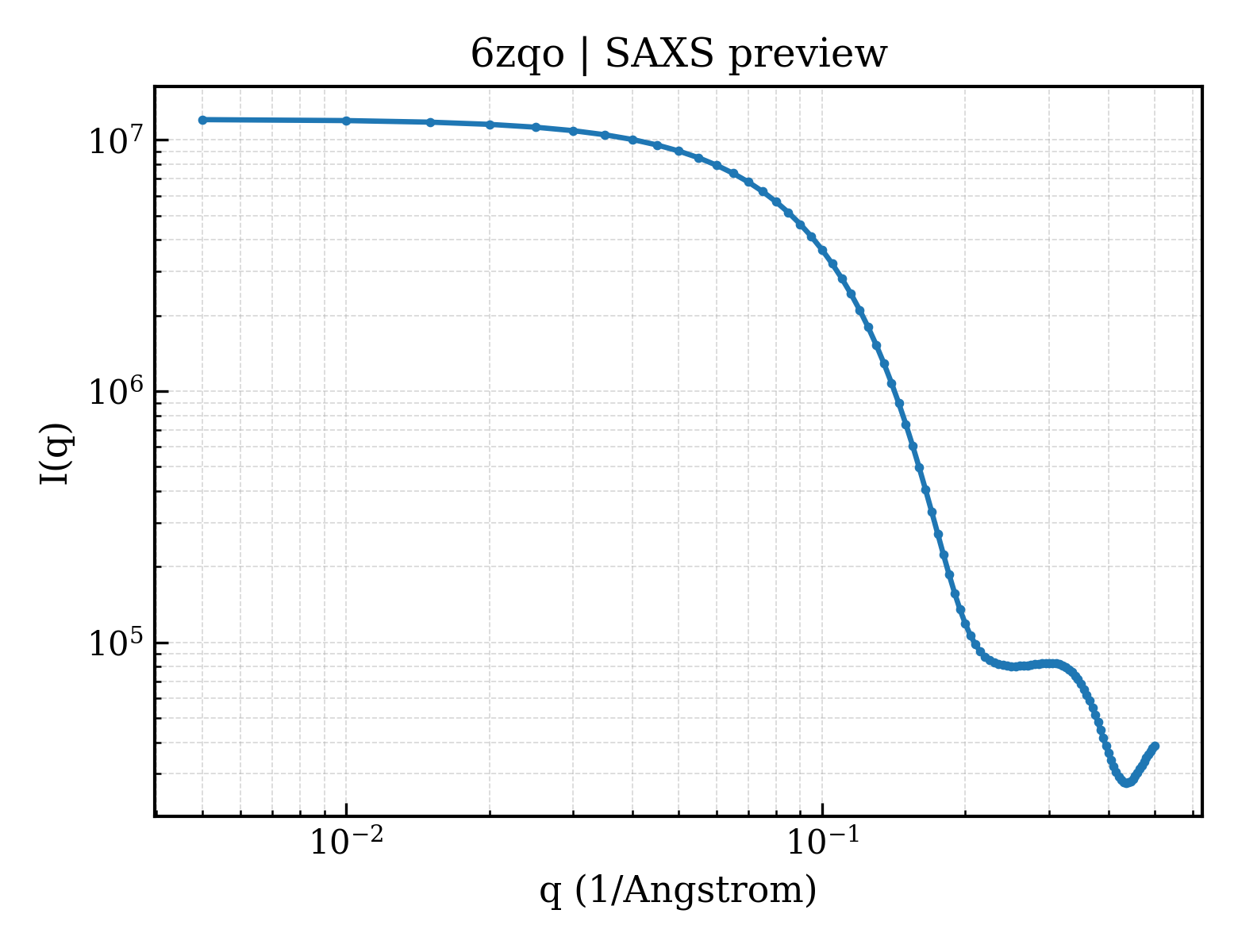

SAXS scattering curve SAXS Profile

SAXS profile for 6zqo

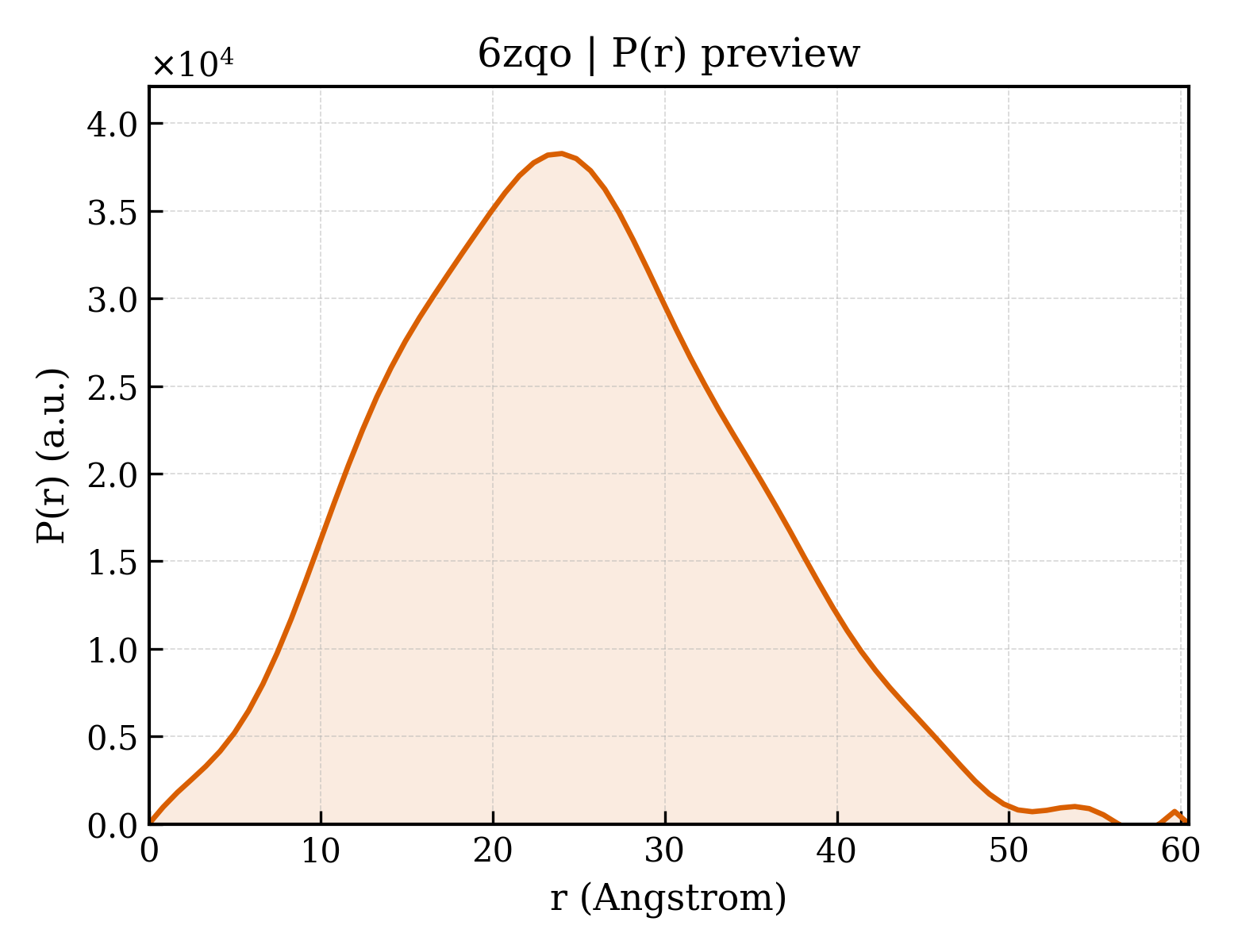

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6zqo
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6zqo
Deposition date deposition_date2020-07-10
Structure title titleEYFP mutant - F165G
Keywords keywordsAlternative routes of post-translation chemistry, FLUORESCENT PROTEIN; FLUORESCENT PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier18.66 Å
Radius of gyration Rg (electron density) rg_electron17.37 Å
Forward intensity I(0) i012072200.00
Molecular weight molecular_weight25817.0 kDa
Excluded volume excluded_volume32262 ų
Envelope volume envelope_volume37157 ų
Hydration-shell volume shell_volume17834 ų
Envelope diameter envelope_diameter65.0 Å
Shell Rg shell_rg23.76 Å
Envelope Rg envelope_rg17.77 Å
Shape Rg shape_rg17.32 Å
Total Rg total_rg18.52 Å
Total atoms total_atoms1820
Residues n_residues229
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax60.5 Å
Rg (real space) rg_real18.58 Å
Rg uncertainty (real space) rg_real_error0.34 Å
I(0) (real space) i0_real1.2070e+07
I(0) uncertainty (real space) i0_real_error1.4500e+05
Rg (reciprocal space) rg_reciprocal18.59 Å
I(0) (reciprocal space) i0_reciprocal12070000.0000
Solution quality estimate total_estimate0.6441
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary24.0 Å
Skewness Skewness skewness0.226
Kurtosis Kurtosis kurtosis-0.319
Angular range angular_range— – 0.4250 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha3156000.0000
Real-space data points n_real_points74
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.812; Stabil: 0.999; Sysdev: 0.313; Positv: 1.000; Valcen: 0.999; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd6zqoa1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.22 — GFP-like
Superfamily Superfamily superfamilyd.22.1 — GFP-like
Family Family familyd.22.1.1 — Fluorescent proteins
Domain ID domain_idd6zqoa2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
▶

8. Citations (1)

▶

9. Files and Curves (10)
