6zvn

Botulinum neurotoxin B2 binding domain in complex with human synaptotagmin I

Method: X-RAY DIFFRACTION D_max: 86.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neurotoxin

Clostridium botulinum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain AAA； UniProt 857–1291	Not recorded	Synaptotagmin-1 × 1 （P21579）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.1 M imidazole pH 8.0, 10% (w/v) PEG 8000	Resolution 2.50 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6ZVN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6ZVM Botulinum neurotoxin B2 binding domain in complex with GD1a Deposited 2020-07-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 857–1291（435 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；0.16 M calcium acetate hydrate, 0.08 M MES pH 6.5, 14.4% (w/v) PEG 8000, 20% (v/v) glycerol	Resolution 1.80 Å R-free 0.203

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q8GR96_CLOBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 4–438； UniProt 857–1291

Synaptotagmin-1

OrganismNot specified

UniProt P21579

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain BBB； UniProt 33–53	Not recorded	Neurotoxin × 1 （Q8GR96）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.1 M imidazole pH 8.0, 10% (w/v) PEG 8000	Resolution 2.50 Å R-free 0.283

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6ZVN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2K45 C2A domain of synaptototagmin I solution structure in the FGF-1-C2A binary complex: key component in the fibroblast growthfactor non-classical pathway Deposited 2008-05-28	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–268（128 aa） Fragment：UNP residues 141-268	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 50mM (NH4)2SO4；Pressure ambient NMR sample composition 1.0mM [U-100% 13C; U-100% 15N] C2A, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2K4A FGF-1-C2A binary complex structure: a key component in the fibroblast growthfactor non-classical pathway Deposited 2008-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–268（128 aa） Fragment：C2 domain, UNP residues 141-268	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 50mM (NH4)2SO4；Pressure ambient NMR sample composition 1.2mM FGF-1-C2A; 100% D2O \| 100% D2O	Resolution not provided
2KI6 The FGF1-S100A13-C2A hetero-hexameric complex structure: A component in the non-classical pathway for FGF1 secretion Deposited 2009-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 141–268（128 aa） Fragment：C2A domain Chain F 141–268（128 aa） Fragment：C2A domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1.0mM [U-100% 13C; U-100% 15N] C2A domain of Syt1-1, 1.0mM FGF1-2, 1.0mM S100A13-3, S100A13-4, 25mM sodium phosphate-5, 100mM sodium chloride-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LHA Solution structure of C2B with IP6 Deposited 2011-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–422（152 aa） Fragment：C2B domain, UNP residues 272-422	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] protein-1, 1.1 mM INOSITOL HEXAKISPHOSPHATE-2, 150 mM sodium chloride-3, 20 mM MES-4, 2 mM DTT-5, 2 mM Calcium Chloride-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N1T Dynamic binding mode of a synaptotagmin-1-SNARE complex in solution Deposited 2015-04-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 272–419（148 aa） Fragment：C2B domain (UNP residues 272-419)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Pressure ambient NMR sample composition 30 uM [U-100% 13C; U-100% 15N] protein, 25 mM Tris-HCl, 125 mM KSCN, 1 mM CaCl2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2R83 Crystal structure analysis of human synaptotagmin 1 C2A-C2B Deposited 2007-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 141–422（282 aa） Fragment：C2A-C2B Chain B 141–422（282 aa） Fragment：C2A-C2B	Not recorded	CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；3M NACL, 75 MM SODIUM ACETATE, PH 4.5, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293K, pH 4.50	Resolution 2.70 Å R-free 0.253
3F00 Crystal Structure of Synaptotagmin I C2A domain with Cu(II) Deposited 2008-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Non-standard monomer：Yes (specific site not provided by mmCIF)	CU COPPER (II) ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM HEPES, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.36 Å R-free 0.244
3F01 Crystal Structure of Synaptotagmin I C2A domain with Cu(II) Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM HEPES, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.70 Å R-free 0.229
3F04 Crystal Structure of Synaptotagmin I C2A domain Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM Tris, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.35 Å R-free 0.224
3F05 Crystal Structure of Synaptotagmin I C2A domain with Mn(II) Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM Tris, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.40 Å R-free 0.228
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 8 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4V11 Structure of Synaptotagmin-1 with SV2A peptide phosphorylated at Thr84 Deposited 2014-09-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 273–422（150 aa） Fragment：C2B DOMAIN, UNP RESIDUES 273-422	Not recorded	CA CALCIUM ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5, 18 % PEG 3350, 0.05 M CACL2	Resolution 1.95 Å R-free 0.196
6G5F Crystal structure of an engineered Botulinum Neurotoxin type B mutant E1191M/S1199Y in complex with human synaptotagmin 1 Deposited 2018-03-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 33–53（21 aa）	Not recorded	GOL GLYCEROL × 3 MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294 K；1.1 M sodium malonate dibasic monohydrate, HEPES pH 7.0, 0.5% v/v Jeffamine ED-2003	Resolution 2.50 Å R-free 0.232
6G5K Crystal structure of the binding domain of Botulinum Neurotoxin type B in complex with human synaptotagmin 1 Deposited 2018-03-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M Amino acids 0.1 M Buffer System 2 7.5 50 % v/v Precipitant Mix 1	Resolution 2.00 Å R-free 0.235
6G5K Crystal structure of the binding domain of Botulinum Neurotoxin type B in complex with human synaptotagmin 1 Deposited 2018-03-29	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 33 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M Amino acids 0.1 M Buffer System 2 7.5 50 % v/v Precipitant Mix 1	Resolution 2.00 Å R-free 0.235
6QNS Crystal structure of the binding domain of Botulinum Neurotoxin type B mutant I1248W/V1249W in complex with human synaptotagmin 1 and GD1a receptors Deposited 2019-02-12	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294.15 K；20% v/v PEG6000, 0.1 M MES pH 6.0, 0.2 M sodium chloride	Resolution 2.40 Å R-free 0.229
6TZ3 Crystal Structure of Human Synaptotagmin 1 C2B without Ca2+ Deposited 2019-08-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa） Fragment：C2B domain, residues 272-422	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.2M Ammonium Sulfate, 30% PEG3350	Resolution 1.17 Å R-free 0.175
6U41 1.7 angstrom structure of a pathogenic human Syt 1 C2B (D304G) Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：D304G	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；2.0 M Ammonium Sulfate, 0.1 M Sodium Acetate	Resolution 1.70 Å R-free 0.178
6U4U 1.3 A structure of a pathogenic human Syt 1 C2B (I368T) Deposited 2019-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：I368T	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.5 M Ammonium Sulfate, 0.1 M Sodium Acetate	Resolution 1.30 Å R-free 0.169
6U4W 1.4 A structure of a pathogenic human Syt 1 C2B (D366E) Deposited 2019-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：D366E	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；298 K；1.6 M Ammonium Sulfate, 0.1 M Citrate	Resolution 1.40 Å R-free 0.211
7U4Q Human Synaptotagmin-1 C2A Y181F Ca2+ bound Deposited 2022-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 141–267（127 aa） Fragment：C2A domain Chain B 141–267（127 aa） Fragment：C2A domain	Mutation：Y181F Mutation：Y181F	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；298 K；100 mM HEPES, 2.3 M malonate	Resolution 1.56 Å R-free 0.189
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain N 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8B8I Nanobody (NbLumSyt1) bound to human Syt1 Deposited 2022-10-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 1–60（60 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298

21 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYT1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain BBB； PDBConstruct 1–21； UniProt 33–53

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

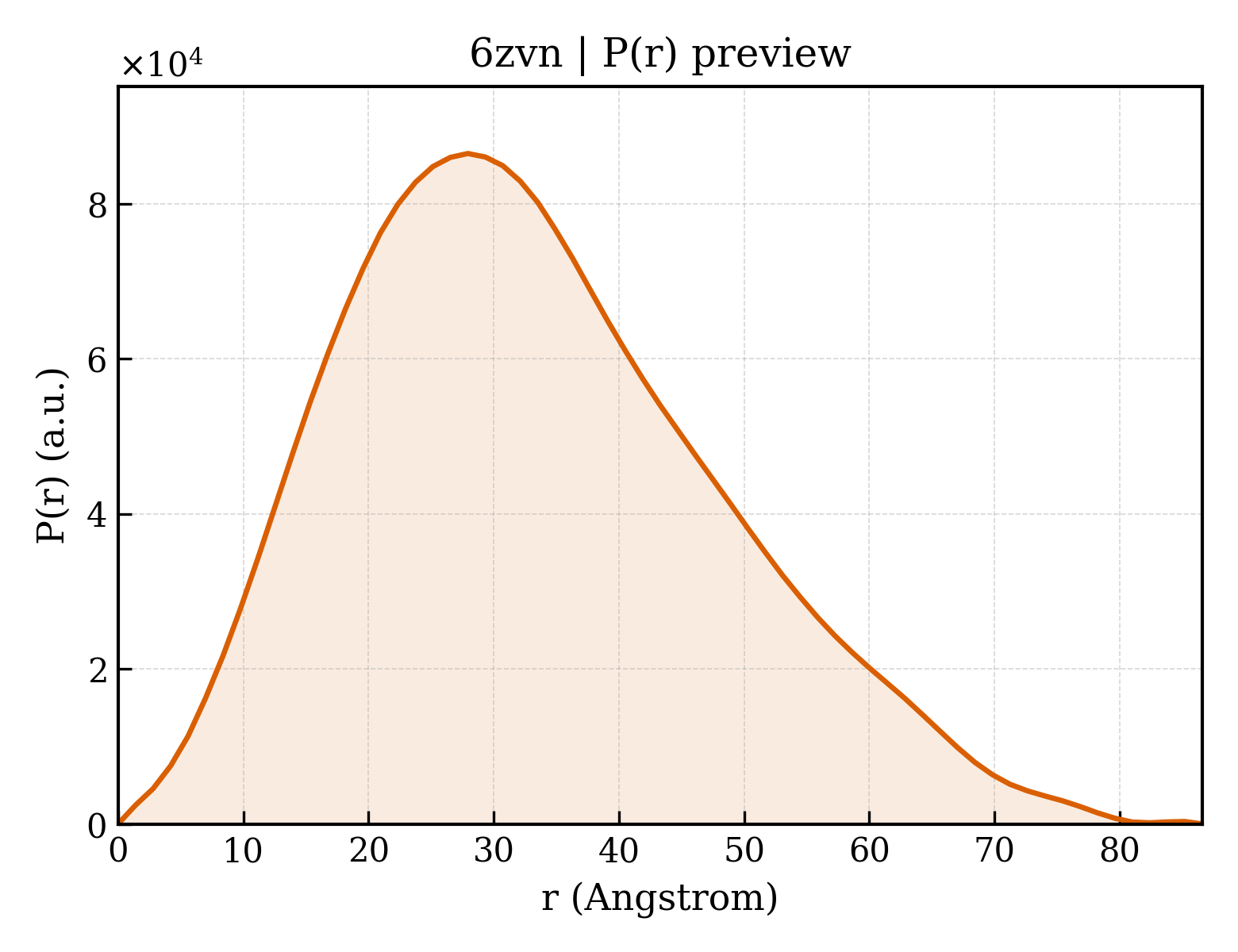

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6zvn
Deposition date deposition_date	2020-07-25
Structure title title	Botulinum neurotoxin B2 binding domain in complex with human synaptotagmin I
Keywords keywords	botulinum neurotoxin, ganglioside, gt1b, bont, b2, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.55 Å
Radius of gyration Rg (electron density) rg_electron	24.54 Å
Forward intensity I(0) i0	39878000.00
Molecular weight molecular_weight	50300.0 kDa
Excluded volume excluded_volume	63507 Å³
Envelope volume envelope_volume	75917 Å³
Hydration-shell volume shell_volume	26332 Å³
Envelope diameter envelope_diameter	87.9 Å
Shell Rg shell_rg	31.27 Å
Envelope Rg envelope_rg	24.76 Å
Shape Rg shape_rg	24.50 Å
Total Rg total_rg	25.48 Å
Total atoms total_atoms	3564
Residues n_residues	418
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.6 Å
Rg (real space) rg_real	25.61 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	3.9880e+07
I(0) uncertainty (real space) i0_real_error	6.0950e+05
Rg (reciprocal space) rg_reciprocal	25.59 Å
I(0) (reciprocal space) i0_reciprocal	39880000.0000
Solution quality estimate total_estimate	0.8711
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.9 Å
Skewness Skewness skewness	0.455
Kurtosis Kurtosis kurtosis	-0.238
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9780000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.787; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Neurotoxin
Molecular weight formula_weight	52464.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA
Atom count atom_count	3603

SHMNSEILNNIILNLRYRDNNLIDLSGYGANVEVYDGVELNDKNQFKLTSSTNSEIRVTQNQNIIFNSMFLDFSVSFWIRIPKYKNDGIQNYIHNEYTIINCIKNNSGWKISIRGNRIIWTLTDINGKTKSVFFEYSIREDISDYINRWFFVTITNNSDNAKIYINGKLESNIDIKDIGEVIANGEIIFKLDGDIDRTQFIWMKYFSIFNTELSQSNIKEIYKIQSYSEYLKDFWGNPLMYNKEYYMFNAGNKNSYIKLKKDSSVGEILTRSKYNQNSNYINYRNLYIGEKFIIRRKSNSQSINDDIVRKEDYIYLDFFNSNREWRVYAYKDFKEEEKKLFLANIYDSNEFYKTIQIKEYDEQPTYSCQLLFKKDEESTDEIGLIGIHRFYESGIVLKDYKNYFCISKWYLKEVKRKPYNPNLGCNWQFIPKDEGWIE

来源 Source

来源生物 organism	Clostridium botulinum
NCBI Class编号 ncbi_taxonomy_id	1491
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Synaptotagmin-1
Molecular weight formula_weight	2471.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	BBB

GEGKEDAFSKLKEKFMNELHK

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.677 Å
Unit-cell length b length_b	82.528 Å
Unit-cell length c length_c	106.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.790 Å
R factor r_factor	—
R_work r_work	0.2592
R_free r_free	0.2834
