SAXSdb — 8b8i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptotagmin-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain I； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain K； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain M； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
6	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain N； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
7	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain O； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298
8	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 1–60	Not recorded	Nanobody (NbLumSyt1) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；1.6 M DL-malic acid	Resolution 2.75 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8B8I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2K45 C2A domain of synaptototagmin I solution structure in the FGF-1-C2A binary complex: key component in the fibroblast growthfactor non-classical pathway Deposited 2008-05-28	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–268（128 aa） Fragment：UNP residues 141-268	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 50mM (NH4)2SO4；Pressure ambient NMR sample composition 1.0mM [U-100% 13C; U-100% 15N] C2A, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2K4A FGF-1-C2A binary complex structure: a key component in the fibroblast growthfactor non-classical pathway Deposited 2008-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–268（128 aa） Fragment：C2 domain, UNP residues 141-268	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 50mM (NH4)2SO4；Pressure ambient NMR sample composition 1.2mM FGF-1-C2A; 100% D2O \| 100% D2O	Resolution not provided
2KI6 The FGF1-S100A13-C2A hetero-hexameric complex structure: A component in the non-classical pathway for FGF1 secretion Deposited 2009-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 141–268（128 aa） Fragment：C2A domain Chain F 141–268（128 aa） Fragment：C2A domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1.0mM [U-100% 13C; U-100% 15N] C2A domain of Syt1-1, 1.0mM FGF1-2, 1.0mM S100A13-3, S100A13-4, 25mM sodium phosphate-5, 100mM sodium chloride-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LHA Solution structure of C2B with IP6 Deposited 2011-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–422（152 aa） Fragment：C2B domain, UNP residues 272-422	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] protein-1, 1.1 mM INOSITOL HEXAKISPHOSPHATE-2, 150 mM sodium chloride-3, 20 mM MES-4, 2 mM DTT-5, 2 mM Calcium Chloride-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N1T Dynamic binding mode of a synaptotagmin-1-SNARE complex in solution Deposited 2015-04-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 272–419（148 aa） Fragment：C2B domain (UNP residues 272-419)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Pressure ambient NMR sample composition 30 uM [U-100% 13C; U-100% 15N] protein, 25 mM Tris-HCl, 125 mM KSCN, 1 mM CaCl2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2R83 Crystal structure analysis of human synaptotagmin 1 C2A-C2B Deposited 2007-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 141–422（282 aa） Fragment：C2A-C2B Chain B 141–422（282 aa） Fragment：C2A-C2B	Not recorded	CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；3M NACL, 75 MM SODIUM ACETATE, PH 4.5, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293K, pH 4.50	Resolution 2.70 Å R-free 0.253
3F00 Crystal Structure of Synaptotagmin I C2A domain with Cu(II) Deposited 2008-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Non-standard monomer：Yes (specific site not provided by mmCIF)	CU COPPER (II) ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM HEPES, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.36 Å R-free 0.244
3F01 Crystal Structure of Synaptotagmin I C2A domain with Cu(II) Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM HEPES, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.70 Å R-free 0.229
3F04 Crystal Structure of Synaptotagmin I C2A domain Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM Tris, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.35 Å R-free 0.224
3F05 Crystal Structure of Synaptotagmin I C2A domain with Mn(II) Deposited 2008-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–266（126 aa） Fragment：UNP residues 141-266	Not recorded	SO4 SULFATE ION × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；2.0M Li2SO4, 100mM Tris, pH 7.5, vapor diffusion, hanging drop, temperature 298.0K	Resolution 1.40 Å R-free 0.228
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–53（21 aa） Fragment：toxin binding site (unp residues 33-53)	Not recorded	SO4 SULFATE ION × 8 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4V11 Structure of Synaptotagmin-1 with SV2A peptide phosphorylated at Thr84 Deposited 2014-09-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 273–422（150 aa） Fragment：C2B DOMAIN, UNP RESIDUES 273-422	Not recorded	CA CALCIUM ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5, 18 % PEG 3350, 0.05 M CACL2	Resolution 1.95 Å R-free 0.196
6G5F Crystal structure of an engineered Botulinum Neurotoxin type B mutant E1191M/S1199Y in complex with human synaptotagmin 1 Deposited 2018-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 33–53（21 aa）	Not recorded	GOL GLYCEROL × 3 MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294 K；1.1 M sodium malonate dibasic monohydrate, HEPES pH 7.0, 0.5% v/v Jeffamine ED-2003	Resolution 2.50 Å R-free 0.232
6G5K Crystal structure of the binding domain of Botulinum Neurotoxin type B in complex with human synaptotagmin 1 Deposited 2018-03-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M Amino acids 0.1 M Buffer System 2 7.5 50 % v/v Precipitant Mix 1	Resolution 2.00 Å R-free 0.235
6G5K Crystal structure of the binding domain of Botulinum Neurotoxin type B in complex with human synaptotagmin 1 Deposited 2018-03-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 33 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M Amino acids 0.1 M Buffer System 2 7.5 50 % v/v Precipitant Mix 1	Resolution 2.00 Å R-free 0.235
6QNS Crystal structure of the binding domain of Botulinum Neurotoxin type B mutant I1248W/V1249W in complex with human synaptotagmin 1 and GD1a receptors Deposited 2019-02-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294.15 K；20% v/v PEG6000, 0.1 M MES pH 6.0, 0.2 M sodium chloride	Resolution 2.40 Å R-free 0.229
6TZ3 Crystal Structure of Human Synaptotagmin 1 C2B without Ca2+ Deposited 2019-08-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa） Fragment：C2B domain, residues 272-422	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.2M Ammonium Sulfate, 30% PEG3350	Resolution 1.17 Å R-free 0.175
6U41 1.7 angstrom structure of a pathogenic human Syt 1 C2B (D304G) Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：D304G	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；2.0 M Ammonium Sulfate, 0.1 M Sodium Acetate	Resolution 1.70 Å R-free 0.178
6U4U 1.3 A structure of a pathogenic human Syt 1 C2B (I368T) Deposited 2019-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：I368T	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.5 M Ammonium Sulfate, 0.1 M Sodium Acetate	Resolution 1.30 Å R-free 0.169
6U4W 1.4 A structure of a pathogenic human Syt 1 C2B (D366E) Deposited 2019-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 272–422（151 aa）	Mutation：D366E	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；298 K；1.6 M Ammonium Sulfate, 0.1 M Citrate	Resolution 1.40 Å R-free 0.211
6ZVN Botulinum neurotoxin B2 binding domain in complex with human synaptotagmin I Deposited 2020-07-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain BBB 33–53（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.1 M imidazole pH 8.0, 10% (w/v) PEG 8000	Resolution 2.50 Å R-free 0.283
7U4Q Human Synaptotagmin-1 C2A Y181F Ca2+ bound Deposited 2022-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 141–267（127 aa） Fragment：C2A domain Chain B 141–267（127 aa） Fragment：C2A domain	Mutation：Y181F Mutation：Y181F	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；298 K；100 mM HEPES, 2.3 M malonate	Resolution 1.56 Å R-free 0.189

21 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYT1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–60； UniProt 1–60 Author chain J； PDBConstruct 1–60； UniProt 1–60 Author chain K； PDBConstruct 1–60； UniProt 1–60 Author chain L； PDBConstruct 1–60； UniProt 1–60 Author chain M； PDBConstruct 1–60； UniProt 1–60 Author chain N； PDBConstruct 1–60； UniProt 1–60 Author chain O； PDBConstruct 1–60； UniProt 1–60 Author chain P； PDBConstruct 1–60； UniProt 1–60

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8b8i
Deposition date deposition_date	2022-10-04
Structure title title	Nanobody (NbLumSyt1) bound to human Syt1
Keywords keywords	Syt1, nanobody, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.72 Å
Radius of gyration Rg (electron density) rg_electron	29.62 Å
Forward intensity I(0) i0	208660000.00
Molecular weight molecular_weight	109760.0 kDa
Excluded volume excluded_volume	134870 Å³
Envelope volume envelope_volume	168370 Å³
Hydration-shell volume shell_volume	46037 Å³
Envelope diameter envelope_diameter	99.5 Å
Shell Rg shell_rg	37.88 Å
Envelope Rg envelope_rg	29.66 Å
Shape Rg shape_rg	29.65 Å
Total Rg total_rg	30.18 Å
Total atoms total_atoms	7705
Residues n_residues	1052
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.9 Å
Rg (real space) rg_real	30.53 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	2.0870e+08
I(0) uncertainty (real space) i0_real_error	2.5460e+06
Rg (reciprocal space) rg_reciprocal	30.61 Å
I(0) (reciprocal space) i0_reciprocal	208700000.0000
Solution quality estimate total_estimate	0.8884
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.1 Å
Skewness Skewness skewness	0.170
Kurtosis Kurtosis kurtosis	-0.310
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	86310000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.866

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nanobody (NbLumSyt1)
Molecular weight formula_weight	12617.0 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	7778

MEVQLVESGGGLVQTGGSLRLSCTASGSIGSISVMGWYRQVPGTQYELVAGISRGGSTWYEDSVKGRFTISRDNAKNTLYLQMNSLKPEDTGMYYCAGGDYSDRLGSWGQGTQVTVSS

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Synaptotagmin-1
Molecular weight formula_weight	6443.3 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J,K,L,M,N,O,P

MVSESHHEALAAPPVTTVATVLPSNATEPASPGEGKEDAFSKLKEKFMNELHKIPLPPWA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	73

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.955 Å
Unit-cell length b length_b	100.226 Å
Unit-cell length c length_c	103.939 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.83 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	59.110 Å
R factor r_factor	—
R_work r_work	0.2634
R_free r_free	0.2977

fit	/app/data/saxs_computation/b8/8b8i/8b8i.fit
pddf	/app/data/pr_computation/b8/8b8i/8b8i.pr.out
profile	/app/data/saxs_computation/b8/8b8i/8b8i.dat

Nanobody (NbLumSyt1) bound to human Syt1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptotagmin-1

State in the Current Structure

Other States of the Same Protein in the Database

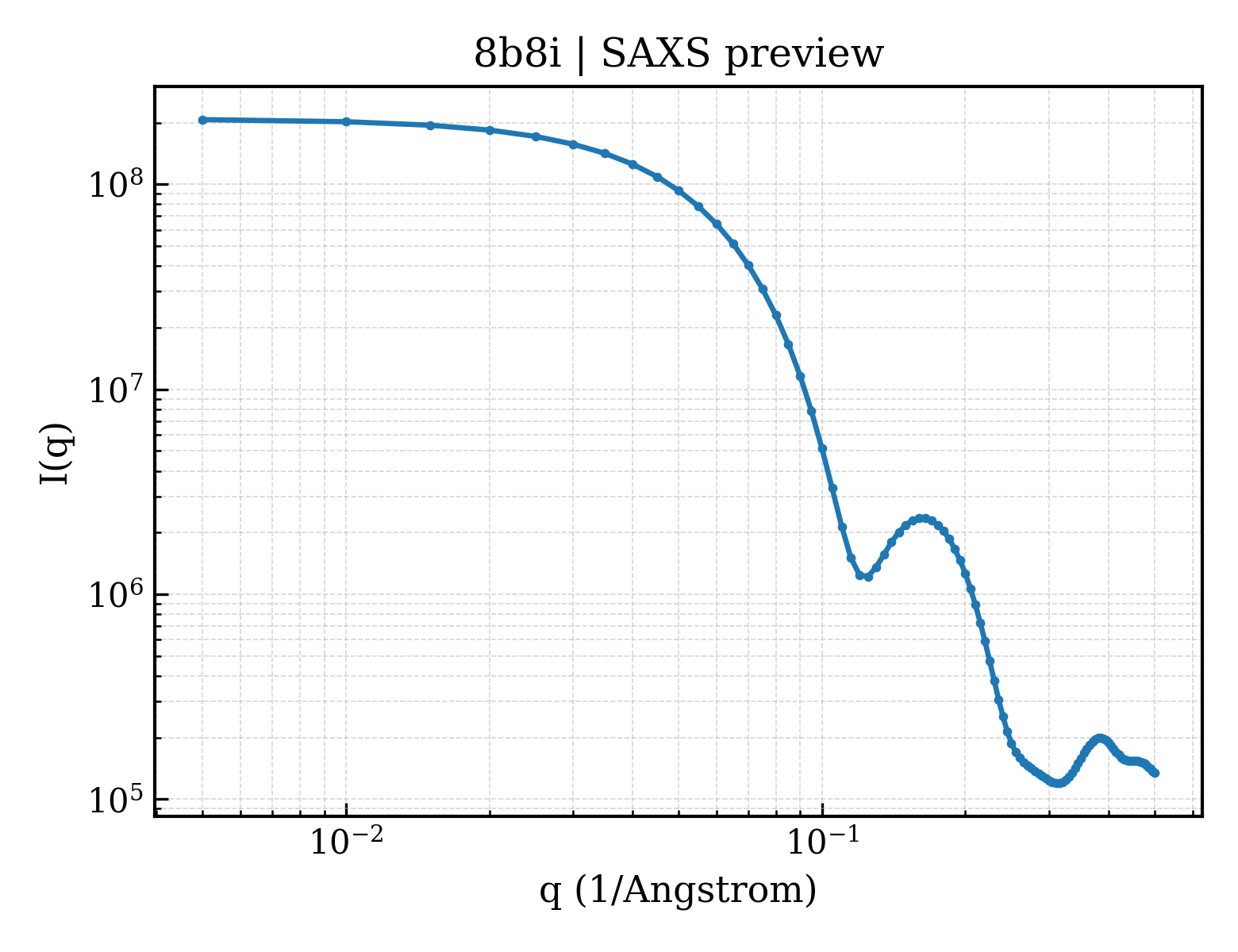

SAXS scattering curve SAXS Profile
