Cricetulus griseus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | GLYCEROL × 12 water × 2 | Consistent with protein count |
| UniProt name | BIP_CRIGR |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–523； UniProt 28–549 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 7a4u |
| Deposition date deposition_date | 2020-08-20 |
| Structure title title | Crystal structure of lid-truncated apo BiP in an oligomeric state |
| Keywords keywords | ER, Endoplasmic reticulum, Hsp70, GRP78, CHAPERONE; CHAPERONE |
| Experimental Method method | X-RAY DIFFRACTION |

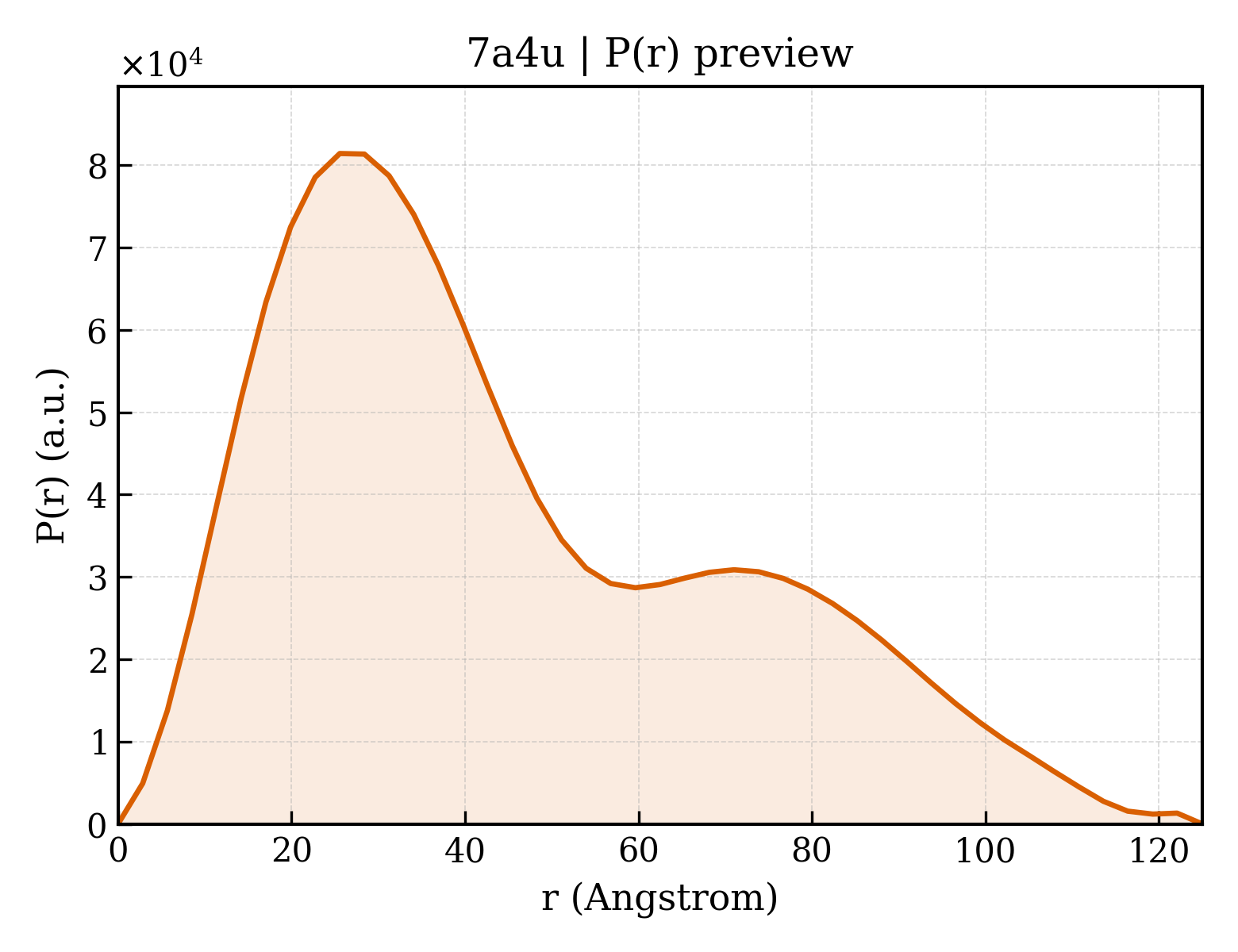

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 48.75 Å |
| Rg (electron density) | 48.91 Å |
| Total Rg | 48.79 Å |
| Atom count | 8010 |
| Residues | 1046 |
| Excluded volume | 142870 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 7a4uA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 640 — Actin; Chain A, domain 4 |
| Homologous superfamily homologous superfamily | 10 — ATPase, substrate binding domain, subdomain 4 |
| Domain ID domain_id | 7a4uA02 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 34 — Substrate Binding Domain Of DNAk; Chain A, domain 1 |
| Homologous superfamily homologous superfamily | 10 — Substrate Binding Domain Of DNAk; Chain A, domain 1 |
