7bah

Structure of RIG-I CTD bound to OH-RNA

Method: X-RAY DIFFRACTION D_max: 77.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Antiviral innate immune response receptor RIG-I

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Homooligomer Protein × 2 RNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 802–925 Chain B； UniProt 802–925	Not recorded	;RNA (5'-R(GPAPCPGPCPUPAPGPCPGPUPC)-3') ; × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；283.15 K；0.1 M Tris-HCl pH 8.0 0.2 M NaCl 18% PEG 3350	Resolution 1.89 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7BAH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LWD Solution structure of second CARD of human RIG-I Deposited 2012-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 95–190（96 aa） Fragment：CARD 2 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 250；Pressure ambient NMR sample composition 300 uM [U-100% 15N] card2, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 300 uM [U-100% 13C; U-100% 15N] card2, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 300 uM [U-100% 13C; U-100% 15N] card2, 100% D2O \| 100% D2O	Resolution not provided
2LWE Solution structure of mutant (T170E) second CARD of human RIG-I Deposited 2012-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 95–190（96 aa） Fragment：CARD 2 domain	Mutation：T170E	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 250；Pressure ambient NMR sample composition 300 uM [U-100% 15N] card2, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 300 uM [U-100% 13C; U-100% 15N] card2, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 300 uM [U-100% 13C; U-100% 15N] card2, 100% D2O \| 100% D2O	Resolution not provided
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFB Crystal structure of the regulatory domain of human RIG-I with bound Zn Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 802–925（124 aa） Fragment：Regulatory domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES, 18% w/v PEG 8000, pH 10.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 3.00 Å R-free 0.285
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2QFD Crystal structure of the regulatory domain of human RIG-I with bound Hg Deposited 2007-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 802–925（124 aa） Fragment：Regulatory domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10；293.15 K；0.1 M CHES pH 10.0, 18% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.70 Å R-free 0.276
2RMJ Solution structure of RIG-I C-terminal domain Deposited 2007-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 792–925（134 aa） Fragment：C-terminal domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；288 K；Ionic strength (raw mmCIF value) 0.25 NMR sample composition 0.5mM [U-100% 13C; U-100% 15N] RIG-I, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YKG Structural insights into RNA recognition by RIG-I Deposited 2011-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 230–925（696 aa） Fragment：RESIDUES 230-925	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；0.1 M BICINE, PH 9.0, 22.5 % POLYETHYLENE GLYCOL 6,000	Resolution 2.50 Å R-free 0.273
3LRN Crystal structure of human RIG-I CTD bound to a 14 bp GC 5' ppp dsRNA Deposited 2010-02-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 803–923（121 aa） Fragment：human RIG-I CTD Chain B 803–923（121 aa） Fragment：human RIG-I CTD	Mutation：C829S Mutation：C829S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；15% PEG 3,350, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.60 Å R-free 0.282
3LRR Crystal structure of human RIG-I CTD bound to a 12 bp AU rich 5' ppp dsRNA Deposited 2010-02-11	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 803–923（121 aa） Fragment：RIG-I CTD (UNP residues 803 to 923) Chain B 803–923（121 aa） Fragment：RIG-I CTD (UNP residues 803 to 923)	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 3,350 (15%) plus ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.15 Å R-free 0.228
3NCU Structural and functional insights into pattern recognition by the innate immune receptor RIG-I Deposited 2010-06-05	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 792–925（134 aa） Fragment：residues 792-925 Chain B 792–925（134 aa） Fragment：residues 792-925	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；27% (v/v) polyethylene glycerol 3350 (PEG 3350), 50 mM Tris-HCl, pH 7.5, 0.1 M KCl, and 10 mM MgCl2 , VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.55 Å R-free 0.229
3OG8 Crystal structure of human RIG-I CTD bound to a 14-bp blunt-ended dsRNA Deposited 2010-08-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 802–925（124 aa） Fragment：C-terminal domain Chain B 802–925（124 aa） Fragment：C-terminal domain	Mutation：C829S Mutation：C829S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；27% PEG MME 550, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.278
3ZD6 Snapshot 1 of RIG-I scanning on RNA duplex Deposited 2012-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 185–880（696 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；pH 9	Resolution 2.80 Å R-free 0.279
3ZD7 Snapshot 3 of RIG-I scanning on RNA duplex Deposited 2012-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 185–880（696 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；pH 9	Resolution 2.50 Å R-free 0.288
4AY2 Capturing 5' tri-phosphorylated RNA duplex by RIG-I Deposited 2012-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 239–925（687 aa） Fragment：RESIDUES 239-925	Not recorded	ZN ZINC ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.286
4BPB STRUCTURAL INSIGHTS INTO RNA RECOGNITION BY RIG-I Deposited 2013-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 230–925（696 aa） Fragment：RESIDUES 230-925	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；0.1 M BICINE, PH 9.0, 22.5 % POLYETHYLENE GLYCOL 6,000	Resolution 2.58 Å R-free 0.255
4NQK Structure of an Ubiquitin complex Deposited 2013-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–200（200 aa） Fragment：N-terminal tandem CARD domain, UNP residues 1-200 Chain B 1–200（200 aa） Fragment：N-terminal tandem CARD domain, UNP residues 1-200 Chain C 1–200（200 aa） Fragment：N-terminal tandem CARD domain, UNP residues 1-200 Chain D 1–200（200 aa） Fragment：N-terminal tandem CARD domain, UNP residues 1-200	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22% PEG3350, 0.2 M Tri-Li Citrate, 3% ethylene glycol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.70 Å R-free 0.285
4ON9 DECH box helicase domain Deposited 2014-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 230–793（564 aa） Fragment：UNP residues 230-793	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；288 K；1:1 RIG-I SF2 (60mg/ml) : reservoir solution (100mM HEPES pH=6.8, 100mM ammonium sulfate, 6.7%(v/v) Isopropanol, 9%(v/v) PEG4000), 4days, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.71 Å R-free 0.258
4ON9 DECH box helicase domain Deposited 2014-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 230–793（564 aa） Fragment：UNP residues 230-793	Not recorded	SO4 SULFATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；288 K；1:1 RIG-I SF2 (60mg/ml) : reservoir solution (100mM HEPES pH=6.8, 100mM ammonium sulfate, 6.7%(v/v) Isopropanol, 9%(v/v) PEG4000), 4days, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.71 Å R-free 0.258
4ON9 DECH box helicase domain Deposited 2014-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 230–793（564 aa） Fragment：UNP residues 230-793 Chain B 230–793（564 aa） Fragment：UNP residues 230-793	Not recorded	SO4 SULFATE ION × 4 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；288 K；1:1 RIG-I SF2 (60mg/ml) : reservoir solution (100mM HEPES pH=6.8, 100mM ammonium sulfate, 6.7%(v/v) Isopropanol, 9%(v/v) PEG4000), 4days, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.71 Å R-free 0.258
4P4H Caught-in-action signaling complex of RIG-I 2CARD domain and MAVS CARD domain Deposited 2014-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain A 1–201（201 aa） Chain B 1–201（201 aa） Chain C 1–201（201 aa） Chain D 1–201（201 aa） Chain E 1–201（201 aa） Chain F 1–201（201 aa） Chain G 1–201（201 aa） Chain H 1–201（201 aa）	Mutation：E52A Mutation：E52A Mutation：E52A Mutation：E52A Mutation：E52A Mutation：E52A Mutation：E52A Mutation：E52A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Tri-Li Citrate, PEG 3350, Cr(III) Cl3	Resolution 3.40 Å R-free 0.240
5E3H Structural Basis for RNA Recognition and Activation of RIG-I Deposited 2015-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 232–925（694 aa） Fragment：UNP residues 232-925	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 3 GOL GLYCEROL × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；25% w/v PEG3350, 0.25 M sodium thiocyanate, 100 mM MOPS, pH 7.8, 3% v/v 2,2,2-trifluoroethanol	Resolution 2.70 Å R-free 0.268
5F98 Crystal structure of RIG-I in complex with Cap-0 RNA Deposited 2015-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: dodecameric	Chain A 232–925（694 aa） Chain C 232–925（694 aa） Chain E 232–925（694 aa） Chain G 232–925（694 aa） Chain I 232–925（694 aa） Chain K 232–925（694 aa）	Not recorded	ZN ZINC ION × 6 MG MAGNESIUM ION × 6 M7G 7N-METHYL-8-HYDROGUANOSINE-5'-DIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；20% (w/v) PEG 3350, 0.2 M NaSCN, 100 mM MOPS (pH 7.8), 3.5% (v/v) 2,2,2-trifluoroethanol	Resolution 3.28 Å R-free 0.277
5F9F Crystal structure of RIG-I helicase-RD in complex with 24-mer blunt-end hairpin RNA Deposited 2015-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: dodecameric	Chain A 187–880（694 aa） Chain C 187–880（694 aa） Chain E 187–880（694 aa） Chain G 187–880（694 aa） Chain I 187–880（694 aa） Chain K 187–880（694 aa）	Not recorded	ZN ZINC ION × 6 MG MAGNESIUM ION × 6 ETF TRIFLUOROETHANOL × 4 BU3 (R,R)-2,3-BUTANEDIOL × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23% (w/v) PEG 3350, 0.3 M NaSCN, 100 mM MOPS (pH 7.8)	Resolution 2.60 Å R-free 0.259
5F9H Crystal structure of RIG-I helicase-RD in complex with 24-mer 5' triphosphate hairpin RNA Deposited 2015-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: dodecameric	Chain A 232–925（694 aa） Chain C 232–925（694 aa） Chain E 232–925（694 aa） Chain G 232–925（694 aa） Chain I 232–925（694 aa） Chain K 232–925（694 aa）	Not recorded	ZN ZINC ION × 6 MG MAGNESIUM ION × 8 GTP GUANOSINE-5'-TRIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23% (w/v) PEG 3350, 0.25 M KSCN, 100 mM MOPS (pH 7.8)	Resolution 3.10 Å R-free 0.266
6GPG Structure of the RIG-I Singleton-Merten syndrome variant C268F Deposited 2018-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 232–925（694 aa）	Mutation：C268F	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M MOPS pH 7.5, 17.5 % (w/v) PEG 3350, 0.25 M NaSCN, 3 % (v/v) 2,2,2 trifluoroethanol	Resolution 2.89 Å R-free 0.260
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain D 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain F 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain H 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain J 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
6KYV Crystal Structure of RIG-I and hairpin RNA with G-U wobble base pairs Deposited 2019-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain L 242–922（681 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350 (w/v), 100mM MES pH 6.5, 100mM NaSCN, 20mM Na Citrate tribasic	Resolution 3.00 Å R-free 0.274
7BAI Structure of RIG-I CTD (I875A) bound to p-RNA Deposited 2020-12-15	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 802–925（124 aa） Chain B 802–925（124 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293.15 K；0.2 M thiocyanate pH 8.4 20% PEG 3350 10% ethylene glycol 10% MPD	Resolution 3.40 Å R-free 0.273
7BAI Structure of RIG-I CTD (I875A) bound to p-RNA Deposited 2020-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain E 802–925（124 aa）	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293.15 K；0.2 M thiocyanate pH 8.4 20% PEG 3350 10% ethylene glycol 10% MPD	Resolution 3.40 Å R-free 0.273
7JL1 Cryo-EM structure of RIG-I:dsRNA in complex with RIPLET PrySpry domain (monomer) Deposited 2020-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 159–880（722 aa） Fragment：UNP residues 159-880	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7JL3 Cryo-EM structure of RIG-I:dsRNA filament in complex with RIPLET PrySpry domain (trimer) Deposited 2020-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: octameric	Chain A 159–880（722 aa） Fragment：UNP residues 159-880 Chain C 159–880（722 aa） Fragment：UNP residues 159-880 Chain E 159–880（722 aa） Fragment：UNP residues 159-880	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ALF TETRAFLUOROALUMINATE ION × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7MK1 Structure of a protein-modified aptamer complex Deposited 2021-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 801–925（125 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285.15 K；30% PEG3350, 0.01 M Na acetate pH 4.8	Resolution 1.90 Å R-free 0.220
7MK1 Structure of a protein-modified aptamer complex Deposited 2021-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 801–925（125 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285.15 K；30% PEG3350, 0.01 M Na acetate pH 4.8	Resolution 1.90 Å R-free 0.220
7TNX Cryo-EM structure of RIG-I in complex with p3dsRNA Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
7TNY Cryo-EM structure of RIG-I in complex with p2dsRNA Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7TNZ Cryo-EM structure of RIG-I in complex with p1dsRNA Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
7TO0 Cryo-EM structure of RIG-I in complex with OHdsRNA Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7TO1 Cryo-EM structure of RIG-I bound to the end of p3SLR30 (+ATP) Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.66 Å
7TO2 Cryo-EM structure of RIG-I bound to the internal sites of p3SLR30 (+ATP) Deposited 2022-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8DVR Cryo-EM structure of RIG-I bound to the end of p3SLR30 (+AMPPNP) Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8DVS Cryo-EM structure of RIG-I bound to the end of OHSLR30 (+ATP) Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8DVU Cryo-EM structure of RIG-I bound to the internal sites of OHSLR30 (+ATP) Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8G7T Cryo-EM structure of Riplet:RIG-I:dsRNA complex (end-end) Deposited 2023-02-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–925（925 aa） Chain C 1–925（925 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8G7U Cryo-EM structure of Riplet:RIG-I:dsRNA complex (end-semi-closed end) Deposited 2023-02-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–925（925 aa） Chain C 1–925（925 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8G7V Cryo-EM structure of Riplet:RIG-I:dsRNA complex (end-inter) Deposited 2023-02-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–925（925 aa） Chain C 1–925（925 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8SCZ Cryo-EM structure of 14aa-GS RIG-I in complex with p3SLR30 Deposited 2023-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8SD0 Cryo-EM structure of RIG-I in complex with p3SLR14 Deposited 2023-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9KTW Cryo-EM structure of wild type RIG-I with 5'p-RNA Deposited 2024-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 1–925（925 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25mM HEPES, 150mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9KU4 Cryo-EM structure of E373A mutant RIG-I with 5'p-RNA Deposited 2024-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 1–925（925 aa）	Mutation：E373A	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25mM HEPES, 150mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å

43 other PDB entries and 70 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DDX58_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–127； UniProt 802–925 Author chain B； PDBConstruct 4–127； UniProt 802–925

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

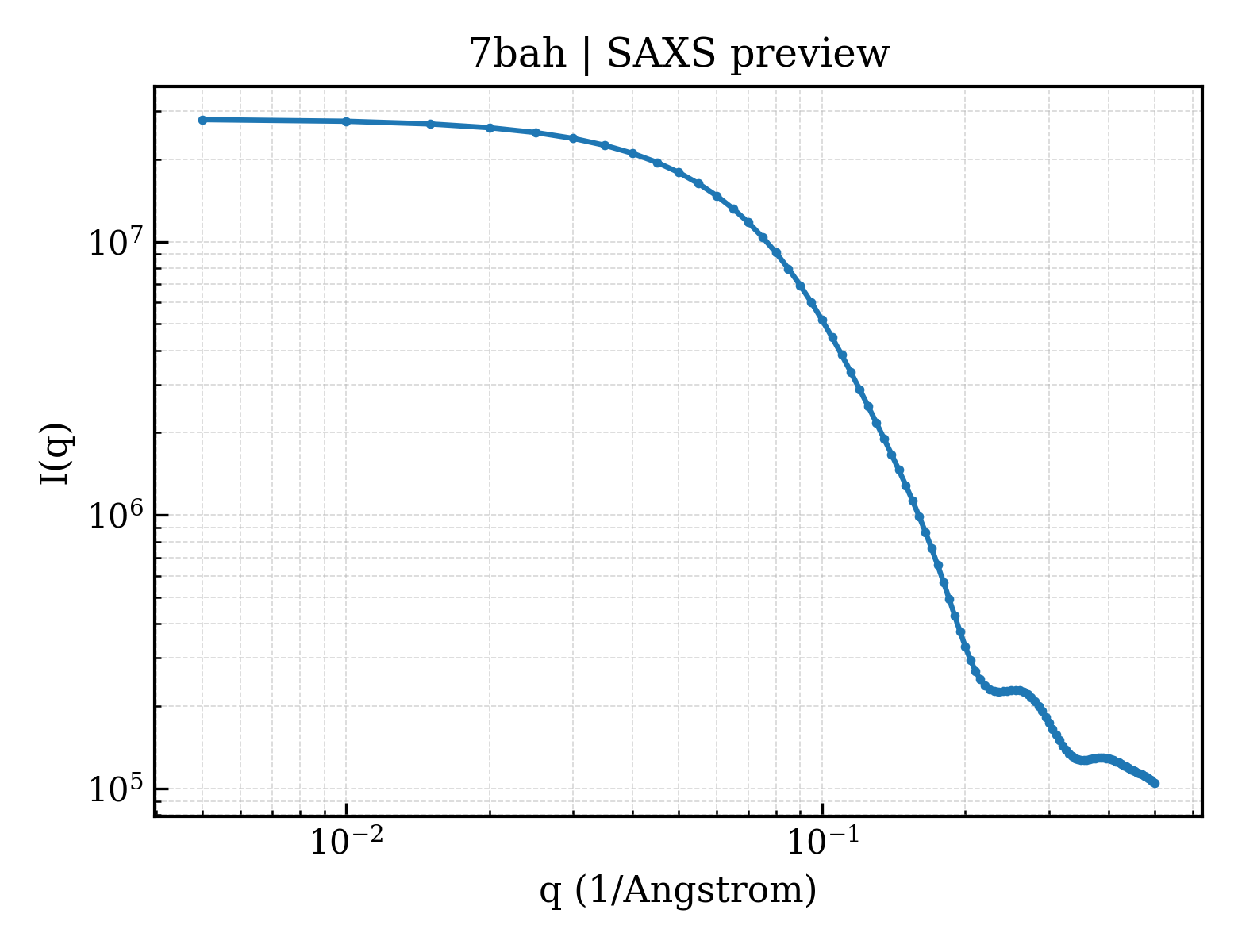

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7bah
Deposition date deposition_date	2020-12-15
Structure title title	Structure of RIG-I CTD bound to OH-RNA
Keywords keywords	RNA recognition, innate immunity, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.25 Å
Radius of gyration Rg (electron density) rg_electron	23.52 Å
Forward intensity I(0) i0	28056400.00
Molecular weight molecular_weight	36249.0 kDa
Excluded volume excluded_volume	43298 Å³
Envelope volume envelope_volume	55924 Å³
Hydration-shell volume shell_volume	20480 Å³
Envelope diameter envelope_diameter	76.7 Å
Shell Rg shell_rg	29.74 Å
Envelope Rg envelope_rg	23.17 Å
Shape Rg shape_rg	23.53 Å
Total Rg total_rg	24.16 Å
Total atoms total_atoms	2512
Residues n_residues	267
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.9 Å
Rg (real space) rg_real	23.30 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	2.8060e+07
I(0) uncertainty (real space) i0_real_error	3.8090e+05
Rg (reciprocal space) rg_reciprocal	23.29 Å
I(0) (reciprocal space) i0_reciprocal	28060000.0000
Solution quality estimate total_estimate	0.8818
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.2 Å
Skewness Skewness skewness	0.369
Kurtosis Kurtosis kurtosis	-0.419
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2503000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.849; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.961

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Antiviral innate immune response receptor RIG-I
Molecular weight formula_weight	14810.3 kDa
EC 编号 ec_number	3.6.4.13
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2747

GAMDKENKKLLCRKCKALACYTADVRVIEECHYTVLGDAFKECFVSRPHPKPKQFSSFEKRAKIFCARQNCSHDWGIHVKYKTFEIPVIKIESFVVEDIATGVQTLYSKWKDFHFEKIPFDPAEMSK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(GPAPCPGPCPUPAPGPCPGPUPC)-3') ;
Molecular weight formula_weight	3827.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	C,D

GACGCUAGCGUC

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	227

▶

8. Citations (1)

▶

Unit-cell length a length_a	81.920 Å
Unit-cell length b length_b	81.920 Å
Unit-cell length c length_c	111.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	hexagonal

Resolution resolution	1.890 Å
Low-resolution limit resolution_low	43.920 Å
R factor r_factor	0.1969
R_work r_work	0.1948
R_free r_free	0.2236

fit	/app/data/saxs_computation/ba/7bah/7bah.fit
pddf	/app/data/pr_computation/ba/7bah/7bah.pr.out
profile	/app/data/saxs_computation/ba/7bah/7bah.dat
