7brs

E.coli beta-galactosidase (E537Q) in complex with fluorescent probe KSA02

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-galactosidase

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	;8-[2-[(E)-2-[4-[(2S,3R,4S,5R,6R)-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxyphenyl]ethenyl]-3,3-dimethyl-indol-1-ium-1-yl]octanoic acid ; × 4 MAGNESIUM ION × 8 SODIUM ION × 6 DIMETHYL SULFOXIDE × 54 GLYCEROL × 2 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	;8-[2-[(E)-2-[4-[(2S,3R,4S,5R,6R)-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxyphenyl]ethenyl]-3,3-dimethyl-indol-1-ium-1-yl]octanoic acid ; × 4 MAGNESIUM ION × 8 SODIUM ION × 8 DIMETHYL SULFOXIDE × 38 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BGAL_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–1025； UniProt 1–1024 Author chain B； PDBConstruct 2–1025； UniProt 1–1024 Author chain C； PDBConstruct 2–1025； UniProt 1–1024 Author chain D； PDBConstruct 2–1025； UniProt 1–1024

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7brs
Deposition date deposition_date	2020-03-30
Structure title title	E.coli beta-galactosidase (E537Q) in complex with fluorescent probe KSA02
Keywords keywords	beta_galactosidase, fluorescent probe, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7brs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7brs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

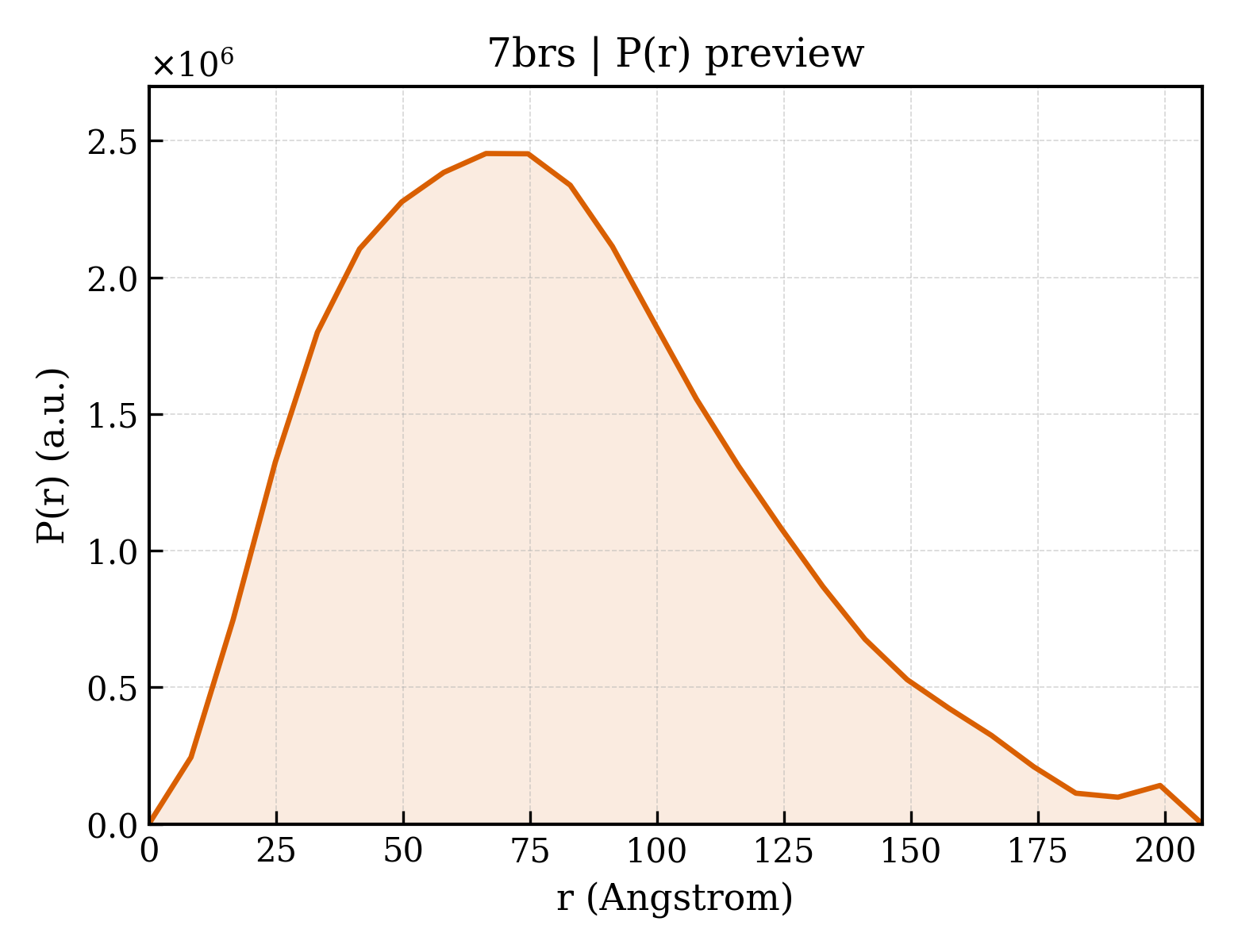

7brs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.19 Å
Rg (electron density)	50.67 Å
Total Rg	50.77 Å
Atom count	32154
Residues	4072
Excluded volume	564830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7brs__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7brs__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Beta-galactosidase
Molecular weight formula_weight	116688.5 kDa
EC 编号 ec_number	3.2.1.23
Mutation mutation	E537Q
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	32496

SMTMITDSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEARTDRPSQQLRSLNGEWRFAWFPAPEAVPESWLECDLPEADTVVVPSNWQMHGYDAPIYTNVTYPITVNPPFVPTENPTGCYSLTFNVDESWLQEGQTRIIFDGVNSAFHLWCNGRWVGYGQDSRLPSEFDLSAFLRAGENRLAVMVLRWSDGSYLEDQDMWRMSGIFRDVSLLHKPTTQISDFHVATRFNDDFSRAVLEAEVQMCGELRDYLRVTVSLWQGETQVASGTAPFGGEIIDERGGYADRVTLRLNVENPKLWSAEIPNLYRAVVELHTADGTLIEAEACDVGFREVRIENGLLLLNGKPLLIRGVNRHEHHPLHGQVMDEQTMVQDILLMKQNNFNAVRCSHYPNHPLWYTLCDRYGLYVVDEANIETHGMVPMNRLTDDPRWLPAMSERVTRMVQRDRNHPSVIIWSLGNESGHGANHDALYRWIKSVDPSRPVQYEGGGADTTATDIICPMYARVDEDQPFPAVPKWSIKKWLSLPGETRPLILCQYAHAMGNSLGGFAKYWQAFRQYPRLQGGFVWDWVDQSLIKYDENGNPWSAYGGDFGDTPNDRQFCMNGLVFADRTPHPALTEAKHQQQFFQFRLSGQTIEVTSEYLFRHSDNELLHWMVALDGKPLASGEVPLDVAPQGKQLIELPELPQPESAGQLWLTVRVVQPNATAWSEAGHISAWQQWRLAENLSVTLPAASHAIPHLTTSEMDFCIELGNKRWQFNRQSGFLSQMWIGDKKQLLTPLRDQFTRAPLDNDIGVSEATRIDPNAWVERWKAAGHYQAEAALLQCTADTLADAVLITTAHAWQHQGKTLFISRKTYRIDGSGQMAITVDVEVASDTPHPARIGLNCQLAQVAERVNWLGLGPQENYPDRLTAACFDRWDLPLSDMYTPYVFPSENGLRCGTRELNYGPHQWRGDFQFNISRYSQQQLMETSHRHLLHAEEGTWLNIDGFHMGIGGDDSWSPSVSAEFQLSAGRYHYQLVWCQK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;8-[2-[(E)-2-[4-[(2S,3R,4S,5R,6R)-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxyphenyl]ethenyl]-3,3-dimethyl-indol-1-ium-1-yl]octanoic acid ;
Molecular weight formula_weight	568.7 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	46

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	382

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (20 domains)

Domain ID domain_id	d7brsa1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d7brsa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsa3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

Domain ID domain_id	d7brsa4
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsa5
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.0 — automated matches

Domain ID domain_id	d7brsb1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d7brsb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

Domain ID domain_id	d7brsb4
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsb5
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.0 — automated matches

Domain ID domain_id	d7brsc1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d7brsc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsc3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

Domain ID domain_id	d7brsc4
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsc5
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.0 — automated matches

Domain ID domain_id	d7brsd1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d7brsd2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsd3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

Domain ID domain_id	d7brsd4
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.4 — beta-Galactosidase/glucuronidase domain
Family Family family	b.1.4.0 — automated matches

Domain ID domain_id	d7brsd5
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.0 — automated matches

▶

Unit-cell length a length_a	246.653 Å
Unit-cell length b length_b	84.423 Å
Unit-cell length c length_c	240.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.43 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.670 Å
Low-resolution limit resolution_low	30.040 Å
R factor r_factor	0.2024
R_work r_work	0.2003
R_free r_free	0.2444
