SAXSdb — 7clv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TIM23 isoform 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–222 Chain B； UniProt 1–222	Not recorded	COX4 isoform 1 × 1 （A0A6A5PV33）	SOLUTION NMR NMR measurement conditions：pH 5；313.75 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR measurement conditions：pH 5；313.75 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition：0.5 mM 2H, 15N Tim23, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 uM 2H, 15N, 13C Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 15N, 13C Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 50% 2H, 13C, 15N Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM IVL-selectively_labeled_Tim23_unlabeled_peptide Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 50%unlabeled/50%labeled_Tim23_unlabeled_peptide Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 nM 50%unlabeled/50%labeled_Tim23_unlabeled_peptide [15N, 13C]-peptide_unlabeled_Tim23, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7CLV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8E1M Cryo-EM structure of the endogenous core TIM23 complex from S. cerevisiae Deposited 2022-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–222（222 aa）	Not recorded	CDL CARDIOLIPIN × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8SCX Cryo-EM structure of the core TIM23 complex from S. cerevisiae Deposited 2023-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–222（222 aa）	Not recorded	CDL CARDIOLIPIN × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6A5Q5E3_YEASX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222

COX4 isoform 1

Saccharomyces cerevisiae

UniProt A0A6A5PV33

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–25	Not recorded	TIM23 isoform 1 × 2 （A0A6A5Q5E3）	SOLUTION NMR NMR measurement conditions：pH 5；313.75 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR measurement conditions：pH 5；313.75 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition：0.5 mM 2H, 15N Tim23, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 uM 2H, 15N, 13C Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 15N, 13C Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 50% 2H, 13C, 15N Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM IVL-selectively_labeled_Tim23_unlabeled_peptide Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM 50%unlabeled/50%labeled_Tim23_unlabeled_peptide Tim23_unlabeled_Peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 nM 50%unlabeled/50%labeled_Tim23_unlabeled_peptide [15N, 13C]-peptide_unlabeled_Tim23, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7CLV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6GIQ Saccharomyces cerevisiae respiratory supercomplex III2IV Deposited 2018-05-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain d 1–155（155 aa）	Not recorded	6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEC HEME C × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6A5PV33_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–25； UniProt 1–25

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7clv
Deposition date deposition_date	2020-07-22
Structure title title	Solution structure of mitochondrial Tim23 channel in complex with a signaling peptide
Keywords keywords	Membrane Protein, Tim23 Channel, Presequence., PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	SOLUTION NMR

▼

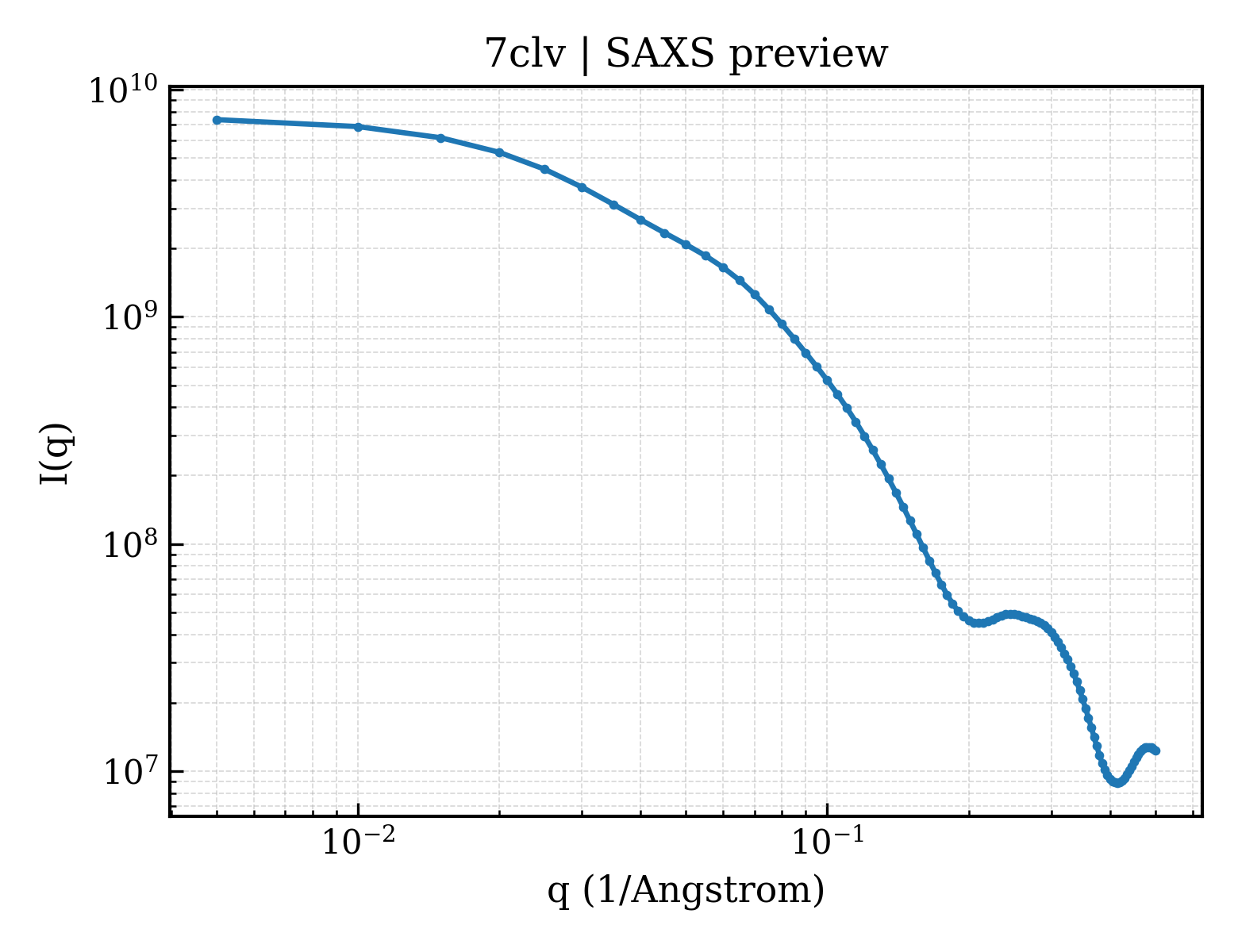

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.54 Å
Radius of gyration Rg (electron density) rg_electron	53.58 Å
Forward intensity I(0) i0	7560360000.00
Molecular weight molecular_weight	742210.0 kDa
Excluded volume excluded_volume	930400 Å³
Envelope volume envelope_volume	600760 Å³
Hydration-shell volume shell_volume	73293 Å³
Envelope diameter envelope_diameter	212.3 Å
Shell Rg shell_rg	59.22 Å
Envelope Rg envelope_rg	73.03 Å
Shape Rg shape_rg	53.63 Å
Total Rg total_rg	53.46 Å
Total atoms total_atoms	104775
Residues n_residues	7035
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

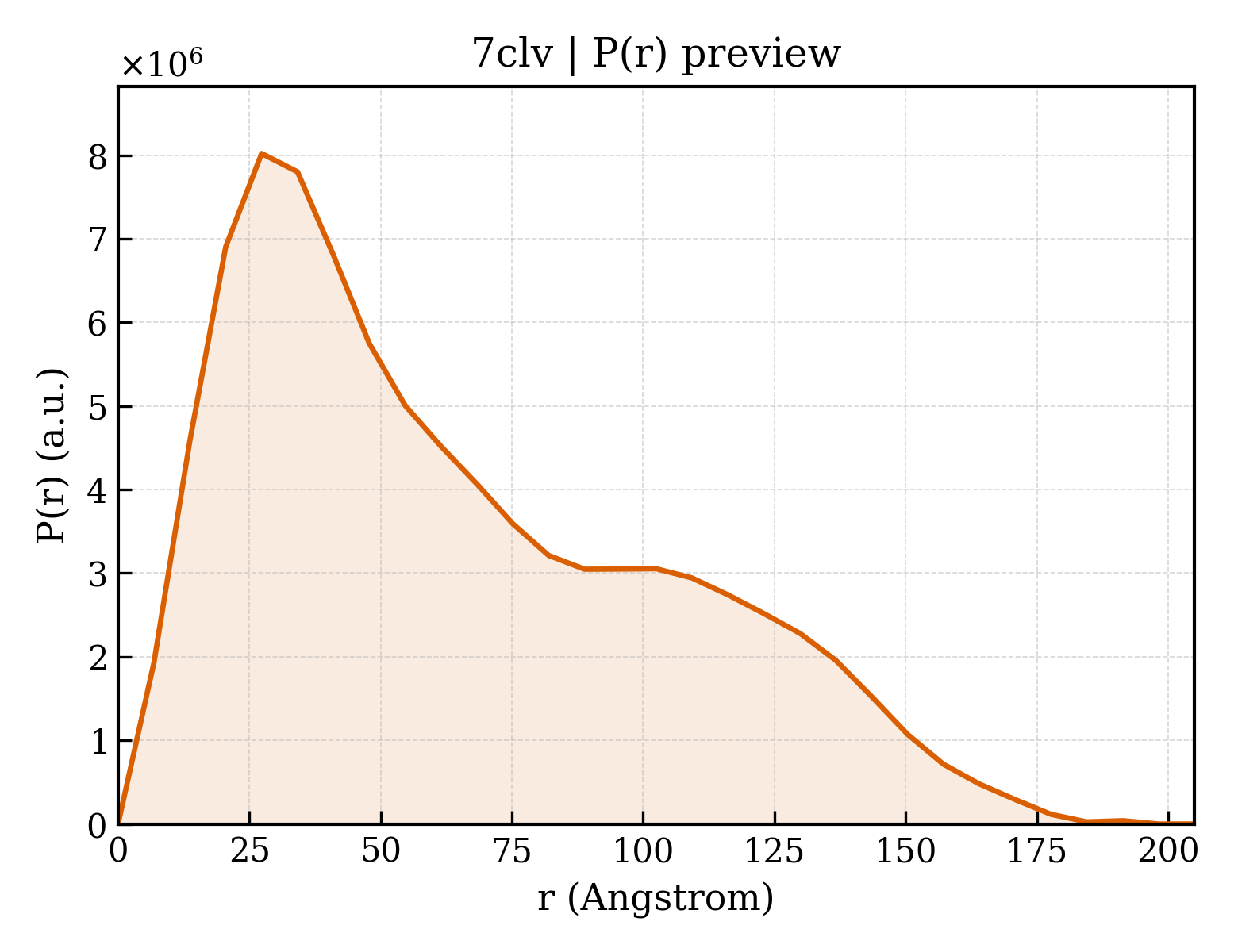

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	205.0 Å
Rg (real space) rg_real	53.63 Å
Rg uncertainty (real space) rg_real_error	3.66 Å
I(0) (real space) i0_real	7.5600e+09
I(0) uncertainty (real space) i0_real_error	1.9410e+08
Rg (reciprocal space) rg_reciprocal	51.62 Å
I(0) (reciprocal space) i0_reciprocal	7539000000.0000
Solution quality estimate total_estimate	0.6160
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	27.3 Å
Skewness Skewness skewness	0.652
Kurtosis Kurtosis kurtosis	-0.562
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4985000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.043; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.030; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	TIM23 isoform 1
Molecular weight formula_weight	23266.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	104775

MSWLFGDKTPTDDANAAVGGQDTTKPKELSLKQSLGFEPNINNIISGPGGMHVDTARLHPLAGLDKGVEYLDLEEEQLSSLEGSQGLIPSRGWTDDLCYGTGAVYLLGLGIGGFSGMMQGLQNIPPNSPGKLQLNTVLNHITKRGPFLGNNAGILALSYNIINSTIDALRGKHDTAGSIGAGALTGALFKSSKGLKPMGYSSAMVAAACAVWCSVKKRLLEK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli K-12

Entity 2 Entity 2 polymer

Description description	COX4 isoform 1
Molecular weight formula_weight	2993.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MLSLRQSIRFFKPATRTLCSSRYLL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli K-12

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/cl/7clv/7clv.fit
pddf	/app/data/pr_computation/cl/7clv/7clv.pr.out
profile	/app/data/saxs_computation/cl/7clv/7clv.dat

Solution structure of mitochondrial Tim23 channel in complex with a signaling peptide
