8scx

Cryo-EM structure of the core TIM23 complex from S. cerevisiae

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitochondrial import inner membrane translocase subunit TIM17

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Mitochondrial import inner membrane translocase subunit TIM23 × 1 （A0A6A5Q5E3） Mitochondrial import inner membrane translocase subunit TIM44 × 1 （A0A6A5Q2Y5） Antibody Fab fragment light chain × 1 Antibody Fab fragment heavy chain × 1 CARDIOLIPIN × 1 PHOSPHATIDYLETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5PVU8_YEASX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 1–158

Mitochondrial import inner membrane translocase subunit TIM23

Saccharomyces cerevisiae

UniProt A0A6A5Q5E3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Mitochondrial import inner membrane translocase subunit TIM17 × 1 （A0A6A5PVU8） Mitochondrial import inner membrane translocase subunit TIM44 × 1 （A0A6A5Q2Y5） Antibody Fab fragment light chain × 1 Antibody Fab fragment heavy chain × 1 CARDIOLIPIN × 1 PHOSPHATIDYLETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5Q5E3_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–222； UniProt 1–222

Mitochondrial import inner membrane translocase subunit TIM44

Saccharomyces cerevisiae

UniProt A0A6A5Q2Y5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Mitochondrial import inner membrane translocase subunit TIM17 × 1 （A0A6A5PVU8） Mitochondrial import inner membrane translocase subunit TIM23 × 1 （A0A6A5Q5E3） Antibody Fab fragment light chain × 1 Antibody Fab fragment heavy chain × 1 CARDIOLIPIN × 1 PHOSPHATIDYLETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5Q2Y5_YEASX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–431； UniProt 1–431

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8scx
Deposition date deposition_date	2023-04-05
Structure title title	Cryo-EM structure of the core TIM23 complex from S. cerevisiae
Keywords keywords	TRANSLOCASE; TRANSLOCASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8scx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

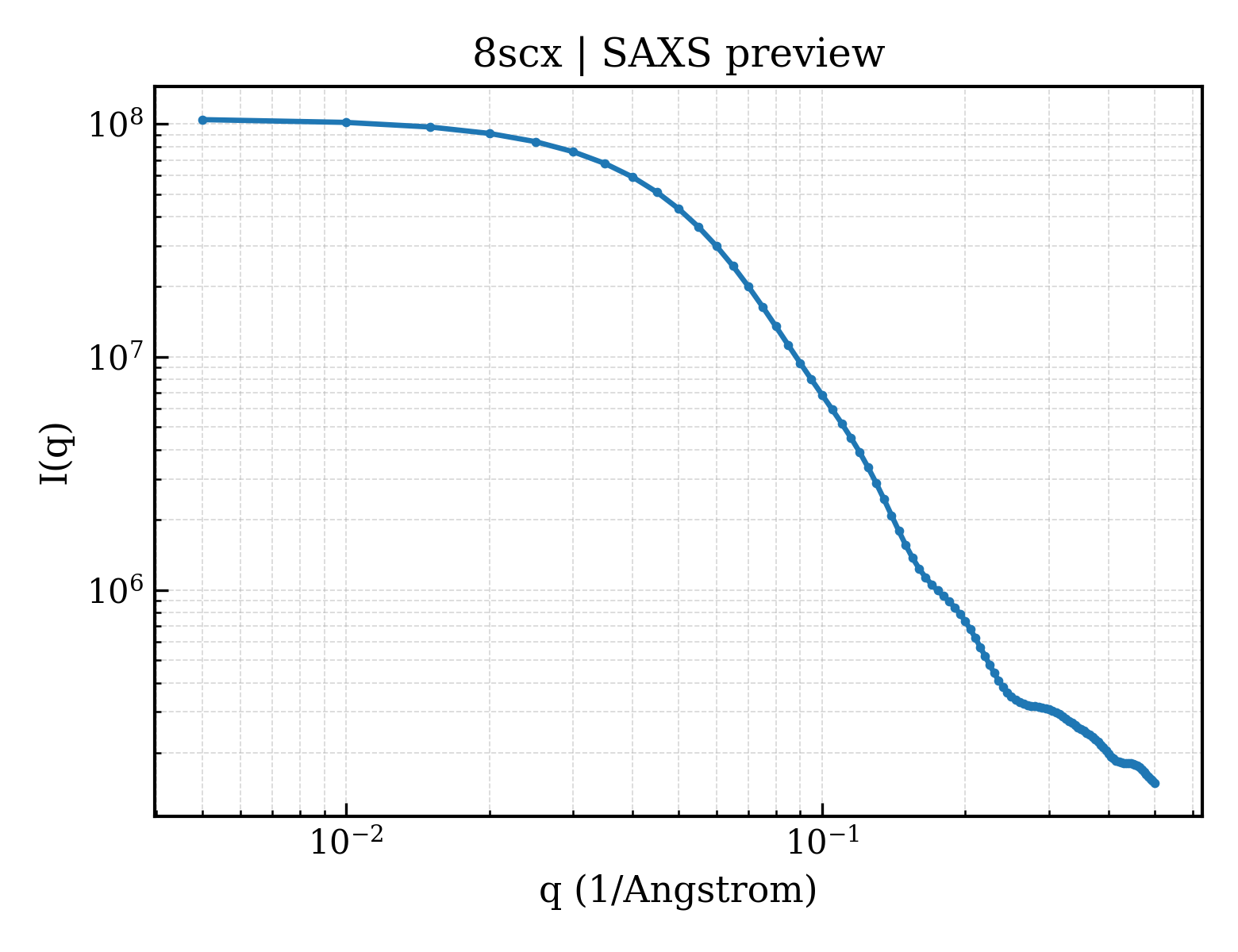

8scx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

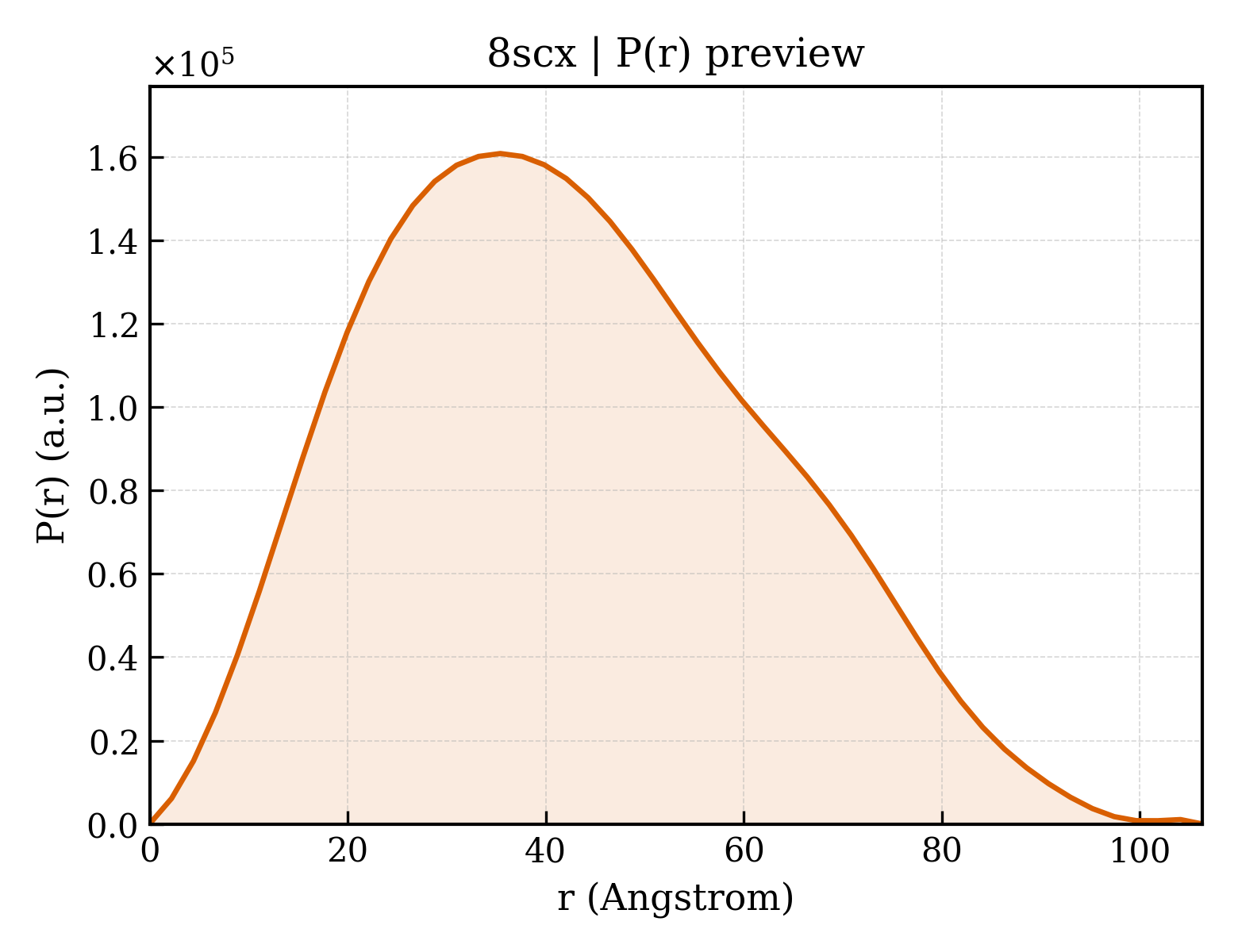

8scx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.94 Å
Rg (electron density)	32.48 Å
Total Rg	33.04 Å
Atom count	5753
Residues	760
Excluded volume	102410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8scx__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Mitochondrial import inner membrane translocase subunit TIM17
Molecular weight formula_weight	16602.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5753

MSADHSRDPCPIVILNDFGGAFAMGAIGGVVWHGIKGFRNSPLGERGSGAMSAIKARAPVLGGNFGVWGGLFSTFDCAVKAVRKREDPWNAIIAGFFTGGALAVRGGWRHTRNSSITCACLLGVIEGVGLMFQRYAAWQAKPMAPPLPEAPSSQPLQA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Mitochondrial import inner membrane translocase subunit TIM23
Molecular weight formula_weight	23266.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSWLFGDKTPTDDANAAVGGQDTTKPKELSLKQSLGFEPNINNIISGPGGMHVDTARLHPLAGLDKGVEYLDLEEEQLSSLEGSQGLIPSRGWTDDLCYGTGAVYLLGLGIGGFSGMMQGLQNIPPNSPGKLQLNTVLNHITKRGPFLGNNAGILALSYNIINSTIDALRGKHDTAGSIGAGALTGALFKSSKGLKPMGYSSAMVAAACAVWCSVKKRLLEK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	Mitochondrial import inner membrane translocase subunit TIM44
Molecular weight formula_weight	48933.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MHRSTFIRTSGTSSRTLTARYRSQYTGLLVARVLFSTSTTRAQGGNPRSPLQIFRDTFKKEWEKSQELQENIKTLQDASGKLGESEAYKKAREAYLKAQRGSTIVGKTLKKTGETMEHIATKAWESELGKNTRKAAAATAKKLDESFEPVRQTKIYKEVSEVIDDGESSRYGGFITKEQRRLKRERDLASGKRHRAVKSNEDAGTAVVATNIESKESFGKKVEDFKEKTVVGRSIQSLKNKLWDESENPLIVVMRKITNKVGGFFAETESSRVYSQFKLMDPTFSNESFTRHLREYIVPEILEAYVKGDVKVLKKWFSEAPFNVYAAQQKIFKEQDVYADGRILDIRGVEIVSAKLLAPQDIPVLVVGCRAQEINLYRKKKTGEIAAGDEANILMSSYAMVFTRDPEQIDDDETEGWKILEFVRGGSRQFT

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 polymer

Description description	Antibody Fab fragment light chain
Molecular weight formula_weight	26173.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MEKDTLLLWVLLLWVPGSTGDIVLTQSPASLAVSLGQRATISCRASESVDIYGISFMNWFQQKPGQPPKLLIYATSNQGSGVPARFSGSGSGTDFSLNIHPMEEDDTAMYFCQQSKEVPRTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

Entity 5 Entity 5 polymer

Description description	Antibody Fab fragment heavy chain
Molecular weight formula_weight	25495.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MAVLVLLLCLVTFPSCVLSQVQLKQSGPGLVQPSQSLSITCTVSGFSLTTYGVHWVRQSPGKGLEWLGVMWRGGSTDFNAAFMSRLSITKDNSKSQVFFKMNSLQADDTAIYYCARYGNYDAMDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKIVPRDC

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

Entity 6 Entity 6 non-polymer

Description description	CARDIOLIPIN
Molecular weight formula_weight	1464.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	PHOSPHATIDYLETHANOLAMINE
Molecular weight formula_weight	734.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	159958
