7cuq

2.55-Angstrom Cryo-EM structure of Cytochrome bo3 from Escherichia coli in Native Membrane

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome bo(3) ubiquinol oxidase subunit 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cytochrome bo(3) ubiquinol oxidase subunit 2 × 1 （P0ABJ1） Cytochrome bo(3) ubiquinol oxidase subunit 3 × 1 （P0ABJ3） Cytochrome bo(3) ubiquinol oxidase subunit 4 × 1 （P0ABJ6） PROTOPORPHYRIN IX CONTAINING FE × 1 HEME O × 1 COPPER (II) ION × 1 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 Ubiquinone-8 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYOB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–663； UniProt 1–663

Cytochrome bo(3) ubiquinol oxidase subunit 2

OrganismNot specified

UniProt P0ABJ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cytochrome bo(3) ubiquinol oxidase subunit 1 × 1 （P0ABI8） Cytochrome bo(3) ubiquinol oxidase subunit 3 × 1 （P0ABJ3） Cytochrome bo(3) ubiquinol oxidase subunit 4 × 1 （P0ABJ6） PROTOPORPHYRIN IX CONTAINING FE × 1 HEME O × 1 COPPER (II) ION × 1 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 Ubiquinone-8 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYOA_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–291； UniProt 25–315

Cytochrome bo(3) ubiquinol oxidase subunit 3

OrganismNot specified

UniProt P0ABJ3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cytochrome bo(3) ubiquinol oxidase subunit 1 × 1 （P0ABI8） Cytochrome bo(3) ubiquinol oxidase subunit 2 × 1 （P0ABJ1） Cytochrome bo(3) ubiquinol oxidase subunit 4 × 1 （P0ABJ6） PROTOPORPHYRIN IX CONTAINING FE × 1 HEME O × 1 COPPER (II) ION × 1 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 Ubiquinone-8 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYOC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–204； UniProt 1–204

Cytochrome bo(3) ubiquinol oxidase subunit 4

OrganismNot specified

UniProt P0ABJ6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cytochrome bo(3) ubiquinol oxidase subunit 1 × 1 （P0ABI8） Cytochrome bo(3) ubiquinol oxidase subunit 2 × 1 （P0ABJ1） Cytochrome bo(3) ubiquinol oxidase subunit 3 × 1 （P0ABJ3） PROTOPORPHYRIN IX CONTAINING FE × 1 HEME O × 1 COPPER (II) ION × 1 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 Ubiquinone-8 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYOD_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–109； UniProt 1–109

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7cuq
Deposition date deposition_date	2020-08-24
Structure title title	2.55-Angstrom Cryo-EM structure of Cytochrome bo3 from Escherichia coli in Native Membrane
Keywords keywords	proton pump, ubiquinol, oxidase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7cuq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7cuq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

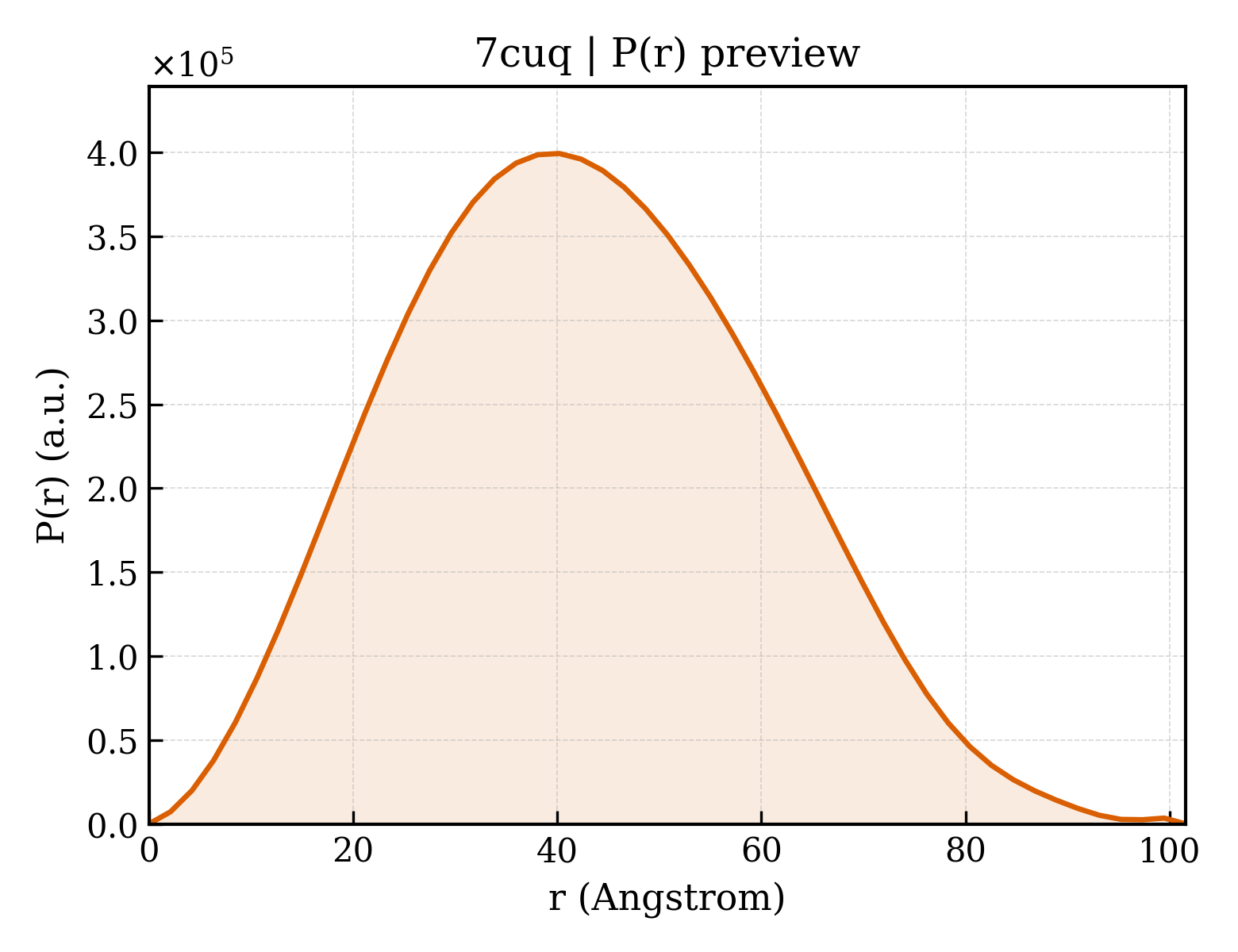

7cuq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.76 Å
Rg (electron density)	31.31 Å
Total Rg	32.09 Å
Atom count	9834
Residues	1199
Excluded volume	180760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7cuq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Cytochrome bo(3) ubiquinol oxidase subunit 1
Molecular weight formula_weight	74424.5 kDa
EC 编号 ec_number	7.1.1.3
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9834

MFGKLSLDAVPFHEPIVMVTIAGIILGGLALVGLITYFGKWTYLWKEWLTSVDHKRLGIMYIIVAIVMLLRGFADAIMMRSQQALASAGEAGFLPPHHYDQIFTAHGVIMIFFVAMPFVIGLMNLVVPLQIGARDVAFPFLNNLSFWFTVVGVILVNVSLGVGEFAQTGWLAYPPLSGIEYSPGVGVDYWIWSLQLSGIGTTLTGINFFVTILKMRAPGMTMFKMPVFTWASLCANVLIIASFPILTVTVALLTLDRYLGTHFFTNDMGGNMMMYINLIWAWGHPEVYILILPVFGVFSEIAATFSRKRLFGYTSLVWATVCITVLSFIVWLHHFFTMGAGANVNAFFGITTMIIAIPTGVKIFNWLFTMYQGRIVFHSAMLWTIGFIVTFSVGGMTGVLLAVPGADFVLHNSLFLIAHFHNVIIGGVVFGCFAGMTYWWPKAFGFKLNETWGKRAFWFWIIGFFVAFMPLYALGFMGMTRRLSQQIDPQFHTMLMIAASGAVLIALGILCLVIQMYVSIRDRDQNRDLTGDPWGGRTLEWATSSPPPFYNFAVVPHVHERDAFWEMKEKGEAYKKPDHYEEIHMPKNSGAGIVIAAFSTIFGFAMIWHIWWLAIVGFAGMIITWIVKSFDEDVDYYVPVAEIEKLENQHFDEITKAGLKNGN

Entity 2 Entity 2 polymer

Description description	Cytochrome bo(3) ubiquinol oxidase subunit 2
Molecular weight formula_weight	32250.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

CNSALLDPKGQIGLEQRSLILTAFGLMLIVVIPAILMAVGFAWKYRASNKDAKYSPNWSHSNKVEAVVWTVPILIIIFLAVLTWKTTHALEPSKPLAHDEKPITIEVVSMDWKWFFIYPEQGIATVNEIAFPANTPVYFKVTSNSVMNSFFIPRLGSQIYAMAGMQTRLHLIANEPGTYDGISASYSGPGFSGMKFKAIATPDRAAFDQWVAKAKQSPNTMSDMAAFEKLAAPSEYNQVEYFSNVKPDLFADVINKFMAHGKSMDMTQPEGEHSAHEGMEGMDMSHAESAH

Entity 3 Entity 3 polymer

Description description	Cytochrome bo(3) ubiquinol oxidase subunit 3
Molecular weight formula_weight	22642.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MATDTLTHATAHAHEHGHHDAGGTKIFGFWIYLMSDCILFSILFATYAVLVNGTAGGPTGKDIFELPFVLVETFLLLFSSITYGMAAIAMYKNNKSQVISWLALTWLFGAGFIGMEIYEFHHLIVNGMGPDRSGFLSAFFALVGTHGLHVTSGLIWMAVLMVQIARRGLTSTNRTRIMCLSLFWHFLDVVWICVFTVVYLMGAM

Entity 4 Entity 4 polymer

Description description	Cytochrome bo(3) ubiquinol oxidase subunit 4
Molecular weight formula_weight	12037.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSHSTDHSGASHGSVKTYMTGFILSIILTVIPFWMVMTGAASPAVILGTILAMAVVQVLVHLVCFLHMNTKSDEGWNMTAFVFTVLIIAILVVGSIWIMWNLNYNMMMH

Entity 5 Entity 5 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	HEME O
Molecular weight formula_weight	838.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	1,2-Distearoyl-sn-glycerophosphoethanolamine
Molecular weight formula_weight	748.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 9 Entity 9 non-polymer

Description description	Ubiquinone-8
Molecular weight formula_weight	727.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7cuqB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.64 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	209984
