SAXSdb — 1cyx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYOA

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 111–315	Fragment：PERIPLASMIC FRAGMENT (RESIDUES 111 - 315) Mutation：N172H, S207C, S209E, Y210I, S211C, F215H	CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.5；pH 4.5	Resolution 2.30 Å R-free 0.316

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CYX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CYW QUINOL OXIDASE (PERIPLASMIC FRAGMENT OF SUBUNIT II) (CYOA) Deposited 1995-08-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 111–315（205 aa） Fragment：PERIPLASMIC FRAGMENT (RESIDUES 111 - 315)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.326
1CYW QUINOL OXIDASE (PERIPLASMIC FRAGMENT OF SUBUNIT II) (CYOA) Deposited 1995-08-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 111–315（205 aa） Fragment：PERIPLASMIC FRAGMENT (RESIDUES 111 - 315)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.326
1FFT The structure of ubiquinol oxidase from Escherichia coli Deposited 2000-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–315（315 aa）	Not recorded	CU COPPER (II) ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；9-10% PEG 1500, 100 mM NaCl, 100 mM MgCl2, 5% ethanol & 100 mM HEPES , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 3.50 Å
1FFT The structure of ubiquinol oxidase from Escherichia coli Deposited 2000-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–315（315 aa）	Not recorded	CU COPPER (II) ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；9-10% PEG 1500, 100 mM NaCl, 100 mM MgCl2, 5% ethanol & 100 mM HEPES , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 3.50 Å
7CUB 2.55-Angstrom Cryo-EM structure of Cytochrome bo3 from Escherichia coli in Native Membrane Deposited 2020-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 25–315（291 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 UQ8 Ubiquinone-8 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å
7CUQ 2.55-Angstrom Cryo-EM structure of Cytochrome bo3 from Escherichia coli in Native Membrane Deposited 2020-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 25–315（291 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 UQ8 Ubiquinone-8 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.64 Å
7CUW Ubiquinol Binding Site of Cytochrome bo3 from Escherichia coli Deposited 2020-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 25–315（291 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 5 UQ8 Ubiquinone-8 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
8F68 E. coli cytochrome bo3 ubiquinol oxidase monomer Deposited 2022-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 24–283（260 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
8F6C E. coli cytochrome bo3 ubiquinol oxidase dimer Deposited 2022-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 24–283（260 aa） Chain F 24–283（260 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 2 HEO HEME O × 2 CU COPPER (II) ION × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å
8GO3 Cryo-EM structure of Escherichia coli cytochrome bo3 in DDM detergent Deposited 2022-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–315（315 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1 UQ8 Ubiquinone-8 × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8QQK Cryo-EM structure of E. coli cytochrome bo3 quinol oxidase assembled in peptidiscs Deposited 2023-10-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–315（315 aa）	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 3 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HEO HEME O × 1 CU COPPER (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCL, 150mM NaCl, 2% Glycerol, filtered and degassed. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYOA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–205； UniProt 111–315

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cyx
Deposition date deposition_date	1995-08-22
Structure title title	QUINOL OXIDASE (PERIPLASMIC FRAGMENT OF SUBUNIT II WITH ENGINEERED CU-A BINDING SITE)(CYOA)
Keywords keywords	ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.89 Å
Radius of gyration Rg (electron density) rg_electron	14.54 Å
Forward intensity I(0) i0	5714890.00
Molecular weight molecular_weight	17646.0 kDa
Excluded volume excluded_volume	22153 Å³
Envelope volume envelope_volume	24220 Å³
Hydration-shell volume shell_volume	13918 Å³
Envelope diameter envelope_diameter	46.7 Å
Shell Rg shell_rg	20.61 Å
Envelope Rg envelope_rg	14.75 Å
Shape Rg shape_rg	14.50 Å
Total Rg total_rg	15.80 Å
Total atoms total_atoms	1237
Residues n_residues	158
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

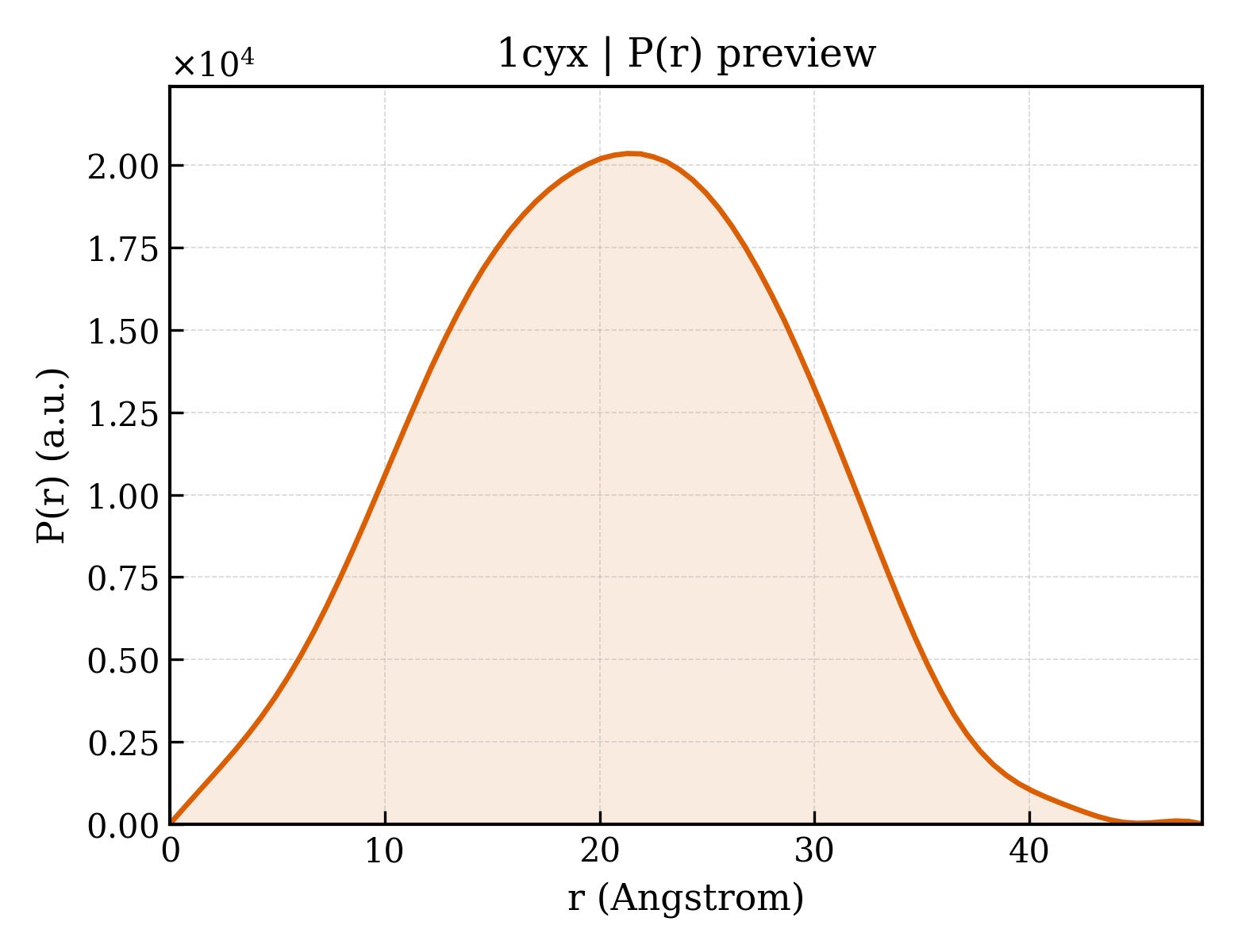

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.0 Å
Rg (real space) rg_real	15.75 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	5.7150e+06
I(0) uncertainty (real space) i0_real_error	5.9200e+04
Rg (reciprocal space) rg_reciprocal	15.77 Å
I(0) (reciprocal space) i0_reciprocal	5715000.0000
Solution quality estimate total_estimate	0.9039
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.010
Kurtosis Kurtosis kurtosis	-0.509
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	804200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CYOA
Molecular weight formula_weight	22742.7 kDa
EC 编号 ec_number	1.10.3.-
Mutation mutation	N172H, S207C, S209E, Y210I, S211C, F215H
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1405

THALEPSKPLAHDEKPITIEVVSMDWKWFFIYPEQGIATVNEIAFPANTPVYFKVTSNSVMHSFFIPRLGSQIYAMAGMQTRLHLIANEPGTYDGICAEICGPGHSGMKFKAIATPDRAAFDQWVAKAKQSPNTMSDMAAFEKLAAPSEYNQVEYFSNVKPDLFADVINKFMAHGKSMDMTQPEGEHSAHEGMEGMDMSHAESAH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DINUCLEAR COPPER ION
Molecular weight formula_weight	127.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	168

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1cyxa_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.2 — Periplasmic domain of cytochrome c oxidase subunit II

CATH v4.4 (1 domains)

Domain ID domain_id	1cyxA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

8. Citations (4)

▶

Unit-cell length a length_a	46.000 Å
Unit-cell length b length_b	98.200 Å
Unit-cell length c length_c	39.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.3160
