SAXSdb — 7jmt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BCL-2 protein

Schistosoma japonicum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count
5	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count
6	Protein monomer	Monomer	Protein 1	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5BWX6_SCHJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–210； UniProt 21–230 Author chain B； PDBConstruct 1–210； UniProt 21–230 Author chain C； PDBConstruct 1–210； UniProt 21–230 Author chain D； PDBConstruct 1–210； UniProt 21–230 Author chain E； PDBConstruct 1–210； UniProt 21–230 Author chain F； PDBConstruct 1–210； UniProt 21–230

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jmt
Deposition date deposition_date	2020-08-02
Structure title title	Crystal structure of schistosome BCL-2 bound to ABT-737
Keywords keywords	APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7jmt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7jmt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

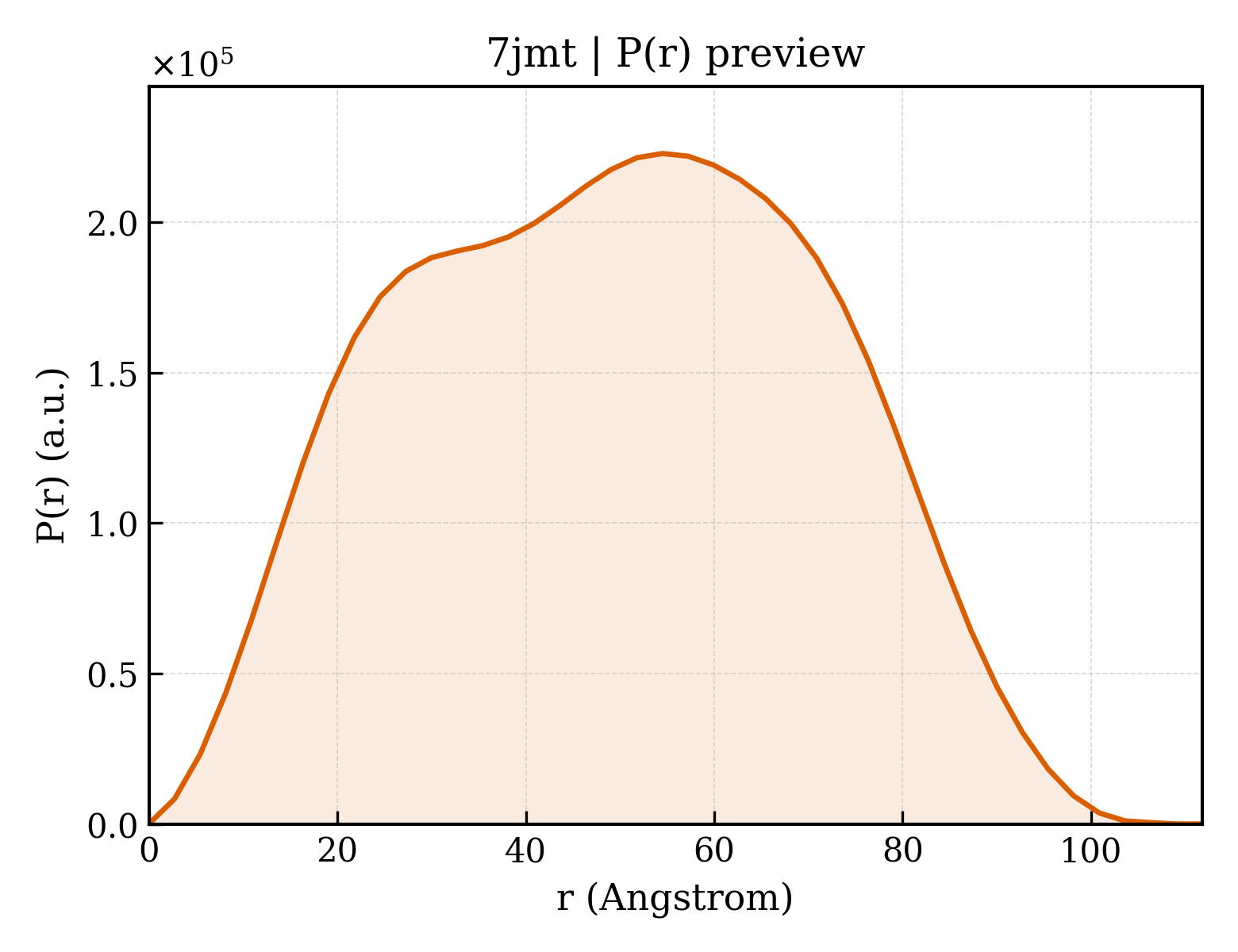

7jmt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.65 Å
Rg (electron density)	15.05 Å
Total Rg	16.22 Å
Atom count	2598
Residues	161
Excluded volume	23667 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7jmt__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7jmt__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`7jmt__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`7jmt__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`7jmt__assembly_5__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`7jmt__assembly_6__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BCL-2 protein
Molecular weight formula_weight	23416.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	15190

MSNTADFRLQTSTLCHSFLLASANKQDTDYLTDLLDNTNIDLTCVPNGQEIIHSLLQLVGDFNQRFSQTHEIEPVAQSLGIDSDKPVDKTALEIFYLEILNGLFEKLNWGRIVAMFAFLRILVLRLSKHGHSDAIQMLIKTTSQYSDEKLKNWINLHDGWSGLIEFSGRQFVNDGQELIWKTLRNVGGLATGAVGALGLAALVGYIANKI

Source Source

Source organism organism	Schistosoma japonicum
Common name common_name	Blood fluke
NCBI taxonomy ID ncbi_taxonomy_id	6182
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	;4-{4-[(4'-CHLOROBIPHENYL-2-YL)METHYL]PIPERAZIN-1-YL}-N-{[4-({(1R)-3-(DIMETHYLAMINO)-1-[(PHENYLTHIO)METHYL]PROPYL}AMINO)-3-NITROPHENYL]SULFONYL}BENZAMIDE ;
Molecular weight formula_weight	813.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	32

▶

Unit-cell length a length_a	100.021 Å
Unit-cell length b length_b	67.789 Å
Unit-cell length c length_c	100.907 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	86.470 Å
R factor r_factor	0.2347
R_work r_work	0.2336
R_free r_free	0.2550
