7k80

KIR3DL1001 in complex with HLA-A24:02 presenting the RYPLTFGW peptide

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class I antigen

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Beta-2-microglobulin × 1 （P61769） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 Killer cell immunoglobulin-like receptor 3DL1 × 1 （P43629） FORMIC ACID × 1 ACETATE ION × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Beta-2-microglobulin × 1 （P61769） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 Killer cell immunoglobulin-like receptor 3DL1 × 1 （P43629） ACETATE ION × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A411J078_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 25–300 Author chain D； PDBConstruct 1–276； UniProt 25–300

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	MHC class I antigen × 1 （A0A411J078） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 Killer cell immunoglobulin-like receptor 3DL1 × 1 （P43629） FORMIC ACID × 1 ACETATE ION × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	MHC class I antigen × 1 （A0A411J078） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 Killer cell immunoglobulin-like receptor 3DL1 × 1 （P43629） ACETATE ION × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119 Author chain E； PDBConstruct 2–100； UniProt 21–119

Killer cell immunoglobulin-like receptor 3DL1

Homo sapiens

UniProt P43629

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	MHC class I antigen × 1 （A0A411J078） Beta-2-microglobulin × 1 （P61769） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 FORMIC ACID × 1 ACETATE ION × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	MHC class I antigen × 1 （A0A411J078） Beta-2-microglobulin × 1 （P61769） ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP × 1 ACETATE ION × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KI3L1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–299； UniProt 22–320 Author chain H； PDBConstruct 1–299； UniProt 22–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7k80
Deposition date deposition_date	2020-09-24
Structure title title	KIR3DL1001 in complex with HLA-A24:02 presenting the RYPLTFGW peptide
Keywords keywords	KIR receptor, HLA, peptide presentation, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7k80__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

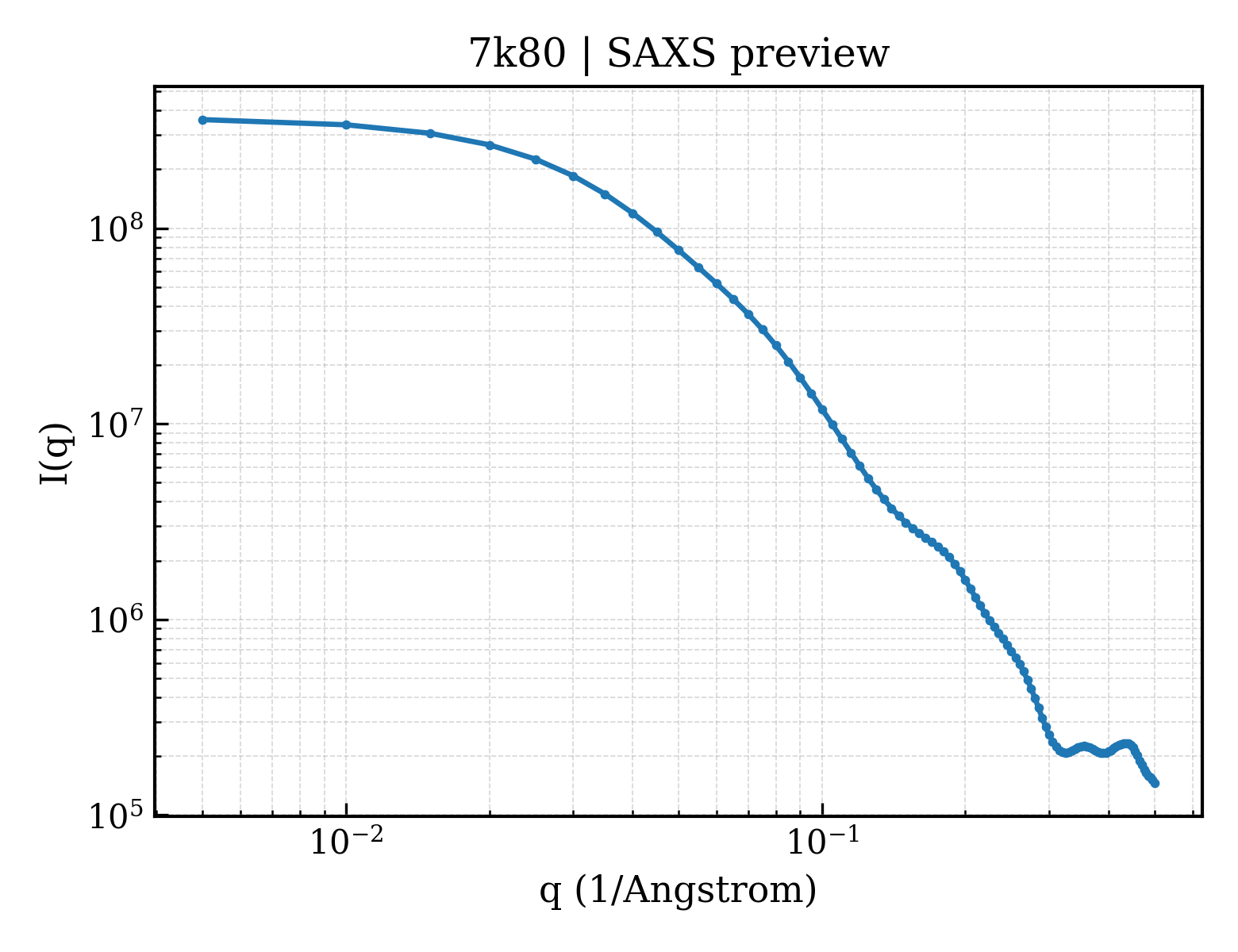

7k80__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

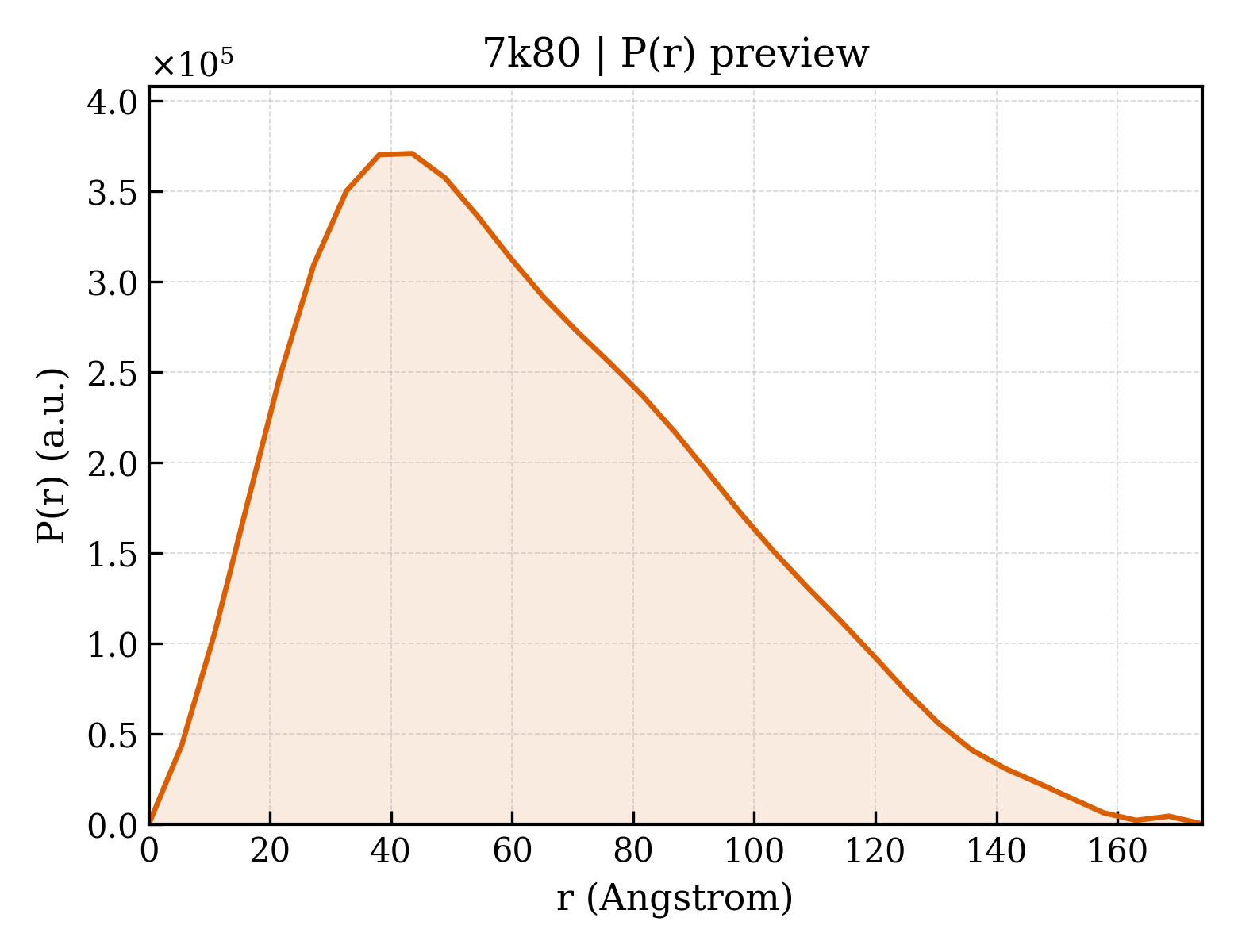

7k80__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.57 Å
Rg (electron density)	31.02 Å
Total Rg	31.56 Å
Atom count	5460
Residues	674
Excluded volume	95720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7k80__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7k80__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	MHC class I antigen
Molecular weight formula_weight	31778.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	11001

GSHSMRYFSTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDEETGKVKAHSQTDRENLRIALRYYNQSEAGSHTLQMMFGCDVGSDGRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQITKRKWEAAHVAEQQRAYLEGTCVDGLRRYLENGKETLQRTDPPKTHMTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWEP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	ARG-TYR-PRO-LEU-THR-PHE-GLY-TRP
Molecular weight formula_weight	1040.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

RYPLTFGW

Entity 4 Entity 4 polymer

Description description	Killer cell immunoglobulin-like receptor 3DL1
Molecular weight formula_weight	33076.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

HMGGQDKPFLSAWPSAVVPRGGHVTLRCHYRHRFNNFMLYKEDRIHIPIFHGRIFQESFNMSPVTTAHAGNYTCRGSHPHSPTGWSAPSNPVVIMVTGNHRKPSLLAHPGPLVKSGERVILQCWSDIMFEHFFLHKEGISKDPSRLVGQIHDGVSKANFSIGPMMLALAGTYRCYGSVTHTPYQLSAPSDPLDIVVTGPYEKPSLSAQPGPKVQAGESVTLSCSSRSSYDMYHLSREGGAHERRLPAVRKVNRTFQADFPLGPATHGGTYRCFGSFRHSPYEWSDPSDPLLVSVTGNPS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	nat
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	195

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	7k80G01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7k80G02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7k80G03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7k80H01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7k80H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7k80H03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	51.265 Å
Unit-cell length b length_b	85.017 Å
Unit-cell length c length_c	94.832 Å
Unit-cell angle α angle_alpha	82.47 °
Unit-cell angle β angle_beta	85.97 °
Unit-cell angle γ angle_gamma	77.92 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2006
R_work r_work	0.1980
R_free r_free	0.2491
