SAXSdb — 7lp1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase NEDD4-like

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 494–532	Fragment：WW 3 domain, residues 494-532	NO3 NITRATE ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.6；293.15 K；3.6M ammonium nitrate, 5% glycerol, and 0.1M sodium acetate at pH 4.6	Resolution 1.35 Å R-free 0.213

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7LP1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LAJ Third WW domain of human Nedd4L in complex with doubly phosphorylated human smad3 derived peptide Deposited 2011-03-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 496–535（40 aa） Fragment：WW 3 domain residues 496-535	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LB2 Structure of the second domain of human Nedd4L in complex with a phosphorylated pTPY motif derived from human Smad3 Deposited 2011-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 386–420（35 aa） Fragment：residues 386-420	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LTY NEDD4L WW2 domain in complex with a Smad7 derived peptide Deposited 2012-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 385–417（33 aa） Fragment：WW2 domain (UNP residues 385-417)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM NEDD4LWW2, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW2, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MPT WW3 domain of Nedd4L in complex with its HECT domain PY motif Deposited 2014-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 496–539（44 aa） Fragment：WW3 domain, UNP RESIDUES 496-539 Chain B 945–957（13 aa） Fragment：HECT domain PY motif, UNP RESIDUES 945-957	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Pressure ambient NMR sample composition 0.7 mM WW3-1, 1.4 mM HECT_PY-2, 150 mM sodium chloride-3, 20 mM sodium phosphate-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] WW3-5, 2 mM HECT_PY-6, 150 mM sodium chloride-7, 20 mM sodium phosphate-8, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] WW3-9, 1.6 mM HECT_PY-10, 150 mM sodium chloride-11, 20 mM sodium phosphate-12, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2NSQ Crystal structure of the C2 domain of the human E3 ubiquitin-protein ligase NEDD4-like protein Deposited 2006-11-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–154（154 aa） Fragment：C2 Domain	Not recorded	EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；14% PEG 4000, 0.2 M NaOAc, pH 6.5, 1 mM DTT. 20% Ethylene glycol added as cryoprotectant, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K, pH 6.50	Resolution 1.85 Å R-free 0.218
2ONI Catalytic Domain of the Human NEDD4-like E3 Ligase Deposited 2007-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 594–967（374 aa） Fragment：Hect Domain (ubiquitin transferase)	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；THE PROTEIN WAS DISSOLVED AT 10 mg/mL IN 10 mM TRIS-HCL, PH 8.0, 100 mM NaCl, 2% GLYCEROL AND 1 mM DTT. CRYSTALS WERE GROWN BY VAPOR DIFFUSION, HANGING DROPS BY MIXING 2 MICROL PROTEIN SOLUTION WITH 2 MICROL WELL SOLUTION (1.7 M SODIUM/POTASSIUM PHOSPHATE, PH 6.0, 1 mM DTT) AT TEMPERATURE 294.0K. FOR CRYOPROTECTION, THE CRYSTALS WERE SOAKED IN 2 M SODIUM-POTASSIUM PHOSPHATE, pH 7.0, 1 mM DTT, 25% ETHYLENE GLYCOL AND 2 mG/mL SEMETNEDD4L.574.947.	Resolution 2.20 Å R-free 0.259
2ONI Catalytic Domain of the Human NEDD4-like E3 Ligase Deposited 2007-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 594–967（374 aa） Fragment：Hect Domain (ubiquitin transferase)	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；THE PROTEIN WAS DISSOLVED AT 10 mg/mL IN 10 mM TRIS-HCL, PH 8.0, 100 mM NaCl, 2% GLYCEROL AND 1 mM DTT. CRYSTALS WERE GROWN BY VAPOR DIFFUSION, HANGING DROPS BY MIXING 2 MICROL PROTEIN SOLUTION WITH 2 MICROL WELL SOLUTION (1.7 M SODIUM/POTASSIUM PHOSPHATE, PH 6.0, 1 mM DTT) AT TEMPERATURE 294.0K. FOR CRYOPROTECTION, THE CRYSTALS WERE SOAKED IN 2 M SODIUM-POTASSIUM PHOSPHATE, pH 7.0, 1 mM DTT, 25% ETHYLENE GLYCOL AND 2 mG/mL SEMETNEDD4L.574.947.	Resolution 2.20 Å R-free 0.259
2ONI Catalytic Domain of the Human NEDD4-like E3 Ligase Deposited 2007-01-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 594–967（374 aa） Fragment：Hect Domain (ubiquitin transferase)	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；THE PROTEIN WAS DISSOLVED AT 10 mg/mL IN 10 mM TRIS-HCL, PH 8.0, 100 mM NaCl, 2% GLYCEROL AND 1 mM DTT. CRYSTALS WERE GROWN BY VAPOR DIFFUSION, HANGING DROPS BY MIXING 2 MICROL PROTEIN SOLUTION WITH 2 MICROL WELL SOLUTION (1.7 M SODIUM/POTASSIUM PHOSPHATE, PH 6.0, 1 mM DTT) AT TEMPERATURE 294.0K. FOR CRYOPROTECTION, THE CRYSTALS WERE SOAKED IN 2 M SODIUM-POTASSIUM PHOSPHATE, pH 7.0, 1 mM DTT, 25% ETHYLENE GLYCOL AND 2 mG/mL SEMETNEDD4L.574.947.	Resolution 2.20 Å R-free 0.259
3JVZ E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 596–975（380 aa） Fragment：HECT domain	Mutation：576-949, C922A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, pH 5.1-5.2, 2.4-2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.30 Å R-free 0.267
3JVZ E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 596–975（380 aa） Fragment：HECT domain	Mutation：576-949, C922A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, pH 5.1-5.2, 2.4-2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.30 Å R-free 0.267
3JW0 E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 596–975（380 aa） Fragment：NEDD4L HECT DOMAIN (UNP 576-955)	Mutation：UBIQUITIN G76 ESTER-LINKED TO UBCH5B TO S85	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, 2.4M sodium chloride, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.287
3JW0 E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 596–975（380 aa） Fragment：NEDD4L HECT DOMAIN (UNP 576-955)	Mutation：UBIQUITIN G76 ESTER-LINKED TO UBCH5B TO S85	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, 2.4M sodium chloride, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.287
5HPK System-wide modulation of HECT E3 ligases with selective ubiquitin variant probes: NEDD4L and UbV NL.1 Deposited 2016-01-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 594–975（382 aa） Fragment：HECT domain (UNP residues 594-975)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Sodium cacodylate, NaCl, PEG 8000, 1-butanol	Resolution 2.43 Å R-free 0.227
6ZBT Structure of 14-3-3 gamma in complex with Nedd4-2 14-3-3 binding motif Ser342 Deposited 2020-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 338–347（10 aa） Chain G 338–347（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CFH 1,1,1,3,3,3-hexafluoropropan-2-ol × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；PEG 400, magnesium chloride, HEPES, hexafluoro-2-propanol	Resolution 1.80 Å R-free 0.241
6ZBT Structure of 14-3-3 gamma in complex with Nedd4-2 14-3-3 binding motif Ser342 Deposited 2020-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 338–347（10 aa） Chain H 338–347（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CFH 1,1,1,3,3,3-hexafluoropropan-2-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；PEG 400, magnesium chloride, HEPES, hexafluoro-2-propanol	Resolution 1.80 Å R-free 0.241
6ZC9 Structure of 14-3-3 gamma in complex with Nedd4-2 14-3-3 binding motif Ser448 Deposited 2020-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 444–453（10 aa） Chain G 444–453（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；PEG 400, magnesium chloride, HEPES, hexafluoro-2-propanol	Resolution 1.90 Å R-free 0.239
6ZC9 Structure of 14-3-3 gamma in complex with Nedd4-2 14-3-3 binding motif Ser448 Deposited 2020-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 444–453（10 aa） Chain H 444–453（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CFH 1,1,1,3,3,3-hexafluoropropan-2-ol × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；PEG 400, magnesium chloride, HEPES, hexafluoro-2-propanol	Resolution 1.90 Å R-free 0.239
7LP3 Structure of Nedd4L WW3 domain Deposited 2021-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 193–226（34 aa） Fragment：WW 1 domain, residues 193-226	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；1.6M (NH4)2SO4, 0.1M Potassium Sodium Tartrate, 5% glycerol, 0.1M Sodium Acetate	Resolution 1.61 Å R-free 0.210
7LP3 Structure of Nedd4L WW3 domain Deposited 2021-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 193–226（34 aa） Fragment：WW 1 domain, residues 193-226	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；1.6M (NH4)2SO4, 0.1M Potassium Sodium Tartrate, 5% glycerol, 0.1M Sodium Acetate	Resolution 1.61 Å R-free 0.210
7LP4 Structure of Nedd4L WW3 domain Deposited 2021-02-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 493–539（47 aa） Fragment：WW 3 domain, residues 493-539	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 1 mM [U-100% 13C; U-100% 15N] E3 ubiquitin-protein ligase NEDD4-like, 20 mM sodium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] E3 ubiquitin-protein ligase NEDD4-like, 20 mM sodium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
7LP5 Structure of Nedd4L WW3 domain Deposited 2021-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 493–539（47 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Angiomotin,E3 ubiquitin-protein ligase NEDD4-like fusion, 20 mM sodium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] Angiomotin,E3 ubiquitin-protein ligase NEDD4-like fusion, 20 mM sodium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
7NMZ Structure of 14-3-3 eta in complex with Nedd4-2(335-455) containing two 14-3-3 binding motifs Ser342 and Ser448 Deposited 2021-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 335–455（121 aa）	Mutation：T367A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03M of each NPS (sodium nitrate, sodium phosphate dibasic, ammonium sulfate), 0.1Mbicine/Trizma base pH 8.5, 30% sacharose	Resolution 2.30 Å R-free 0.235
9GIK Full-lenght Nedd4-2 E3 ubiquitin ligase Deposited 2024-08-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–955（955 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 130 mM KCl, 20 mM NaCl, 1 mM EDTA, 1 mM TCEP, 3mM CHAPSO cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.58 Å
9GIM Full-lenght Nedd4-2 E3 ubiquitin ligase in presence of Ca2+ Deposited 2024-08-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–955（955 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 130 mM KCl, 20 mM NaCl, 1 mM TCEP, 1mM CaCl2, 3mM CHAPSO cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.11 Å
9Z5Q HECT domain of NEDD4-2 complex with a targeted nanobody, nb.C11 Deposited 2025-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 541–975（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 150 mM NaCl, 1 mM TCEP, and 1 mM EDTA, 0.043% CHAPS cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out at Argon atmosphere	Resolution 3.06 Å

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NED4L_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–39； UniProt 494–532

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7lp1
Deposition date deposition_date	2021-02-11
Structure title title	Structure of Nedd4L WW3 domain
Keywords keywords	PPxY binding, E3 Ubiquitin ligase, Nedd4L, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.89 Å
Radius of gyration Rg (electron density) rg_electron	10.59 Å
Forward intensity I(0) i0	661430.00
Molecular weight molecular_weight	4986.0 kDa
Excluded volume excluded_volume	6152 Å³
Envelope volume envelope_volume	7183 Å³
Hydration-shell volume shell_volume	6347 Å³
Envelope diameter envelope_diameter	37.4 Å
Shell Rg shell_rg	15.21 Å
Envelope Rg envelope_rg	11.12 Å
Shape Rg shape_rg	10.54 Å
Total Rg total_rg	12.07 Å
Total atoms total_atoms	662
Residues n_residues	39
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.5 Å
Rg (real space) rg_real	11.85 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	6.6140e+05
I(0) uncertainty (real space) i0_real_error	6.3800e+03
Rg (reciprocal space) rg_reciprocal	11.86 Å
I(0) (reciprocal space) i0_reciprocal	661400.0000
Solution quality estimate total_estimate	0.8976
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.0 Å
Skewness Skewness skewness	0.168
Kurtosis Kurtosis kurtosis	-0.416
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	67400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase NEDD4-like
Molecular weight formula_weight	4638.3 kDa
EC 编号 ec_number	2.3.2.26
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	705

VTQSFLPPGWEMRIAPNGRPFFIDHNTKTTTWEDPRLKF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	43

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d7lp1a_
Class class	b — All beta proteins
Fold Fold fold	b.72 — WW domain-like
Superfamily Superfamily superfamily	b.72.1 — WW domain
Family Family family	b.72.1.0 — automated matches

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.344 Å
Unit-cell length b length_b	40.344 Å
Unit-cell length c length_c	54.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	trigonal

Resolution resolution	1.350 Å
Low-resolution limit resolution_low	29.470 Å
R factor r_factor	0.1868
R_work r_work	0.1836
R_free r_free	0.2135

fit	/app/data/saxs_computation/lp/7lp1/7lp1.fit
pddf	/app/data/pr_computation/lp/7lp1/7lp1.pr.out
profile	/app/data/saxs_computation/lp/7lp1/7lp1.dat

Structure of Nedd4L WW3 domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase NEDD4-like

State in the Current Structure

Other States of the Same Protein in the Database

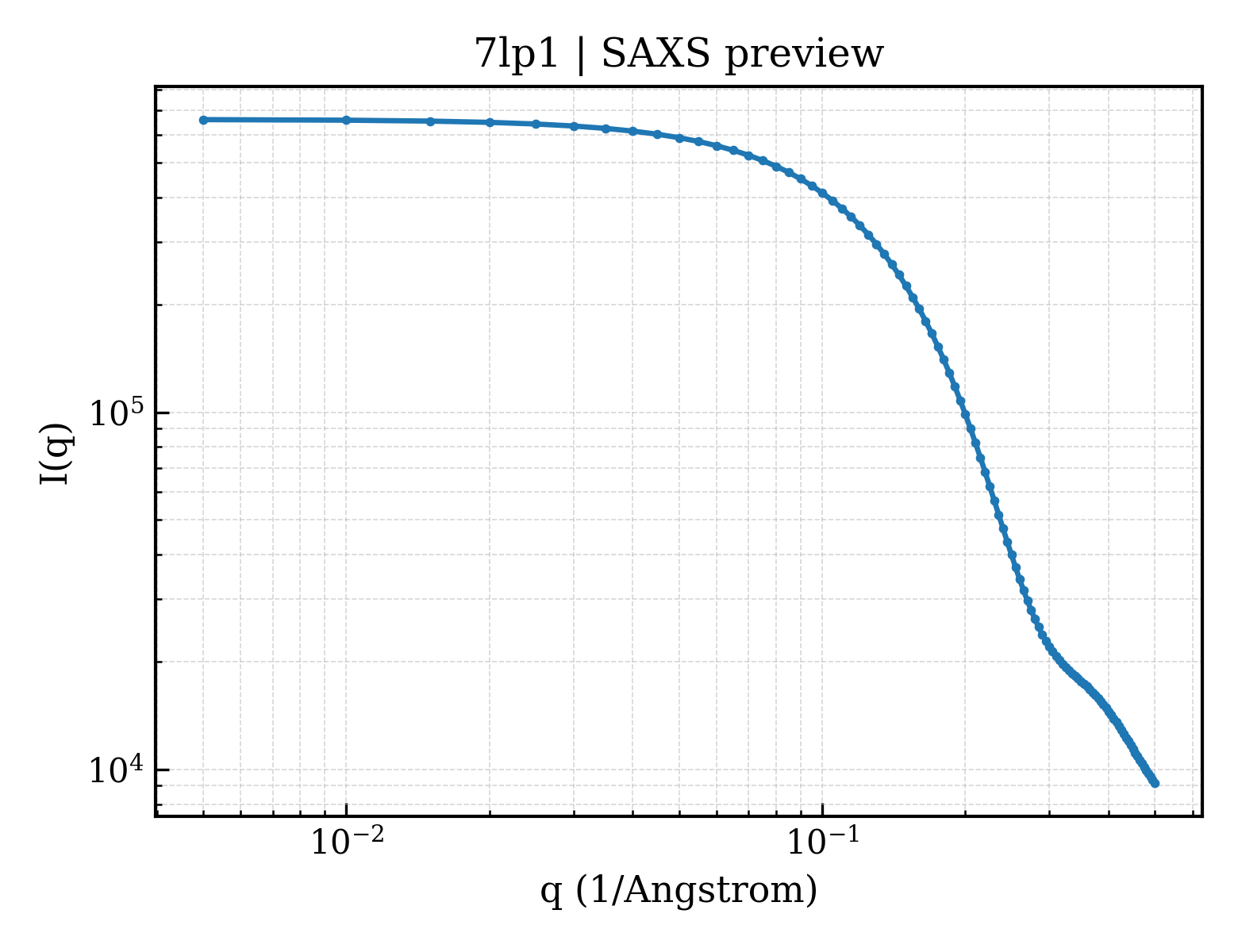

SAXS scattering curve SAXS Profile
