7mtq

CryoEM Structure of Full-Length mGlu2 in Inactive-State Bound to Antagonist LY341495

Method: ELECTRON MICROSCOPY Dmax: 172.7 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Metabotropic glutamate receptor 2

Homo sapiens

UniProt Q14416

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 18–872 Chain B； UniProt 18–872 Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.65 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7MTQ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4XAQ mGluR2 ECD and mGluR3 ECD with ligands Deposited 2014-12-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–493（492 aa） Fragment：UNP residues 2-493
Chain B 2–493（492 aa） Fragment：UNP residues 2-493
Not recorded 40F (1S,2S,5R,6S)-2-aminobicyclo[3.1.0]hexane-2,6-dicarboxylic acid × 2 SO4 SULFATE ION × 2 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；100mM MES pH 6 + 25% PEG 4K + 200mM Ammonium Sulfate
Resolution 2.21 Å R-free 0.225
4XAS mGluR2 ECD ligand complex Deposited 2014-12-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–493（492 aa） Fragment：UNP RESIDUES 2-493
Chain B 2–493（492 aa） Fragment：UNP RESIDUES 2-493
Not recorded 40H (1R,4S,5S,6S)-4-aminospiro[bicyclo[3.1.0]hexane-2,1'-cyclopropane]-4,6-dicarboxylic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；100mM Sodium Acetate pH 4.6 + 23% PEG 10K
Resolution 2.35 Å R-free 0.280
5CNI mGlu2 with Glutamate Deposited 2015-07-17 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–493（492 aa） Fragment：UNP residues 2-493
Chain B 2–493（492 aa） Fragment：UNP residues 2-493
Not recorded GLU GLUTAMIC ACID × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；100mM Sodium Acetate pH 4.6 + 15% PEG 20K
Resolution 2.69 Å R-free 0.222
5CNJ mGlur2 with glutamate analog Deposited 2015-07-17 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–493（492 aa） Fragment：UNP residues 2-493
Chain B 2–493（492 aa） Fragment：UNP residues 2-493
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 52Q (1R,2S,4R,5R,6R)-2-amino-4-(1H-1,2,4-triazol-3-ylsulfanyl)bicyclo[3.1.0]hexane-2,6-dicarboxylic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；100mM Hepes pH 7 + 20% PEG 3350 + 200mM Magnesium Chloride
Resolution 2.65 Å R-free 0.241
5KZN Metabotropic Glutamate Receptor Deposited 2016-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–564（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；100mM Tris HCl pH 8.5,.5% PEG MME 5K, 800mM Potassium Sodium Tartrate
Resolution 2.80 Å R-free 0.249
5KZQ Metabotropic Glutamate Receptor in complex with antagonist (1~{S},2~{R},3~{S},4~{S},5~{R},6~{R})-2-azanyl-3-[[3,4-bis(fluoranyl)phenyl]sulfanylmethyl]-4-oxidanyl-bicyclo[3.1.0]hexane-2,6-dicarboxylic acid Deposited 2016-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–564（564 aa）
Not recorded 6YS (1~{S},2~{R},3~{S},4~{S},5~{R},6~{R})-2-azanyl-3-[[3,4-bis(fluoranyl)phenyl]sulfanylmethyl]-4-oxidanyl-bicyclo[3.1.0]hexane-2,6-dicarboxylic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；18% PEG 20,000, 100 mM L-proline
Resolution 2.80 Å R-free 0.245
7E9G Cryo-EM structure of Gi-bound metabotropic glutamate receptor mGlu2 Deposited 2021-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 19–825（807 aa）
Chain S 19–825（807 aa）
Mutation：S601A Mutation：S601A 40F (1S,2S,5R,6S)-2-aminobicyclo[3.1.0]hexane-2,6-dicarboxylic acid × 2 HZR 1-butyl-3-chloranyl-4-(4-phenylpiperidin-1-yl)pyridin-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7EPA Cryo-EM structure of inactive mGlu2 homodimer Deposited 2021-04-26 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 19–825（807 aa）
Chain B 19–825（807 aa）
Mutation：N655Y, H815Y Mutation：N655Y, H815Y No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7EPB Cryo-EM structure of LY354740-bound mGlu2 homodimer Deposited 2021-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 19–825（807 aa）
Chain B 19–825（807 aa）
Mutation：S601A Mutation：S601A 40F (1S,2S,5R,6S)-2-aminobicyclo[3.1.0]hexane-2,6-dicarboxylic acid × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7EPD Cryo-EM structure of inactive mGlu2-7 heterodimer Deposited 2021-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 19–825（807 aa）
Mutation：N655Y,H815Y No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7MTR CryoEM Structure of Full-Length mGlu2 Bound to Ago-PAM ADX55164 and Glutamate Deposited 2021-05-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 18–872（855 aa）
Chain B 18–872（855 aa）
Not recorded GLU GLUTAMIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZQY 2-methoxy-6-propyl-N-(2-{4-[(1H-tetrazol-5-yl)methoxy]phenyl}ethyl)thieno[2,3-d]pyrimidin-4-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7MTS CryoEM Structure of mGlu2 - Gi Complex Deposited 2021-05-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 18–872（855 aa）
Chain B 18–872（855 aa）
Not recorded ZQY 2-methoxy-6-propyl-N-(2-{4-[(1H-tetrazol-5-yl)methoxy]phenyl}ethyl)thieno[2,3-d]pyrimidin-4-amine × 1 GLU GLUTAMIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8JCU Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 (dimerization mode I) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8JCV Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 (dimerization mode II) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCW Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 and NAM563 (dimerization mode I) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JCX Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 and NAM563 (dimerization mode II) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JCY Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495, NAM563, and LY2389575 (dimerization mode I) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8JCZ Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495, NAM563, and LY2389575 (dimerization mode III) Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JD0 Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of NAM563 Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 J9R 4-(1-methylpyrazol-4-yl)-7-[[(2~{S})-2-(trifluoromethyl)morpholin-4-yl]methyl]quinoline-2-carboxamide × 1 CLR CHOLESTEROL × 9 GLU GLUTAMIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8JD1 Cryo-EM structure of mGlu2-mGlu3 heterodimer in Rco state Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8JD2 Cryo-EM structure of G protein-free mGlu2-mGlu3 heterodimer in Acc state Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded GLU GLUTAMIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8JD3 Cryo-EM structure of Gi1-bound mGlu2-mGlu3 heterodimer Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain 2 19–872（854 aa）
Not recorded HZR 1-butyl-3-chloranyl-4-(4-phenylpiperidin-1-yl)pyridin-2-one × 1 GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 3 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8JD4 Cryo-EM structure of G protein-free mGlu2-mGlu4 heterodimer in Acc state Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 19–872（854 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GLU GLUTAMIC ACID × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8JD5 Cryo-EM structure of Gi1-bound mGlu2-mGlu4 heterodimer Deposited 2023-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 19–872（854 aa）
Not recorded HZR 1-butyl-3-chloranyl-4-(4-phenylpiperidin-1-yl)pyridin-2-one × 1 GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 5 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BQI 5-methyl-N-(4-methylpyrimidin-2-yl)-4-(1H-pyrazol-4-yl)-1,3-thiazol-2-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8WG9 mGlu2-mGlu4 heterodimer bound mGlu4 agonist E7P Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 19–872（854 aa）
Not recorded E7P (2S)-2-amino-4-phosphonobutanoic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.46 Å
8WGB mGlu2-4 heterodimer bound with Gi Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: hexameric
Chain B 19–872（854 aa）
Not recorded GLU GLUTAMIC ACID × 2 W9R (1R,2S)-2-[[3,5-bis(chloranyl)phenyl]carbamoyl]cyclohexane-1-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8WGC heterodimer of mGlu2 and mGlu4 bound with mGlu2 agonist LY379268 Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 19–872（854 aa）
Not recorded W92 (1R,4R,5S,6R)-4-azanyl-2-oxabicyclo[3.1.0]hexane-4,6-dicarboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.95 Å
8WGD mGlu2-4 inactive heterodimer Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 19–872（854 aa）
Not recorded WAG (1S,2R)-2-[(2S)-2-azanyl-1-oxidanyl-1-oxidanylidene-3-(9H-xanthen-9-yl)propan-2-yl]cyclopropane-1-carboxylic acid × 1 WA6 (2S)-2-azanyl-2-cyclopropyl-2-(4-phosphonophenyl)ethanoic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.45 Å

28 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GRM2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–855； UniProt 18–872 Author chain B； PDBConstruct 1–855； UniProt 18–872

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7mtq

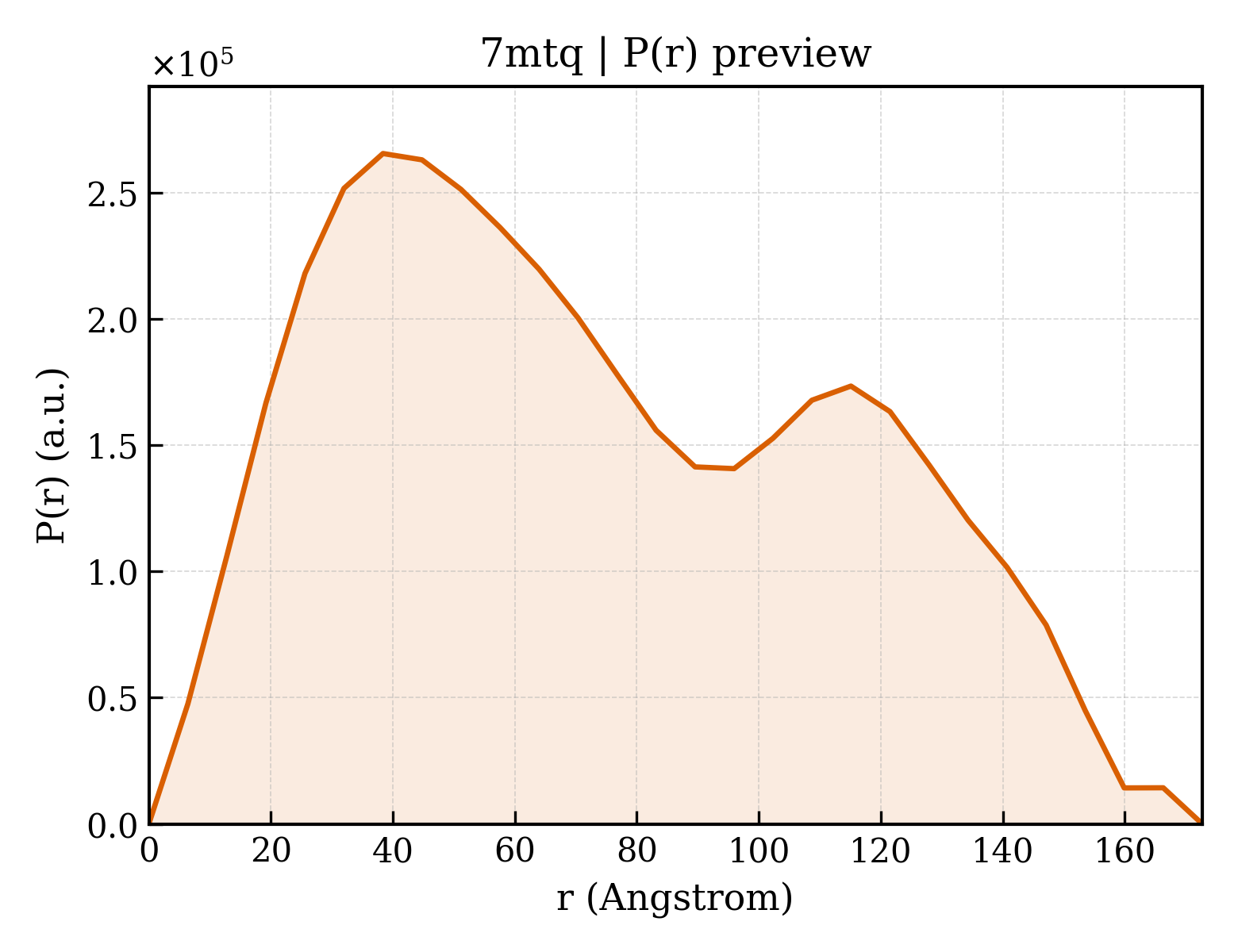

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7mtq
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7mtq
Deposition date deposition_date2021-05-13
Structure title titleCryoEM Structure of Full-Length mGlu2 in Inactive-State Bound to Antagonist LY341495
Keywords keywords;Metabotropic Glutamate Receptor 2 (mGlu2) (mGluR2), Family C G protein-coupled receptor (GPCR), Heterotrimeric G protein, CryoEM structure, MEMBRANE PROTEIN, MEMBRANE PROTEIN-ANTAGONIST complex ;; MEMBRANE PROTEIN/ANTAGONIST
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier58.10 Å
Radius of gyration Rg (electron density) rg_electron58.43 Å
Forward intensity I(0) i0322805000.00
Molecular weight molecular_weight147130.0 kDa
Excluded volume excluded_volume182580 ų
Envelope volume envelope_volume322260 ų
Hydration-shell volume shell_volume48702 ų
Envelope diameter envelope_diameter184.6 Å
Shell Rg shell_rg57.38 Å
Envelope Rg envelope_rg55.89 Å
Shape Rg shape_rg58.39 Å
Total Rg total_rg58.56 Å
Total atoms total_atoms10388
Residues n_residues1486
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax172.7 Å
Rg (real space) rg_real58.64 Å
Rg uncertainty (real space) rg_real_error1.99 Å
I(0) (real space) i0_real3.2280e+08
I(0) uncertainty (real space) i0_real_error6.8420e+06
Rg (reciprocal space) rg_reciprocal57.57 Å
I(0) (reciprocal space) i0_reciprocal322200000.0000
Solution quality estimate total_estimate0.7667
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary38.4 Å
Skewness Skewness skewness0.329
Kurtosis Kurtosis kurtosis-0.972
Angular range angular_range— – 0.1350 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha12610000.0000
Real-space data points n_real_points28
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.632; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id7mtqA01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily2300 — Response regulator
Domain ID domain_id7mtqB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily2300 — Response regulator
▶

8. Citations (1)

▶

9. Files and Curves (10)
